Acura Integra (1998 – 2001) – wiring diagrams – power mirrors

Acura Integra (1998 -2001) – wiring diagrams – power mirrors

Year of productions: 1998, 1999, 2000, 2001

Power mirror

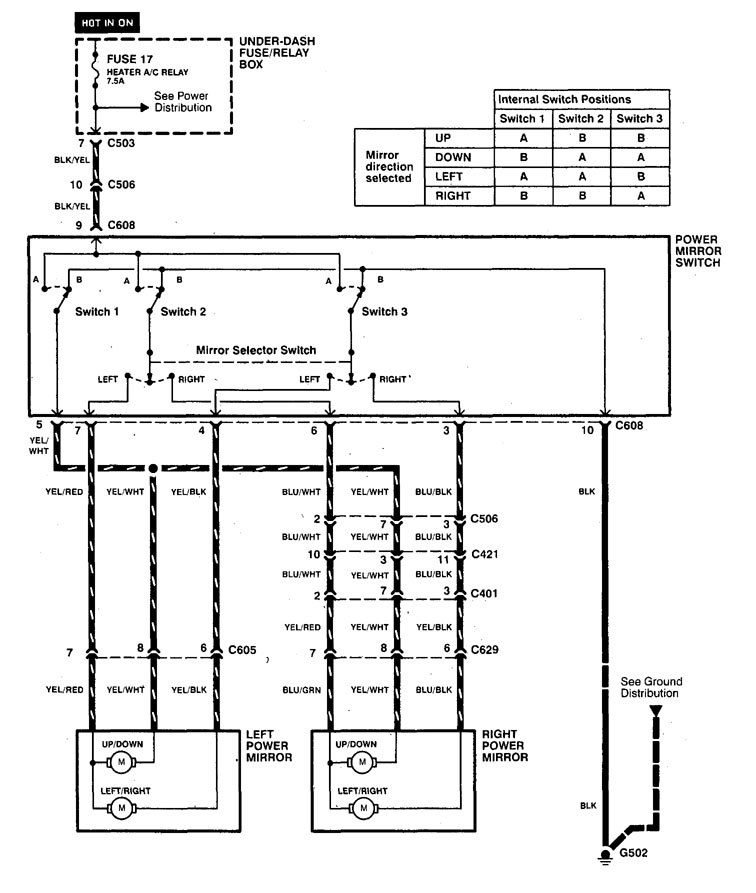

Version 1

Acura Integra - wiring diagram - power mirror
Acura Integra – wiring diagram – power mirror

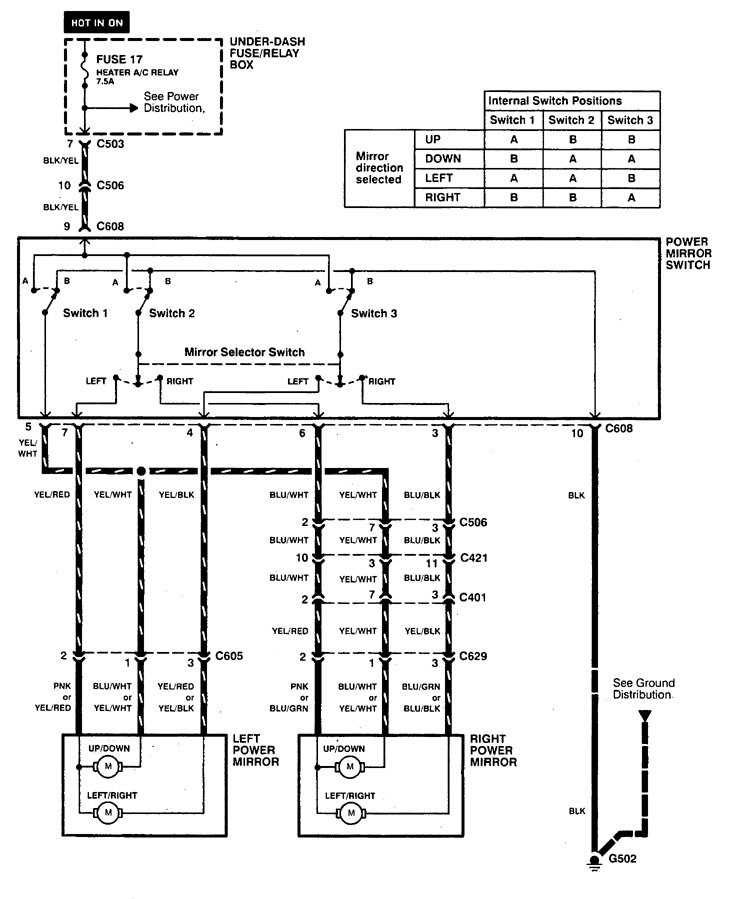

Version 2

Acura Integra - wiring diagram - power mirror
Acura Integra – wiring diagram – power mirror

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
