Acura Integra (2000 – 2001) – wiring diagrams – brake controls

Acura Integra (2000 – 2001) – wiring diagrams – brake controls

Year of productions: 2000, 2001

Brake controls

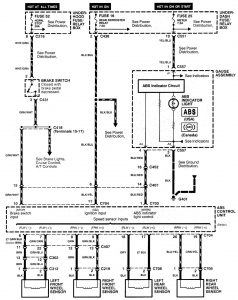

Acura Integra - wiring diagram - brake controls (part 1)
Acura Integra – wiring diagram – brake controls (part 1)

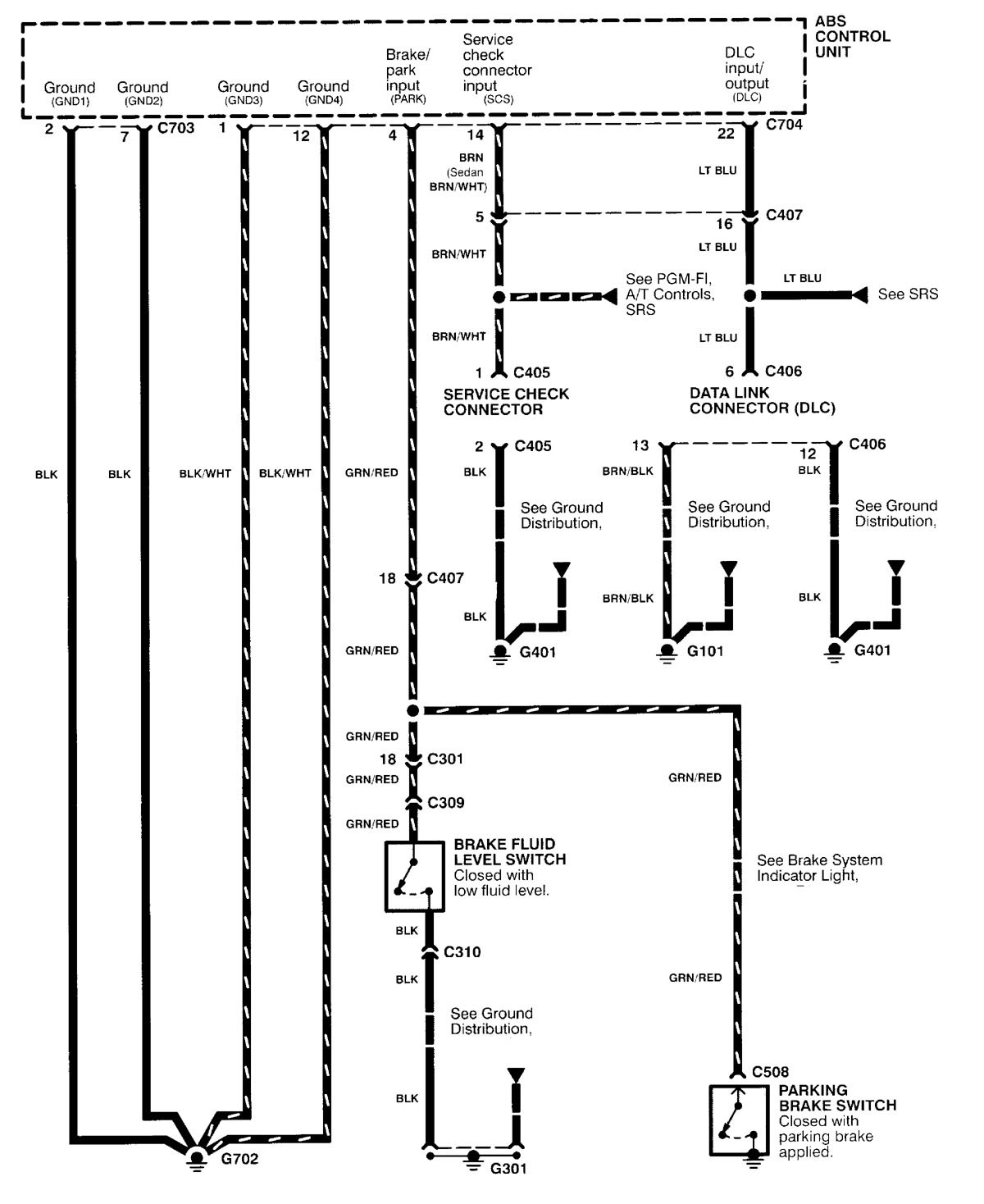

Acura Integra - wiring diagram - brake controls (part 2)
Acura Integra – wiring diagram – brake controls (part 2)

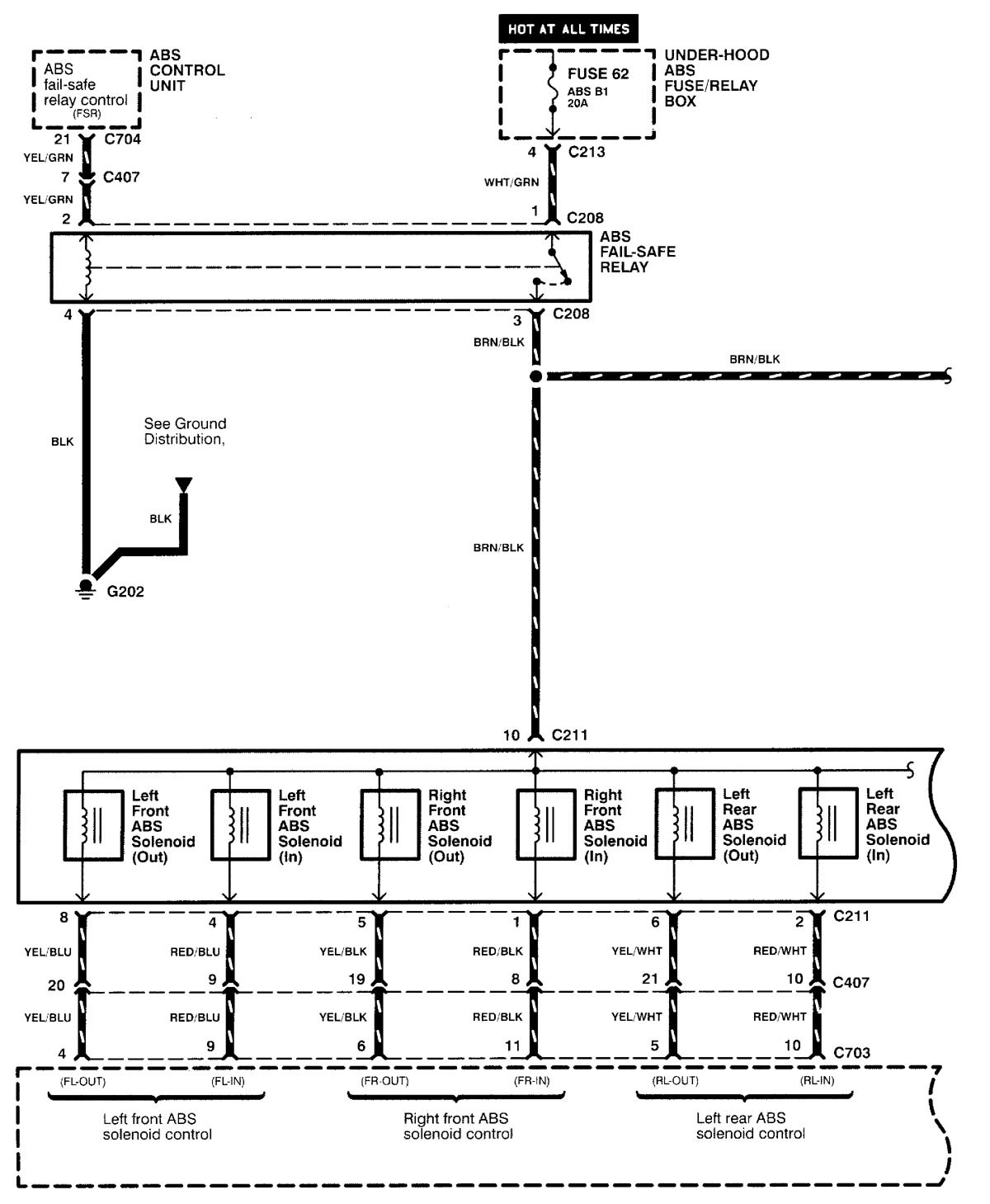

Acura Integra - wiring diagram - brake controls (part 3)
Acura Integra – wiring diagram – brake controls (part 3)

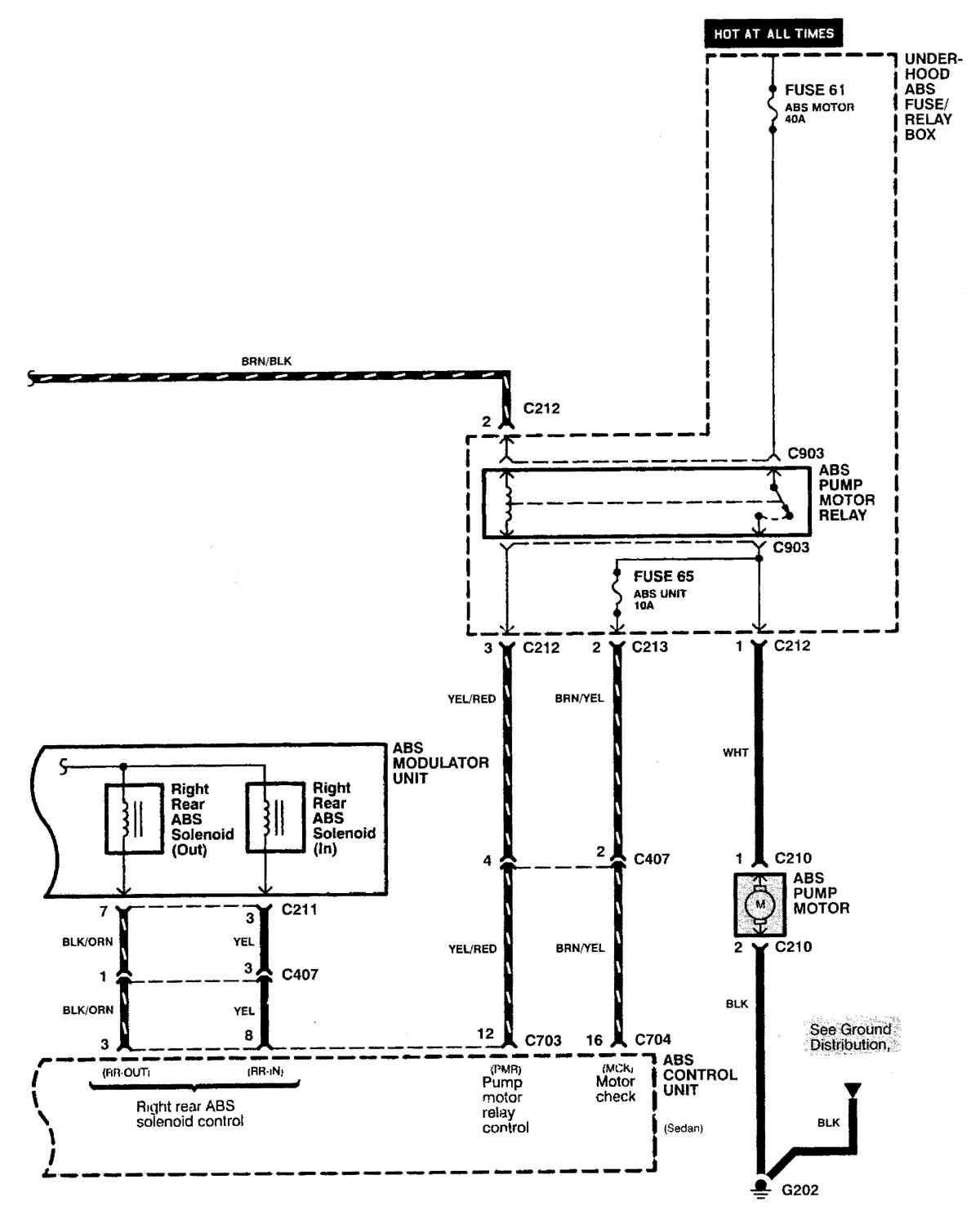

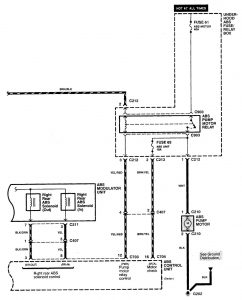

Acura Integra - wiring diagram - brake controls (part 4)
Acura Integra – wiring diagram – brake controls (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
