Acura Legend (1988) – wiring system – power distribution

Acura Legend (1988) – wiring system – power distribution

Year of productions:  1988

Power distribution

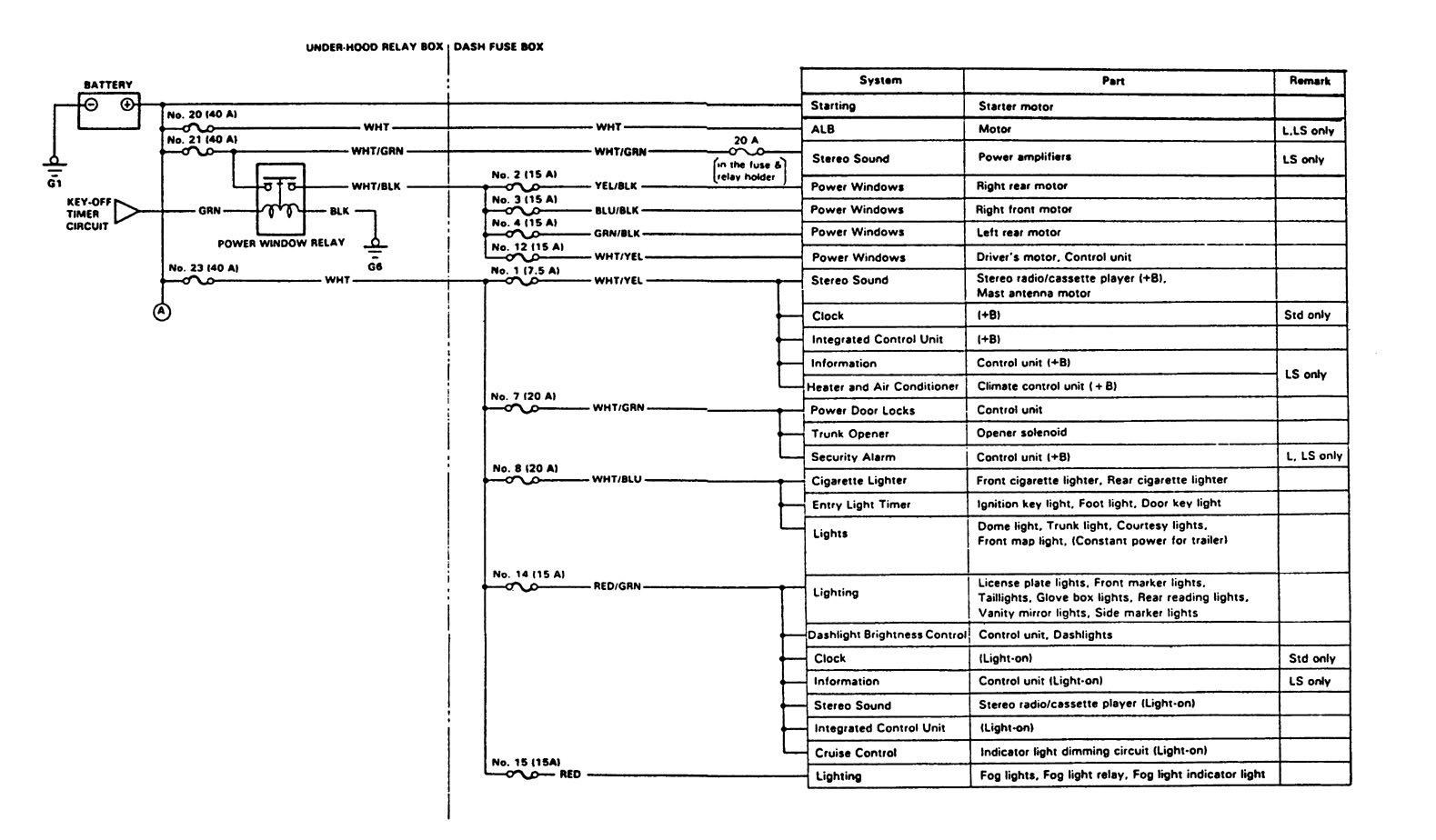

Acura Legend – wiring diagram – power distribution (part 1)

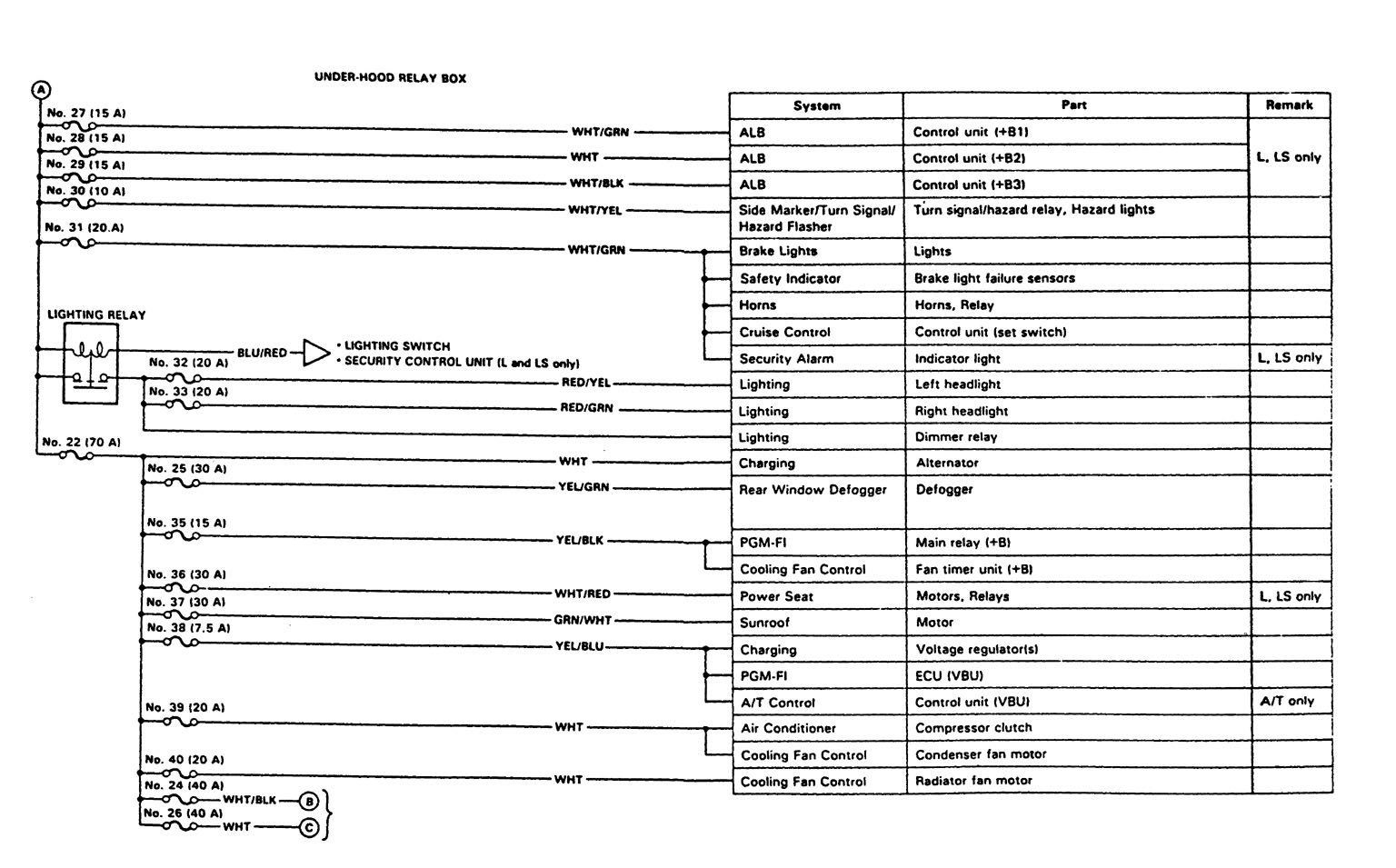

Acura Legend – wiring diagram – power distribution (part 2)

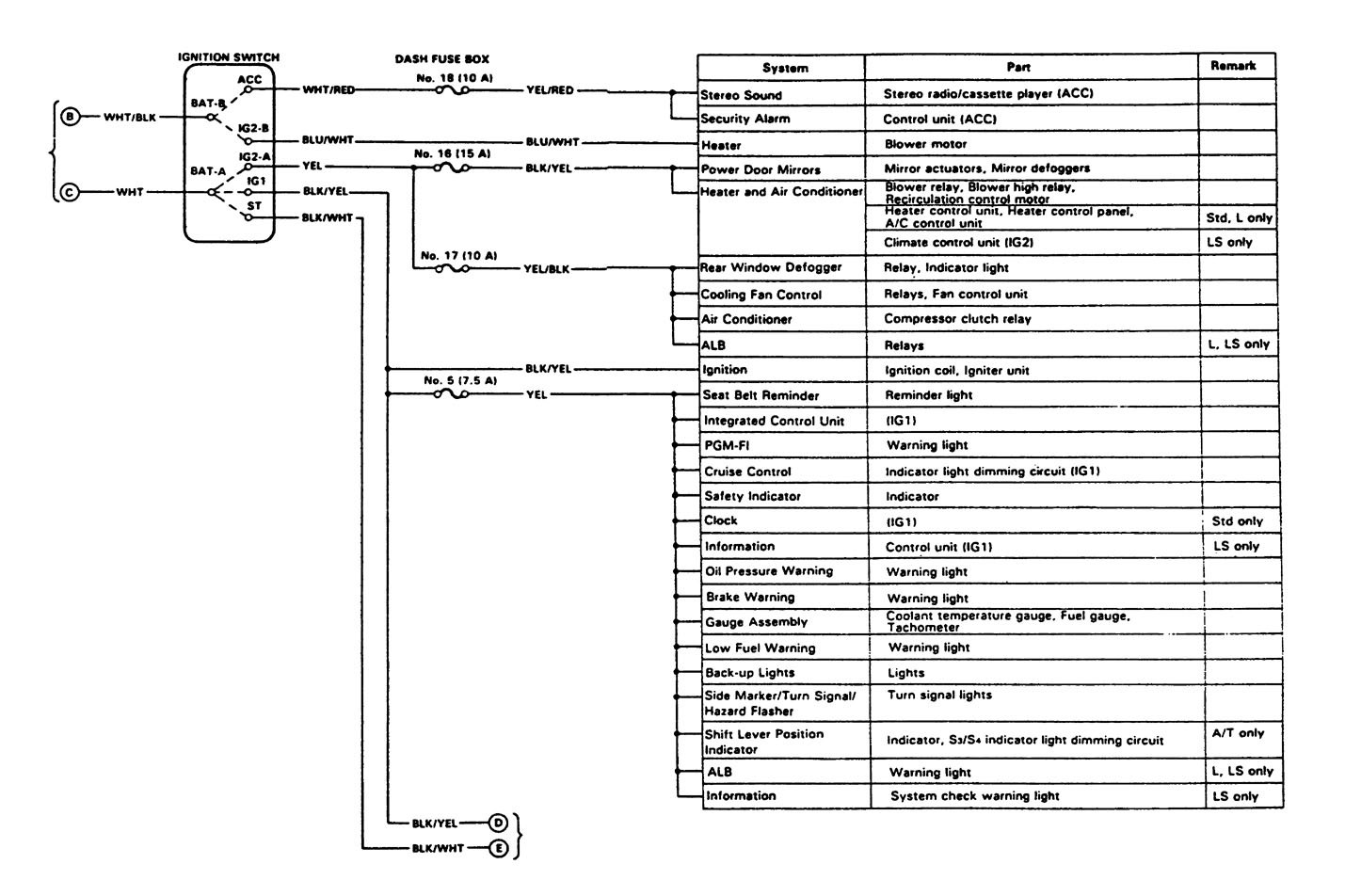

Acura Legend – wiring diagram – power distribution (part 3)

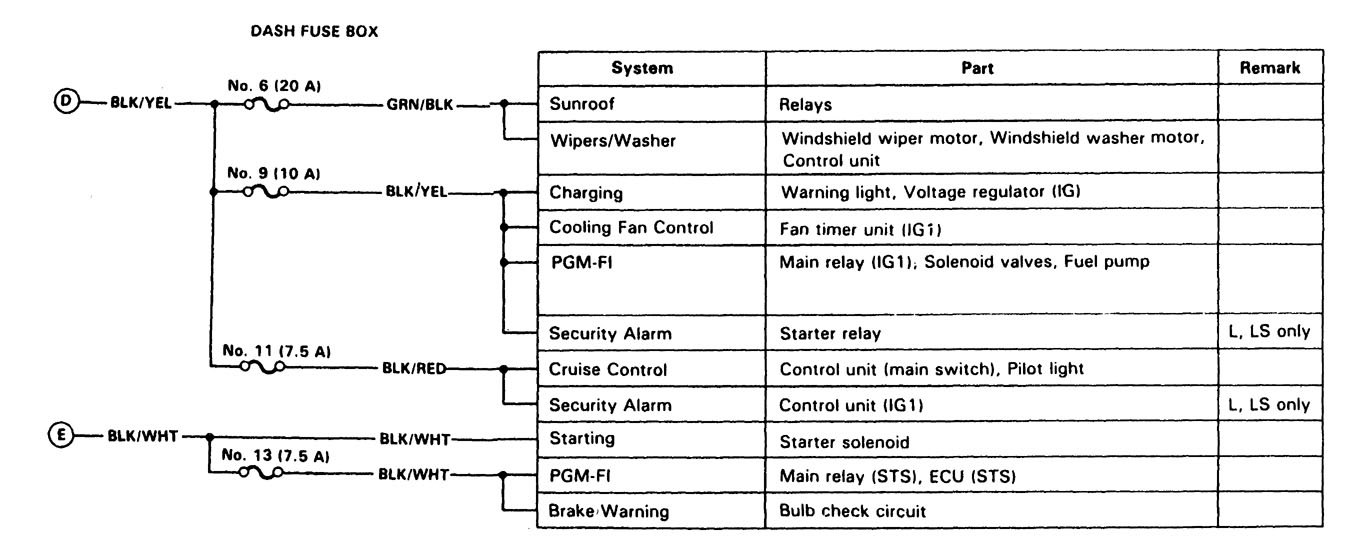

Acura Legend – wiring diagram – power distribution (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
