Acura Legend (1989) – wiring system – charging system

Acura Legend (1989) – wiring system – charging system

Year of productions:  1989

Charging system

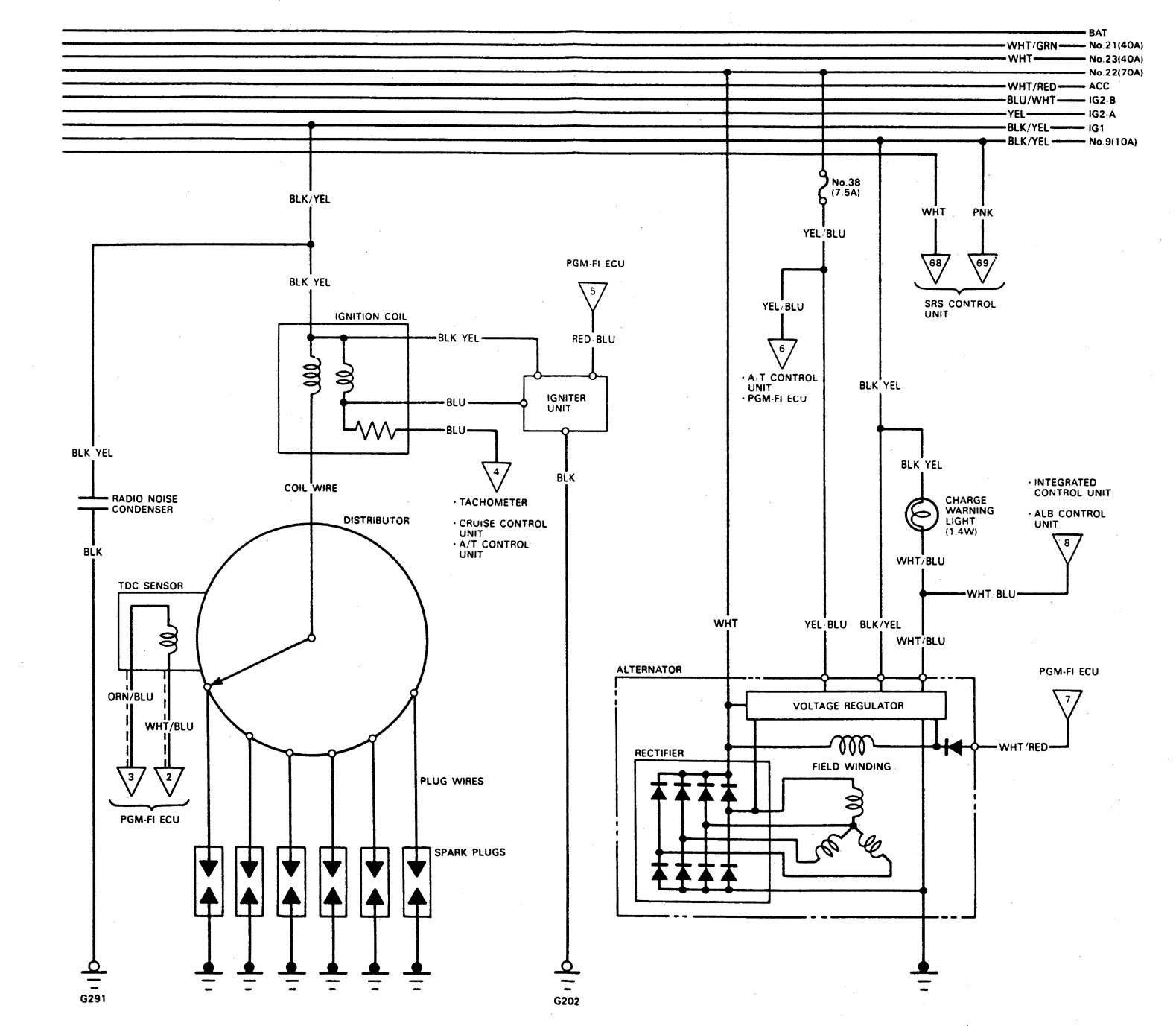

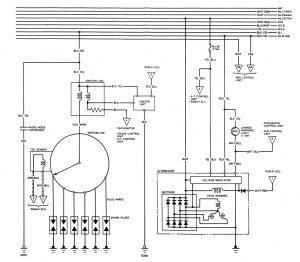

Acura Legend – wiring diagram – charging system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
