Acura Legend (1990) – wiring diagram – headlamps

Acura Legend (1990) – wiring diagram – headlamps

Year of productions:  1990

Headlamps

Version 1

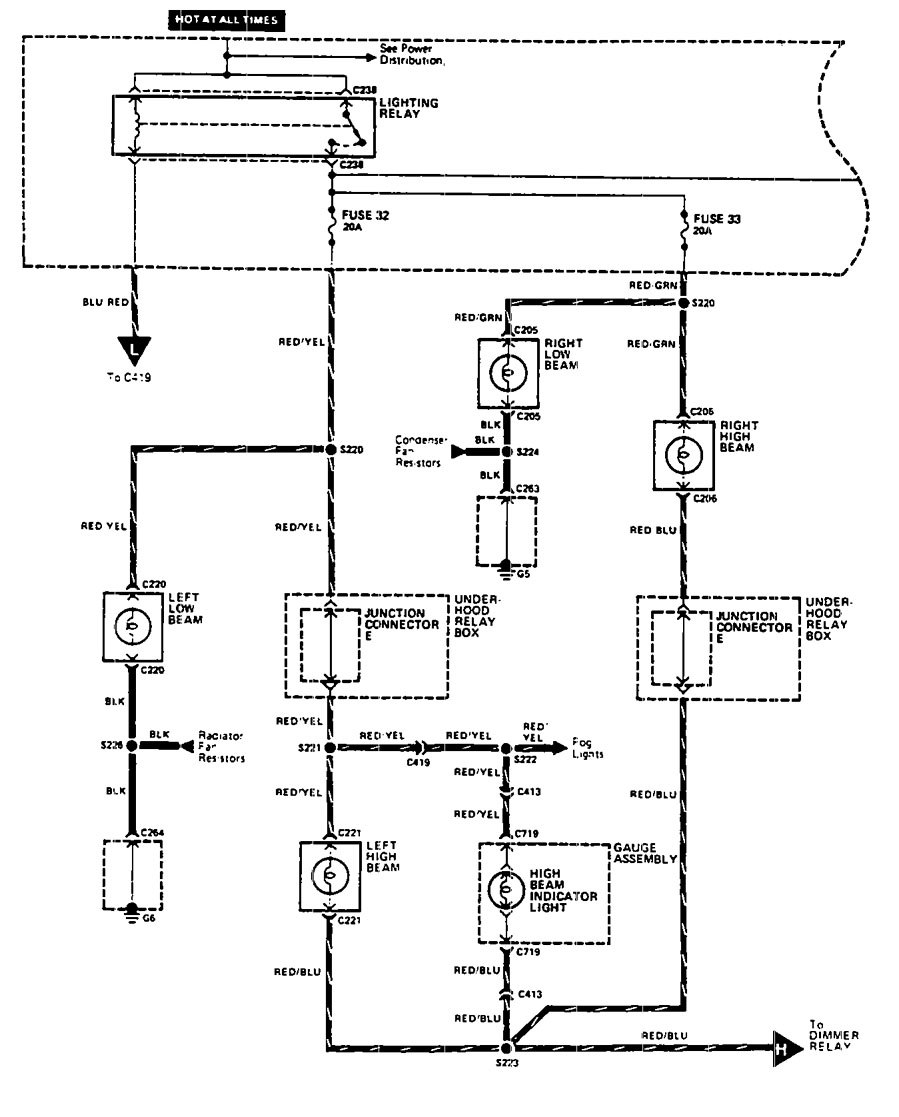

Acura Legend – wiring diagram – headlamps (part 1)

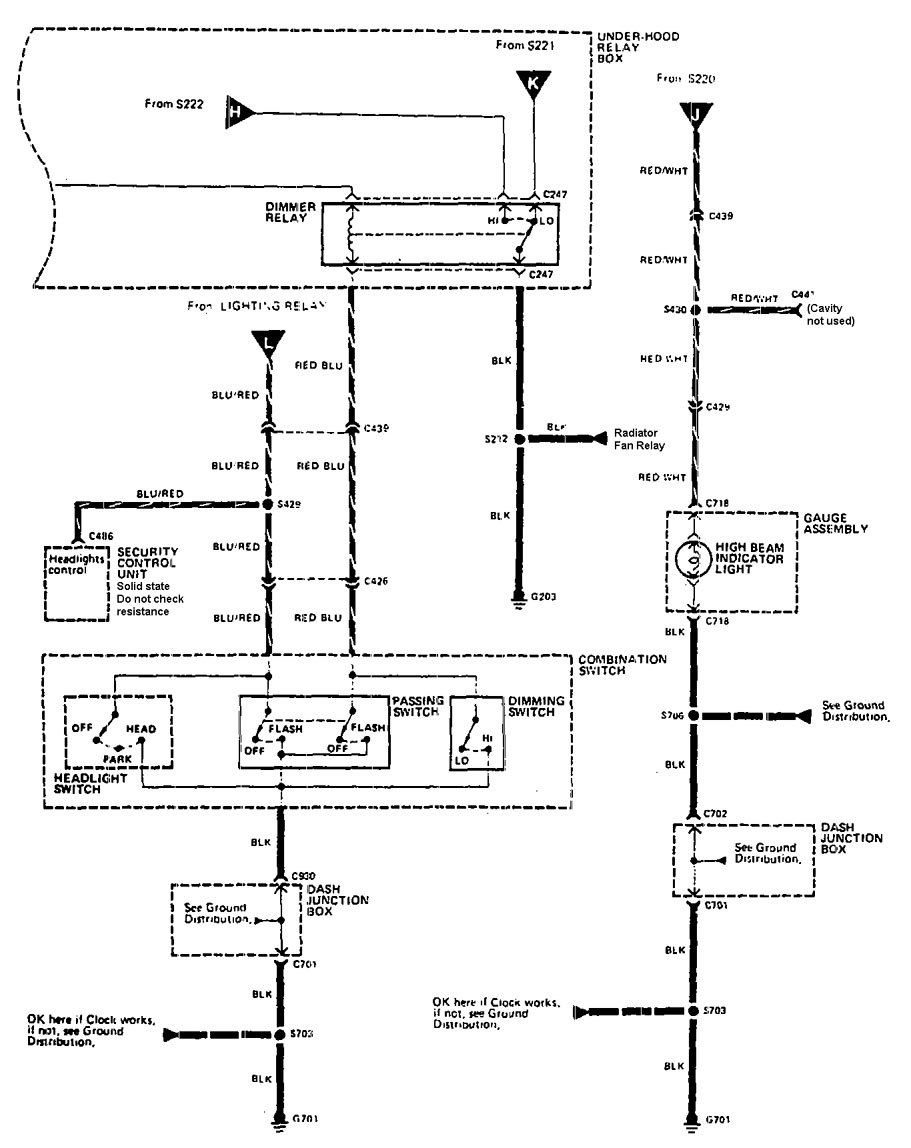

Acura Legend – wiring diagram – headlamps (part 2)

Version 2

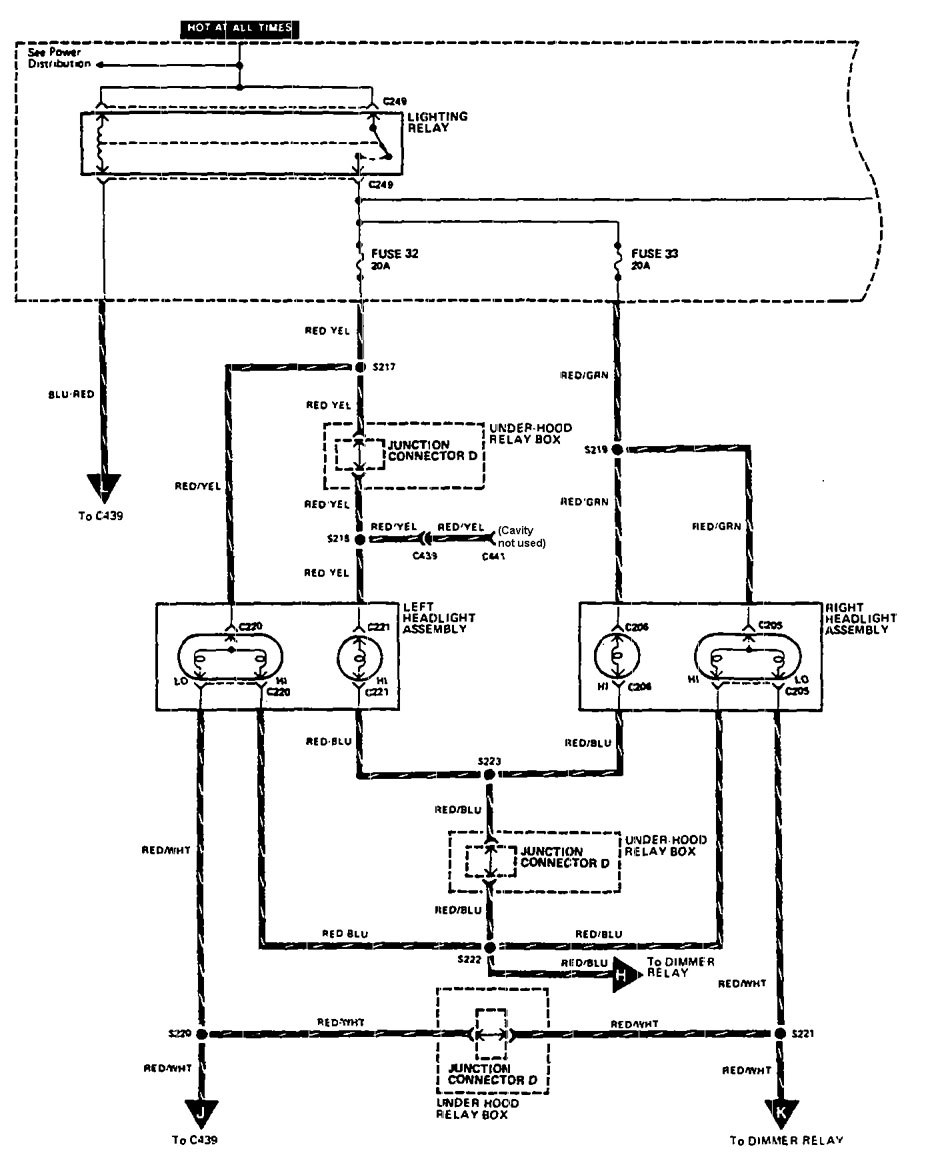

Acura Legend – wiring diagram – headlamps (part 1)

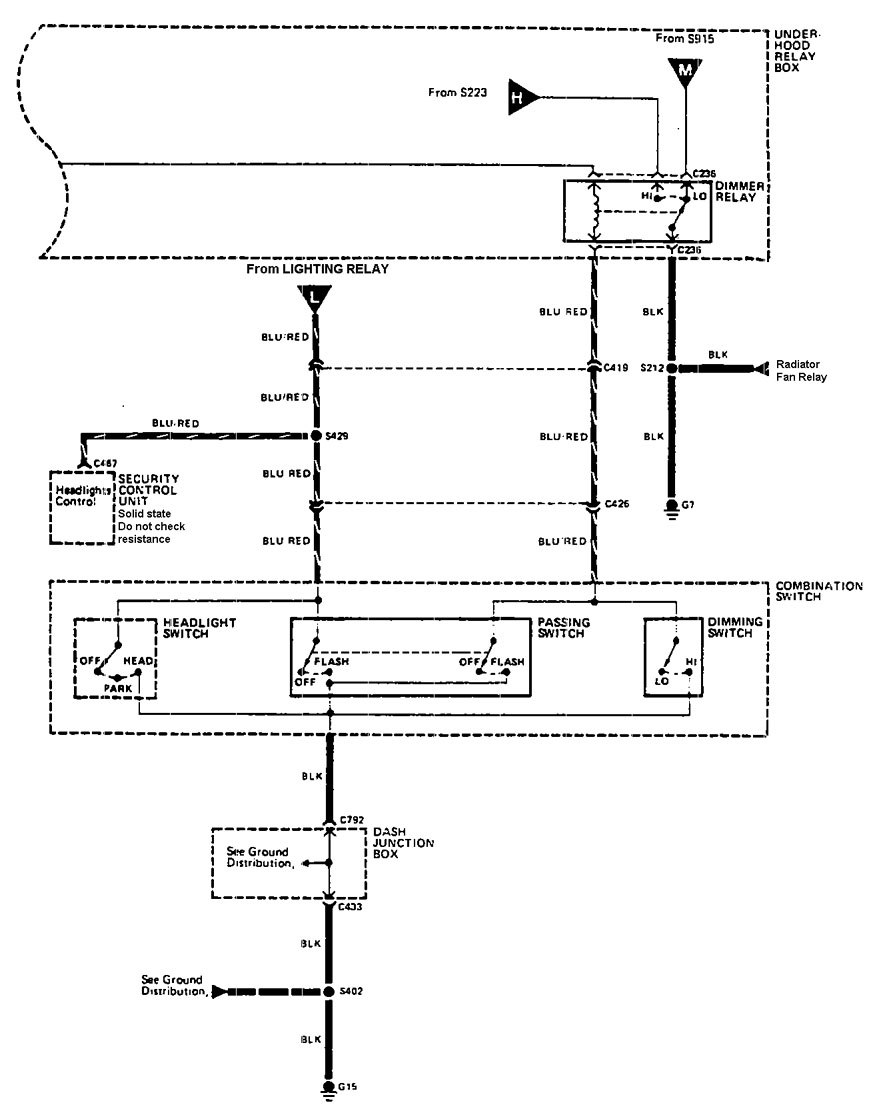

Acura Legend – wiring diagram – headlamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
