Acura Legend (1991 – 1992) – wiring diagram – clock

Acura Legend (1991 – 1992) – wiring diagram – clock

Year of productions:  1991, 1992

Clock

Version 1

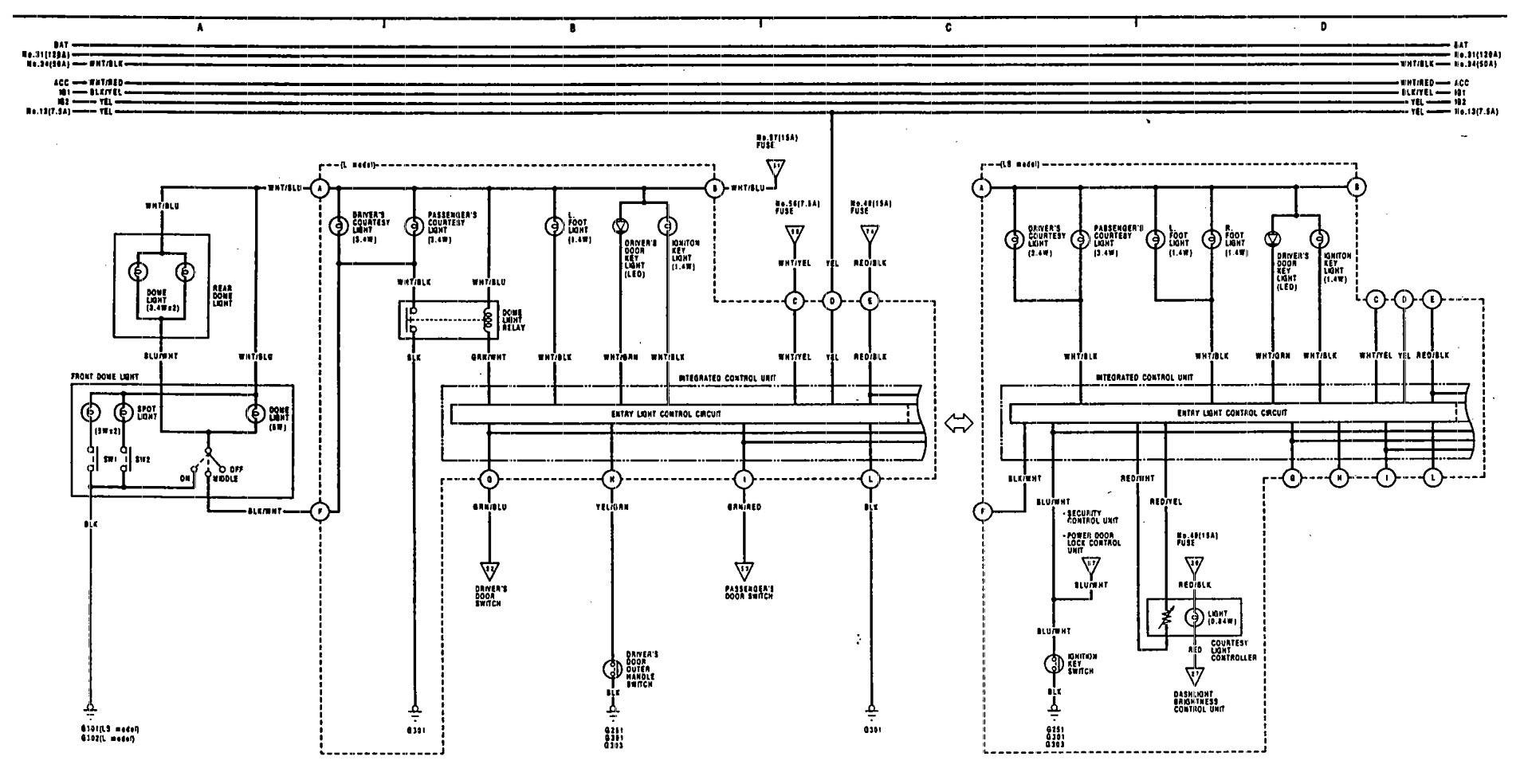

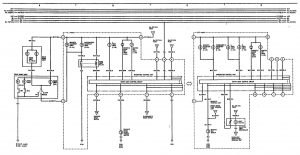

Acura Legend – wiring diagram – clock (part 1)

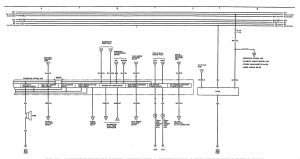

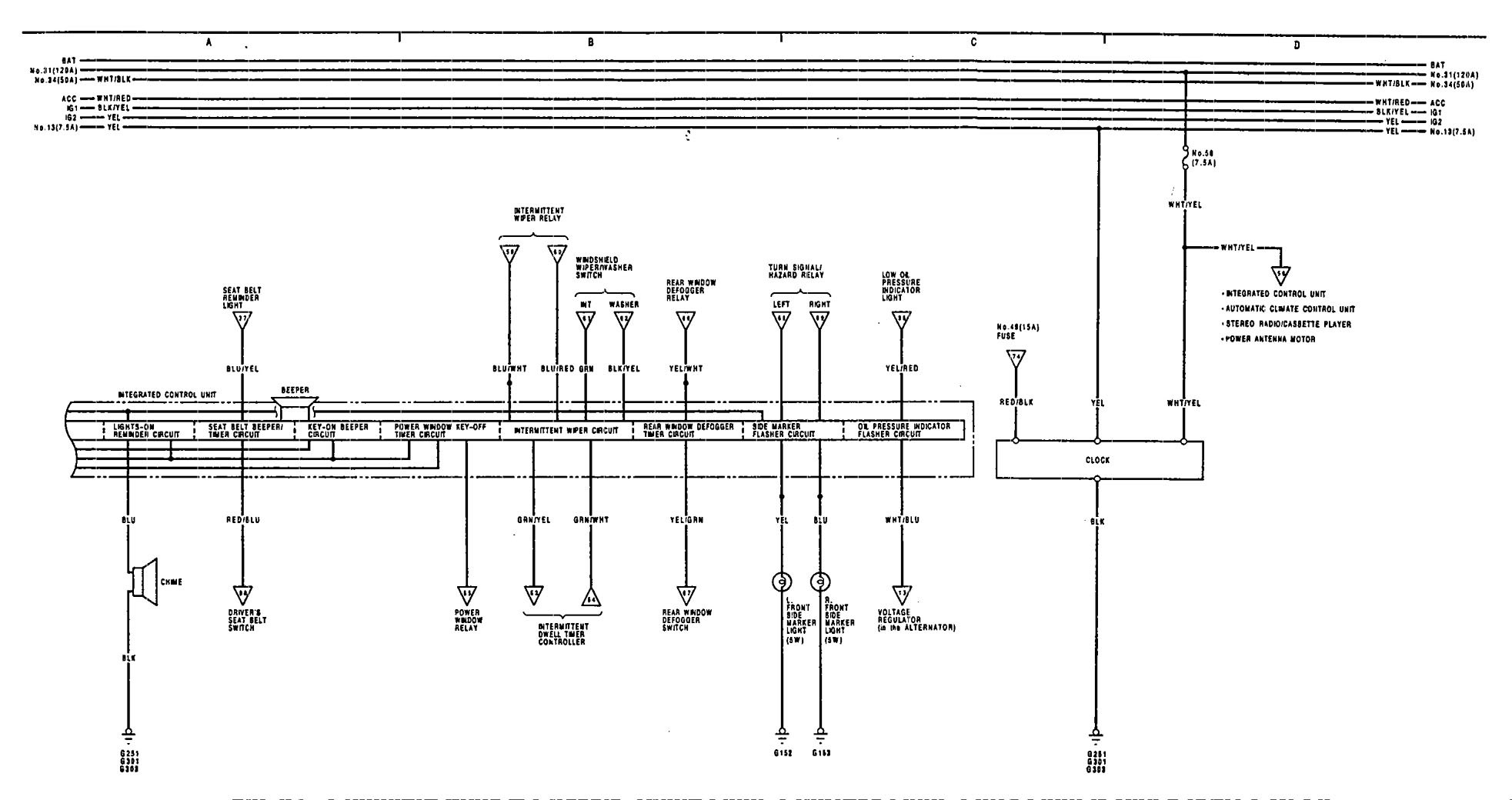

Acura Legend – wiring diagram – clock (part 2)

Version 2

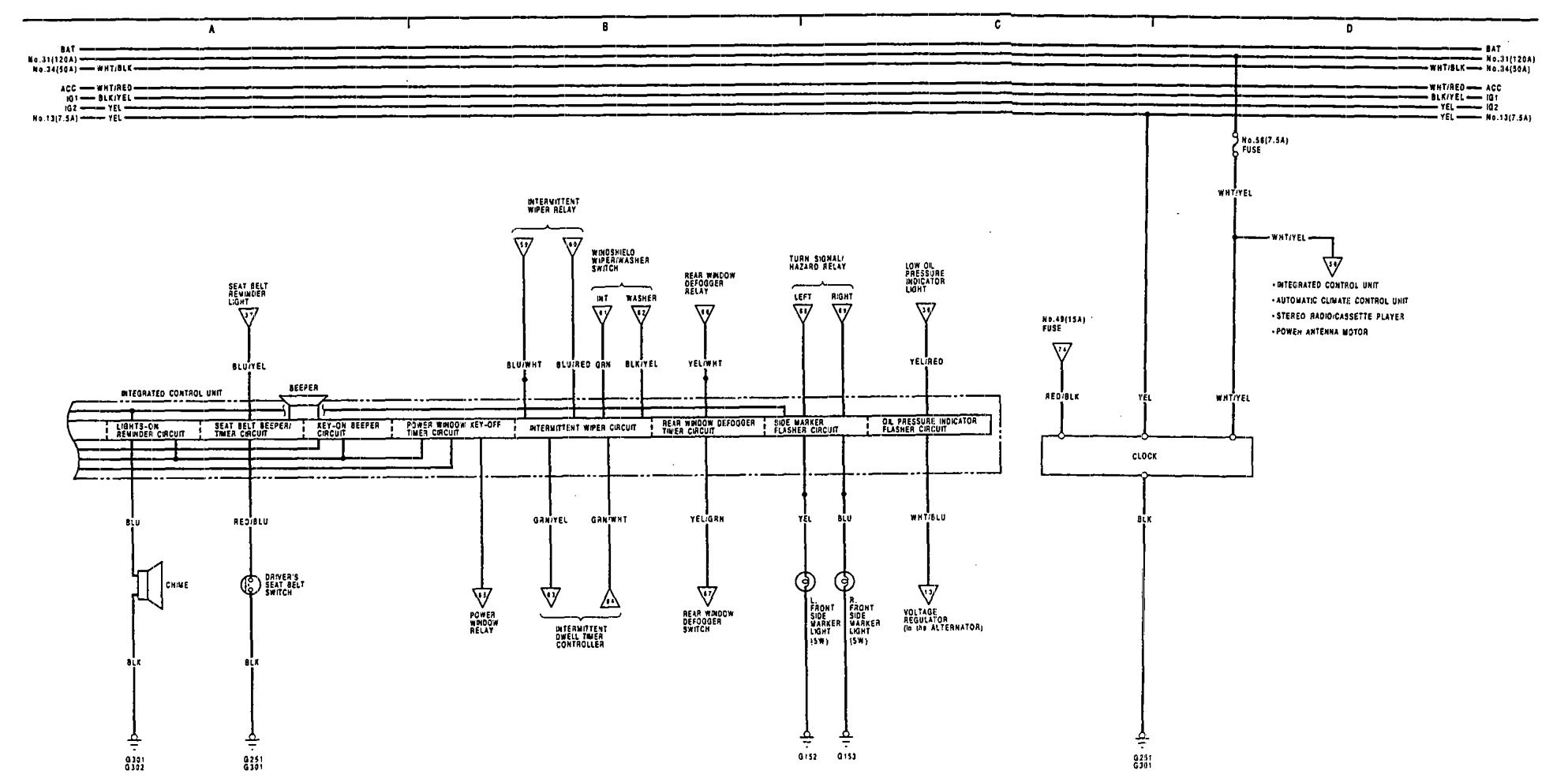

Acura Legend – wiring diagram – clock

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
