Acura Legend (1991 – 1993) – wiring diagram – headlamps

Acura Legend (1991 – 1993) – wiring diagram – headlamps

Year of productions:  1991, 1992, 1993

Headlamps

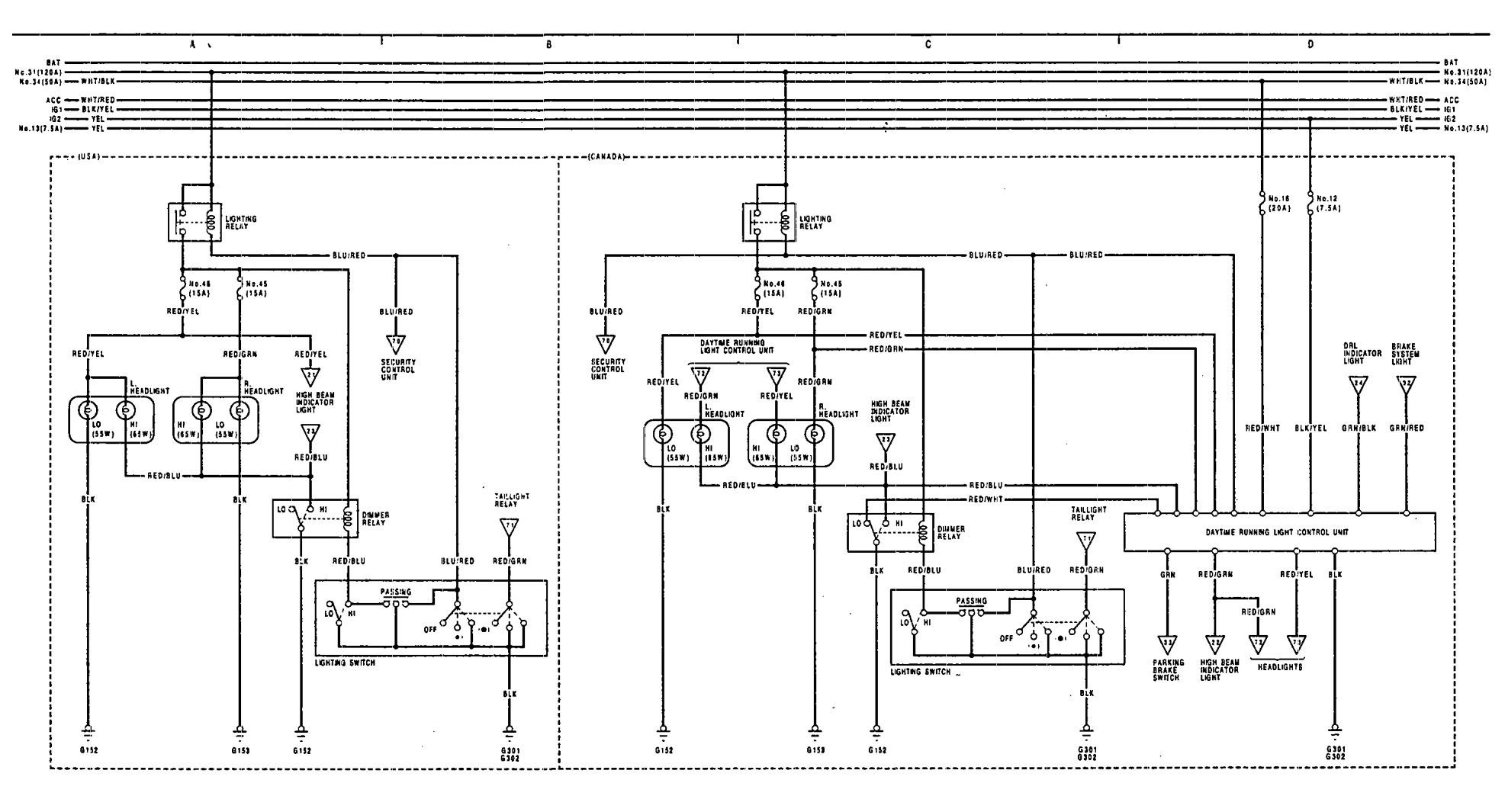

Version 1

Acura Legend – wiring diagram – headlamps

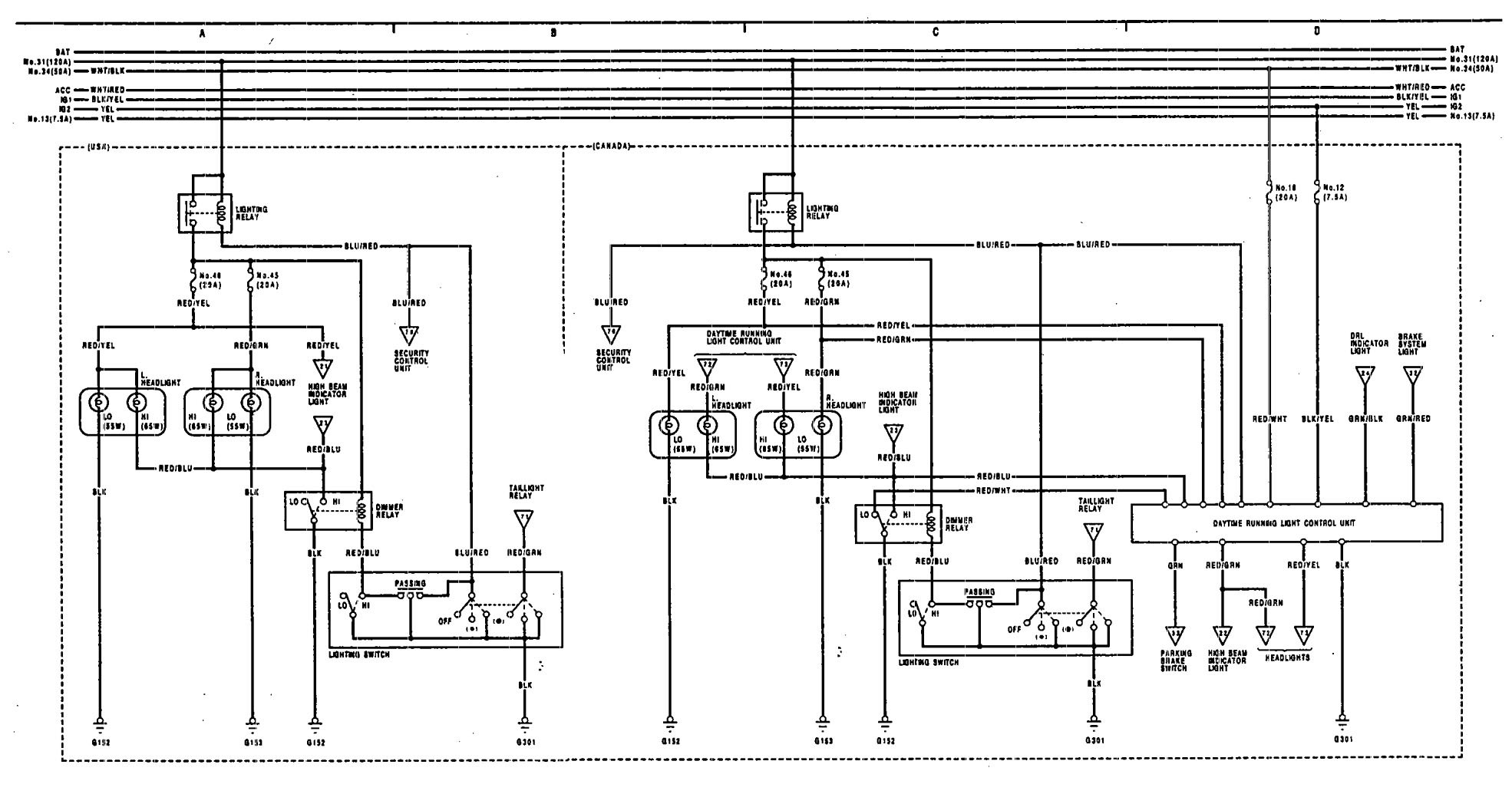

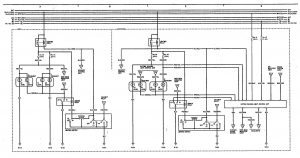

Version 2

Acura Legend – wiring diagram – headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
