Acura Legend (1991) – wiring diagrams – cooling fans

Acura Legend (1991) – wiring diagrams – cooling fans

Year of productions:  1991

Cooling fans

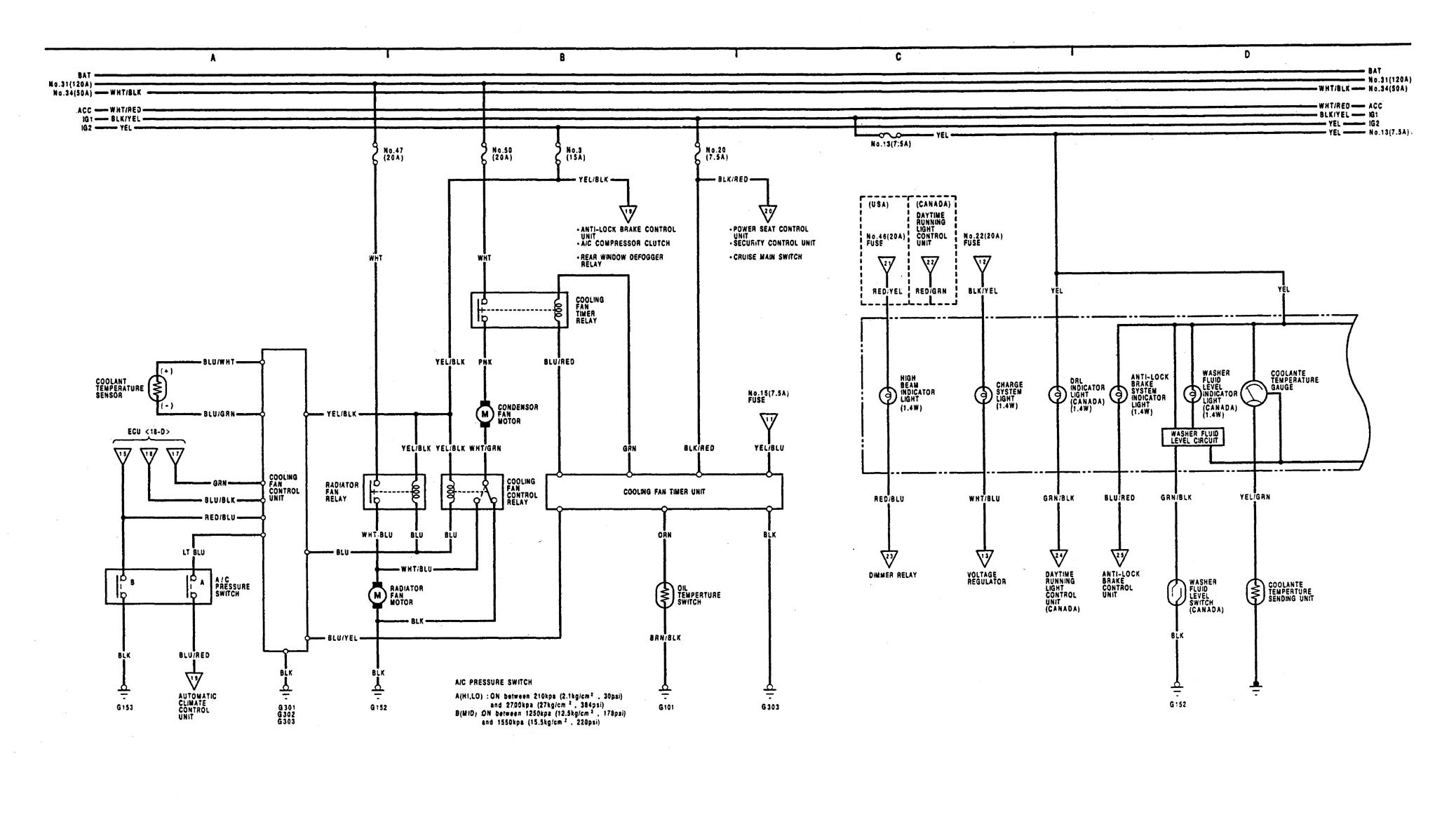

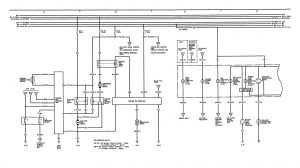

Acura Legend – wiring diagram – cooling fans (part 1)

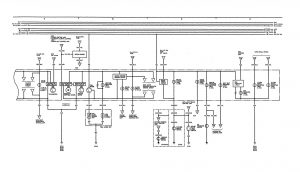

Acura Legend – wiring diagram – cooling fans (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
