Acura Legend (1994 – 1994) – wiring diagram – hazard lamp
Year of productions: 1994, 1995
Hazard lamp

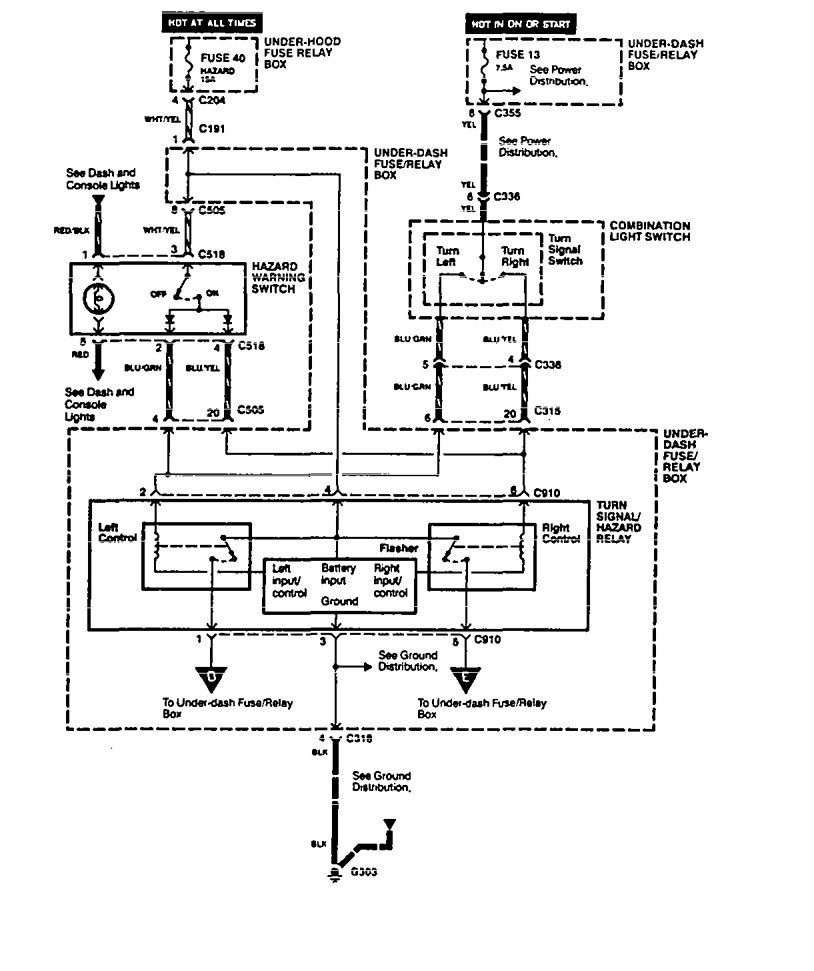

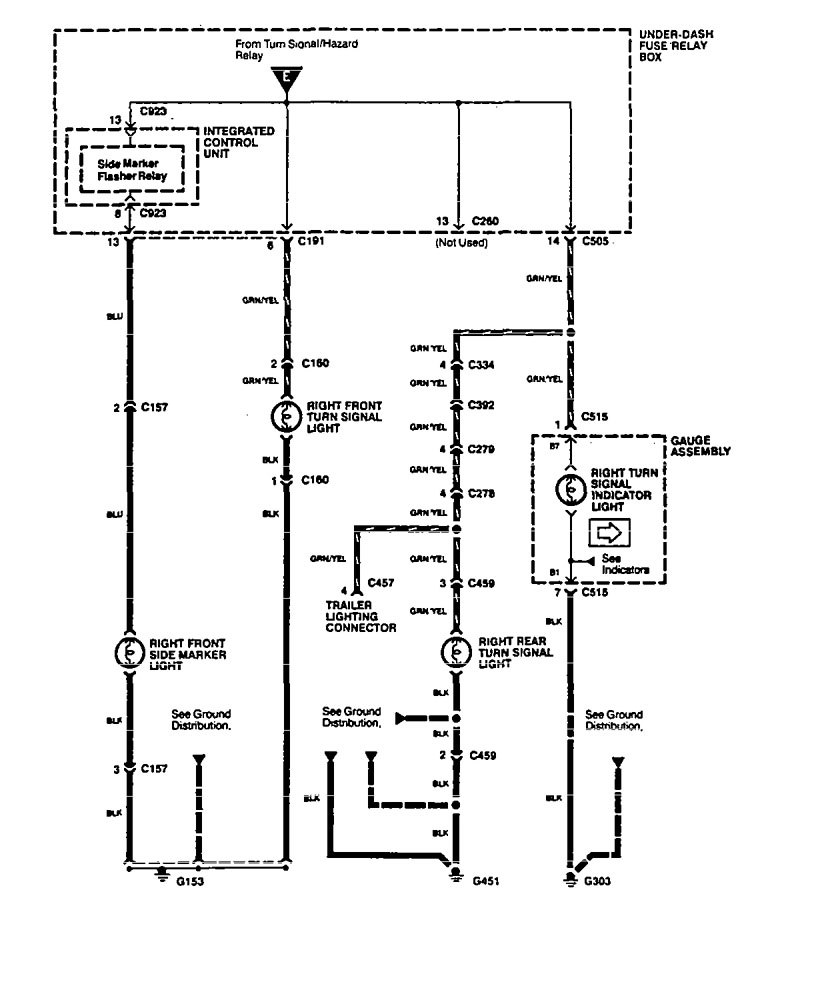

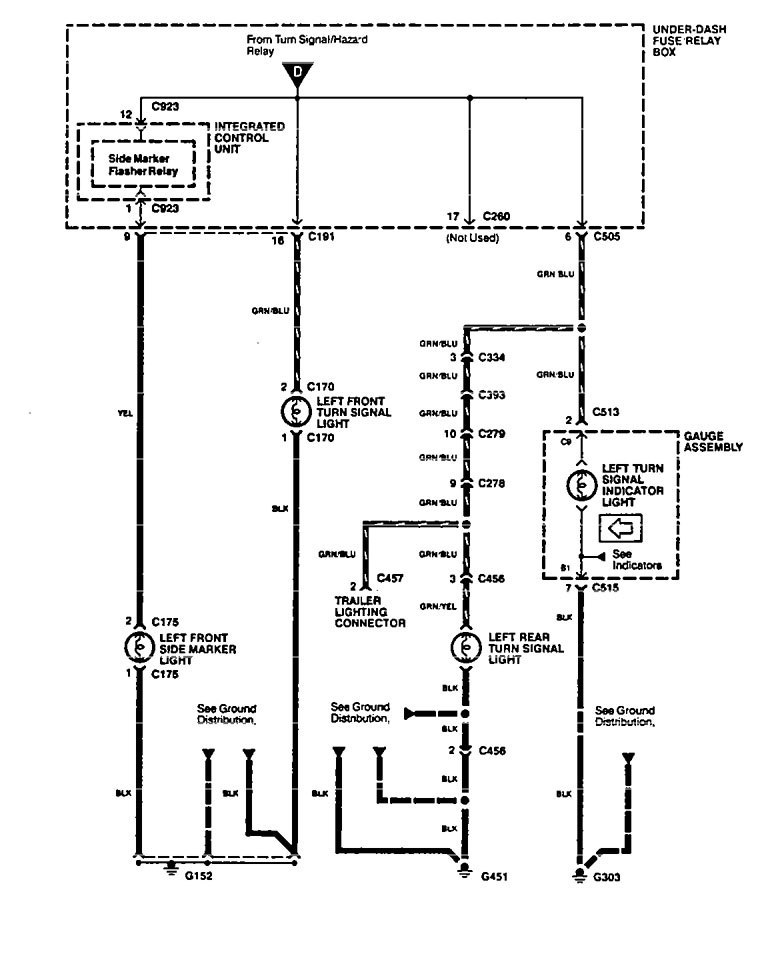

Version 1

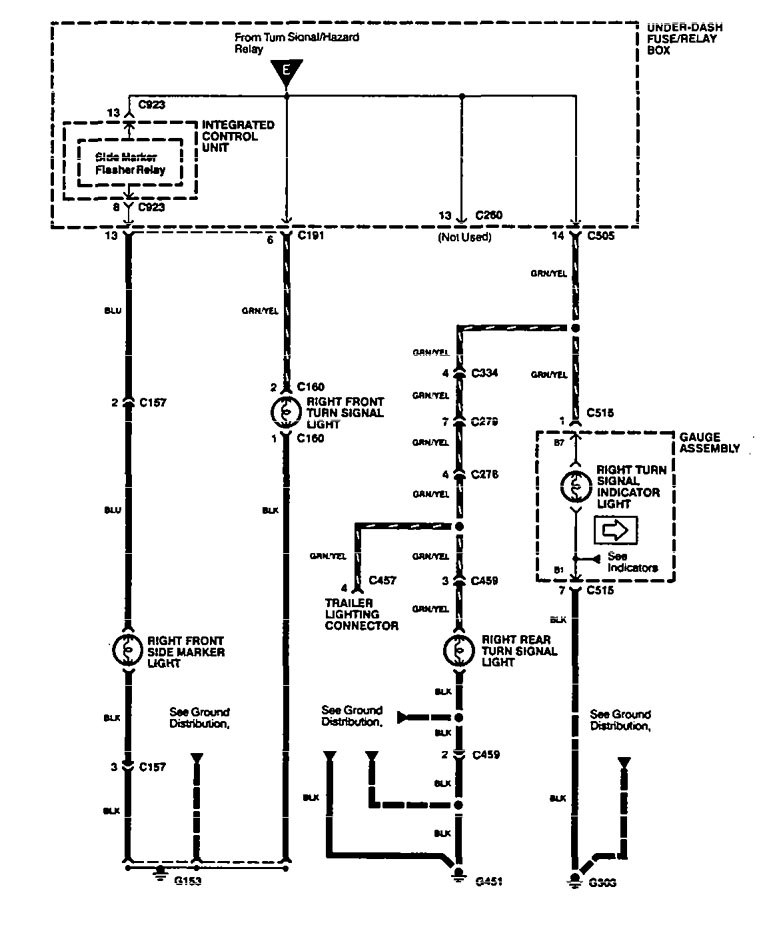

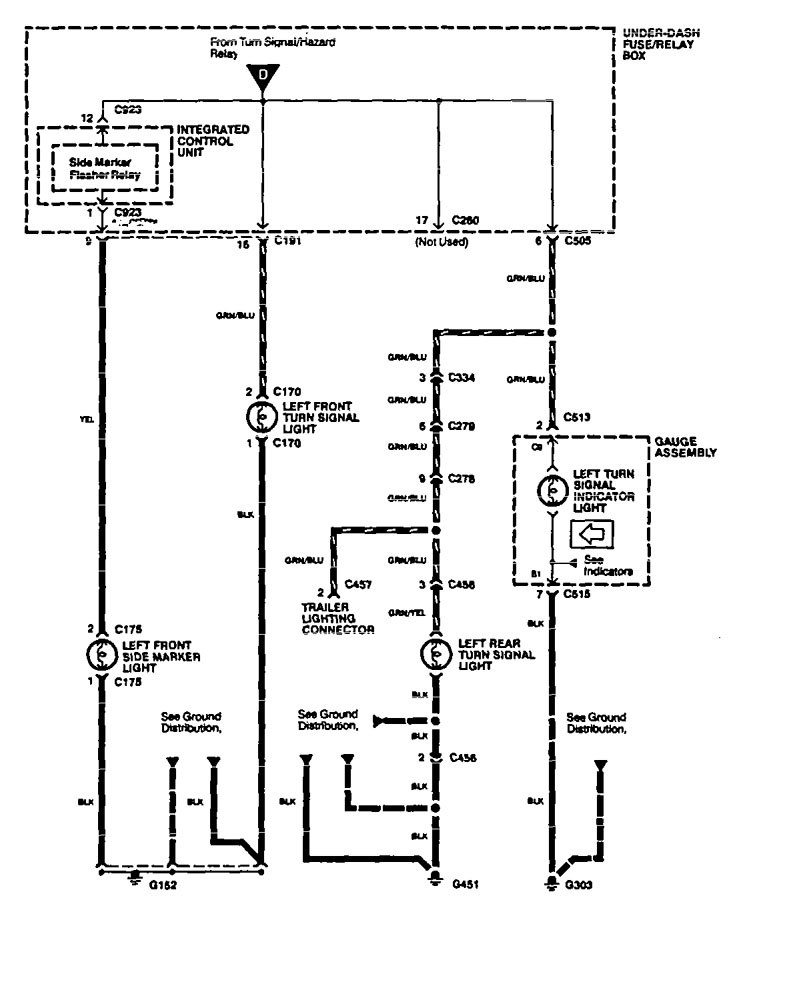

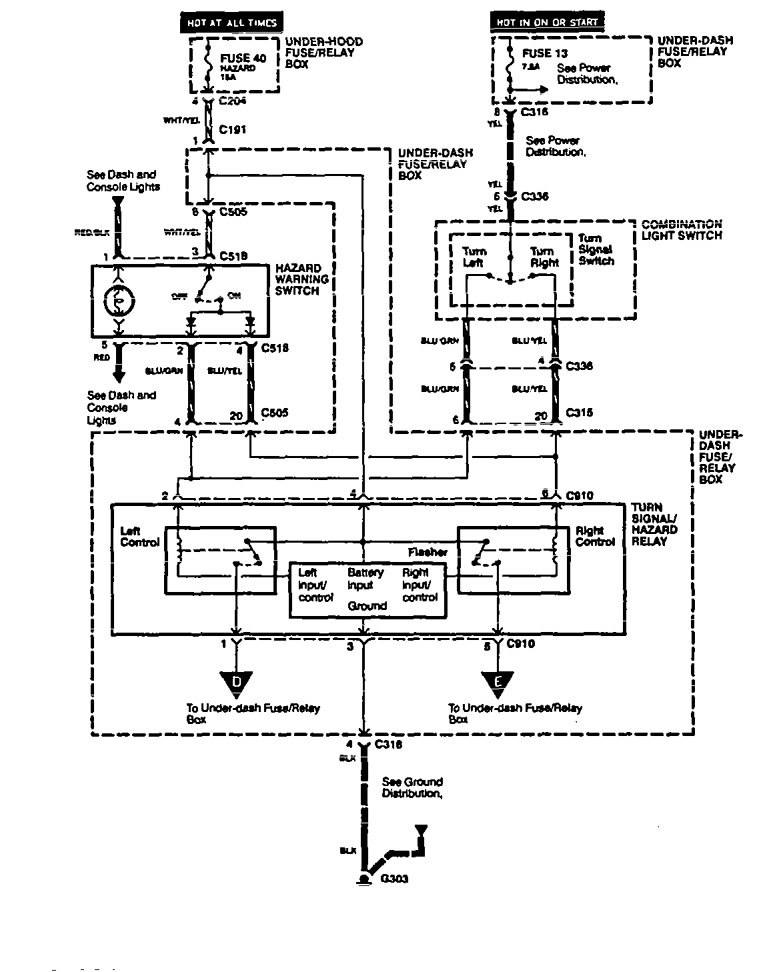

Version 2
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
