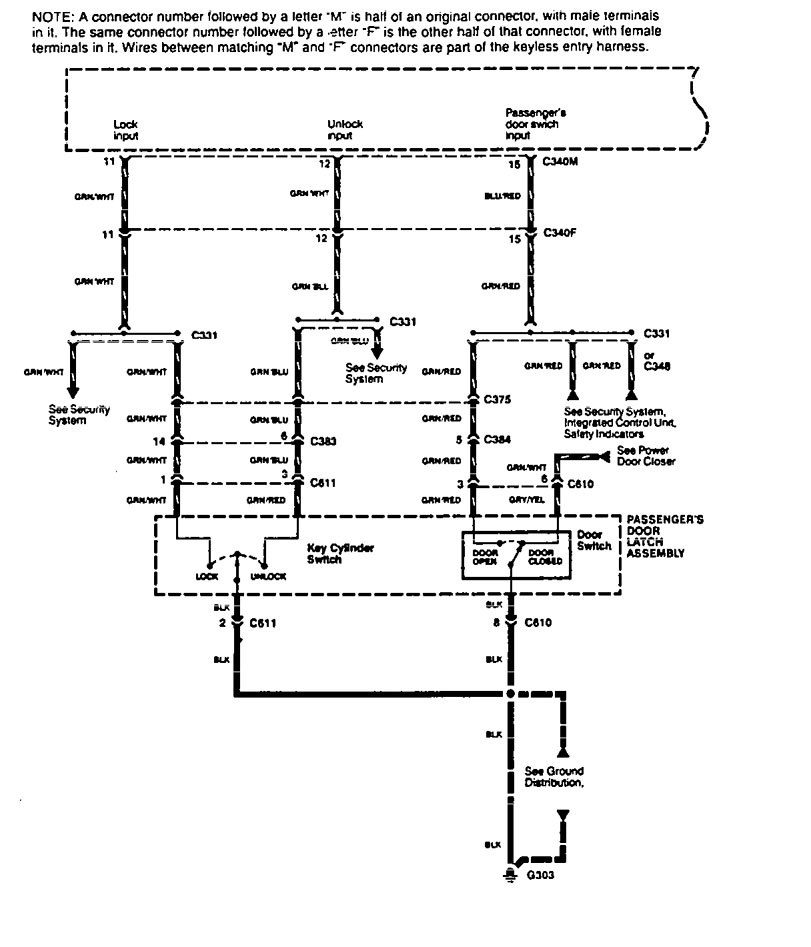

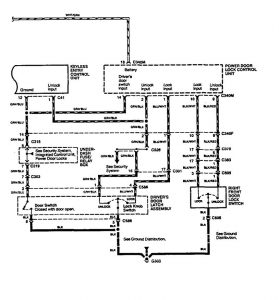

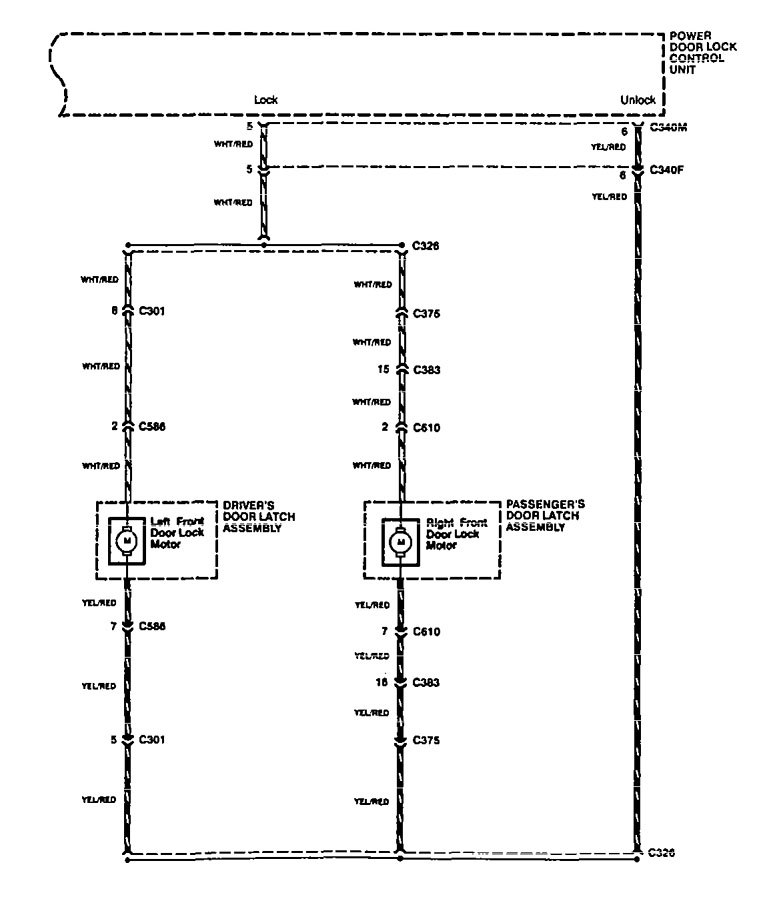

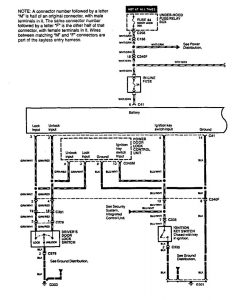

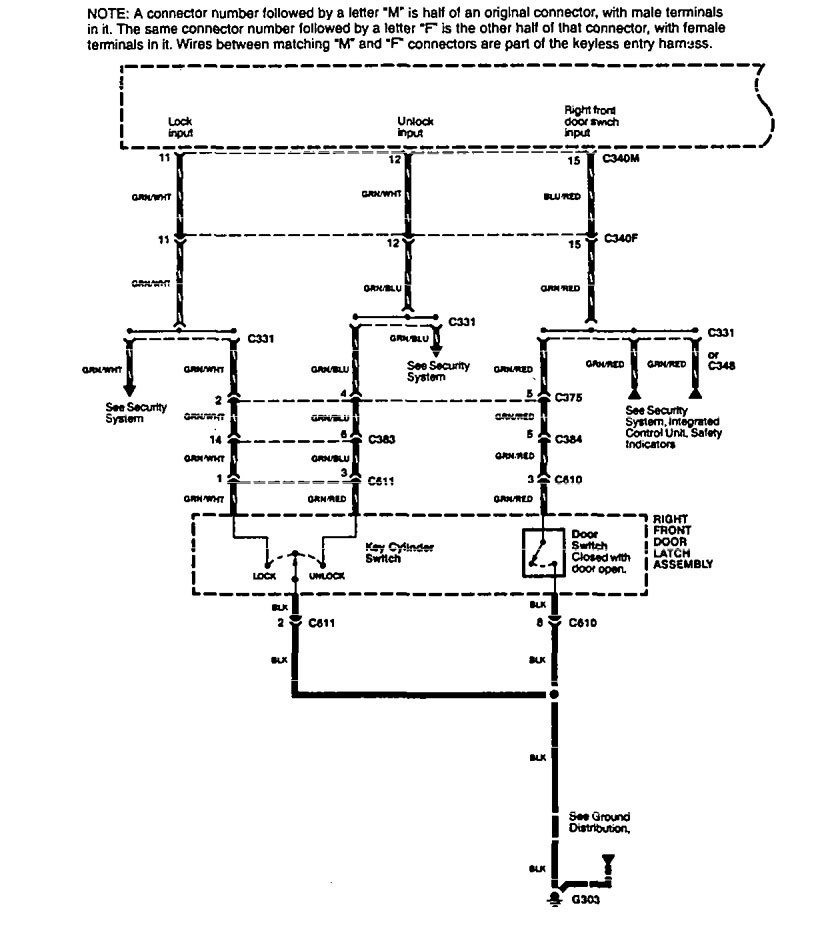

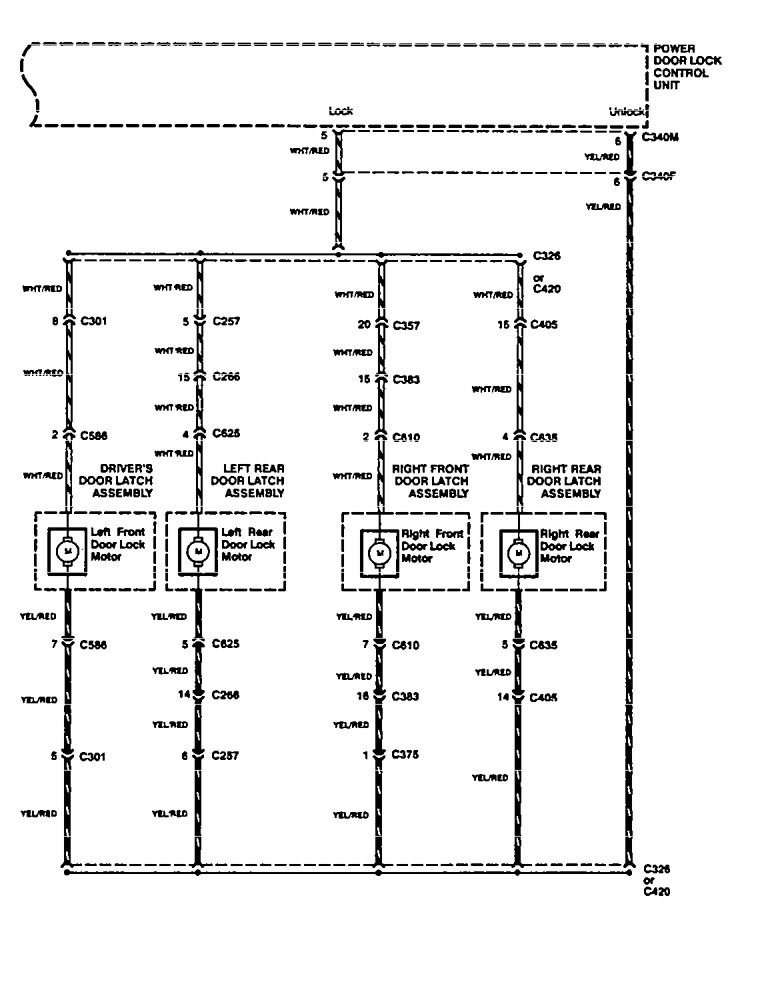

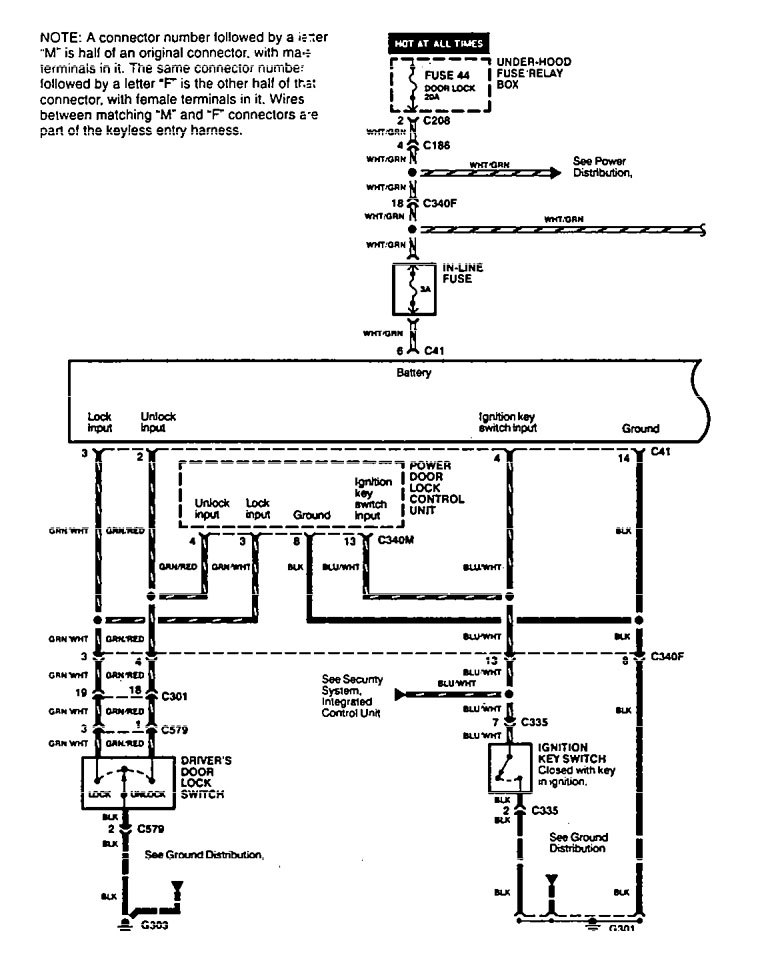

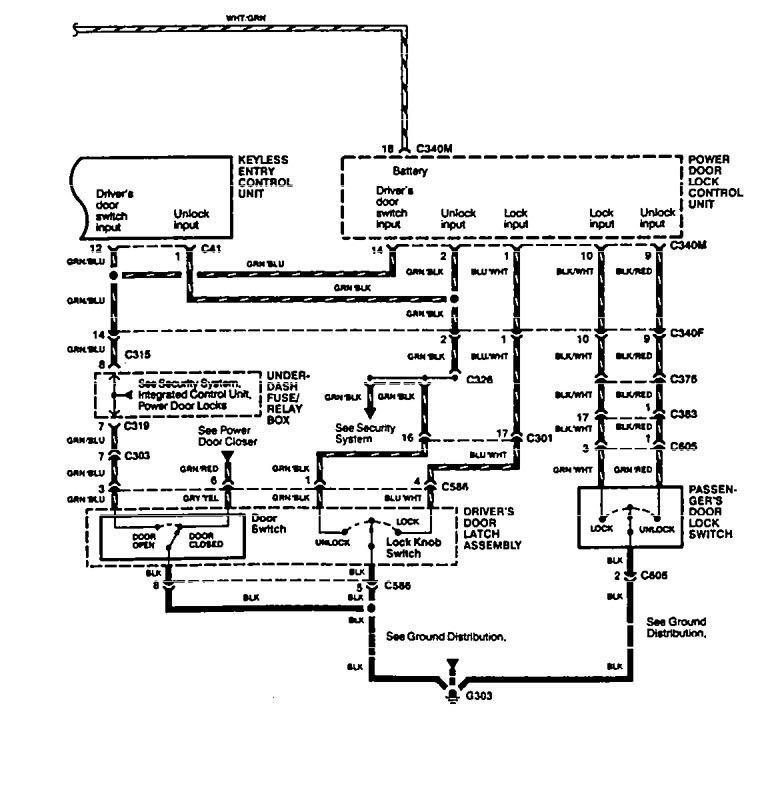

Acura Legend (1994 – 1995) – wiring diagrams – keyless entry

Acura Vigor (1994) – wiring diagrams – trailer/camper adapter Year of productions:  1994 Trailer/camper adapter WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volvo 960 (1997) – wiring diagrams – audio Year of productions:  1997 Audio WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura TL (2006) – wiring diagrams – air bags Year of productions:  2006 Air bags Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]
