Acura Legend (1995) – wiring diagram – audio

Acura Legend (1995) –  wiring diagram –  audio

Year of productions:  1995

Audio

Version 1

Acura Legend – wiring diagram – audio (part 1)
Acura Legend – wiring diagram – audio (part 2)

Version 2

Acura Legend – wiring diagram – audio (part 1)
Acura Legend – wiring diagram – audio (part 2)

Version 3

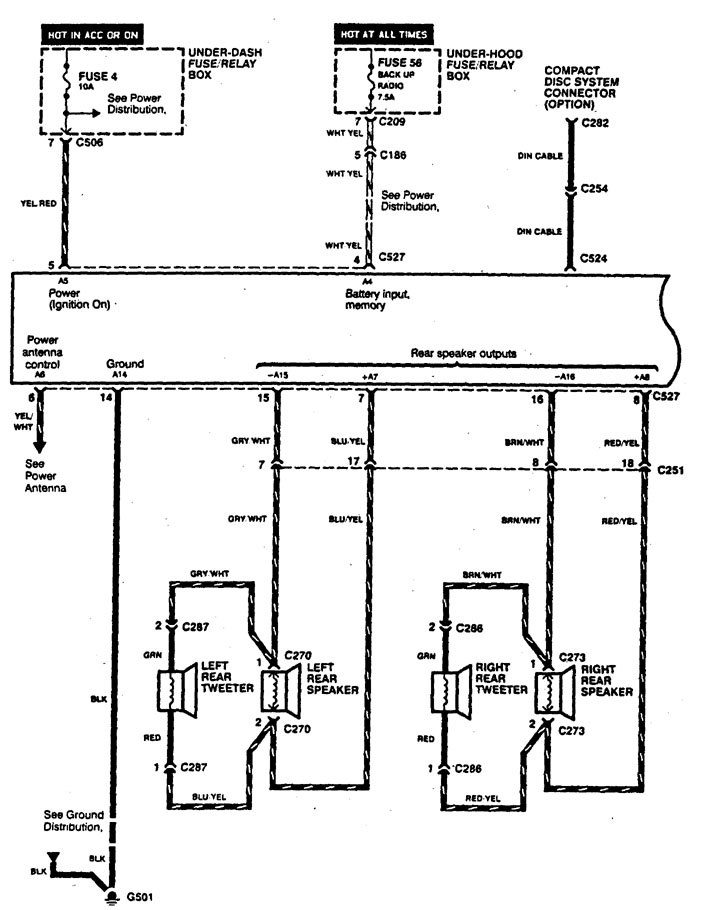

Acura Legend – wiring diagram – audio (part 1)

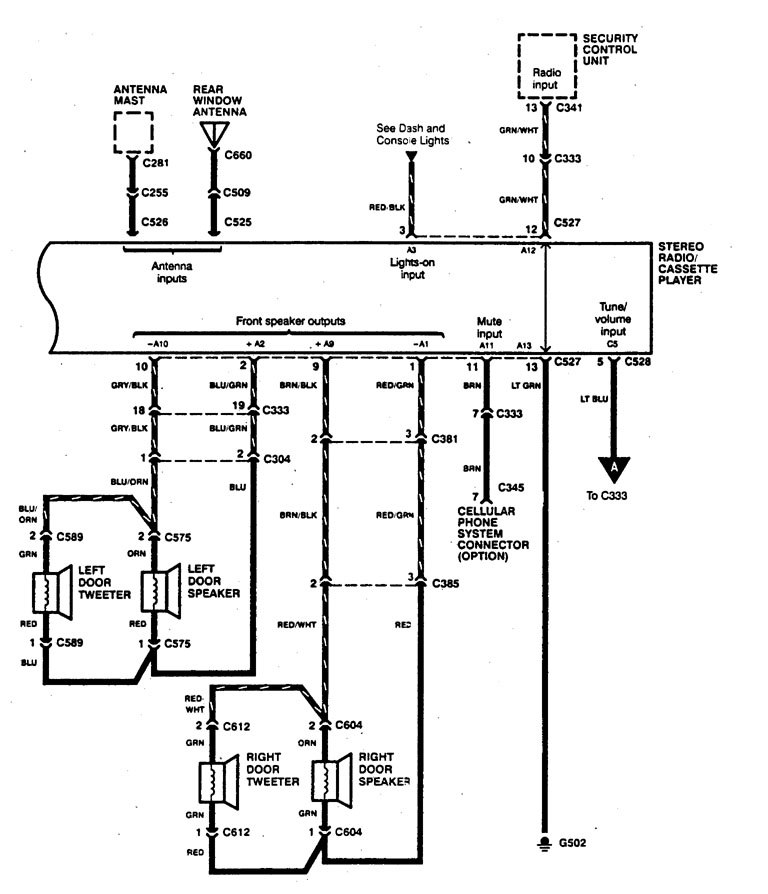

Acura Legend – wiring diagram – audio (part 2)

Version 4

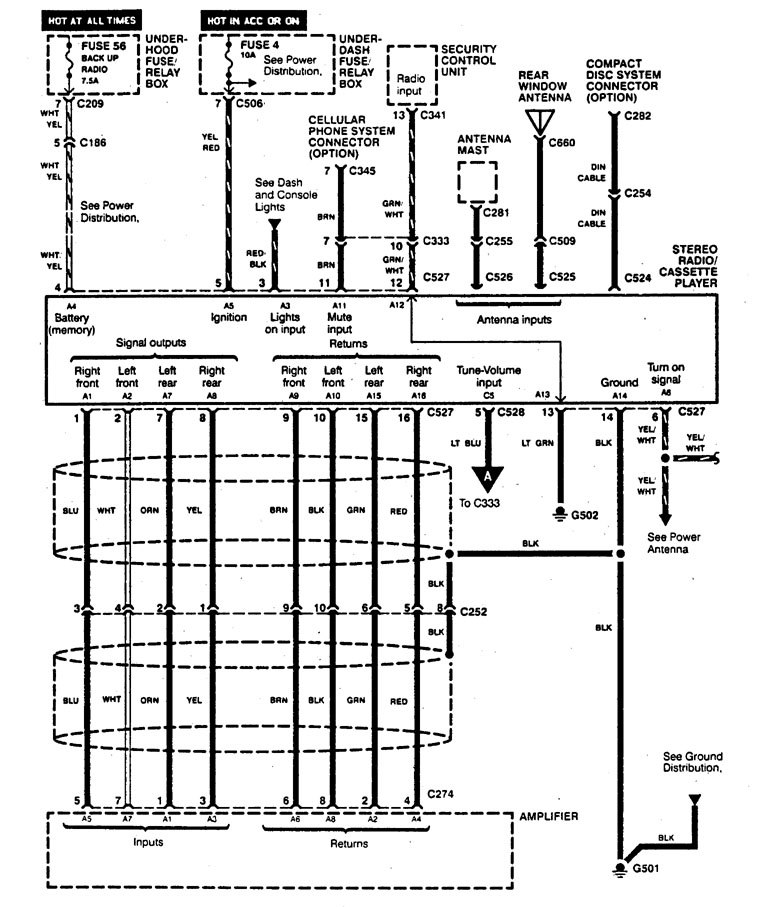

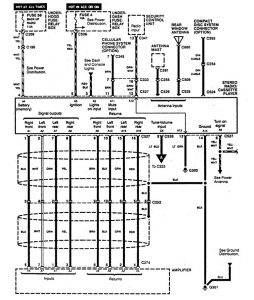

Acura Legend – wiring diagram – audio (part 1)

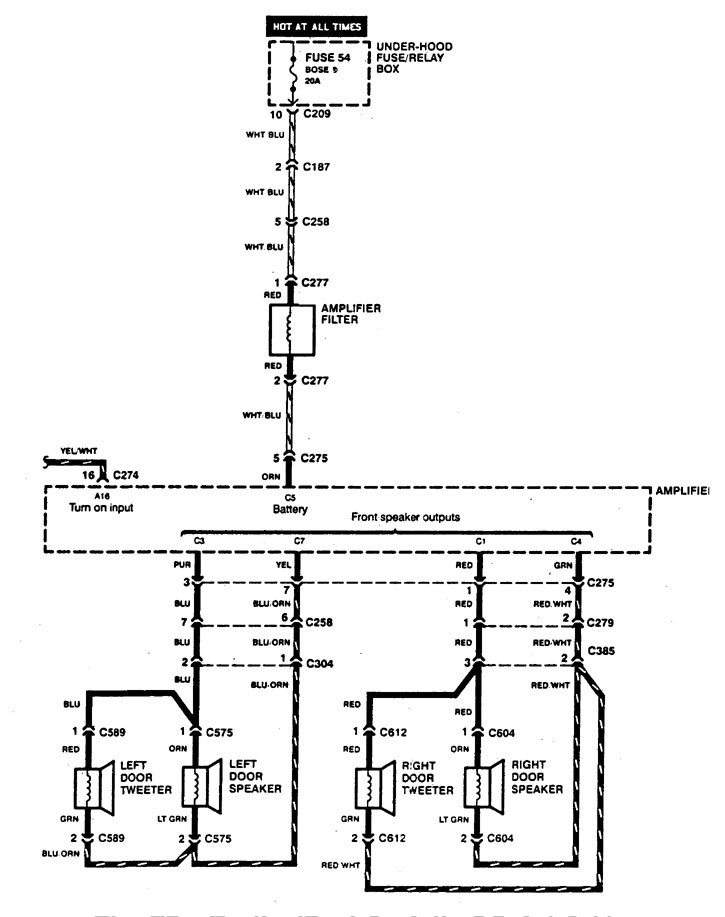

Acura Legend – wiring diagram – audio (part 2)

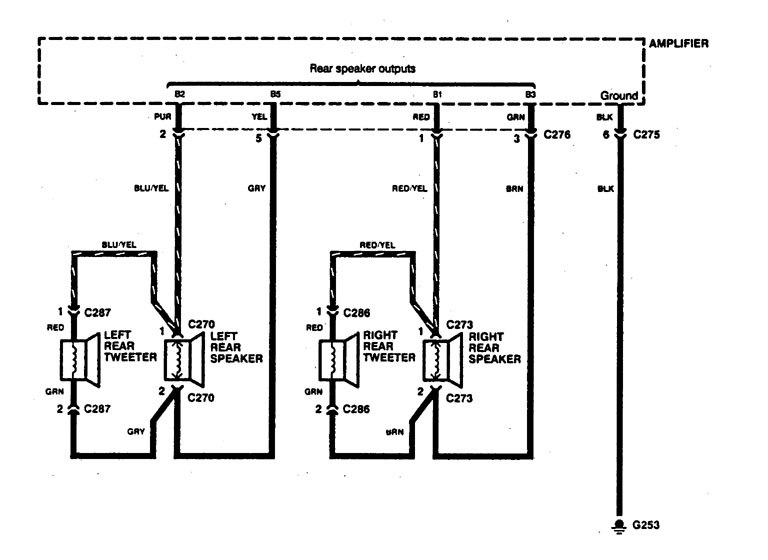

Acura Legend – wiring diagram – audio (part 3)

Version 5

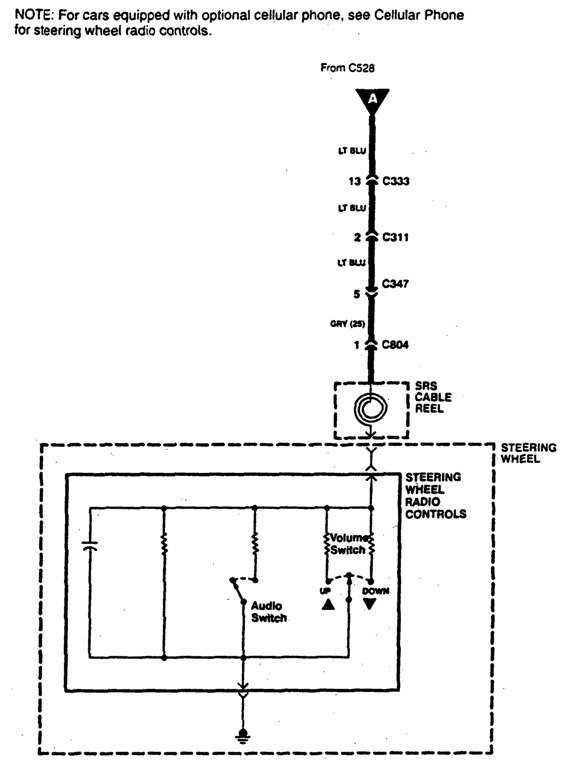

Acura Legend – wiring diagram – audio (part 1)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
