Acura Legend (1995) – wiring diagram – wiper/washer

Acura Legend (1995) – wiring diagram – wiper/washer

Year of productions:  1995

Wiper/washer

Version 1

Acura Legend – wiring diagram – wiper/washer (part 1)

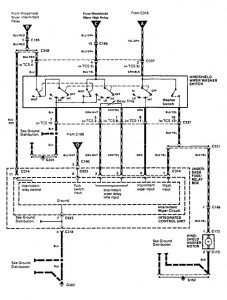

Acura Legend – wiring diagram – wiper/washer (part 2)

Version 2

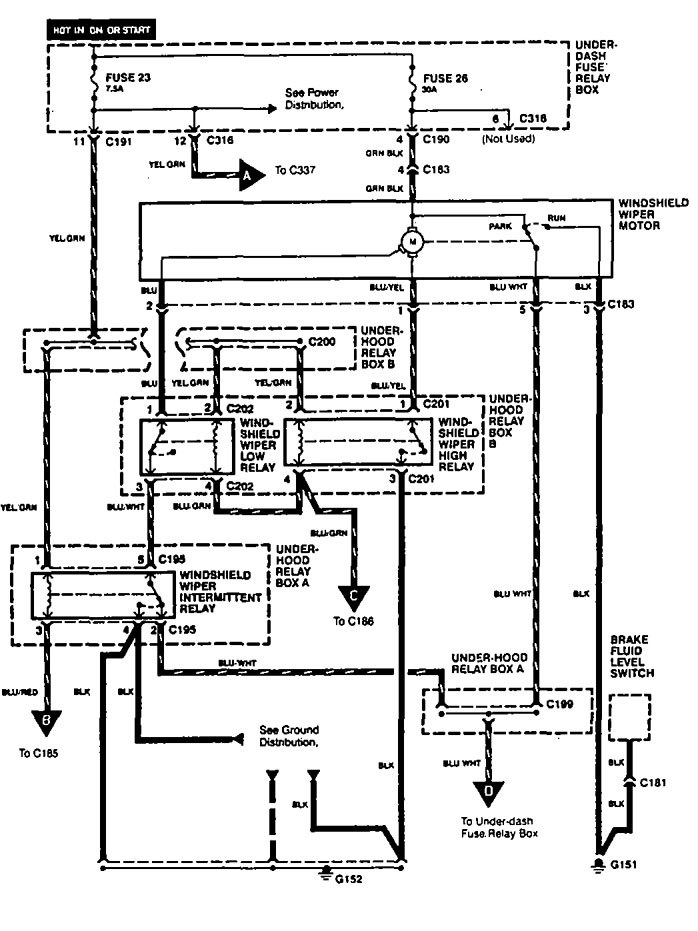

Acura Legend – wiring diagram – wiper/washer (part 1)

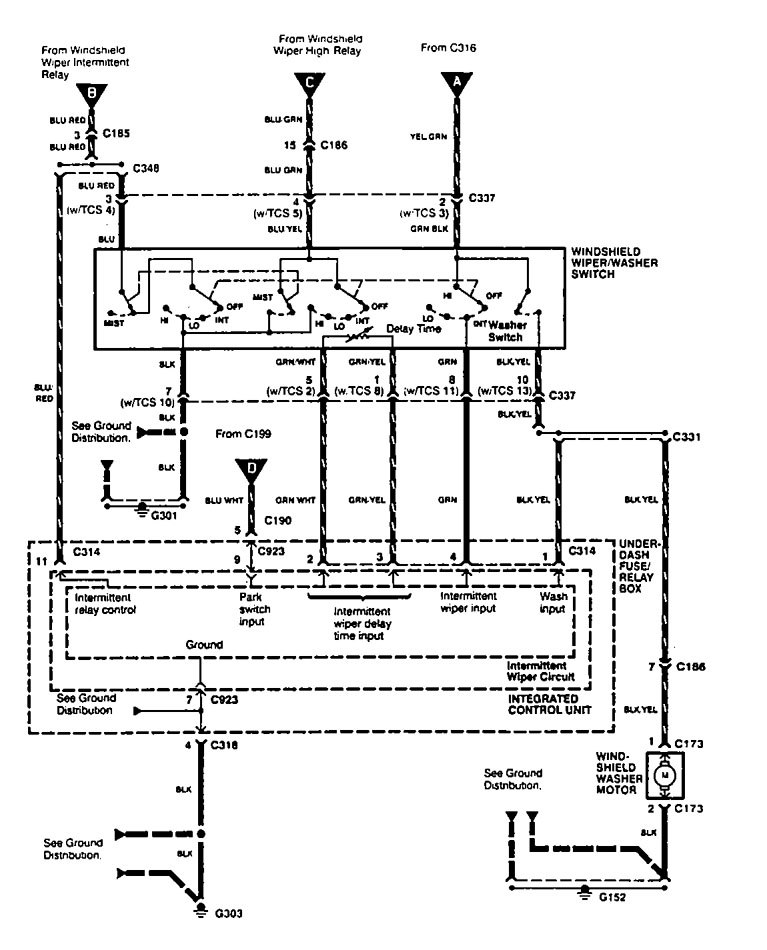

Acura Legend – wiring diagram – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
