Acura Legend (1995) – wiring system – security/anti-theft

Acura Legend (1995) – wiring system – security/anti-theft

Year of productions:  1995

Security/anti-theft

Version 1

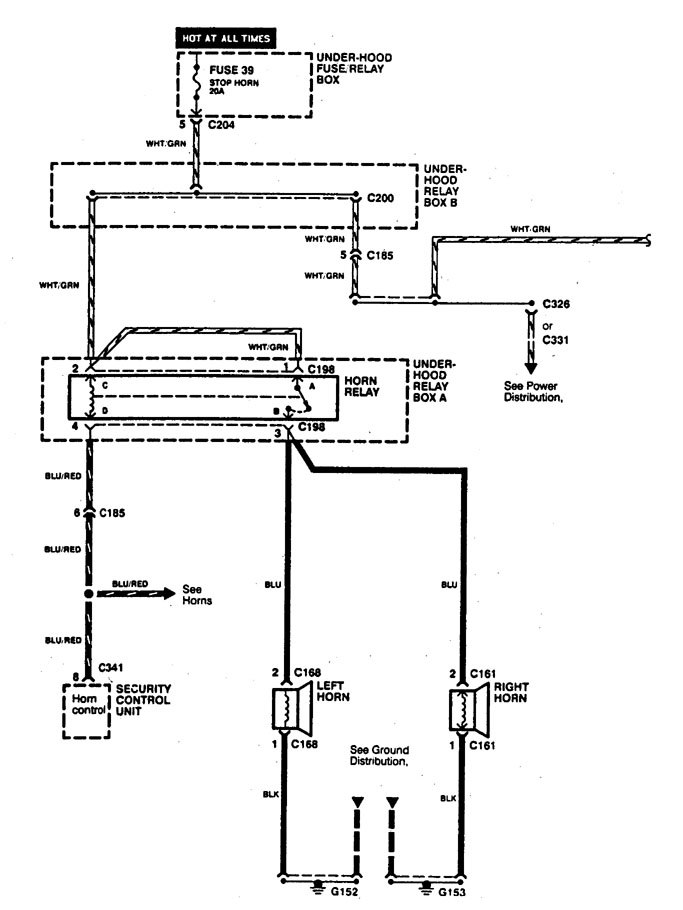

Acura Legend – wiring diagram – security/anti-theft (part 1)

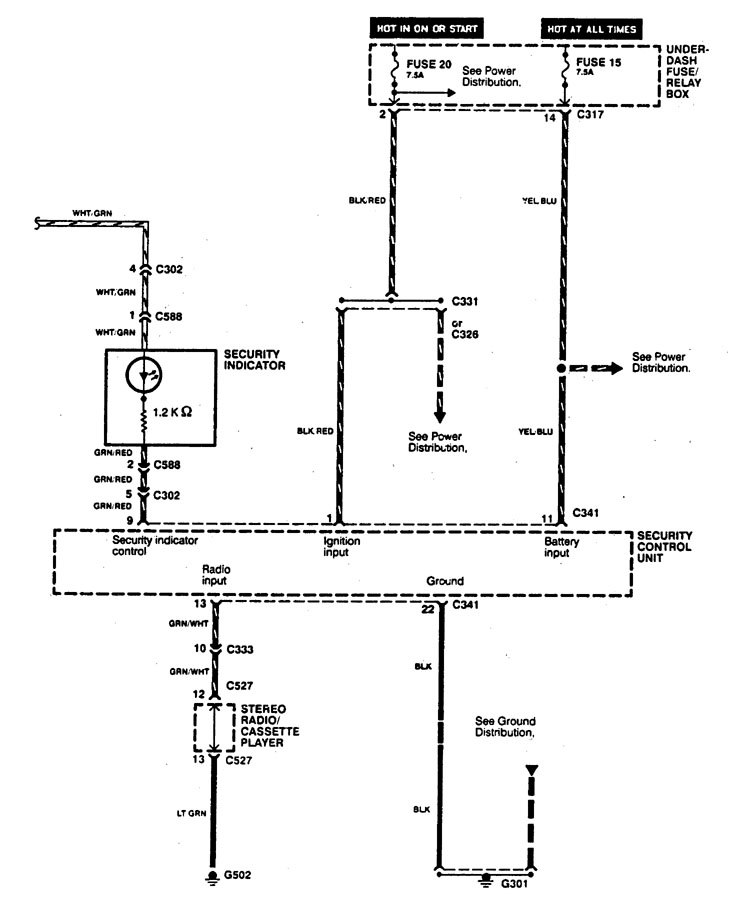

Acura Legend – wiring diagram – security/anti-theft (part 2)

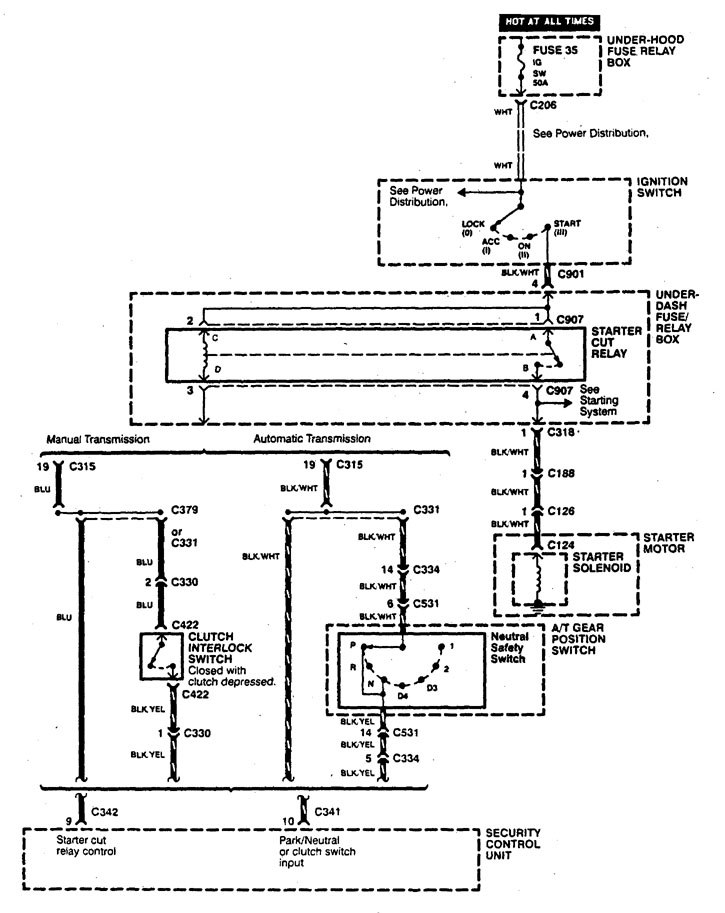

Acura Legend – wiring diagram – security/anti-theft (part 3)

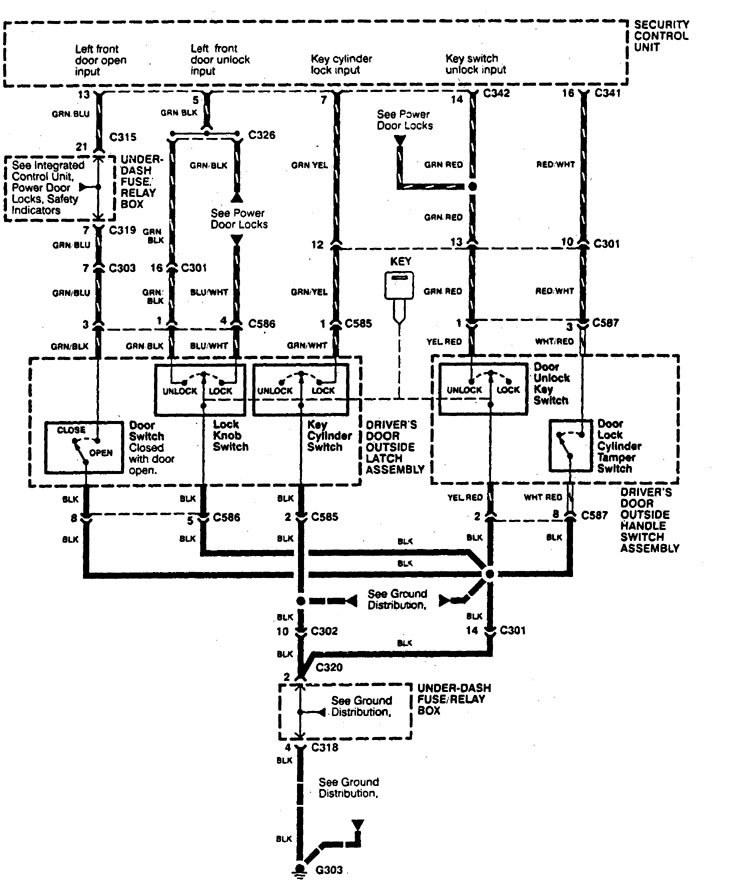

Acura Legend – wiring diagram – security/anti-theft (part 4)

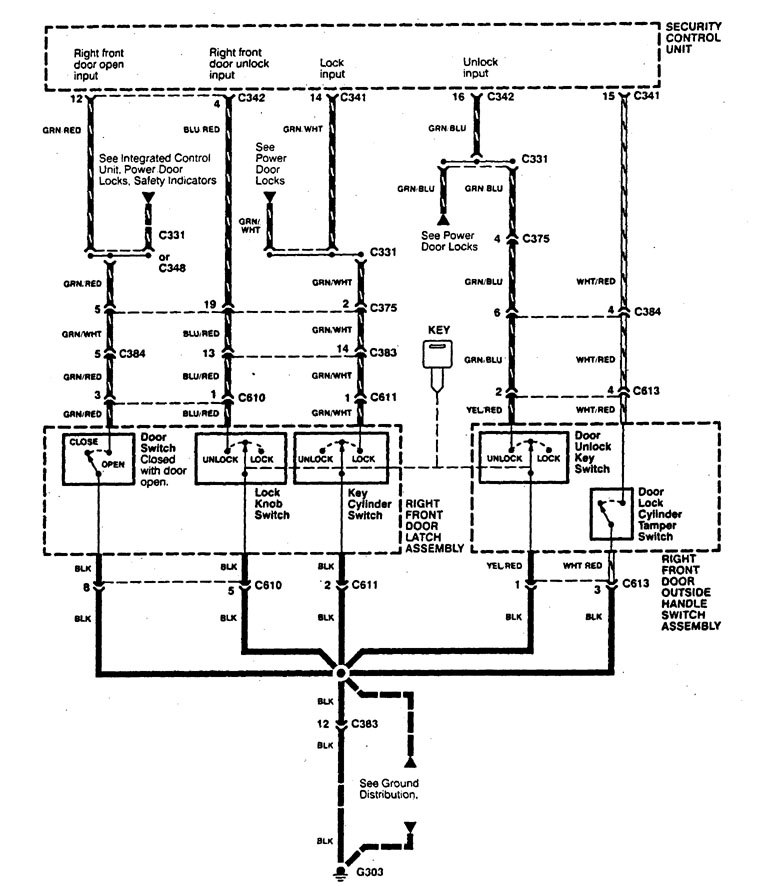

Acura Legend – wiring diagram – security/anti-theft (part 5)

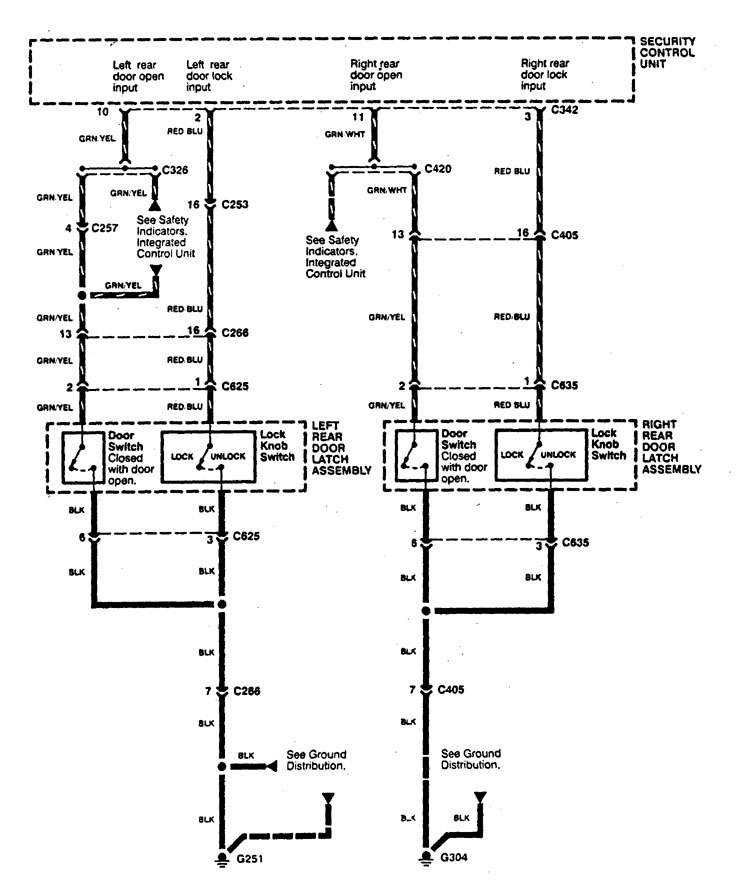

Acura Legend – wiring diagram – security/anti-theft (part 6)

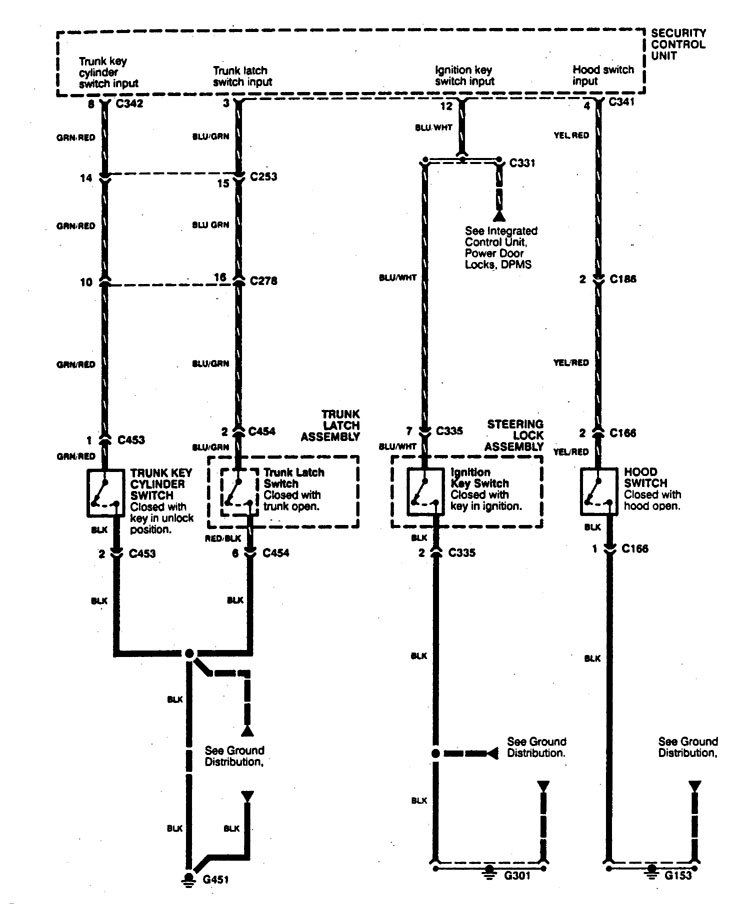

Acura Legend – wiring diagram – security/anti-theft (part 7)

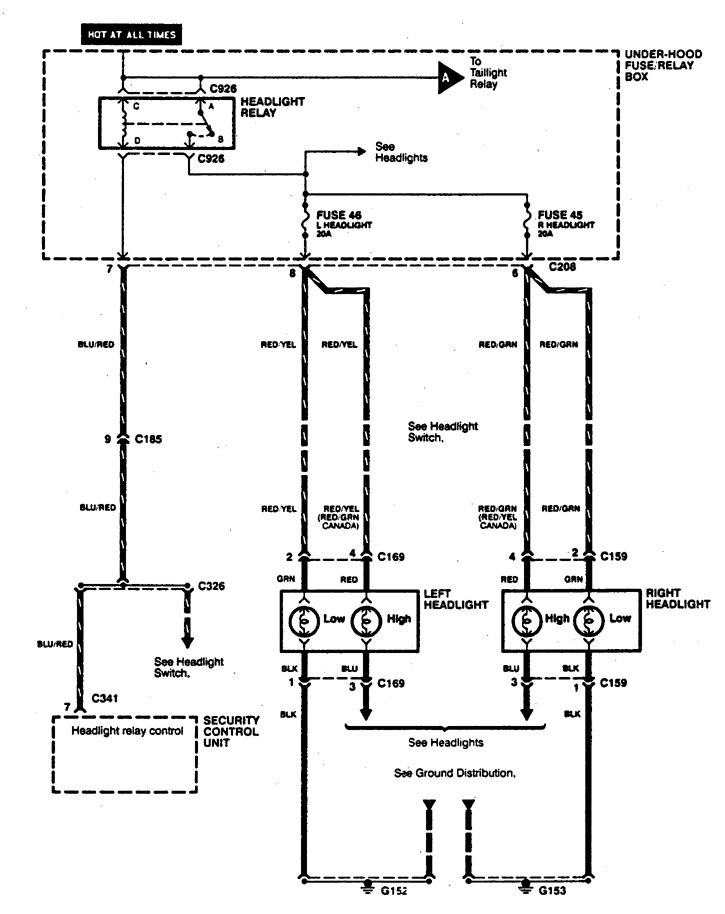

Acura Legend – wiring diagram – security/anti-theft (part 8)

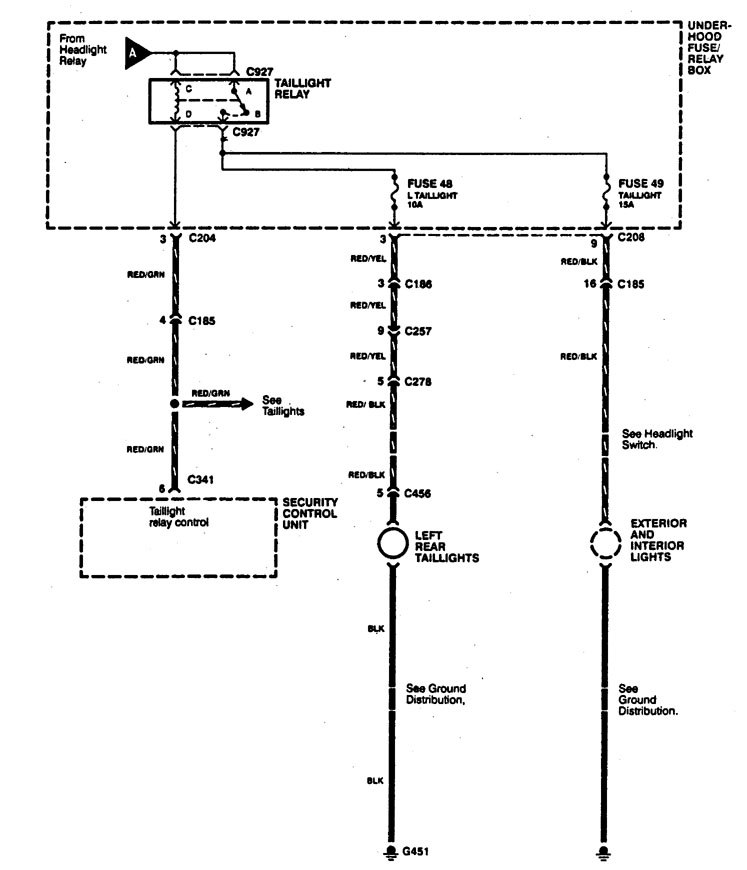

Acura Legend – wiring diagram – security/anti-theft (part 9)

Version 2

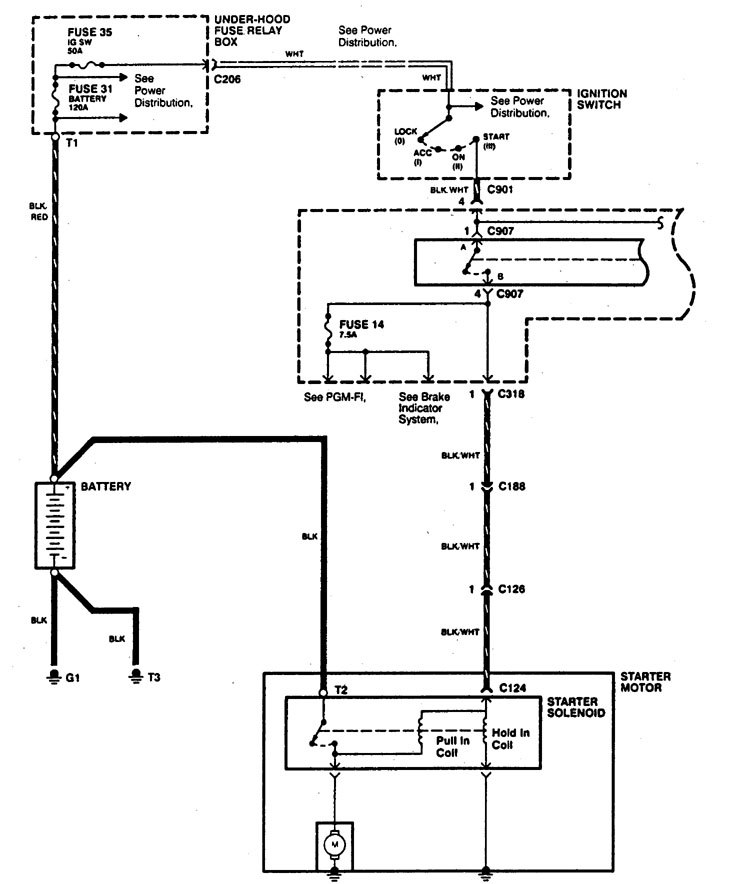

Acura Legend – wiring diagram – security/anti-theft (part 1)

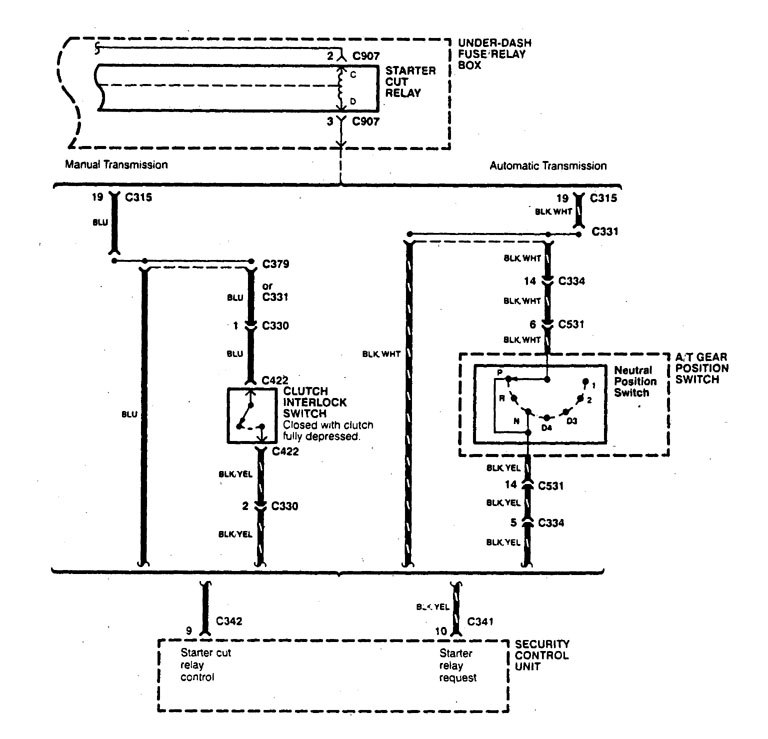

Acura Legend – wiring diagram – security/anti-theft (part 2)

Version 3

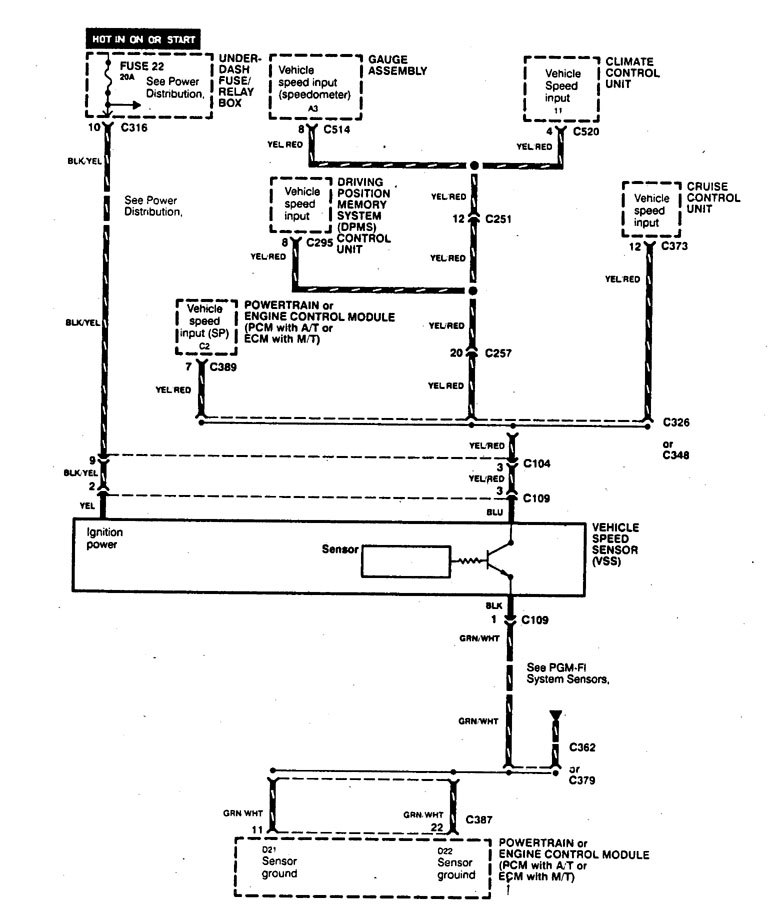

Acura Legend – wiring diagram – security/anti-theft



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
