Acura NSX (1997 – 2005) – wiring diagrams – audio

Year of productions:  1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Audio

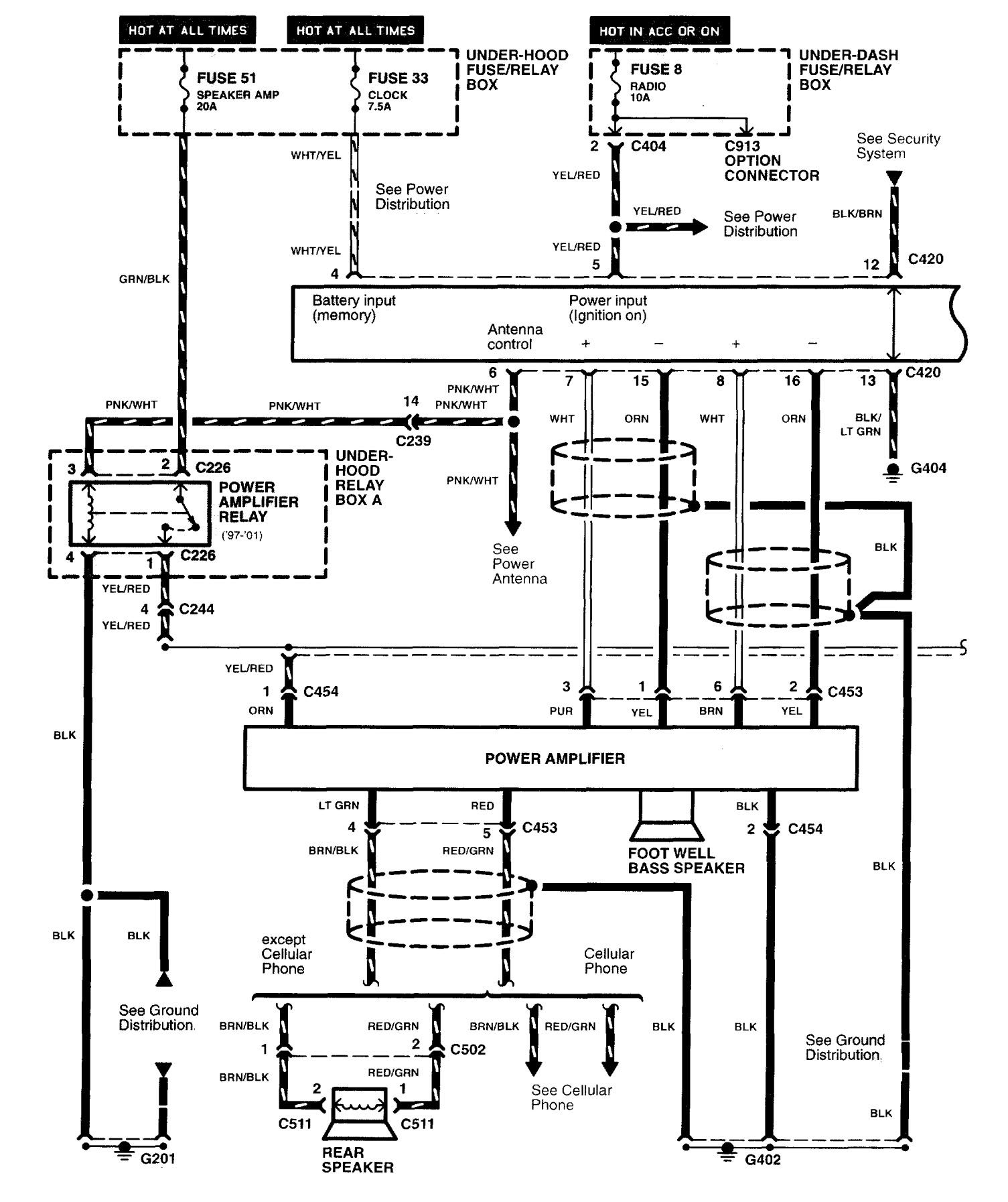

Acura NSX - wiring diagram - audio (part 1)
Acura NSX – wiring diagram – audio (part 1)

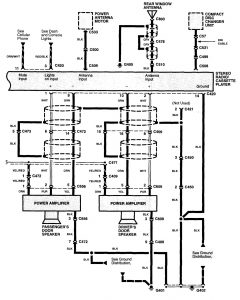

Acura NSX - wiring diagram - audio (part 2)
Acura NSX – wiring diagram – audio (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
