Acura NSX (1997 – 2005) – wiring diagrams – driver information center/message center

29 January 2018 admin Acura, NSX 0

Acura NSX (1997 – 2005) – wiring diagrams – driver information center/message center

Year of productions:  1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

Driver information center/massage center

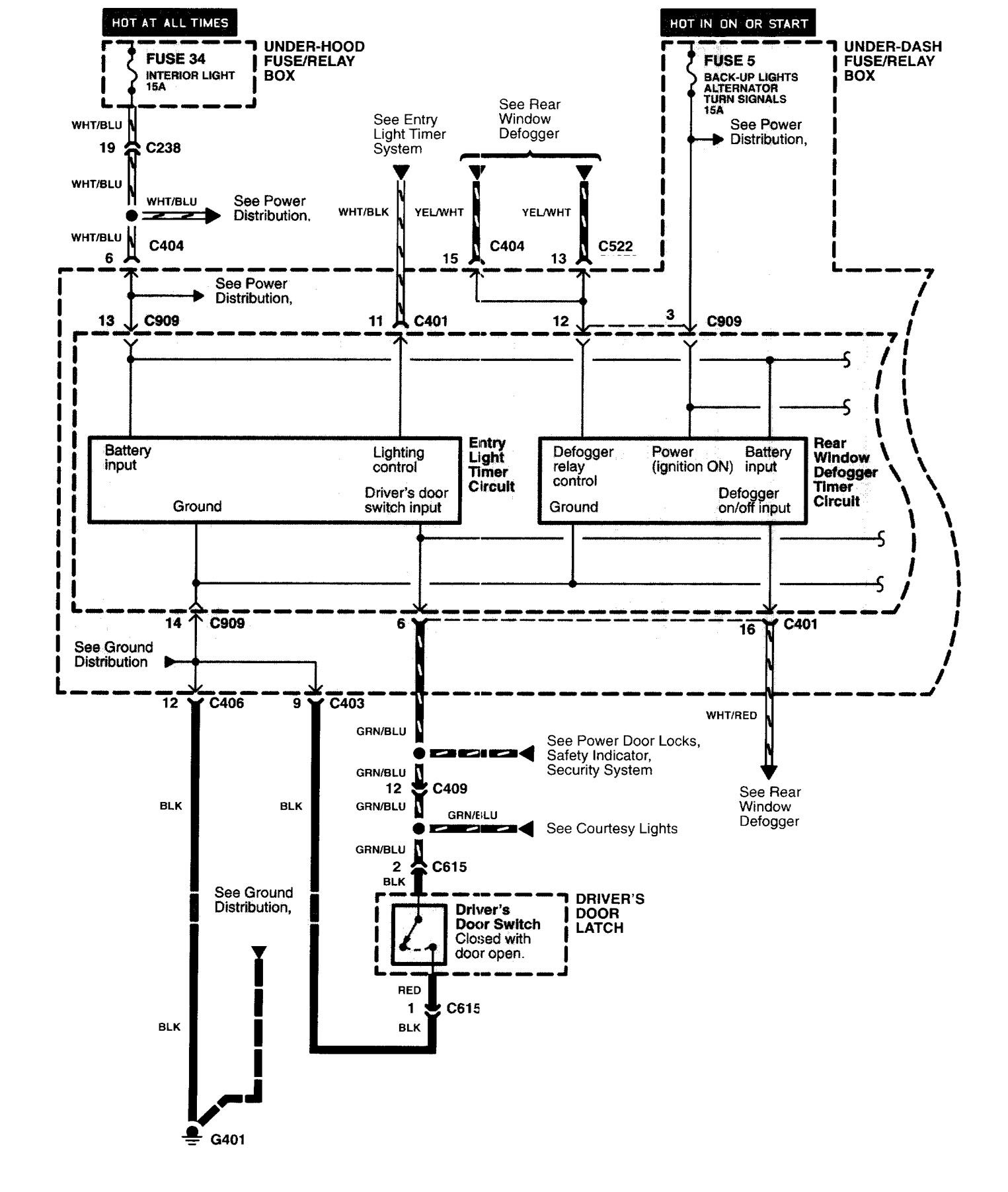

Acura NSX - wiring diagram - driver information center/message center (part 1)
Acura NSX – wiring diagram – driver information center/message center (part 1)

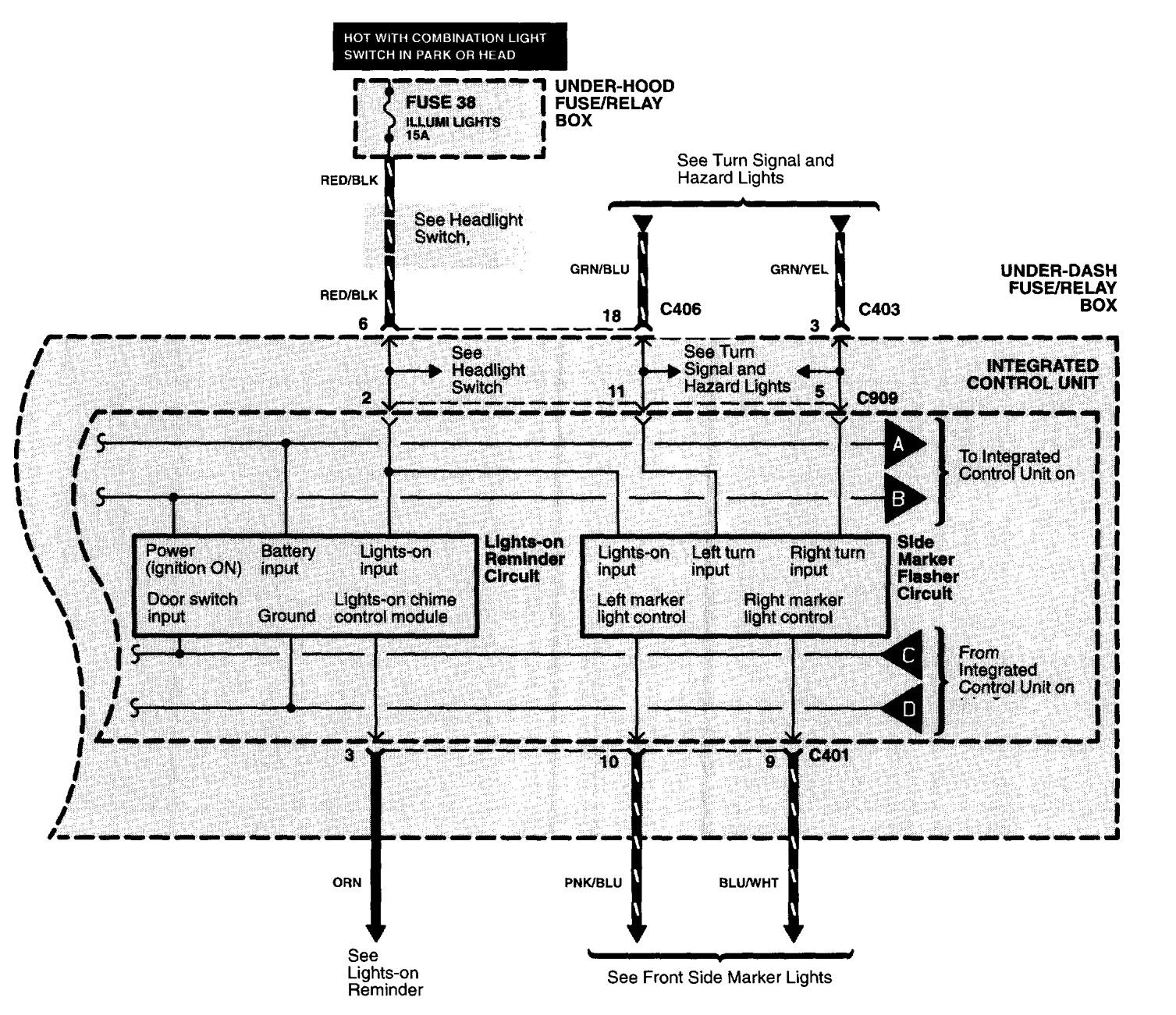

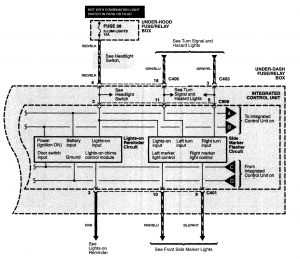

Acura NSX - wiring diagram - driver information center/message center (part 2)
Acura NSX – wiring diagram – driver information center/message center (part 2)

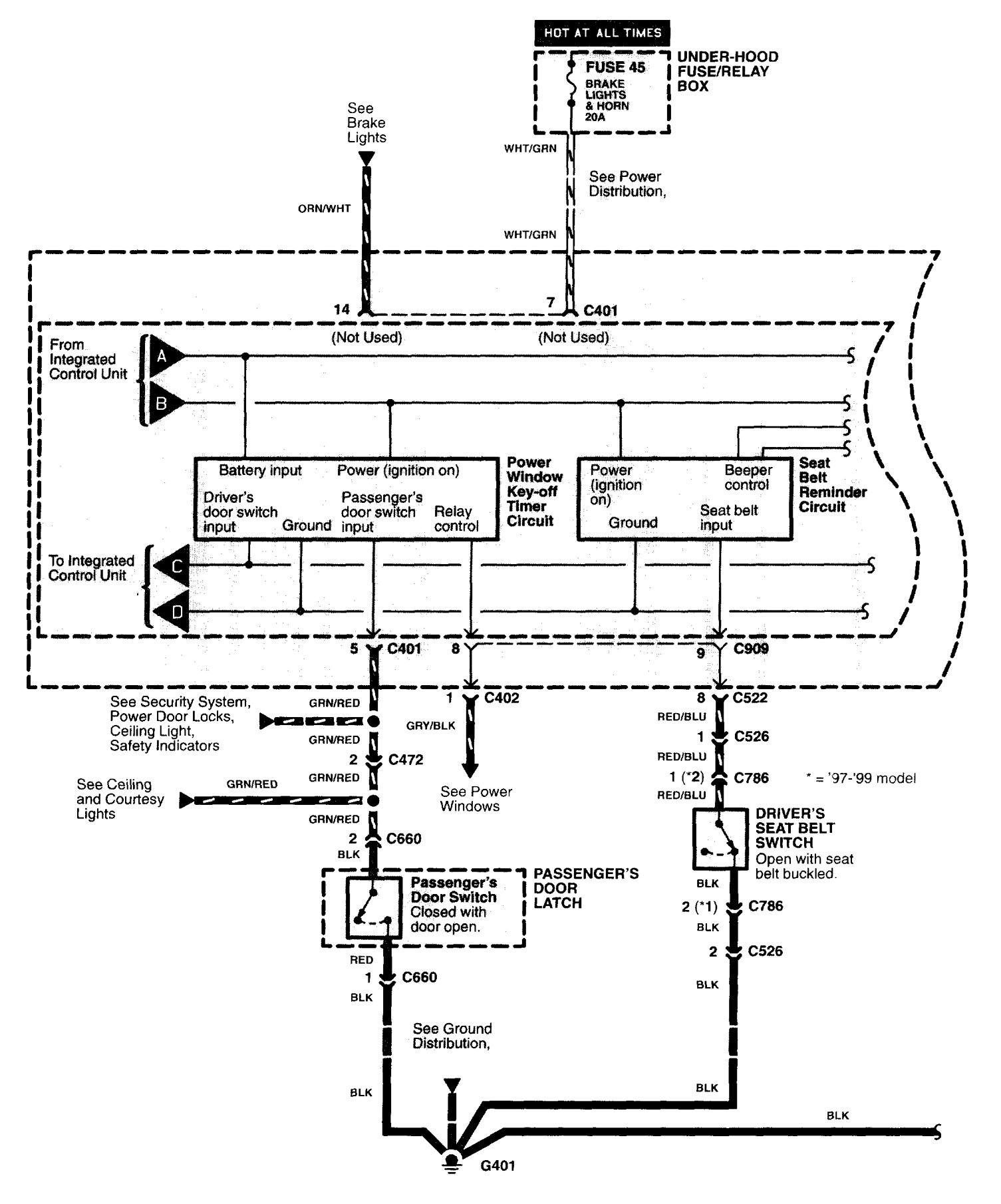

Acura NSX - wiring diagram - driver information center/message center (part 3)
Acura NSX – wiring diagram – driver information center/message center (part 3)

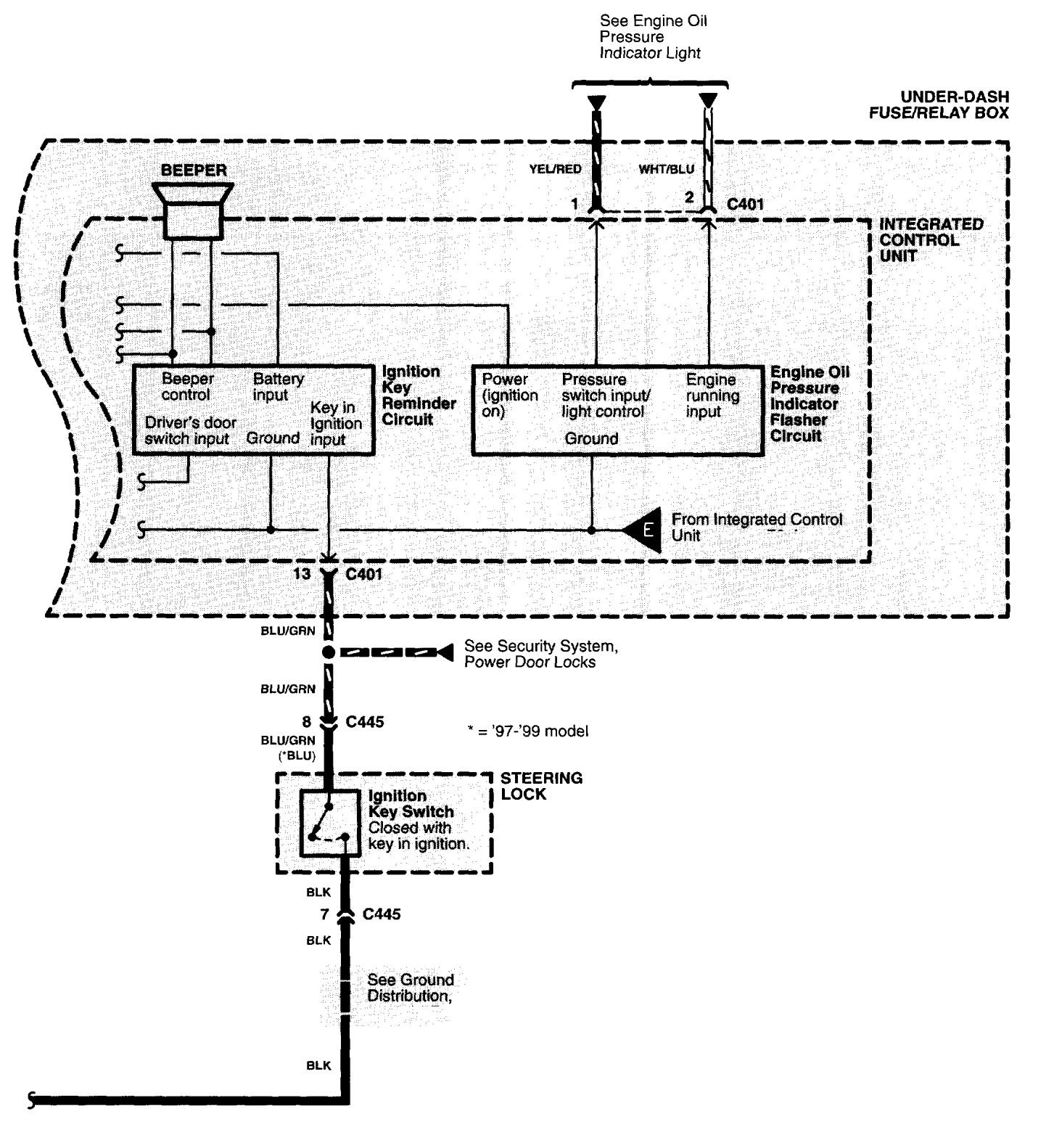

Acura NSX - wiring diagram - driver information center/message center (part 4)
Acura NSX – wiring diagram – driver information center/message center (part 4)

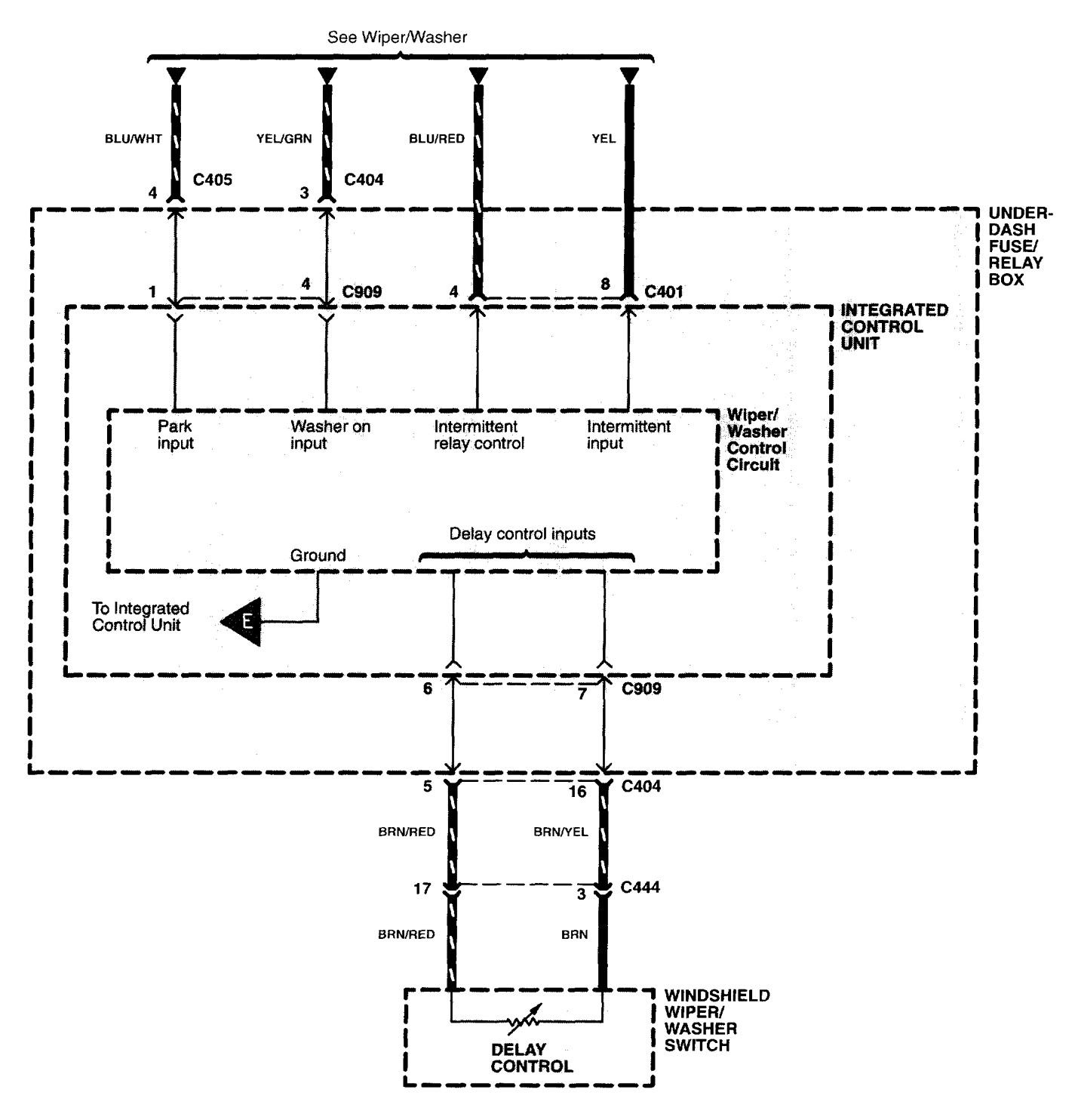

Acura NSX - wiring diagram - driver information center/message center (part 5)
Acura NSX – wiring diagram – driver information center/message center (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
