Acura NSX (1997 – 2004) – wiring diagrams – headlamps

Acura NSX (1997 – 2004) – wiring diagrams – headlamps

Year of productions:  1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Headlamps

Version 1

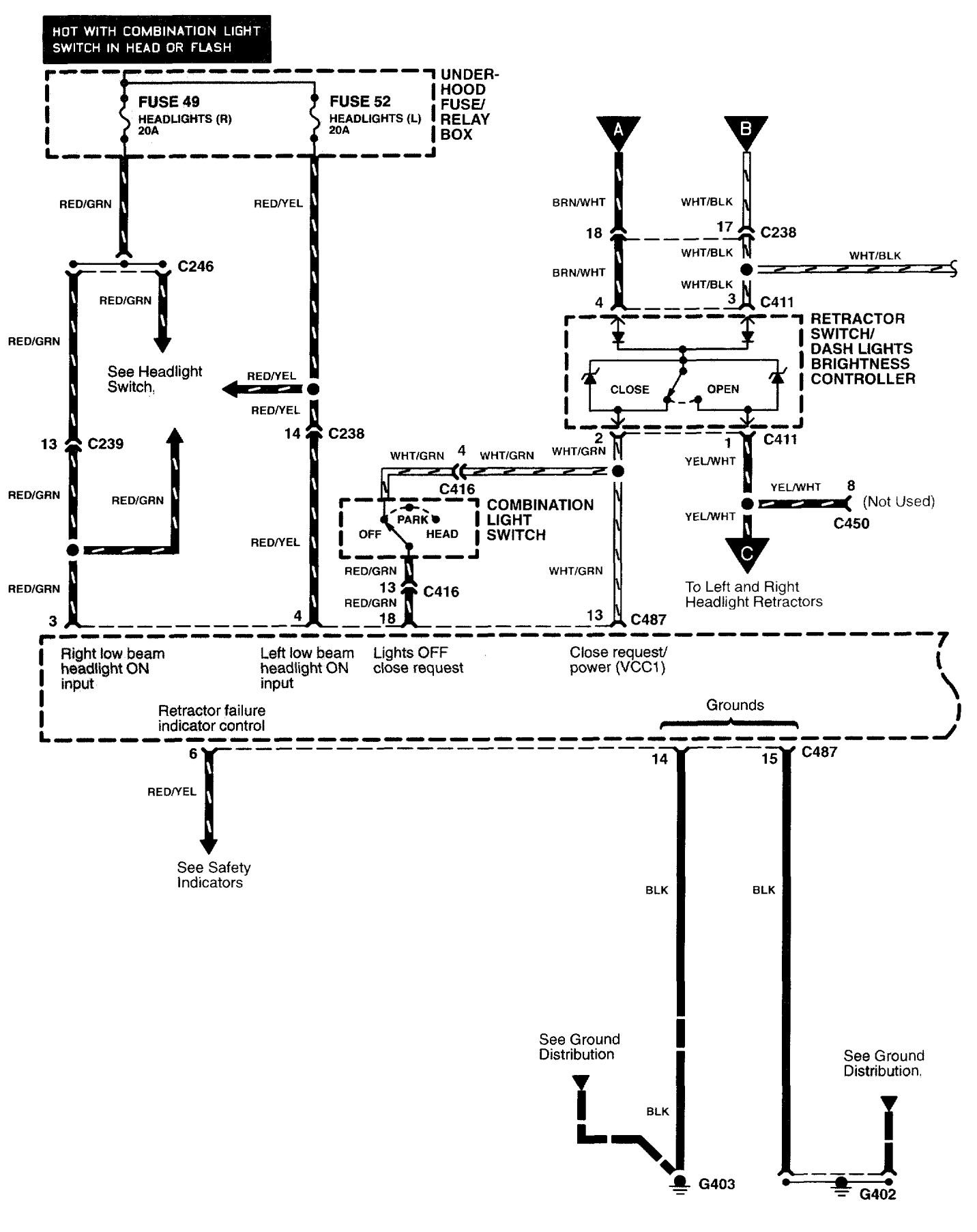

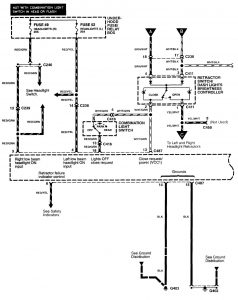

Acura NSX - wiring diagram - headlamps (part 1)
Acura NSX – wiring diagram – headlamps (part 1)

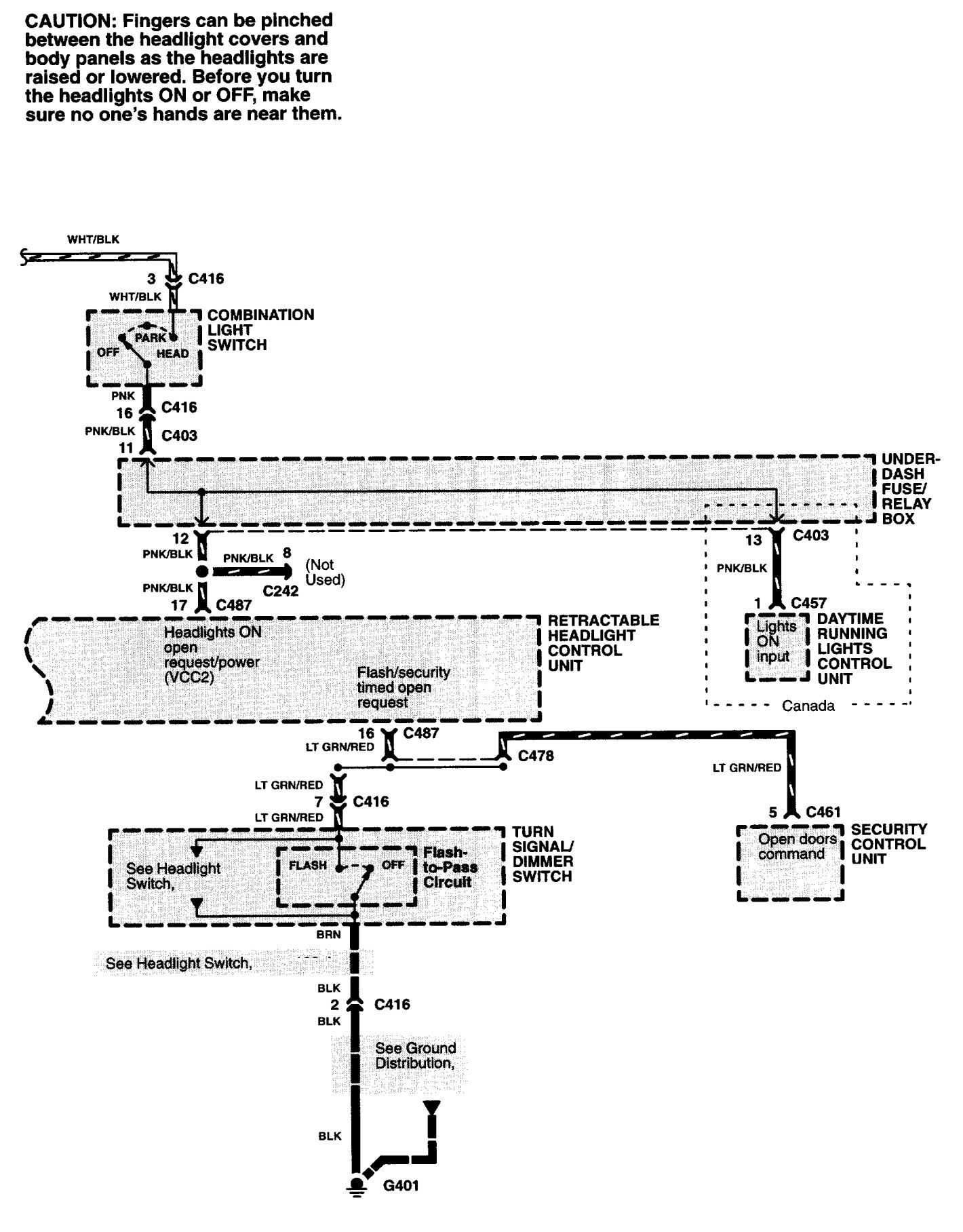

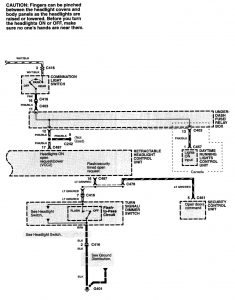

Acura NSX - wiring diagram - headlamps (part 2)
Acura NSX – wiring diagram – headlamps (part 2)

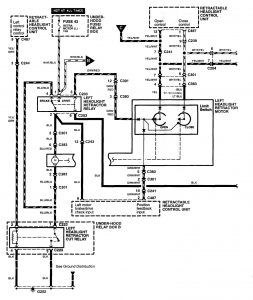

Acura NSX - wiring diagram - headlamps (part 3)
Acura NSX – wiring diagram – headlamps (part 3)

Version 2

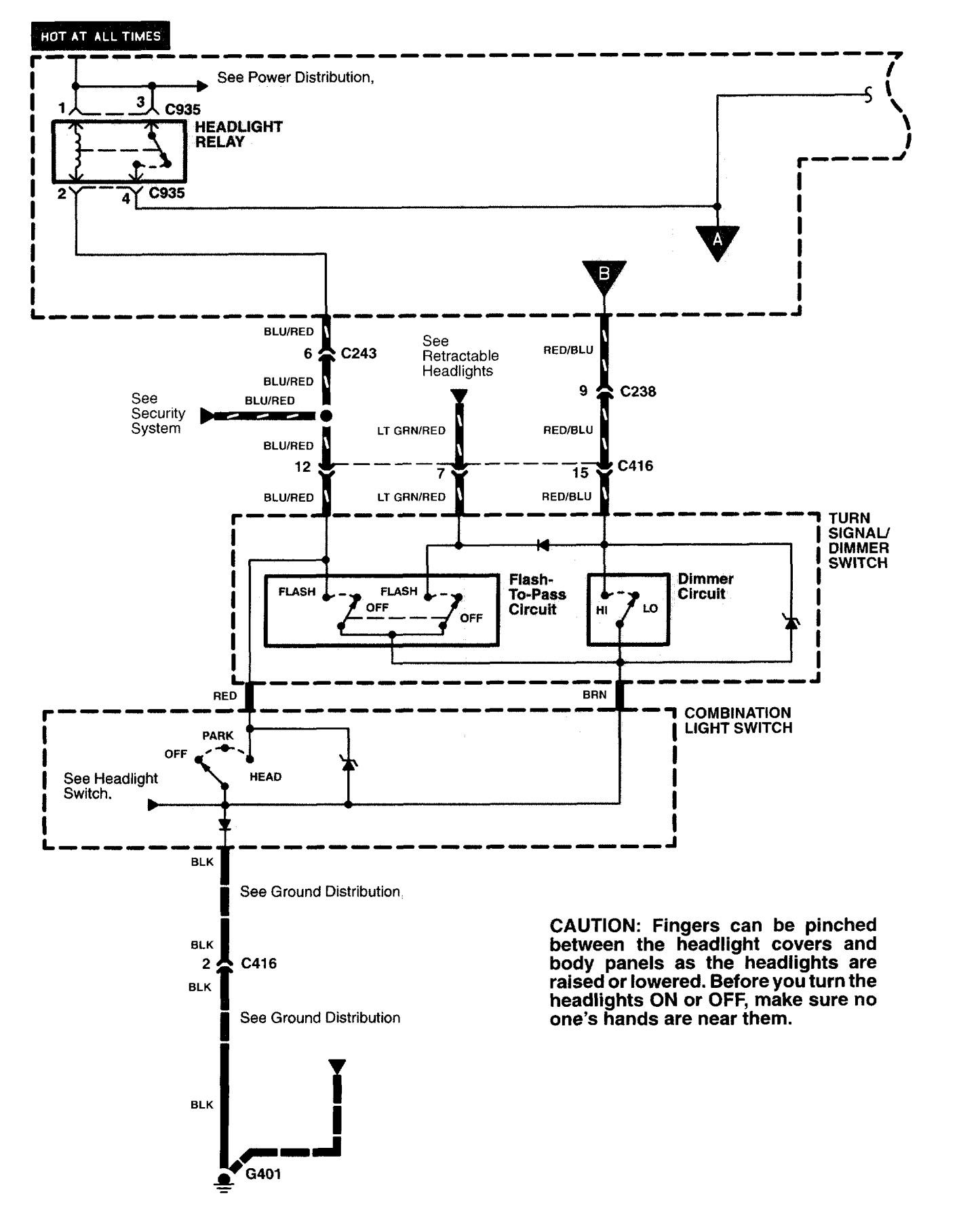

Acura NSX - wiring diagram - headlamps (part 1)
Acura NSX – wiring diagram – headlamps (part 1)

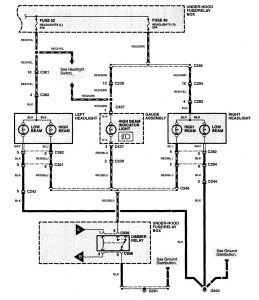

Acura NSX - wiring diagram - headlamps (part 2)
Acura NSX – wiring diagram – headlamps (part 2)

Version 2

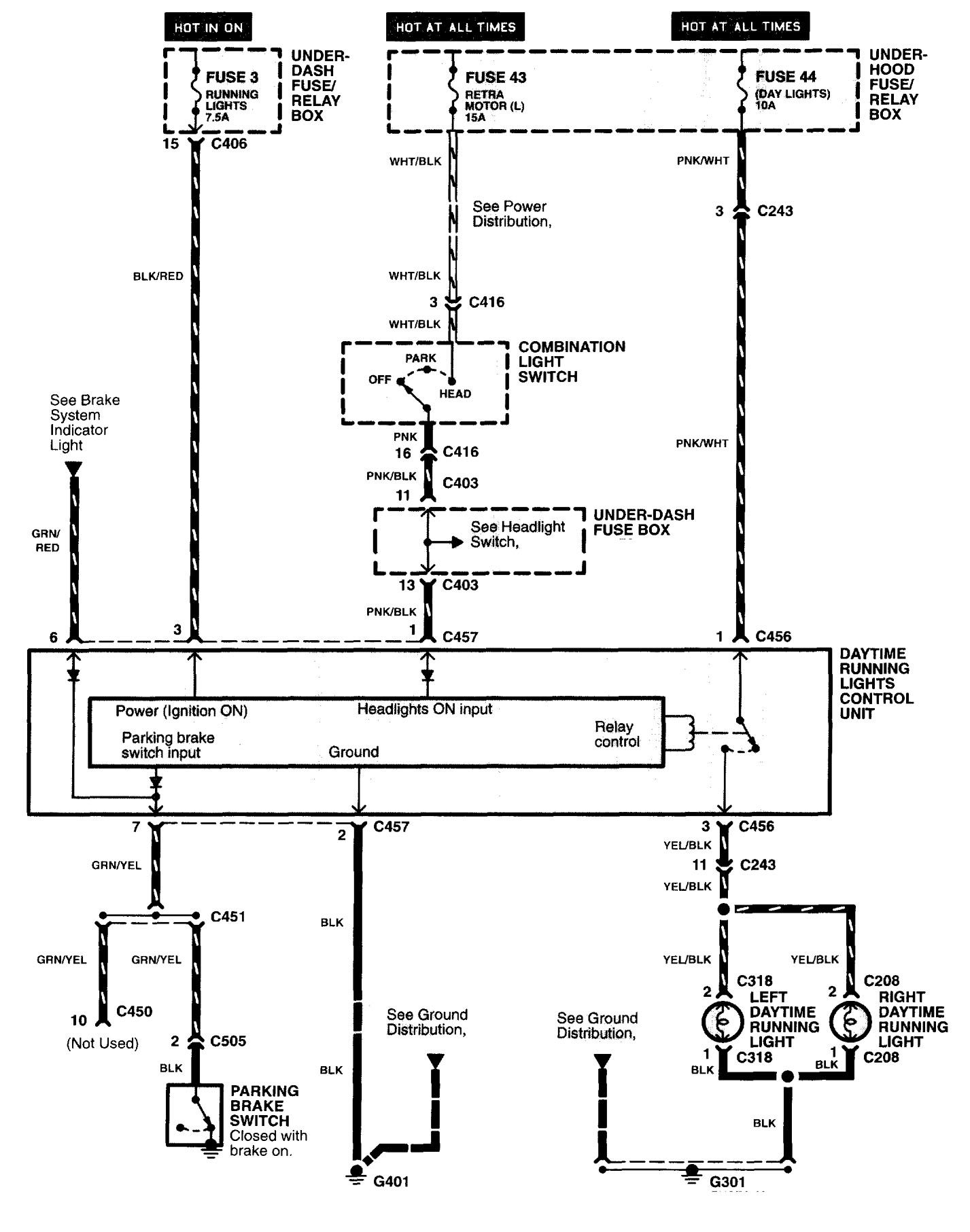

Acura NSX - wiring diagram - headlamps
Acura NSX – wiring diagram – headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
