Acura NSX (1997 – 2004) – wiring diagrams – parking lamp

Acura NSX (1997 – 2004) – wiring diagrams – parking lamp

Year of productions:  1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Parking lamp

Version 1

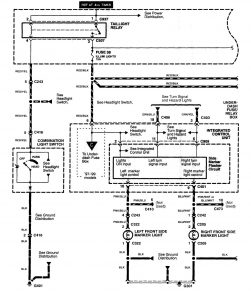

Acura NSX - wiring diagram - parking lamp (part 1)
Acura NSX – wiring diagram – parking lamp (part 1)

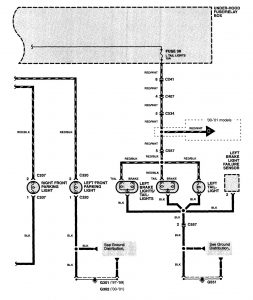

Acura NSX - wiring diagram - parking lamp (part 2)
Acura NSX – wiring diagram – parking lamp (part 2)

Version2

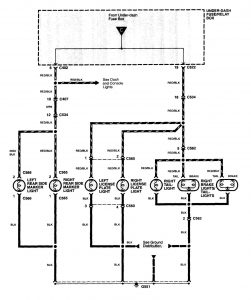

Acura NSX - wiring diagram - parking lamp
Acura NSX – wiring diagram – parking lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
