Acura RL (1996 – 1999) – wiring diagrams – clock

Acura RL (1996 – 1999) – wiring diagrams – clock

Year of productions:  1996, 1997, 1998, 1999

Clock

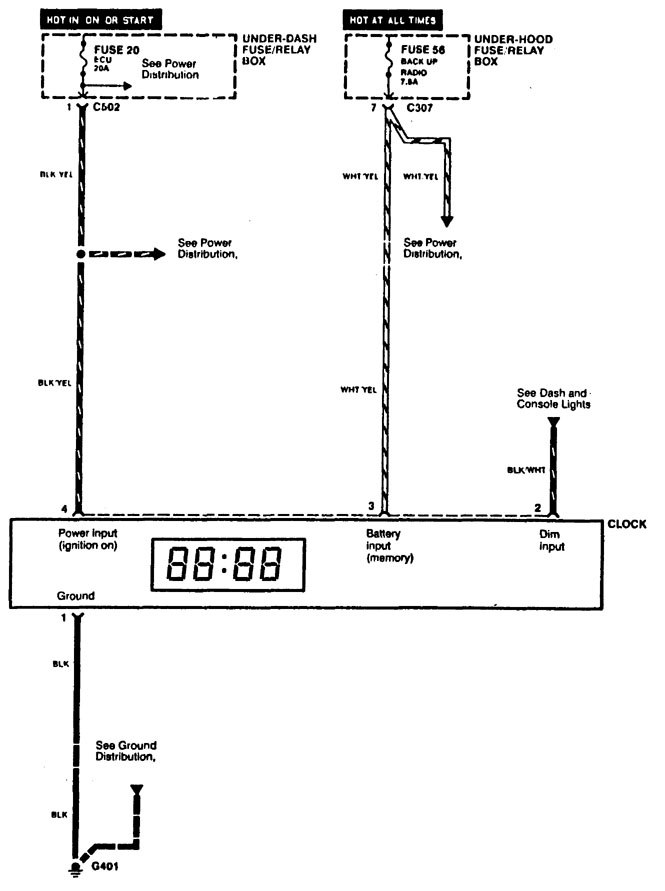

Acura RL - wiring diagram - clock
Acura RL – wiring diagram – clock

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
