Acura RL (1996 – 1998) – wiring diagrams – security/anti-theft

Year of productions:  1996, 1997, 1998

Security/Anti-theft

Version 1

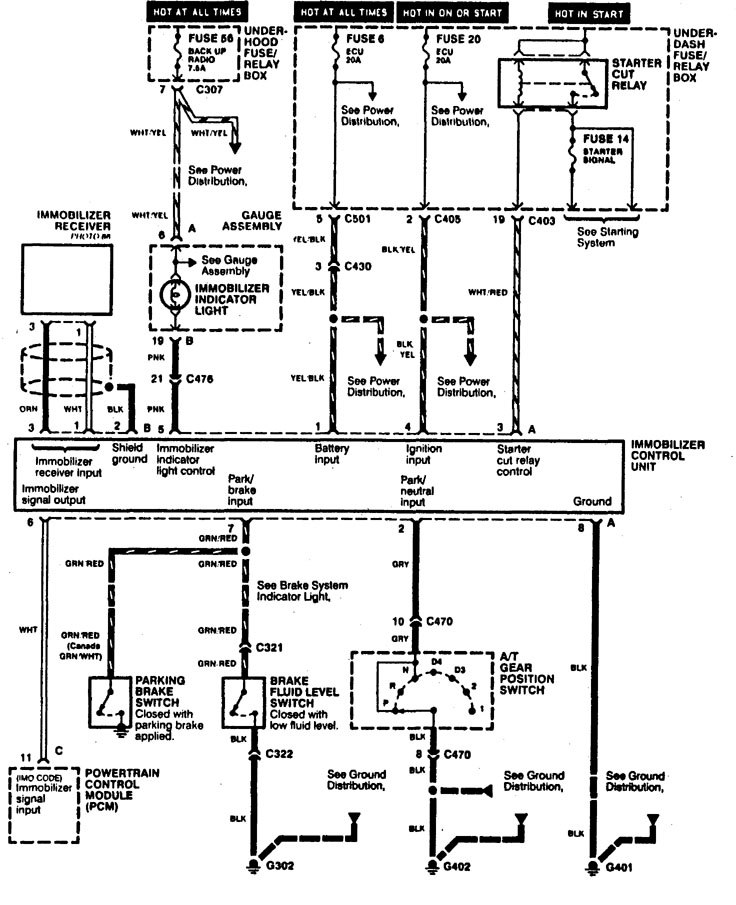

Acura RL - wiring diagram - security/anti-theft
Acura RL – wiring diagram – security/anti-theft

Version 2

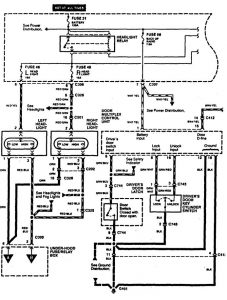

Acura RL - wiring diagram - security/anti-theft (part 1)
Acura RL – wiring diagram – security/anti-theft (part 1)

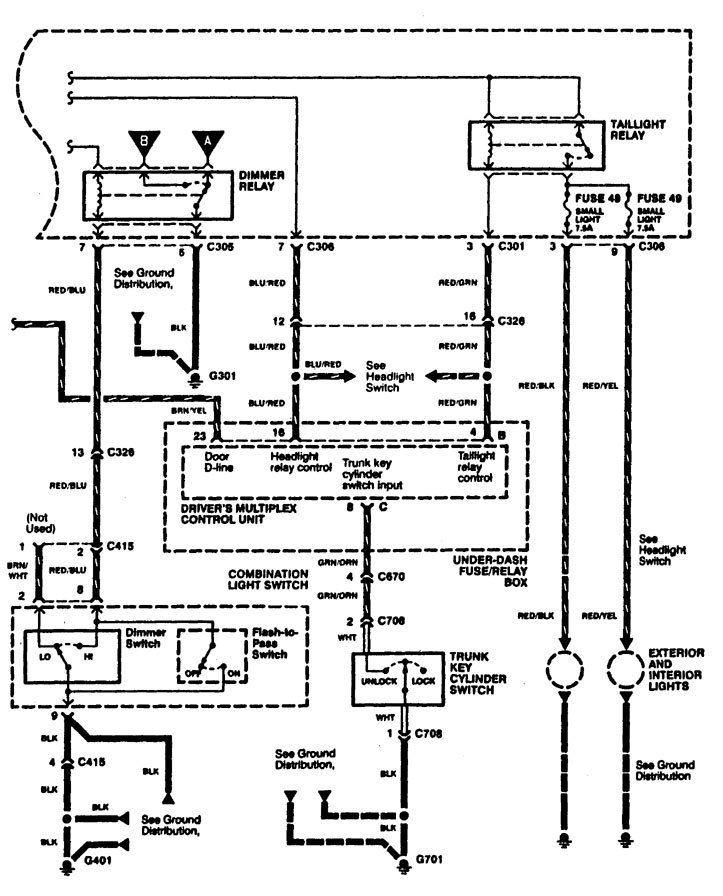

Acura RL - wiring diagram - security/anti-theft (part 2)
Acura RL – wiring diagram – security/anti-theft (part 2)

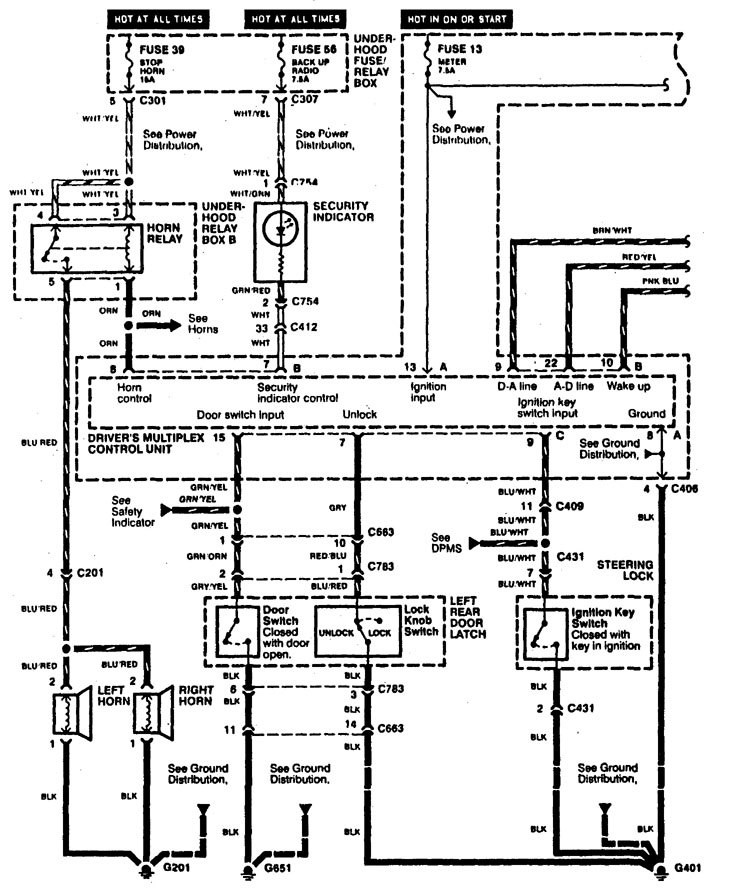

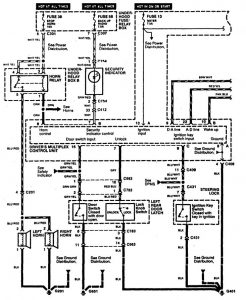

Acura RL - wiring diagram - security/anti-theft (part 3)
Acura RL – wiring diagram – security/anti-theft (part 3)

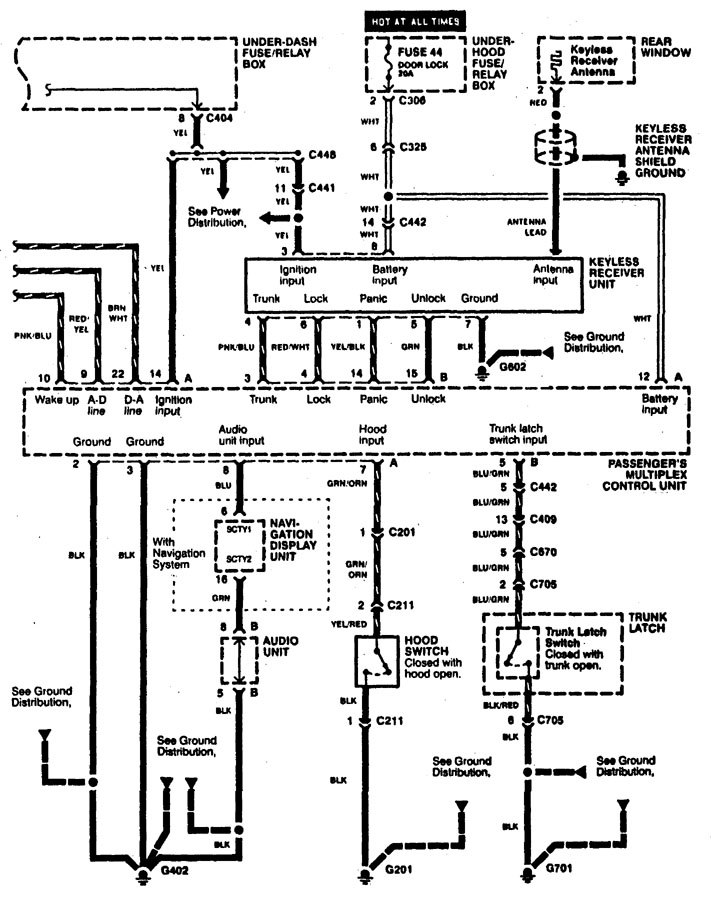

Acura RL - wiring diagram - security/anti-theft (part 4)
Acura RL – wiring diagram – security/anti-theft (part 4)

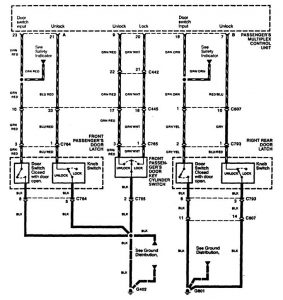

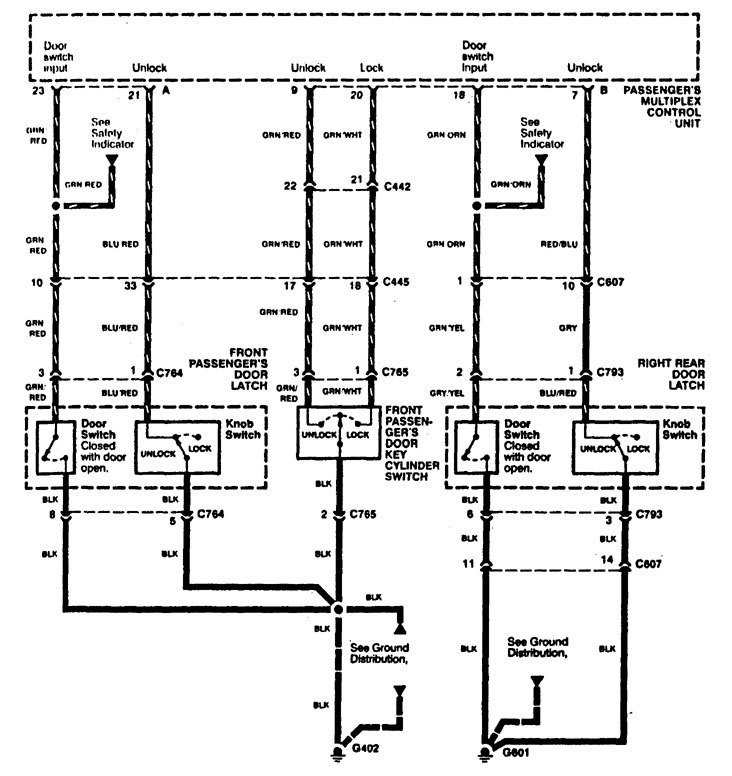

Acura RL - wiring diagram - security/anti-theft (part 5)
Acura RL – wiring diagram – security/anti-theft (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
