Acura RL (1996 – 1999) – wiring diagrams – power distribution

Acura RL (1996 – 1999) – wiring diagrams – power distribution

Year of productions:  1996, 1997, 1998, 1999

Power distribution

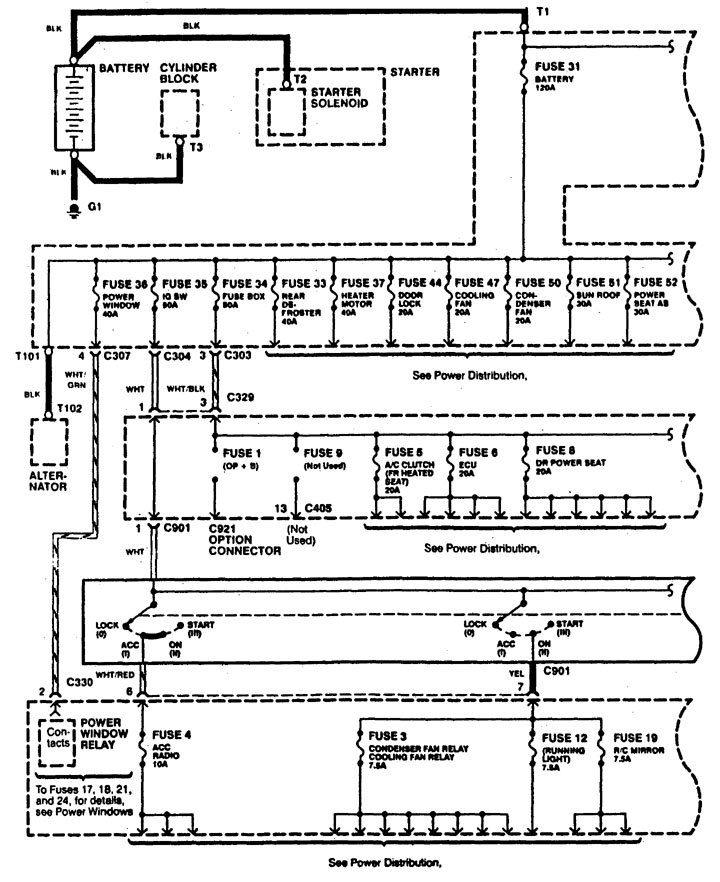

Acura RL - wiring diagram - power distribution (part 1)
Acura RL – wiring diagram – power distribution (part 1)

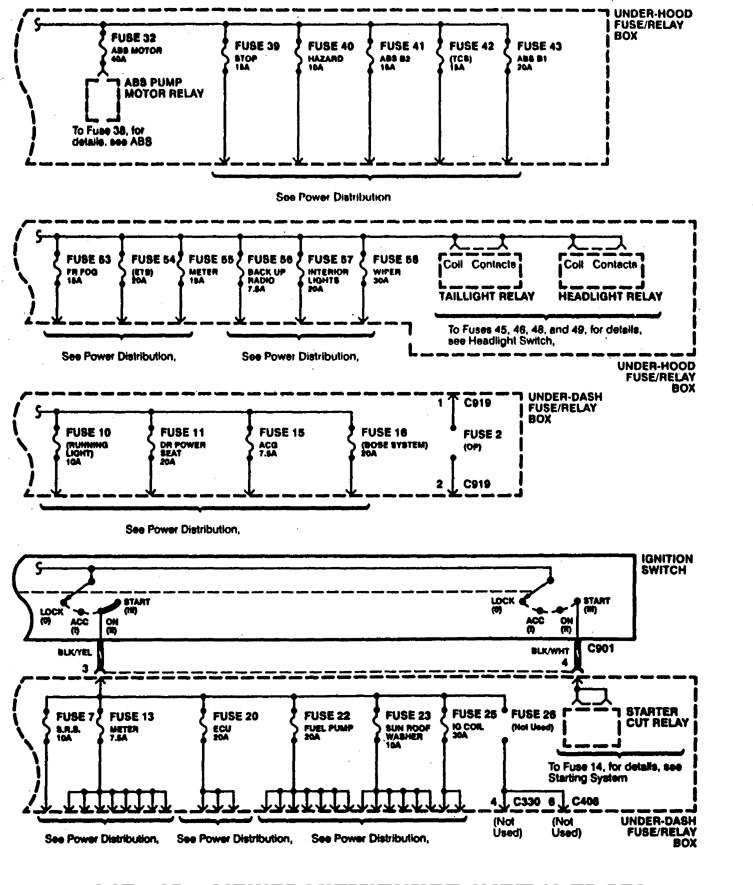

Acura RL - wiring diagram - power distribution (part 2)
Acura RL – wiring diagram – power distribution (part 2)

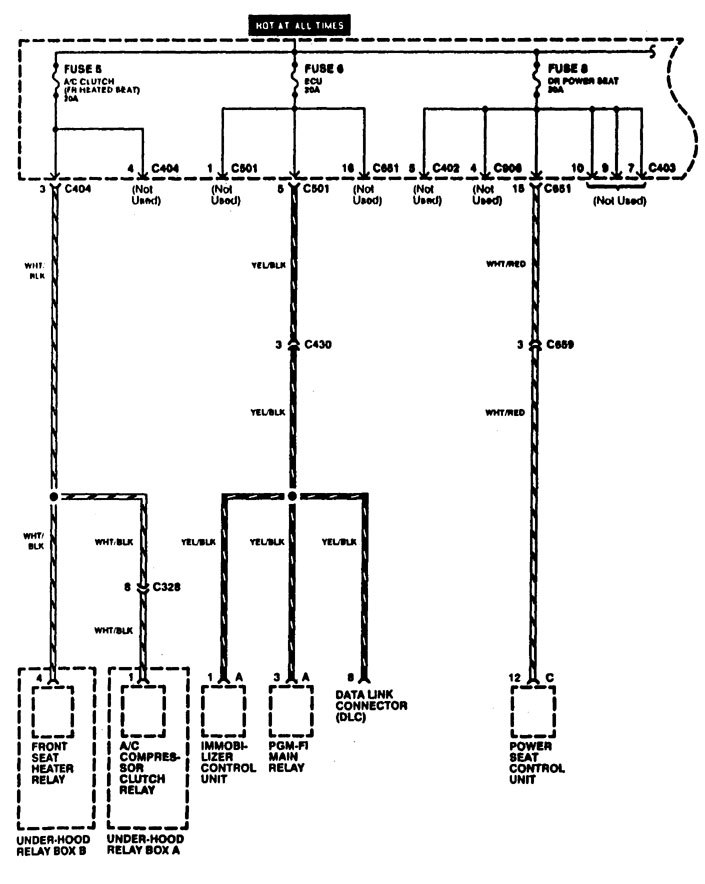

Acura RL - wiring diagram - power distribution (part 3)
Acura RL – wiring diagram – power distribution (part 3)

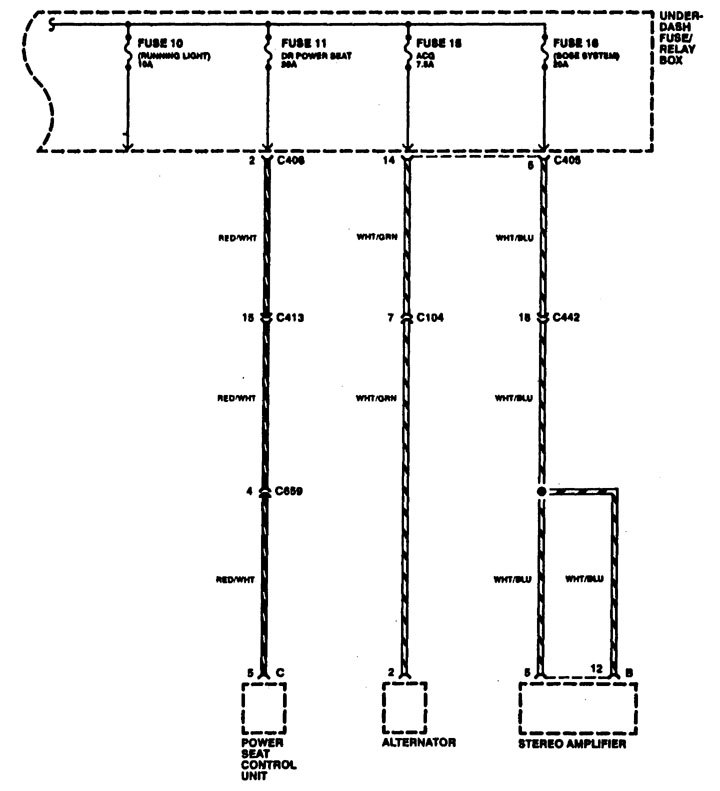

Acura RL - wiring diagram - power distribution (part 4)
Acura RL – wiring diagram – power distribution (part 4)

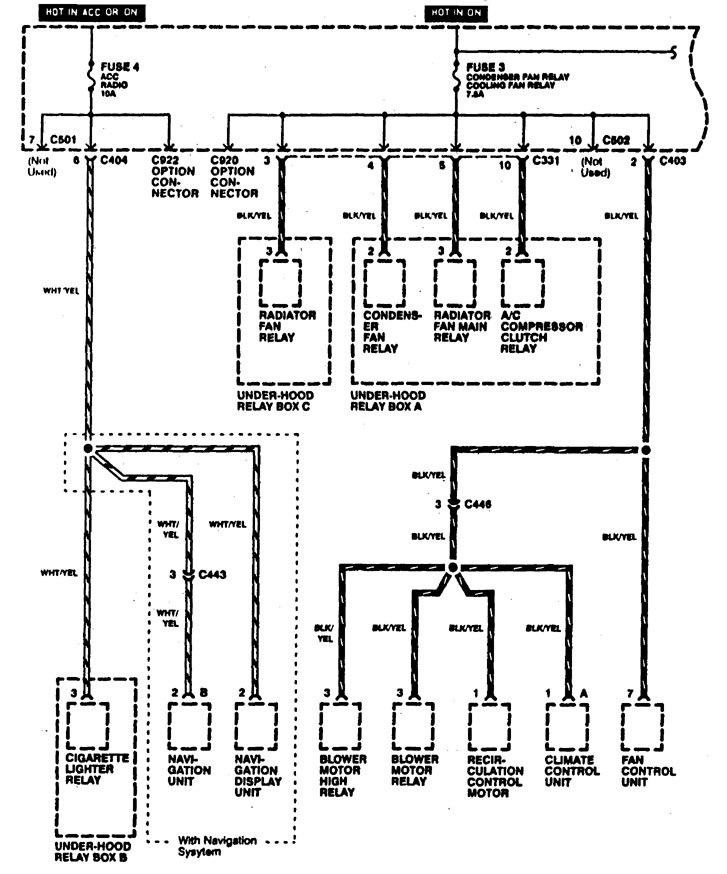

Acura RL - wiring diagram - power distribution (part 5)
Acura RL – wiring diagram – power distribution (part 5)

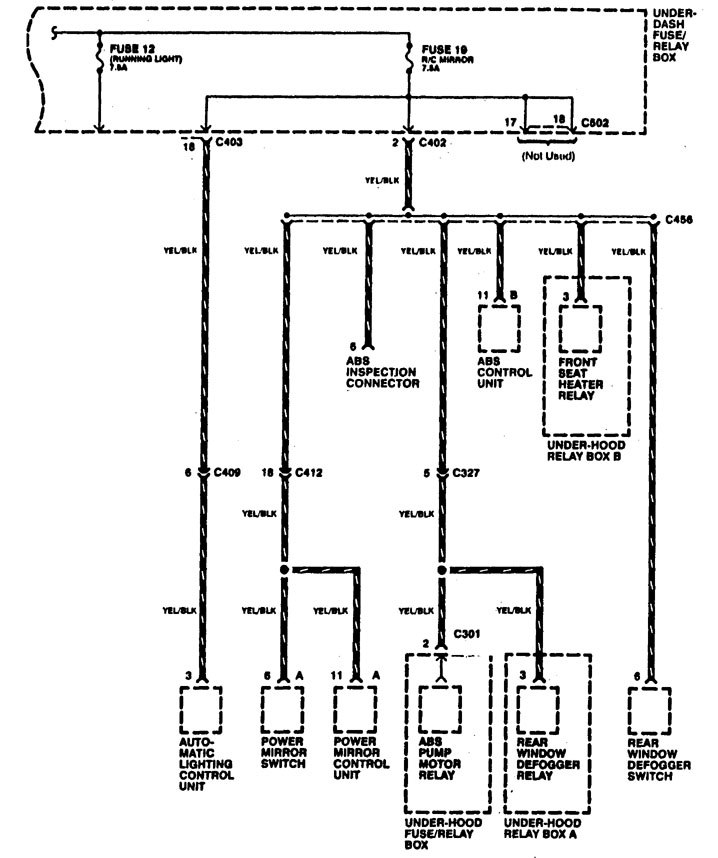

Acura RL - wiring diagram - power distribution (part 6)
Acura RL – wiring diagram – power distribution (part 6)

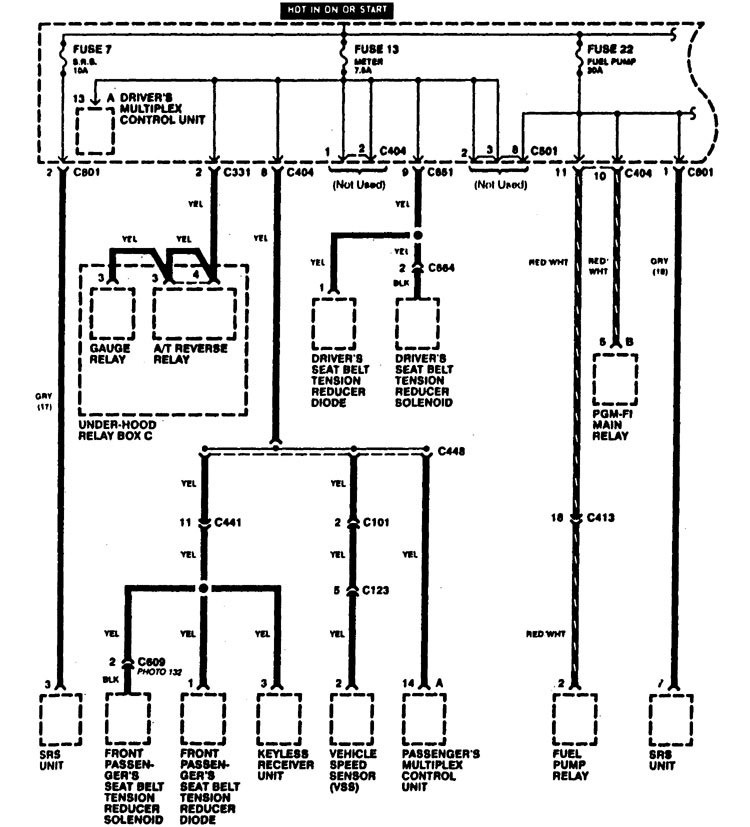

Acura RL - wiring diagram - power distribution (part 7)
Acura RL – wiring diagram – power distribution (part 7)

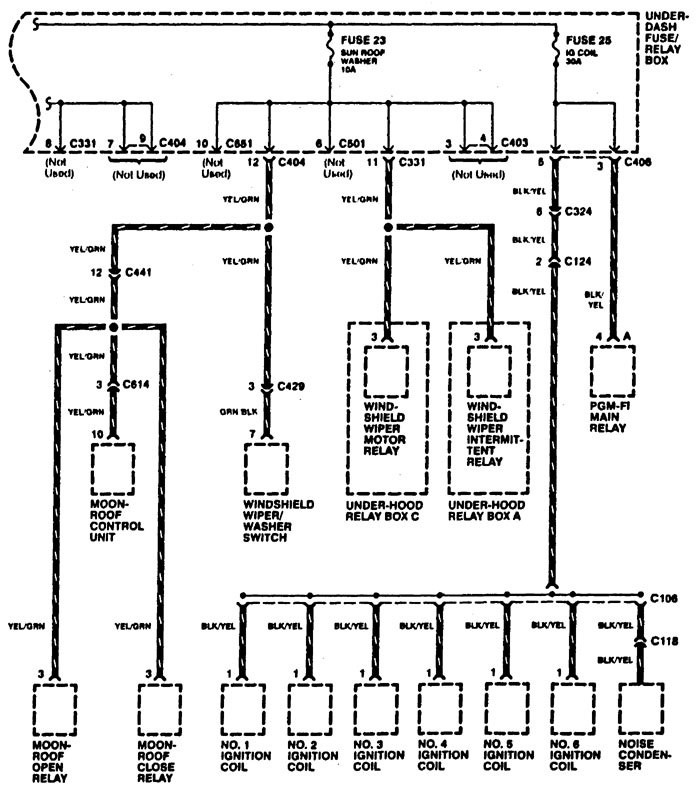

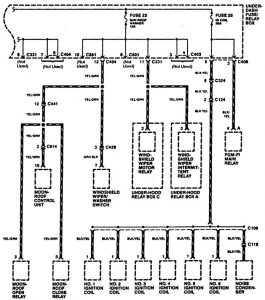

Acura RL - wiring diagram - power distribution (part 8)
Acura RL – wiring diagram – power distribution (part 8)

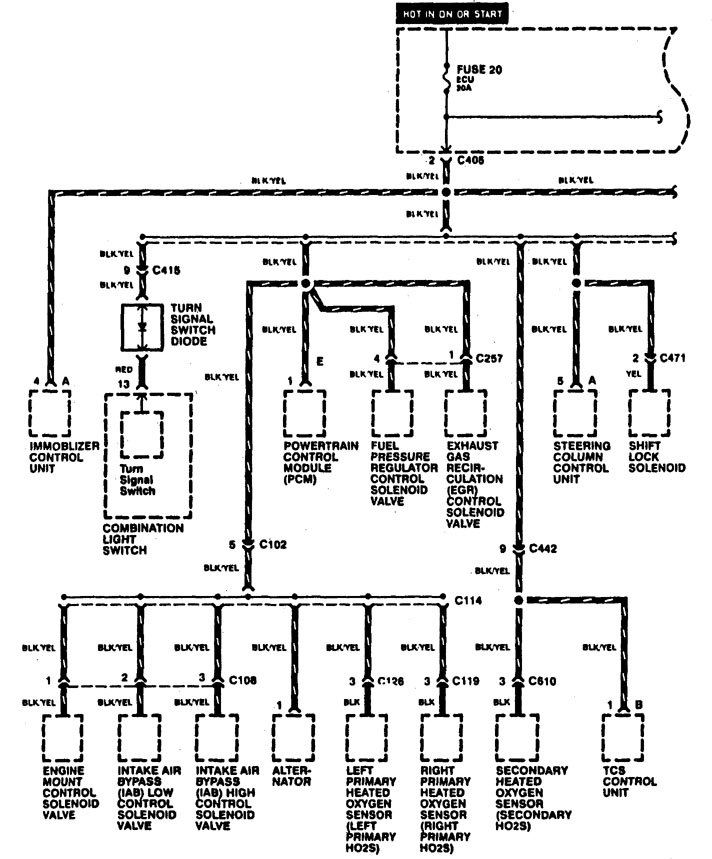

Acura RL - wiring diagram - power distribution (part 9)
Acura RL – wiring diagram – power distribution (part 9)

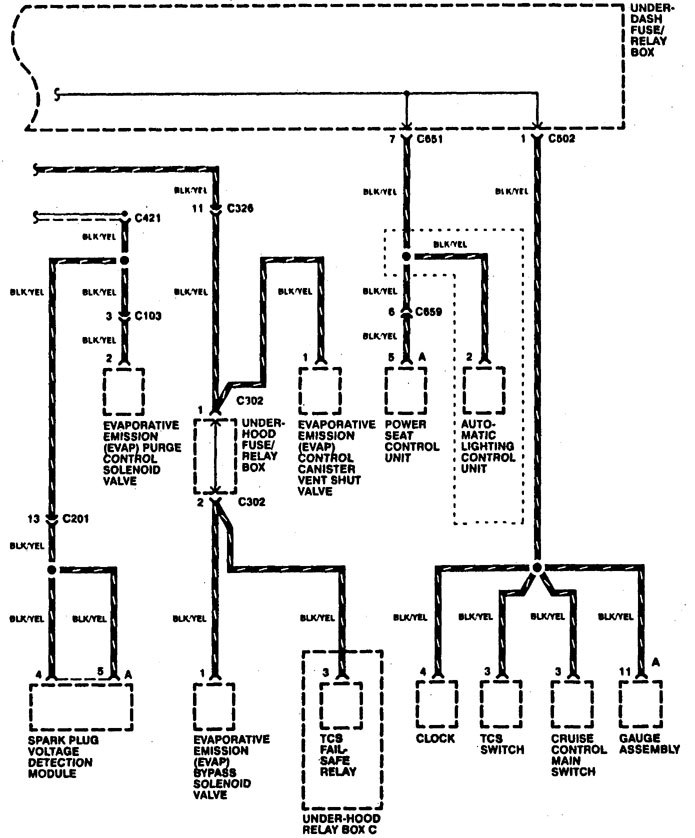

Acura RL - wiring diagram - power distribution (part 10)
Acura RL – wiring diagram – power distribution (part 10)

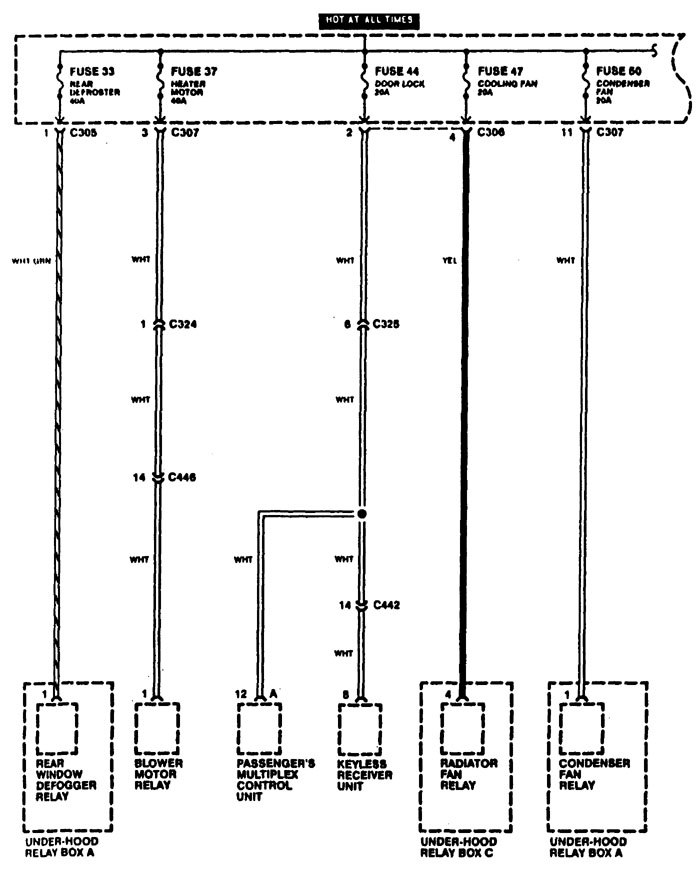

Acura RL - wiring diagram - power distribution (part 11)
Acura RL – wiring diagram – power distribution (part 11)

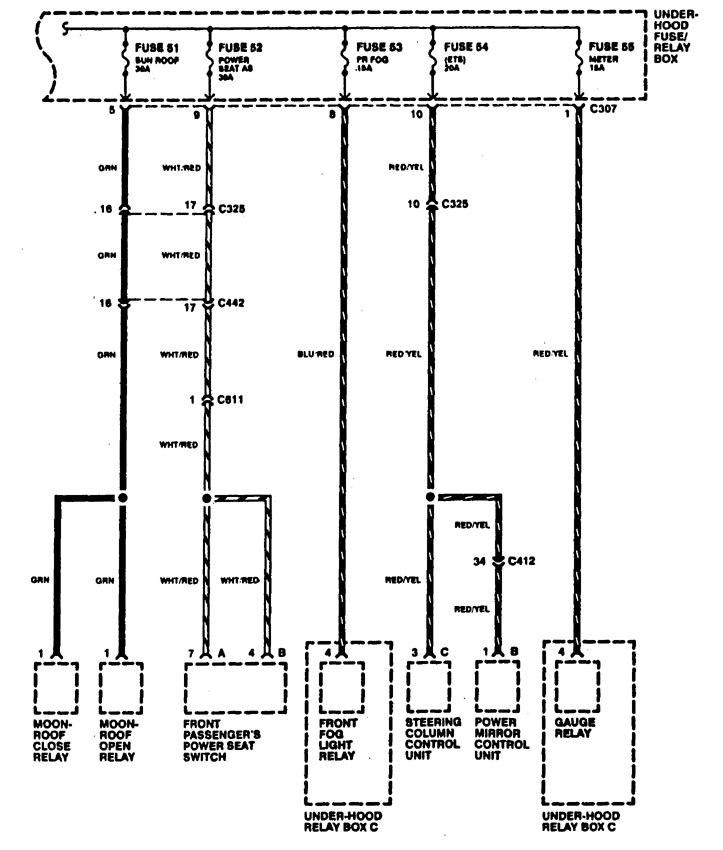

Acura RL - wiring diagram - power distribution (part 12)
Acura RL – wiring diagram – power distribution (part 12)

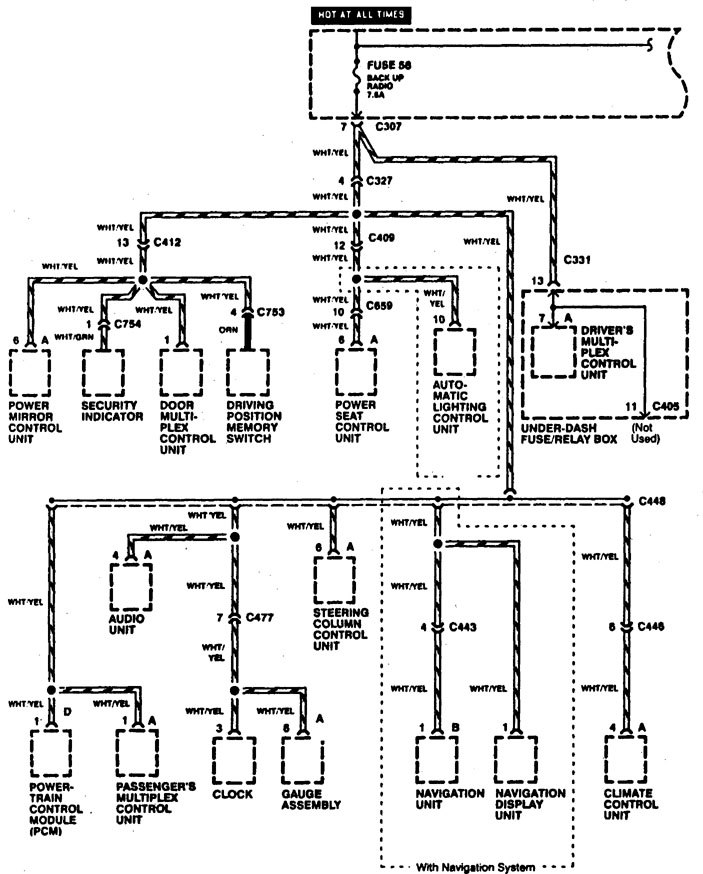

Acura RL - wiring diagram - power distribution (part 13)
Acura RL – wiring diagram – power distribution (part 13)

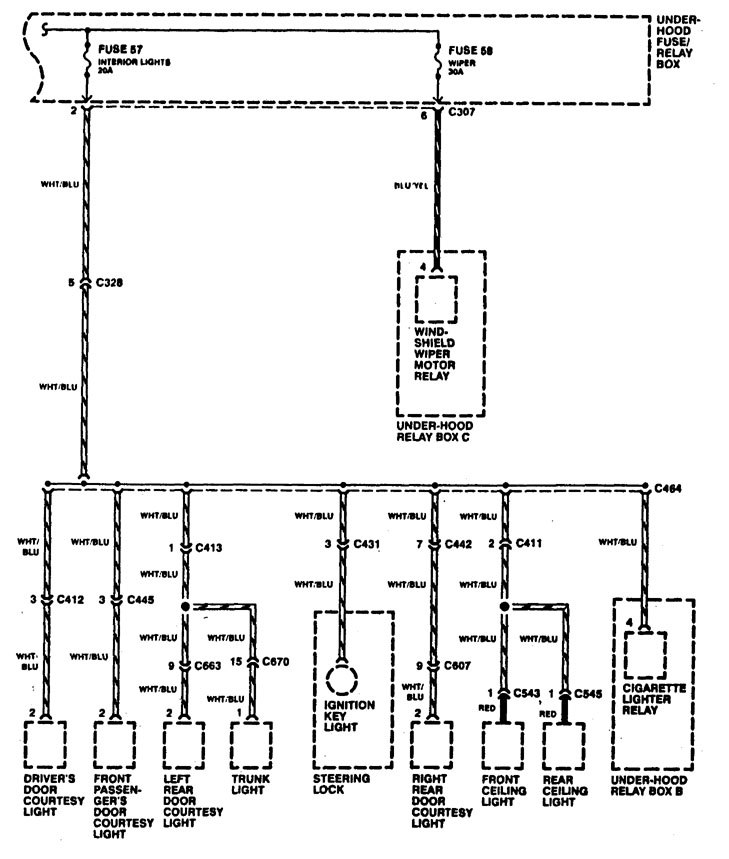

Acura RL - wiring diagram - power distribution (part 14)
Acura RL – wiring diagram – power distribution (part 14)

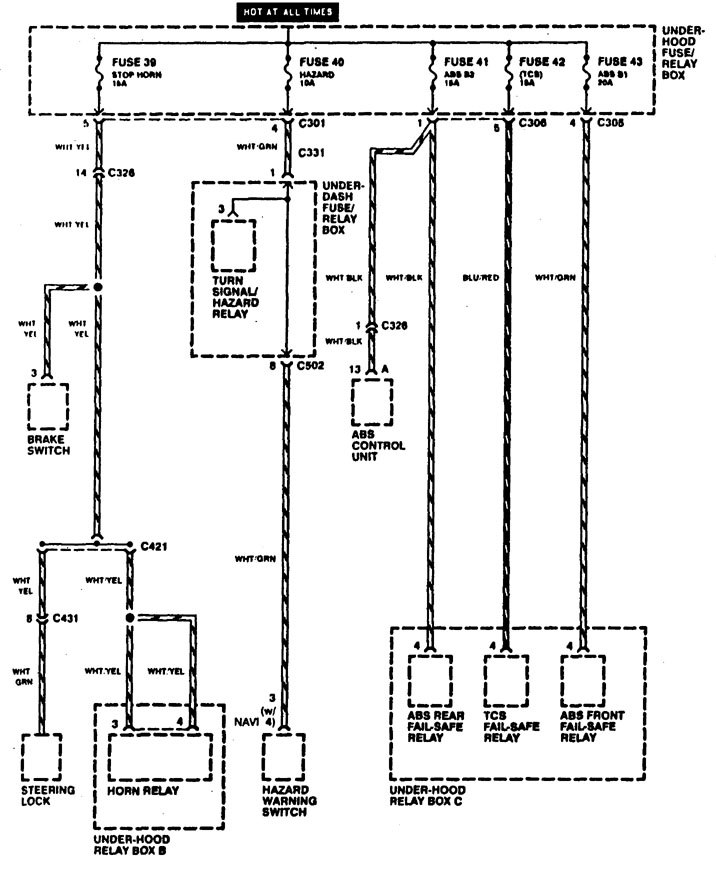

Acura RL - wiring diagram - power distribution (part 15)
Acura RL – wiring diagram – power distribution (part 15)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
