Acura RL (1996 – 1999) – wiring diagrams – power seats

Year of productions:  1996, 1997, 1998, 1999

Power seats

Version 1

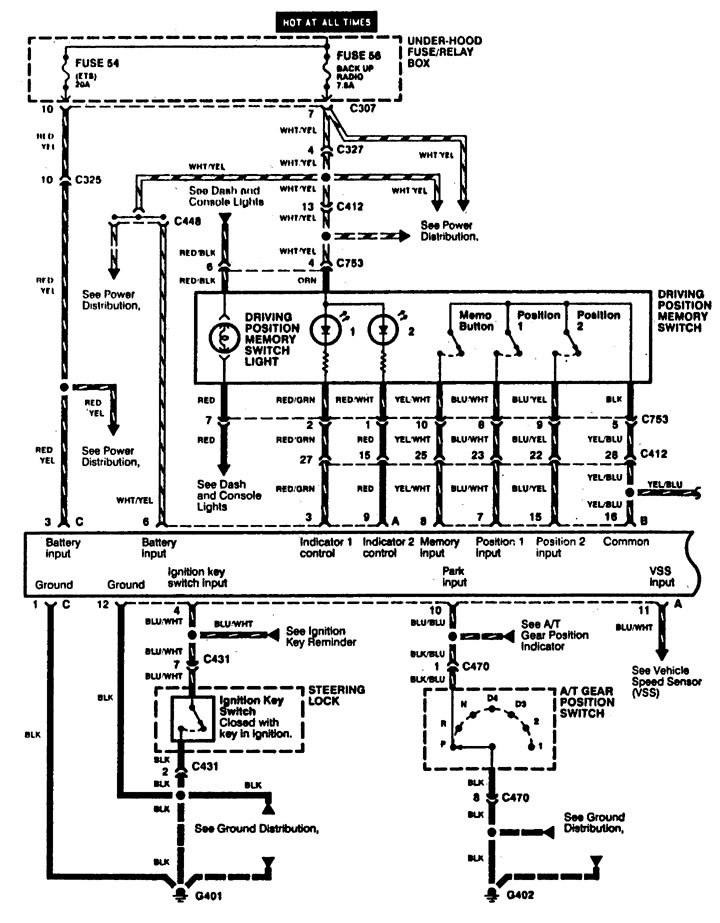

Acura RL - wiring diagram - power seats (part 1)
Acura RL – wiring diagram – power seats (part 1)

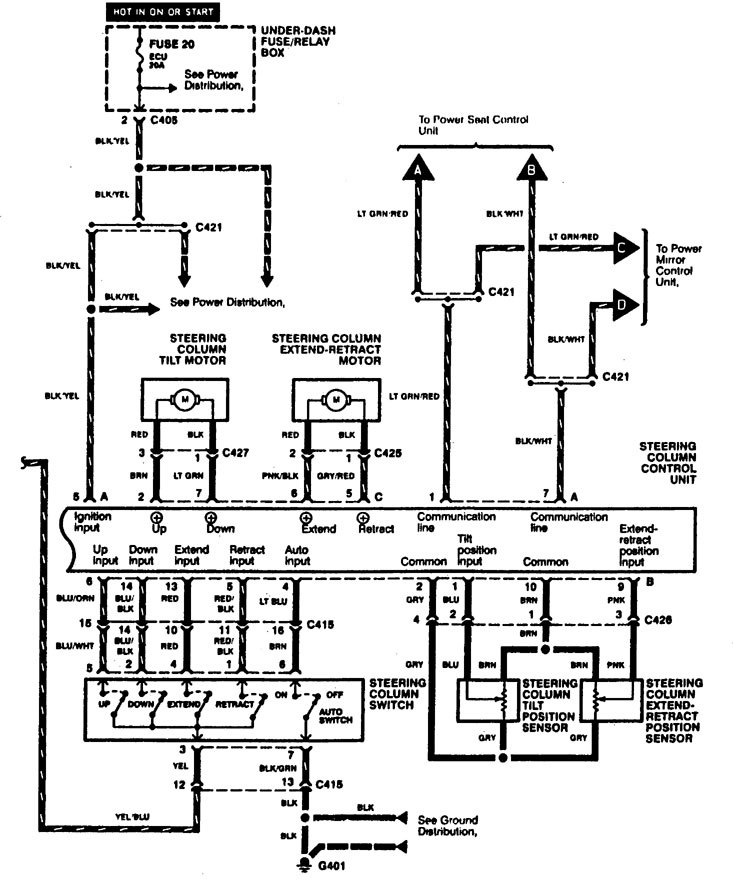

Acura RL - wiring diagram - power seats (part 2)
Acura RL – wiring diagram – power seats (part 2)

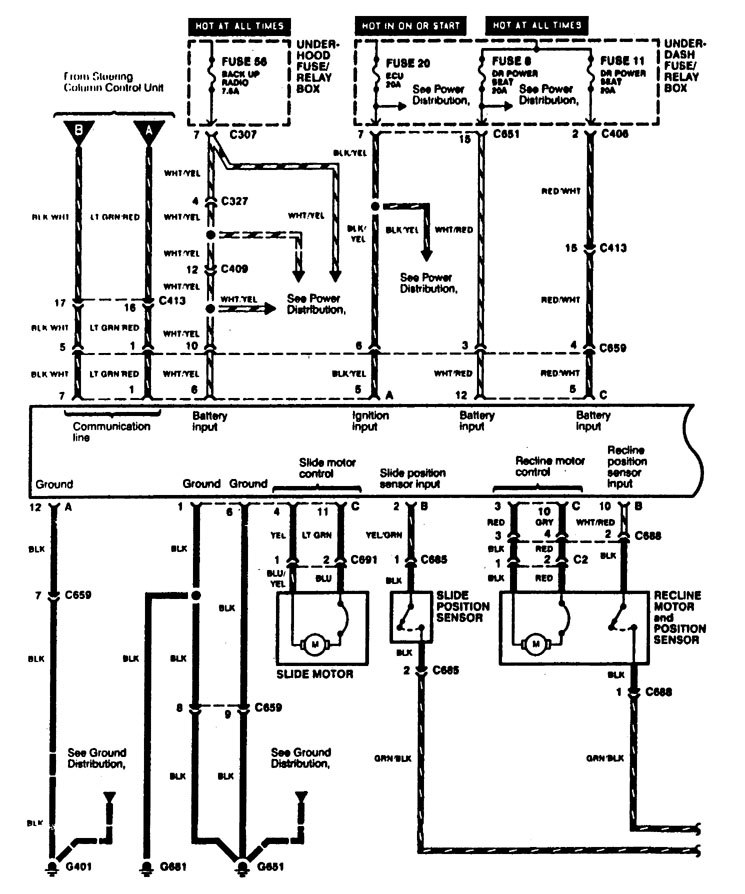

Acura RL - wiring diagram - power seats (part 3)
Acura RL – wiring diagram – power seats (part 3)

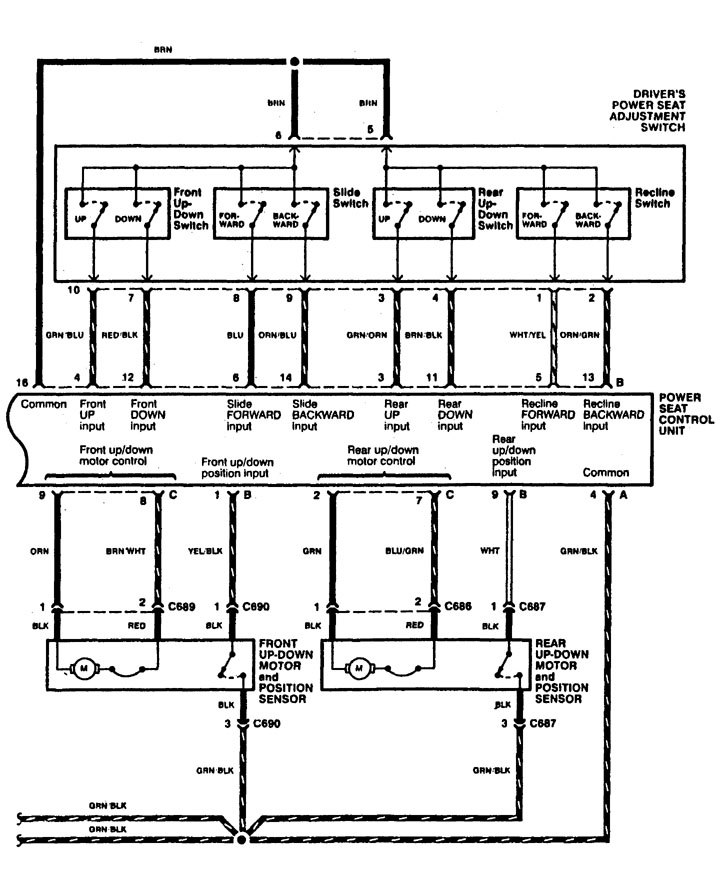

Acura RL - wiring diagram - power seats (part 4)
Acura RL – wiring diagram – power seats (part 4)

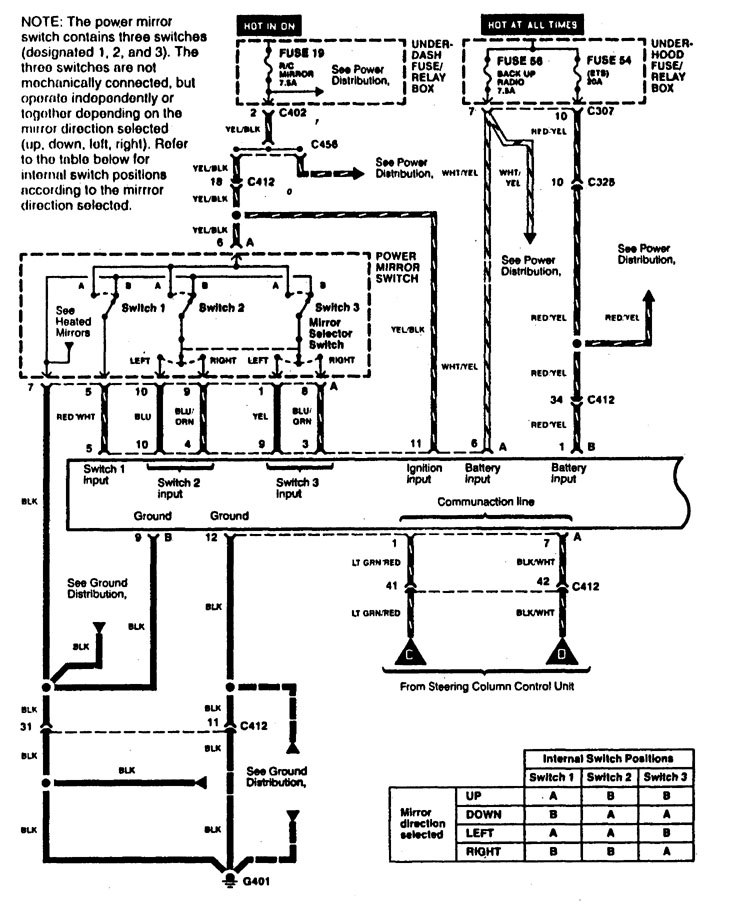

Acura RL - wiring diagram - power seats (part 5)
Acura RL – wiring diagram – power seats (part 5)

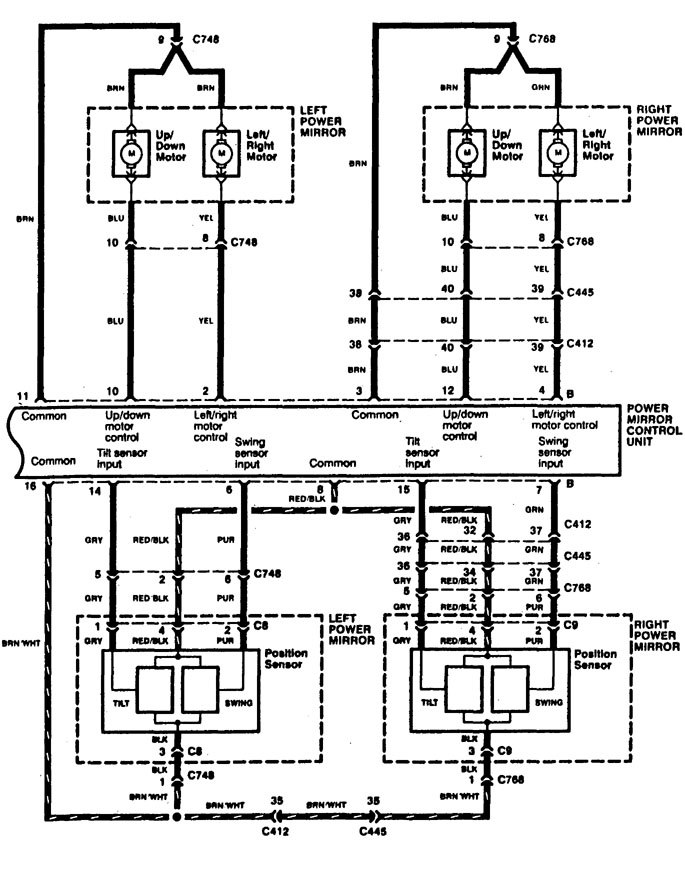

Acura RL - wiring diagram - power seats (part 6)
Acura RL – wiring diagram – power seats (part 6)

Version 2

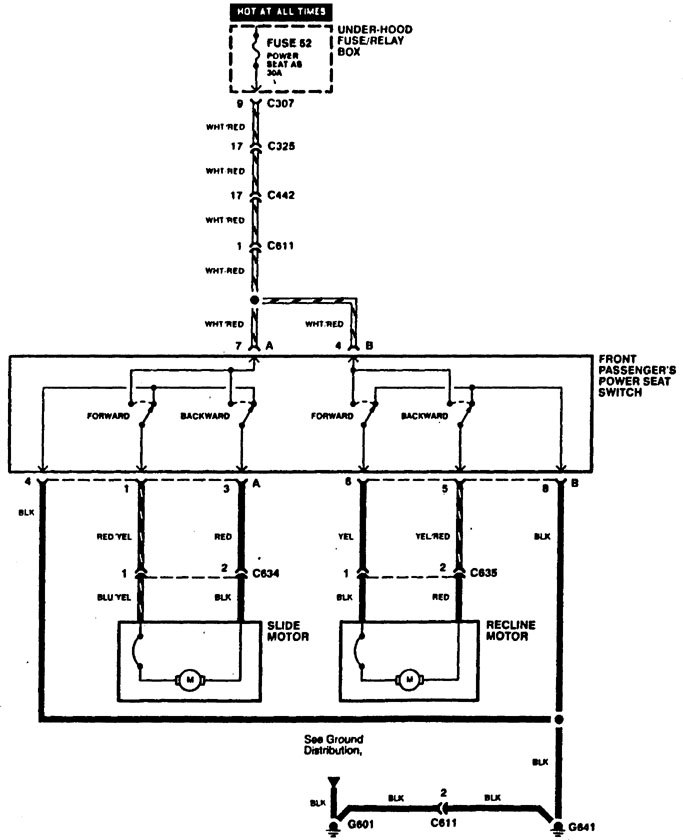

Acura RL - wiring diagram - power seats
Acura RL – wiring diagram – power seats

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
