Acura RL (1999) – wiring diagrams – ground distribution

10 September 2017 admin Acura, RL 0

Acura RL (1999) – wiring diagrams – ground distribution

Year of productions: 1999

Ground distribution

Version 1

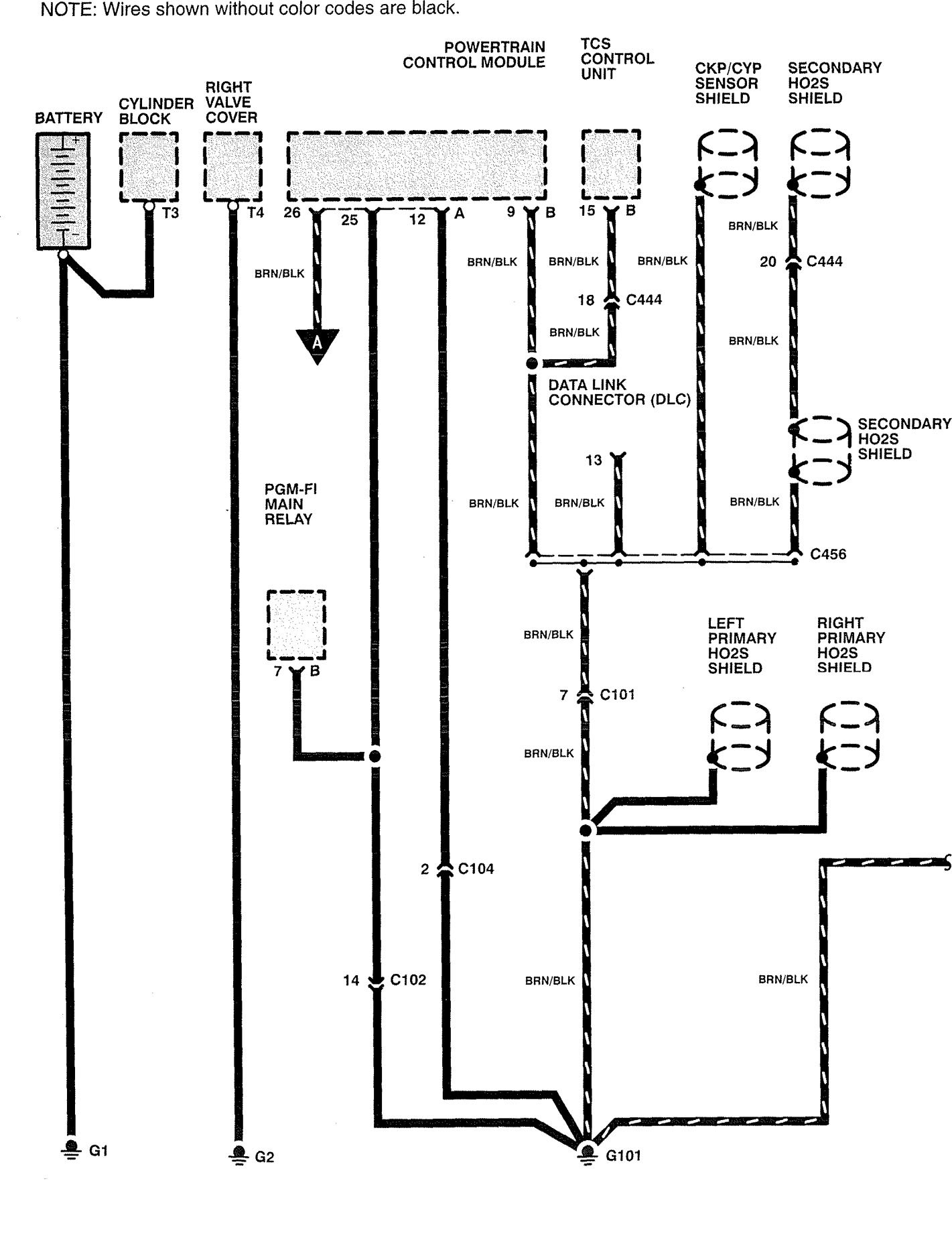

Acura RL - wiring diagram - ground distribution (part 1) — Acura RL – wiring diagram – ground distribution (part 1)

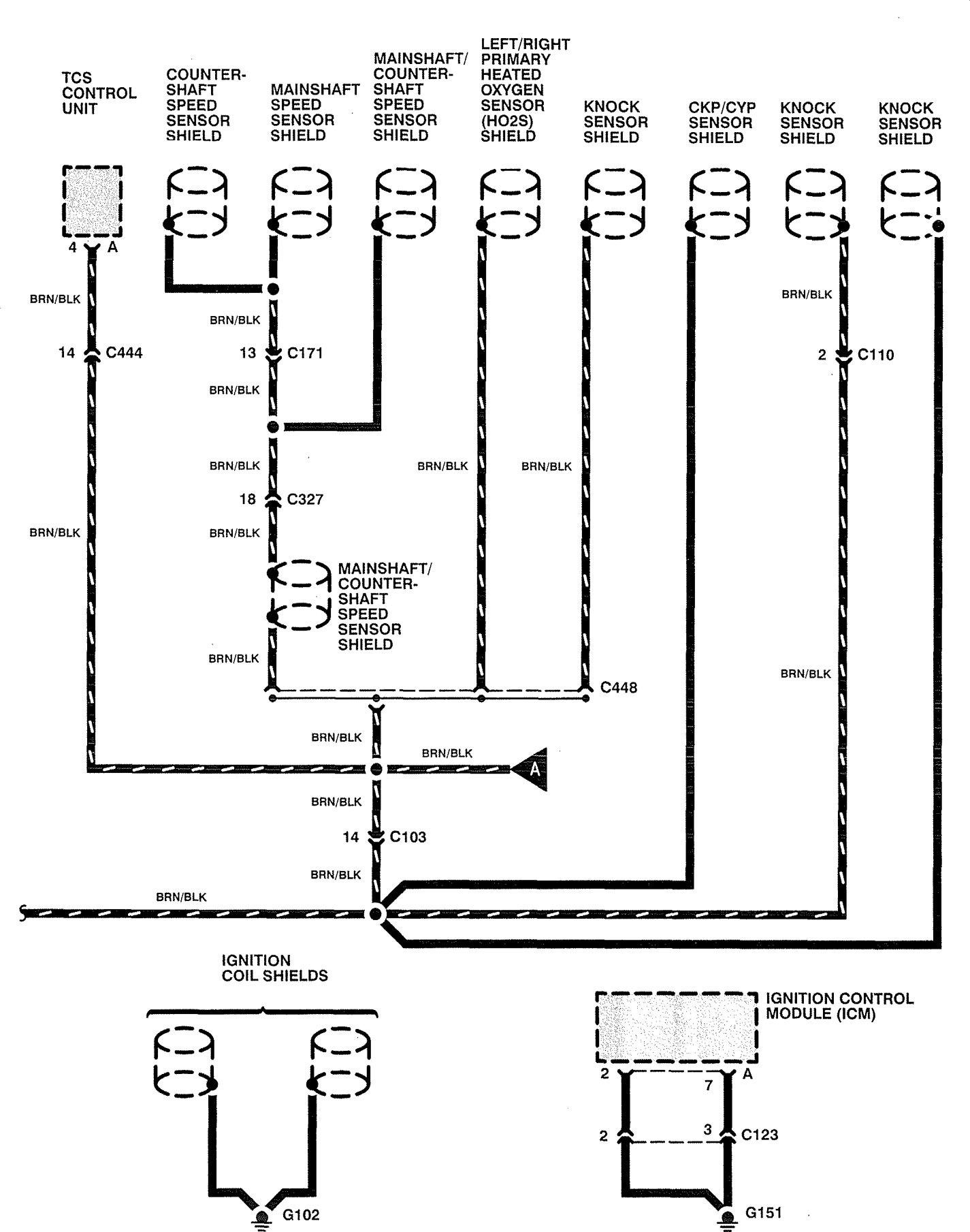

Acura RL - wiring diagram - ground distribution (part 2) — Acura RL – wiring diagram – ground distribution (part 2)

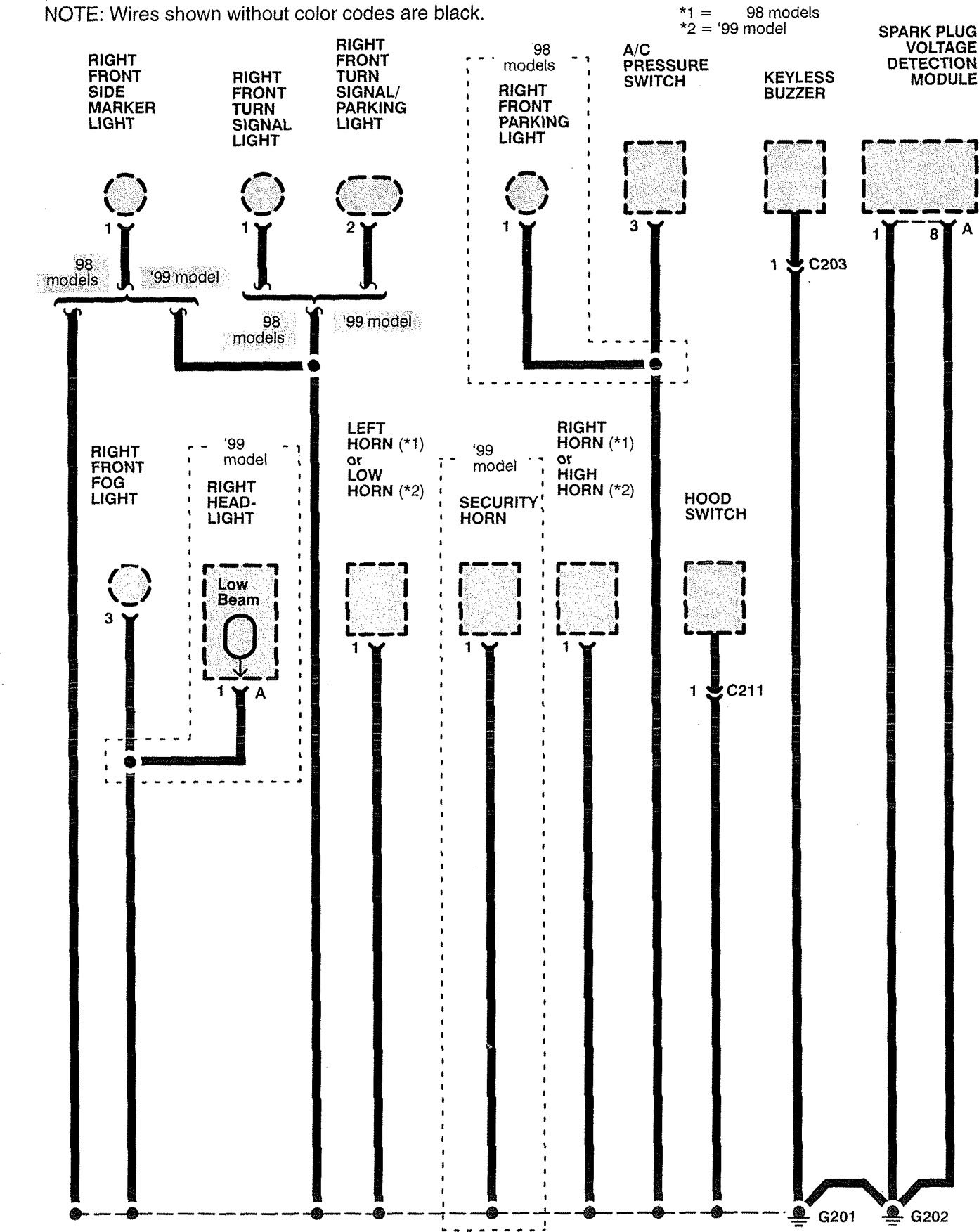

Acura RL - wiring diagram - ground distribution (part 3) — Acura RL – wiring diagram – ground distribution (part 3)

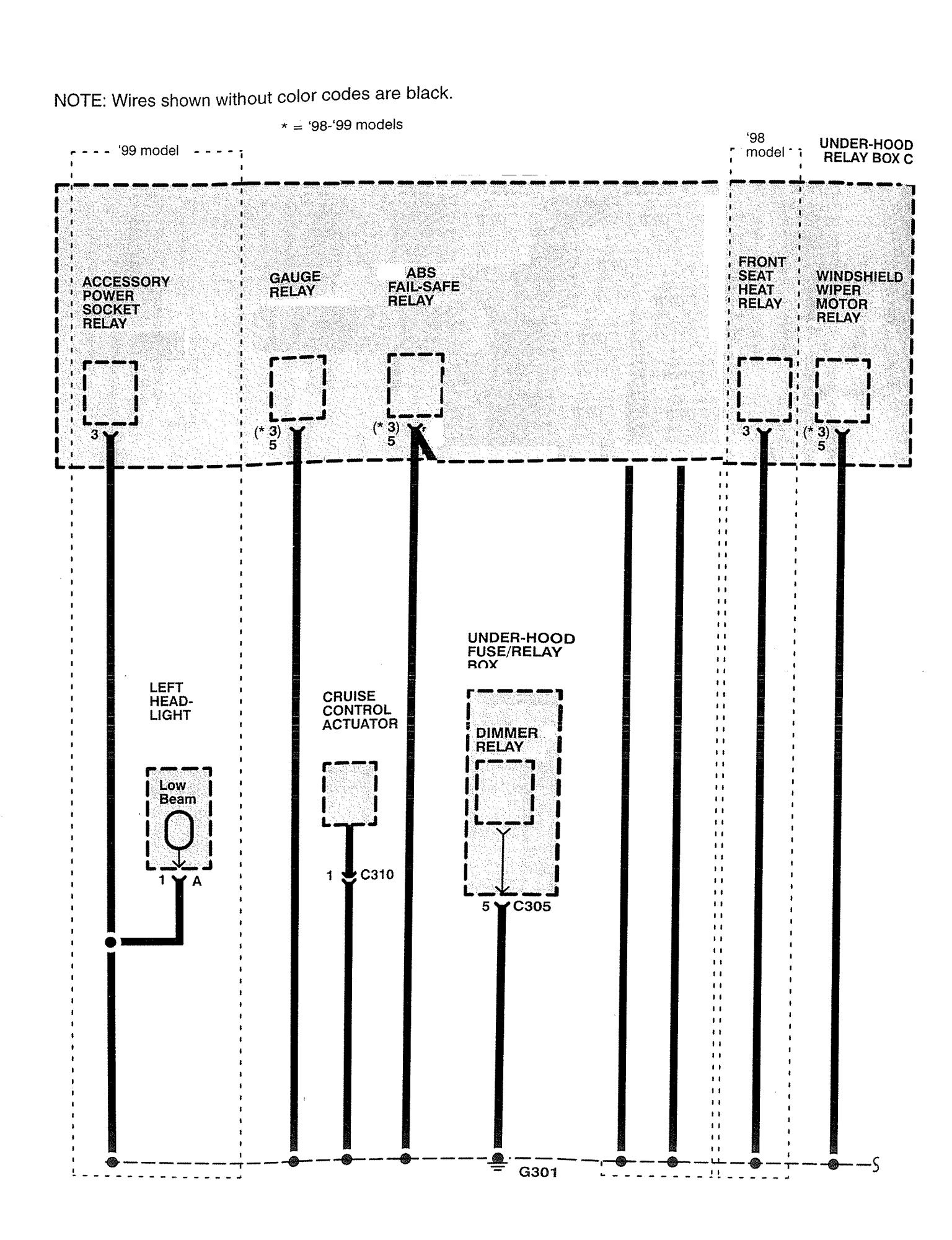

Acura RL - wiring diagram - ground distribution (part 4) — Acura RL – wiring diagram – ground distribution (part 4)

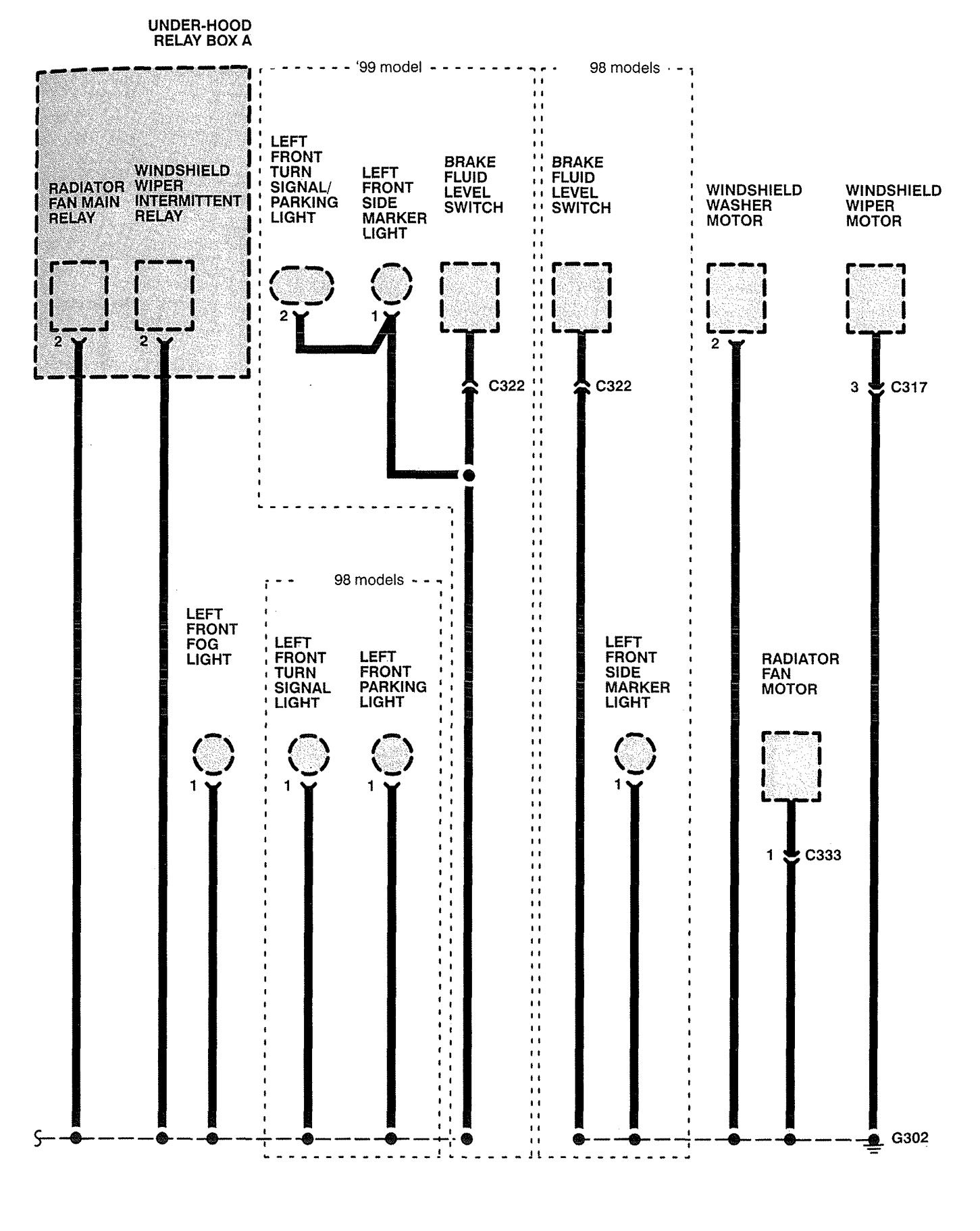

Acura RL - wiring diagram - ground distribution (part 5) — Acura RL – wiring diagram – ground distribution (part 5)

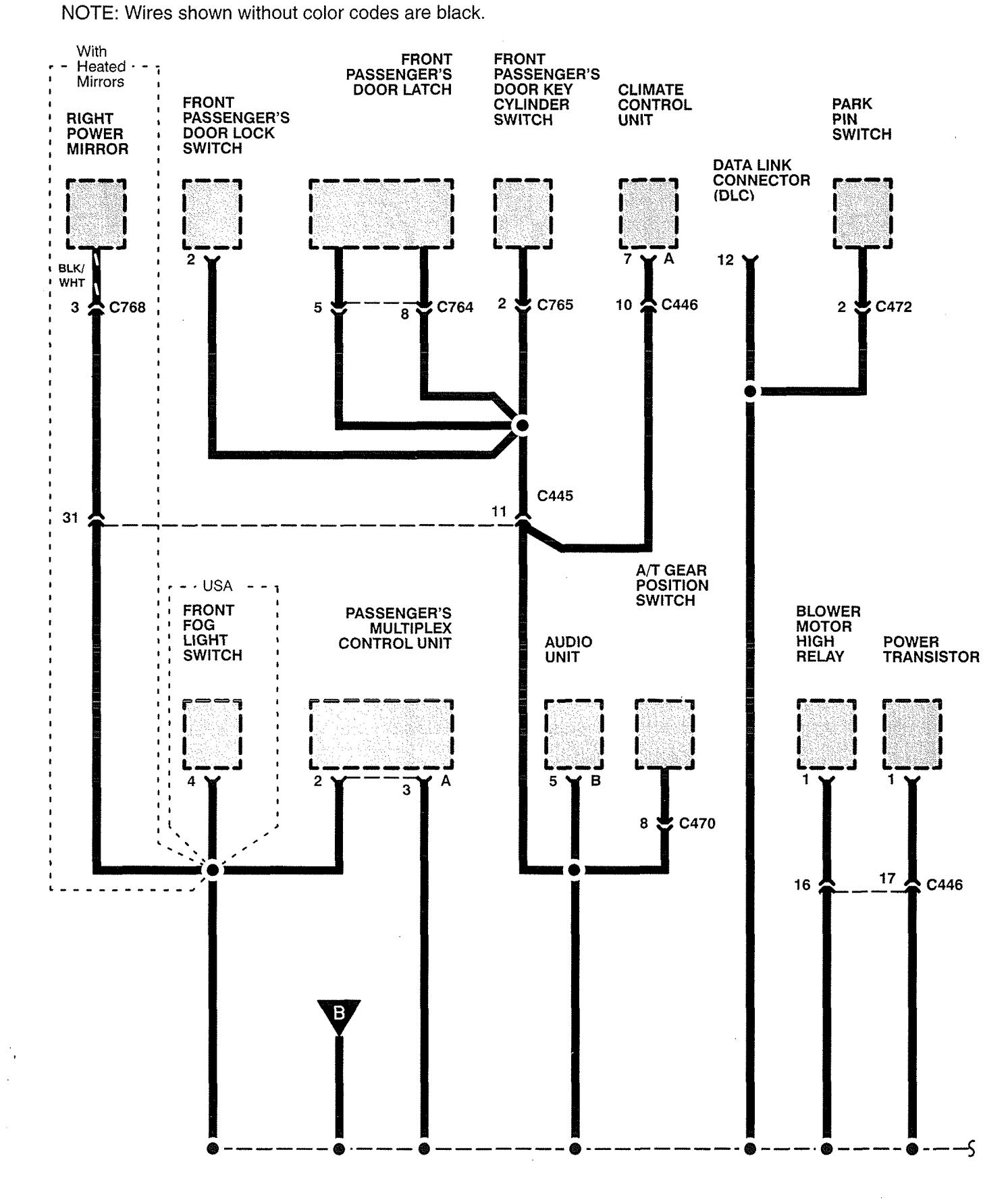

Acura RL - wiring diagram - ground distribution (part 6) — Acura RL – wiring diagram – ground distribution (part 6)

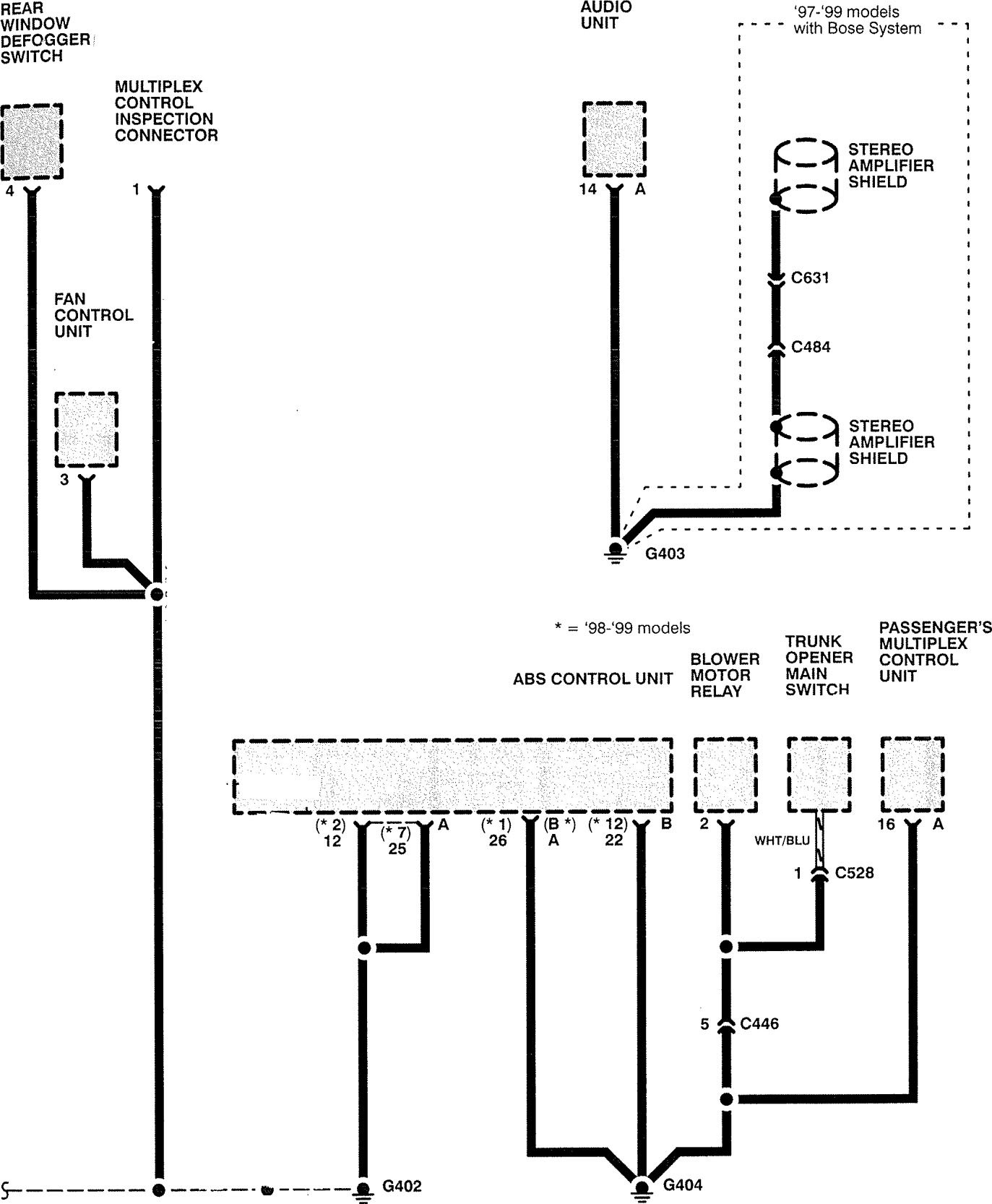

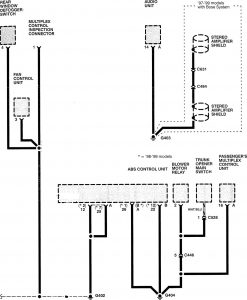

Acura RL - wiring diagram - ground distribution (part 7) — Acura RL – wiring diagram – ground distribution (part 7)

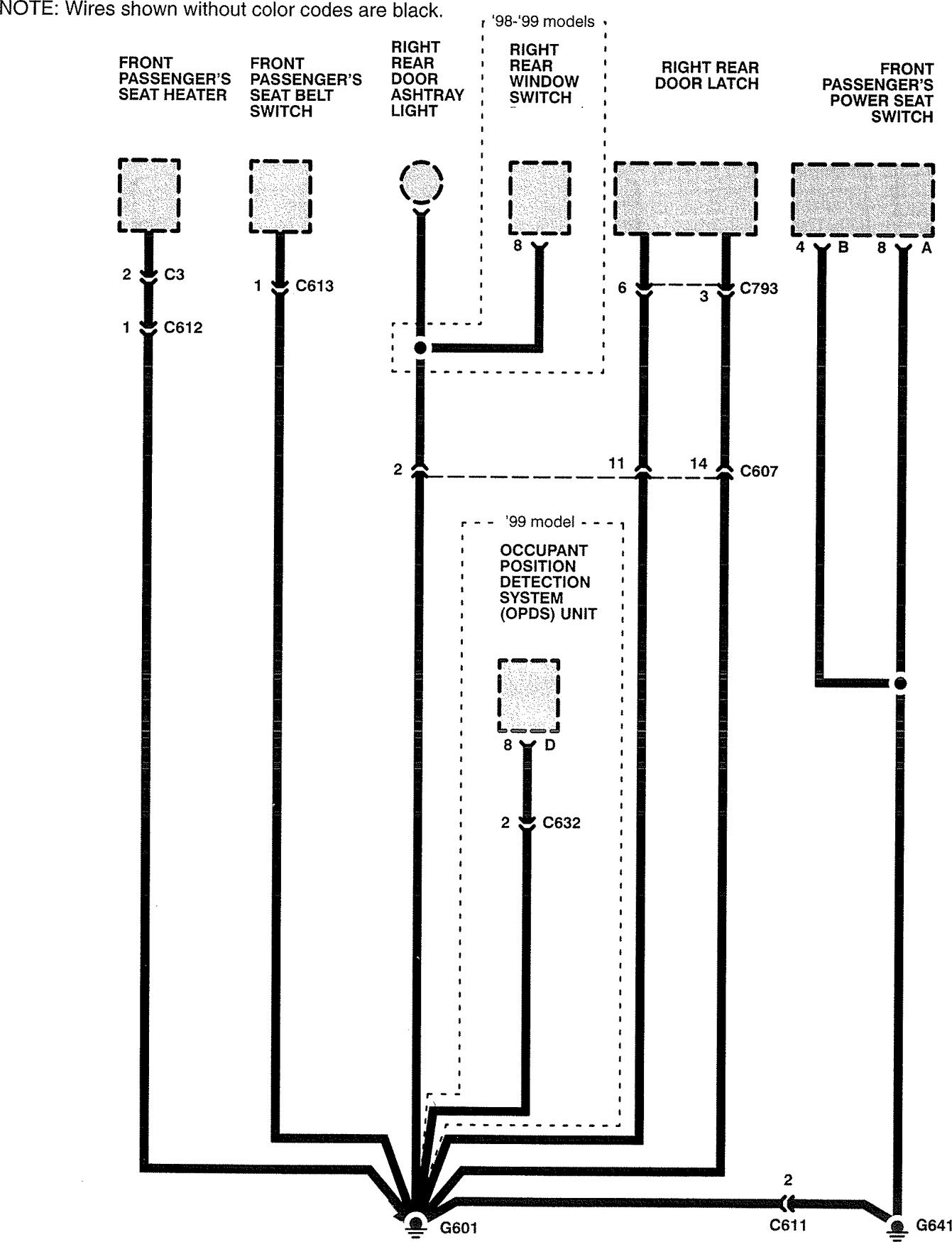

Acura RL - wiring diagram - ground distribution (part 8) — Acura RL – wiring diagram – ground distribution (part 8)

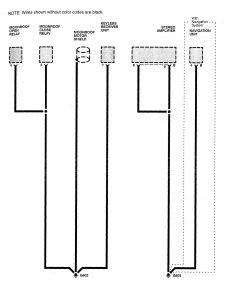

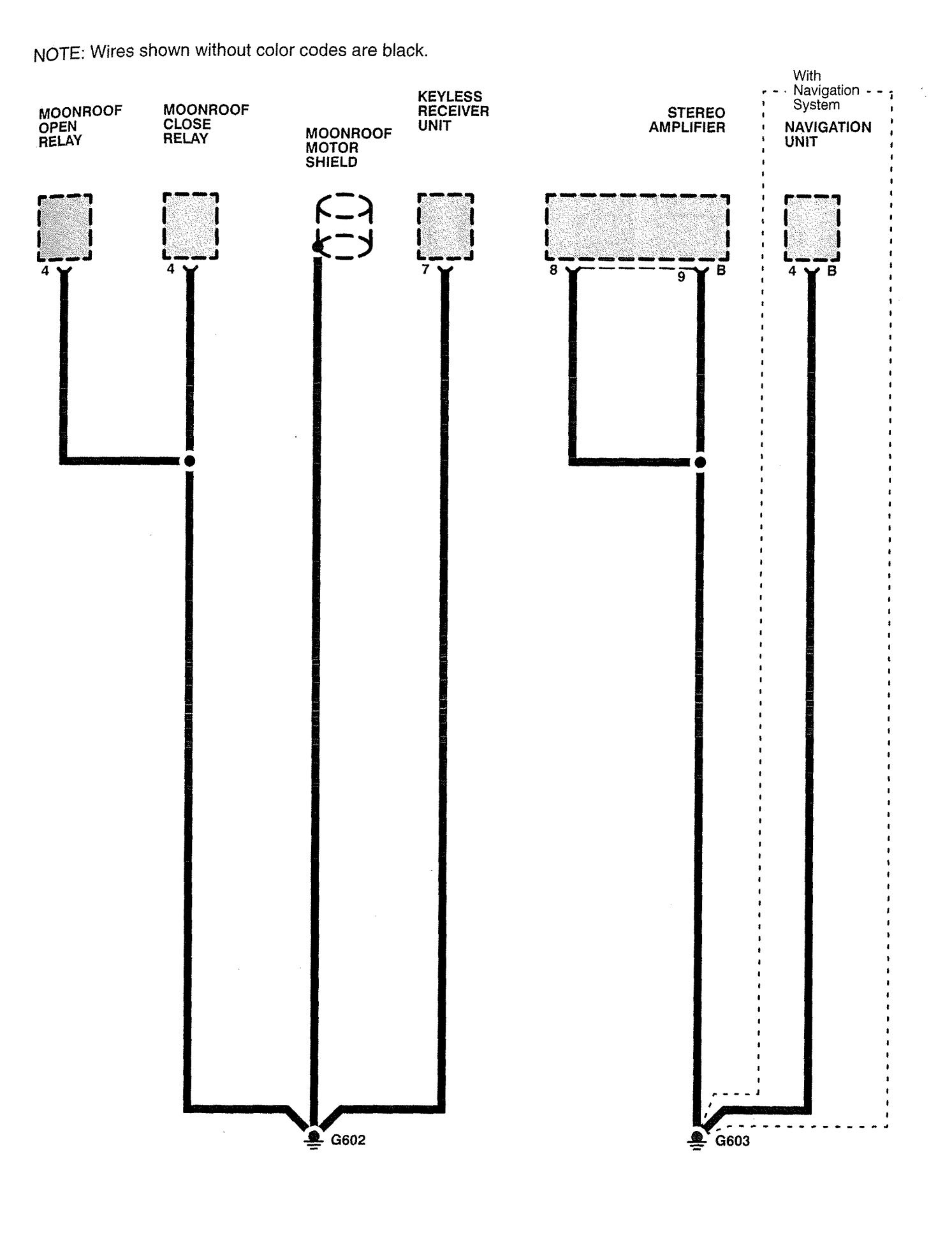

Acura RL - wiring diagram - ground distribution (part 9) — Acura RL – wiring diagram – ground distribution (part 9)

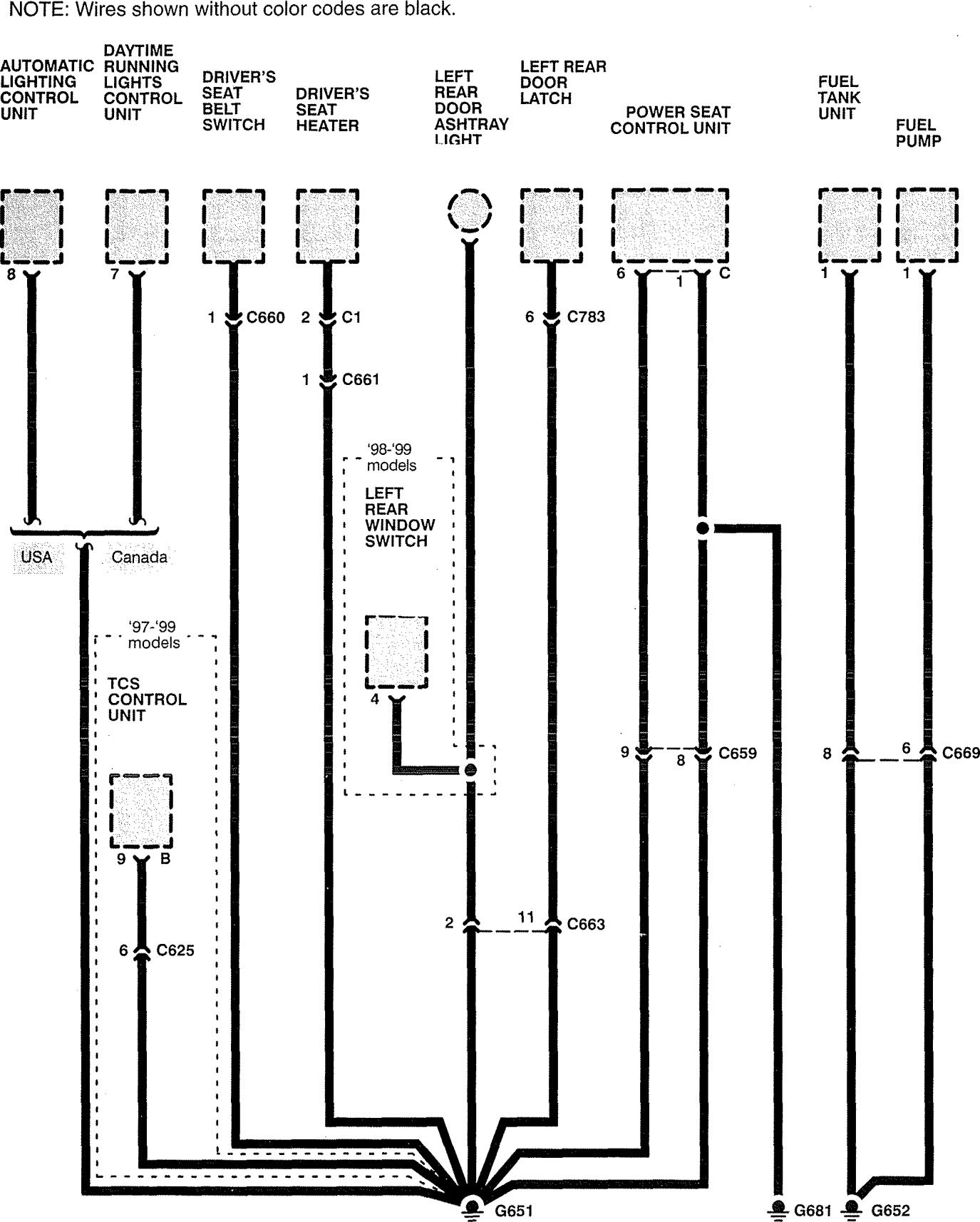

Acura RL - wiring diagram - ground distribution (part 10) — Acura RL – wiring diagram – ground distribution (part 10)

Version 2

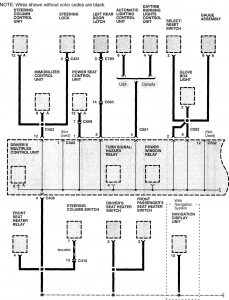

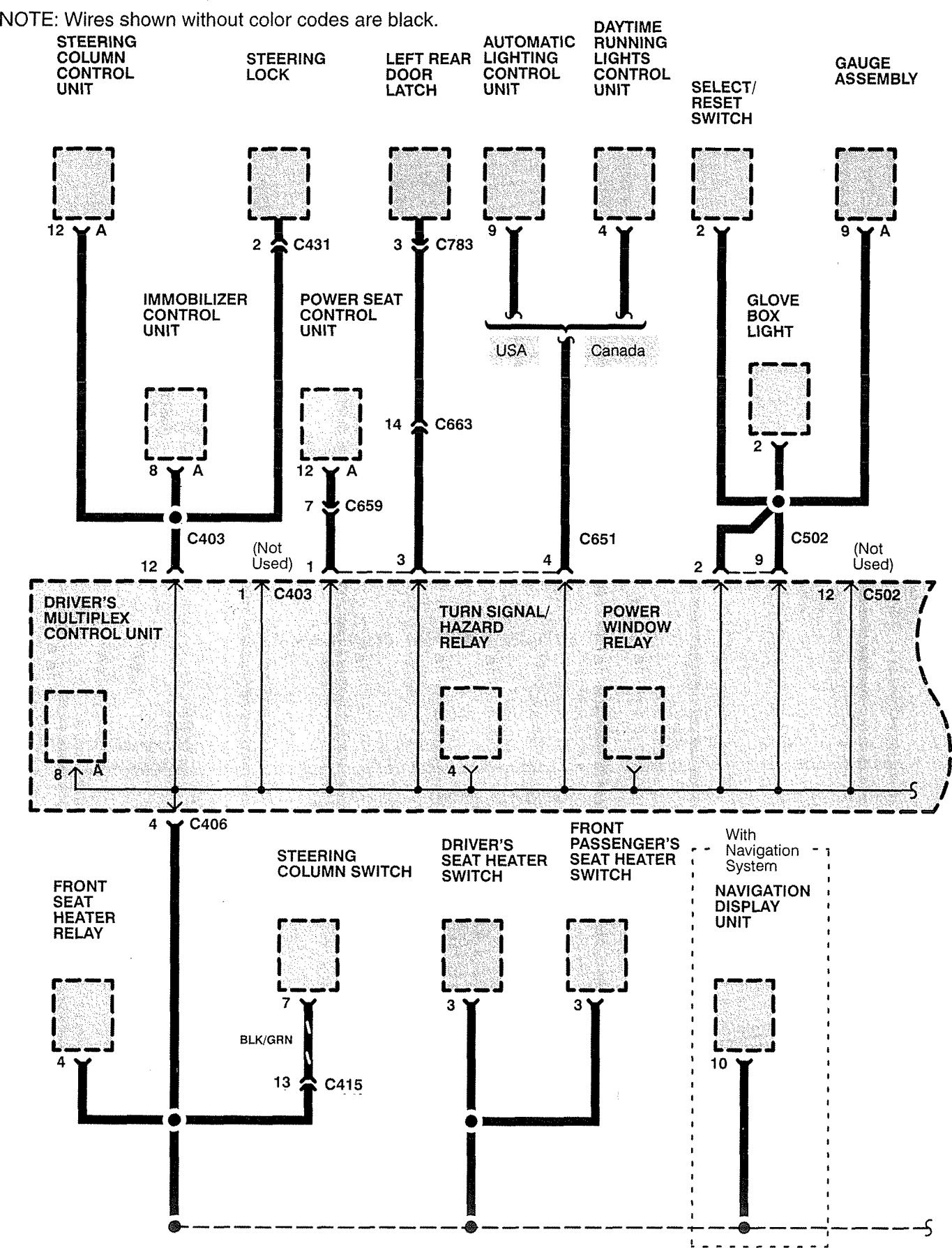

Acura RL - wiring diagram - ground distribution (part 1) — Acura RL – wiring diagram – ground distribution (part 1)

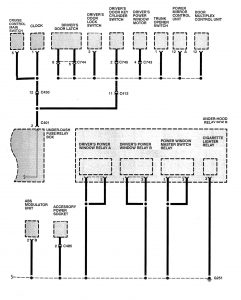

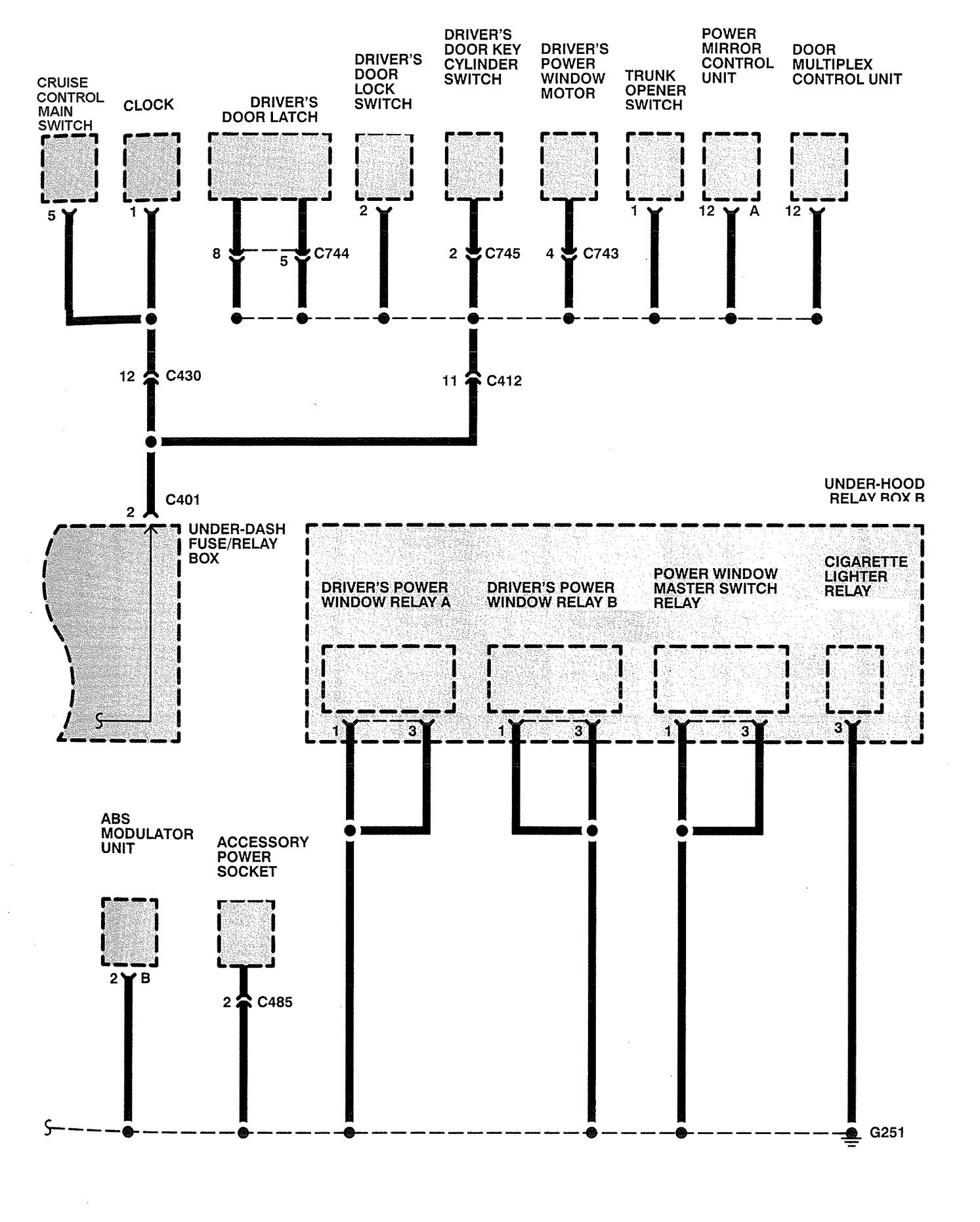

Acura RL - wiring diagram - ground distribution (part 2) — Acura RL – wiring diagram – ground distribution (part 2)

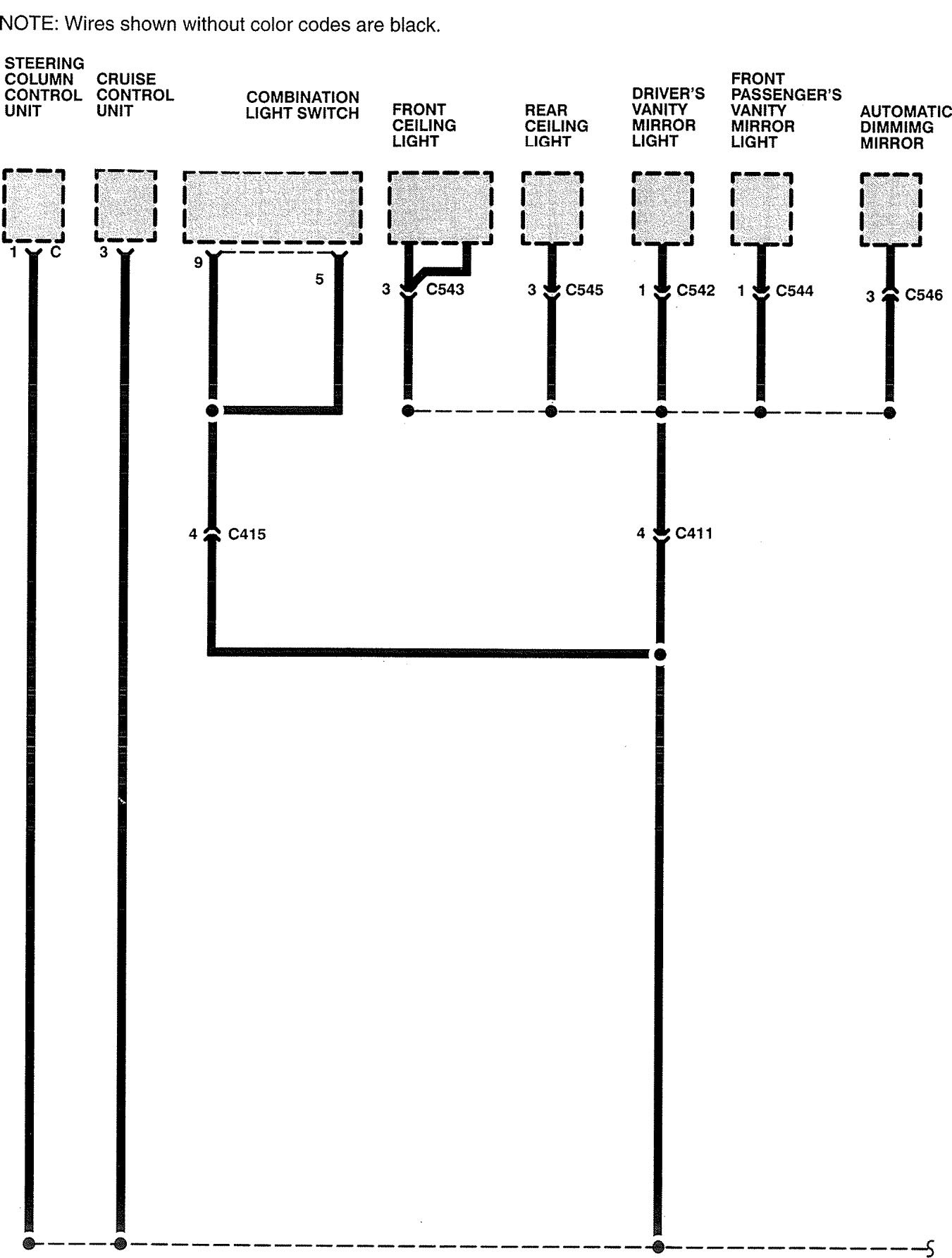

Acura RL - wiring diagram - ground distribution (part 3) — Acura RL – wiring diagram – ground distribution (part 3)

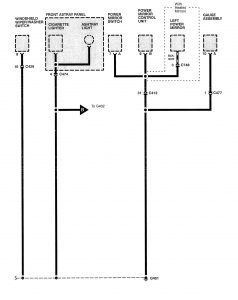

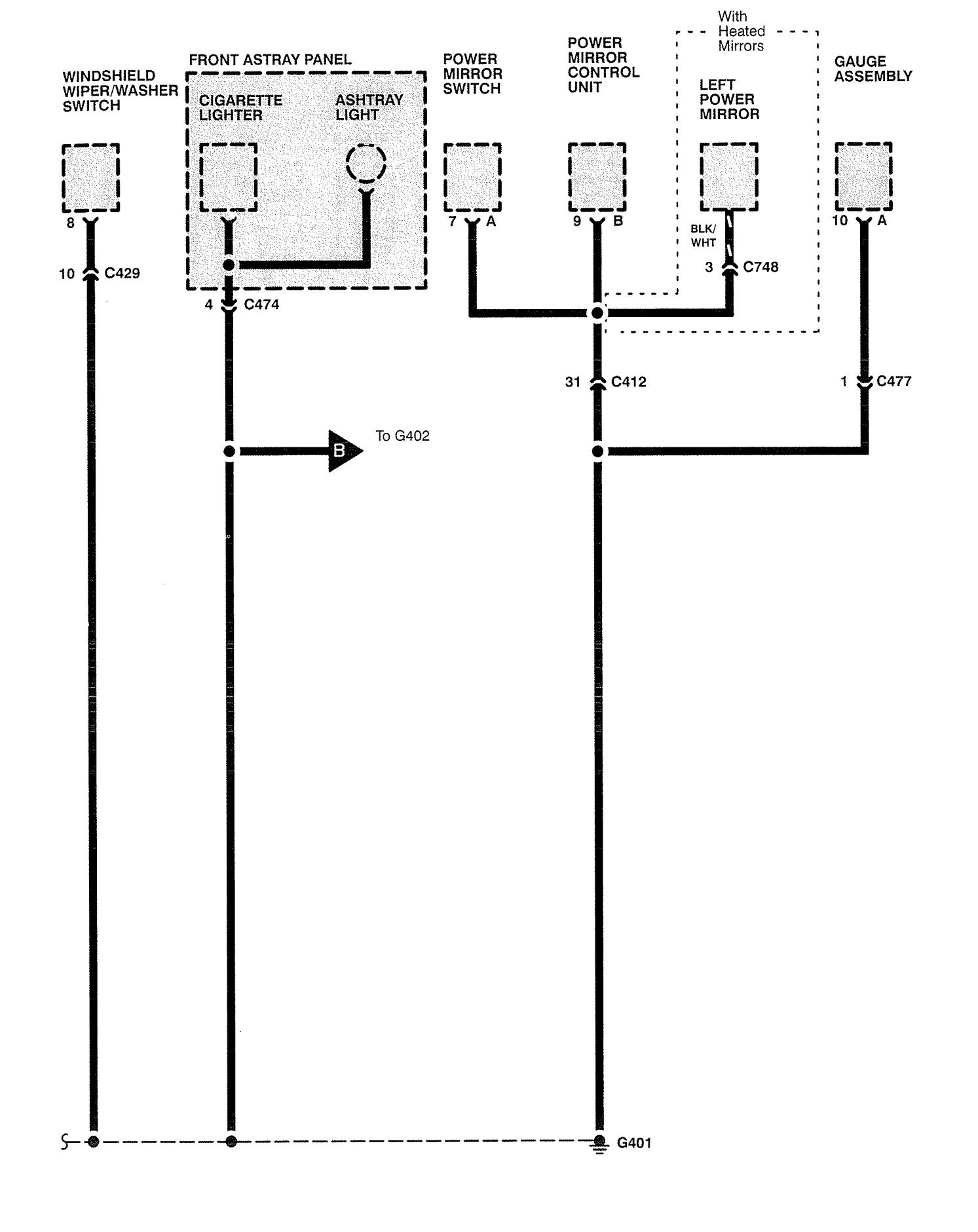

Acura RL - wiring diagram - ground distribution (part 4) — Acura RL – wiring diagram – ground distribution (part 4)

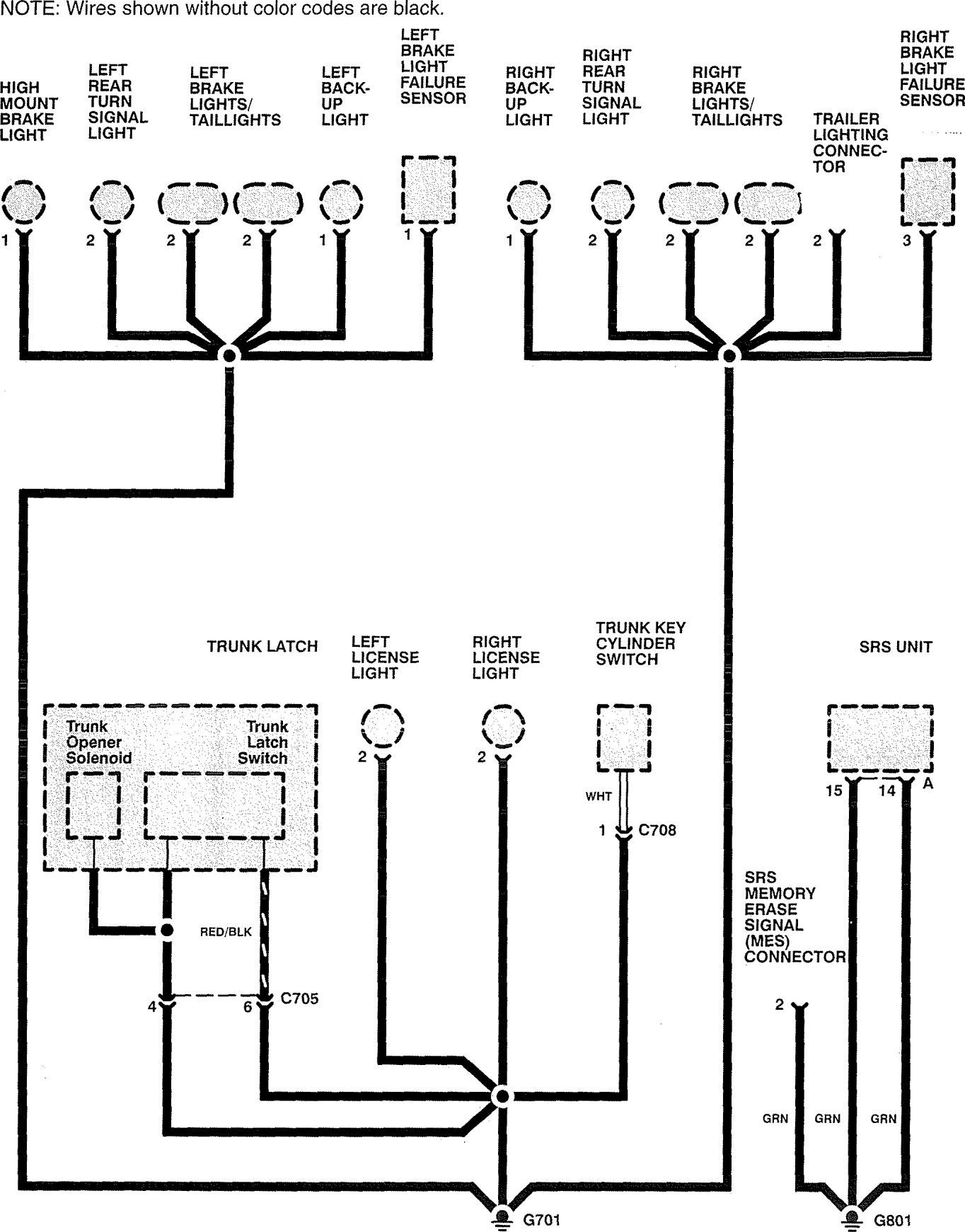

Acura RL - wiring diagram - ground distribution (part 5) — Acura RL – wiring diagram – ground distribution (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
