Headlamps

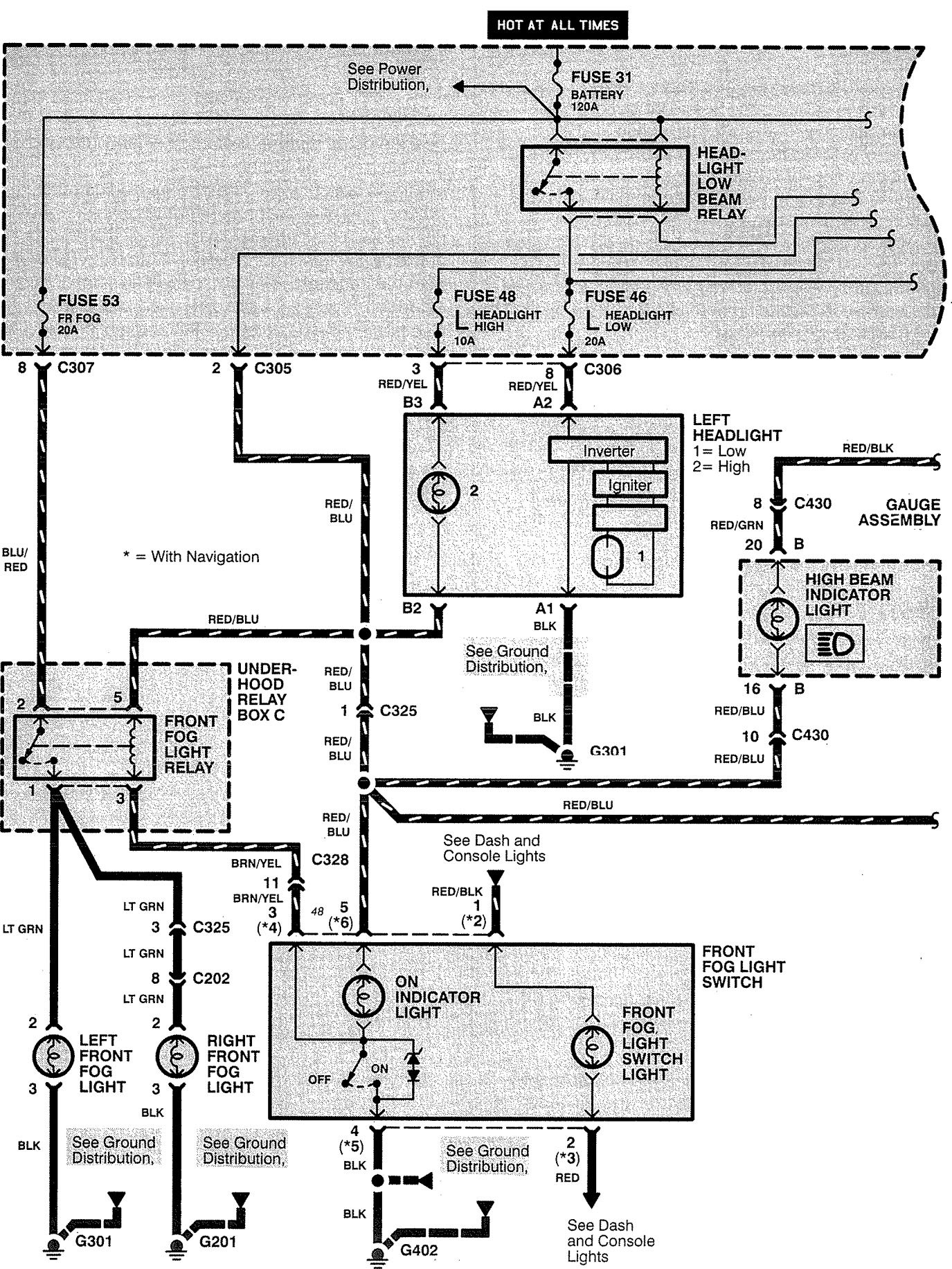

Acura RL - wiring diagram - headlamps (part 1)
Acura RL – wiring diagram – headlamps (part 1)

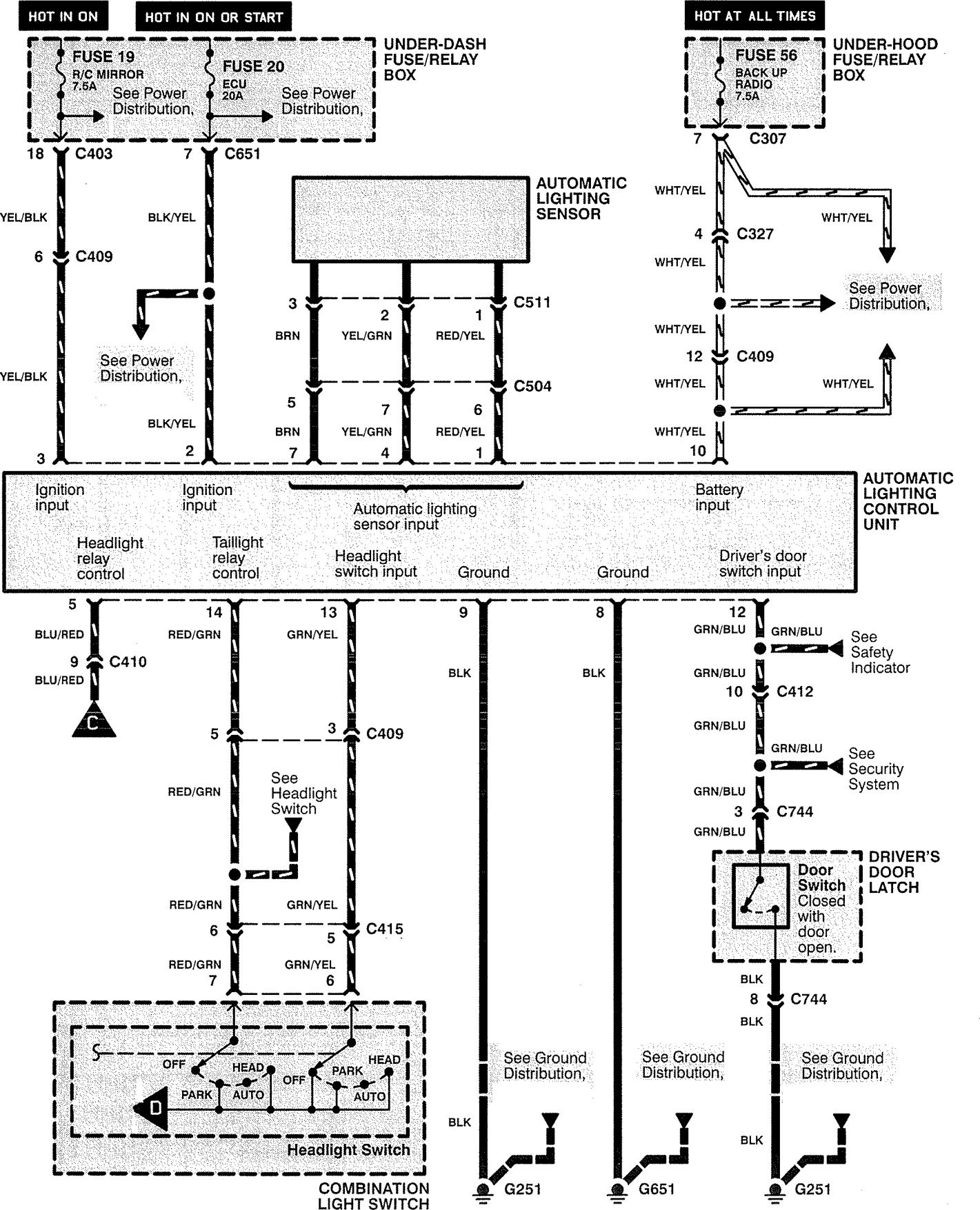

Acura RL - wiring diagram - headlamps (part 2)
Acura RL – wiring diagram – headlamps (part 2)

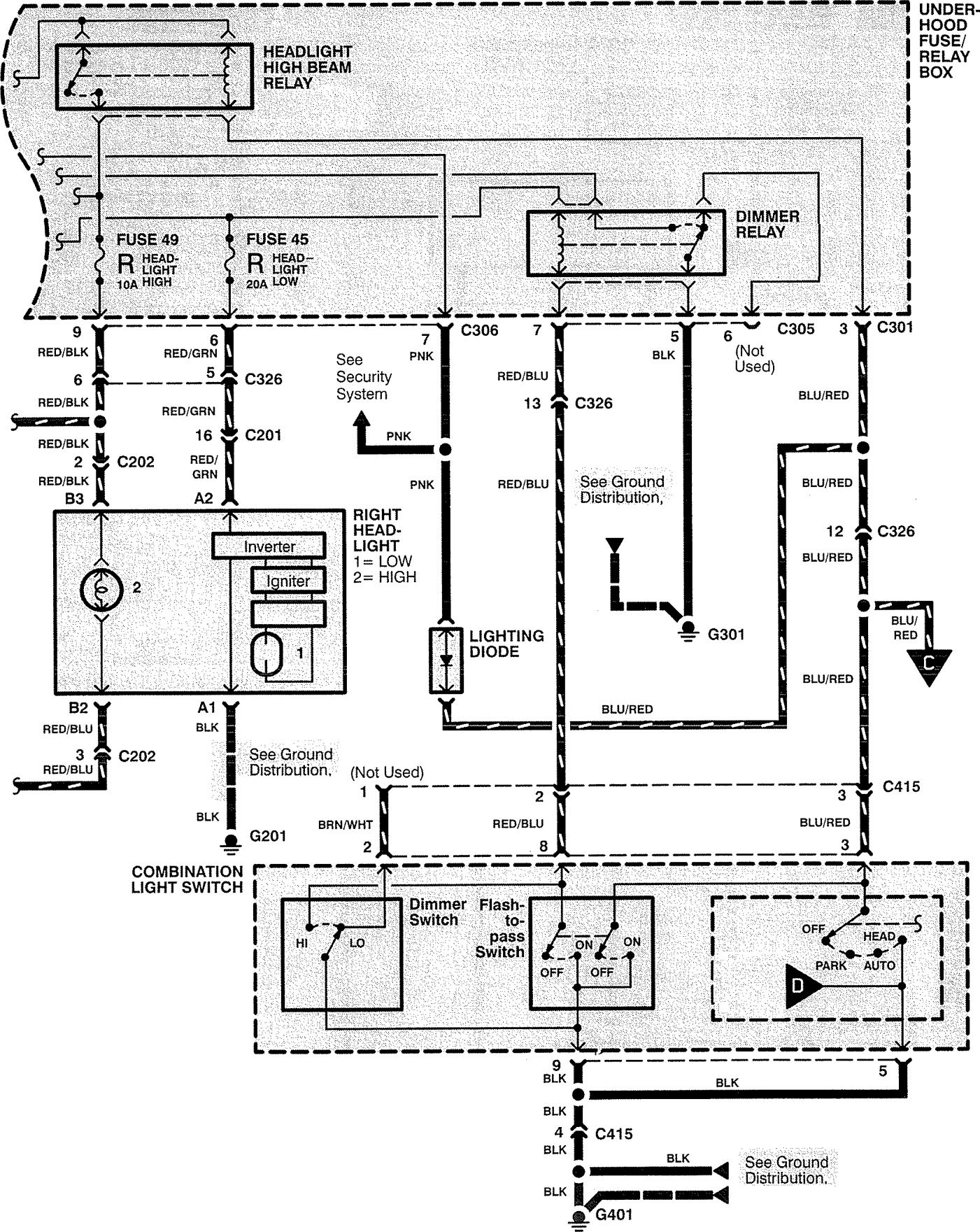

Acura RL - wiring diagram - headlamps (part 3)
Acura RL – wiring diagram – headlamps (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
