Acura RL (1999) – wiring diagrams – power windows

Acura RL (1999) – wiring diagrams – power windows

Year of productions:  1999

Power windows

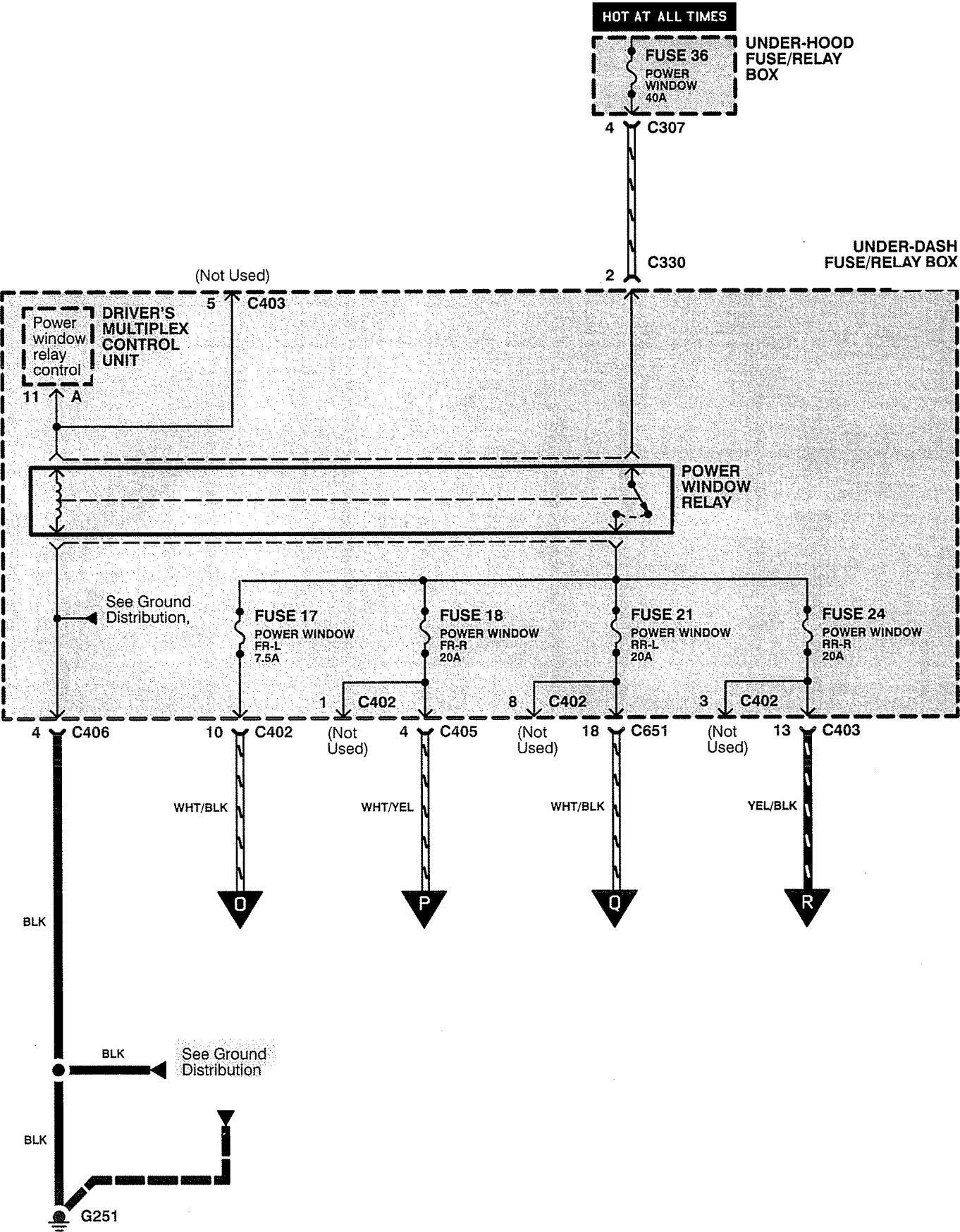

Acura RL - wiring diagram - power windows (part 1)
Acura RL – wiring diagram – power windows (part 1)

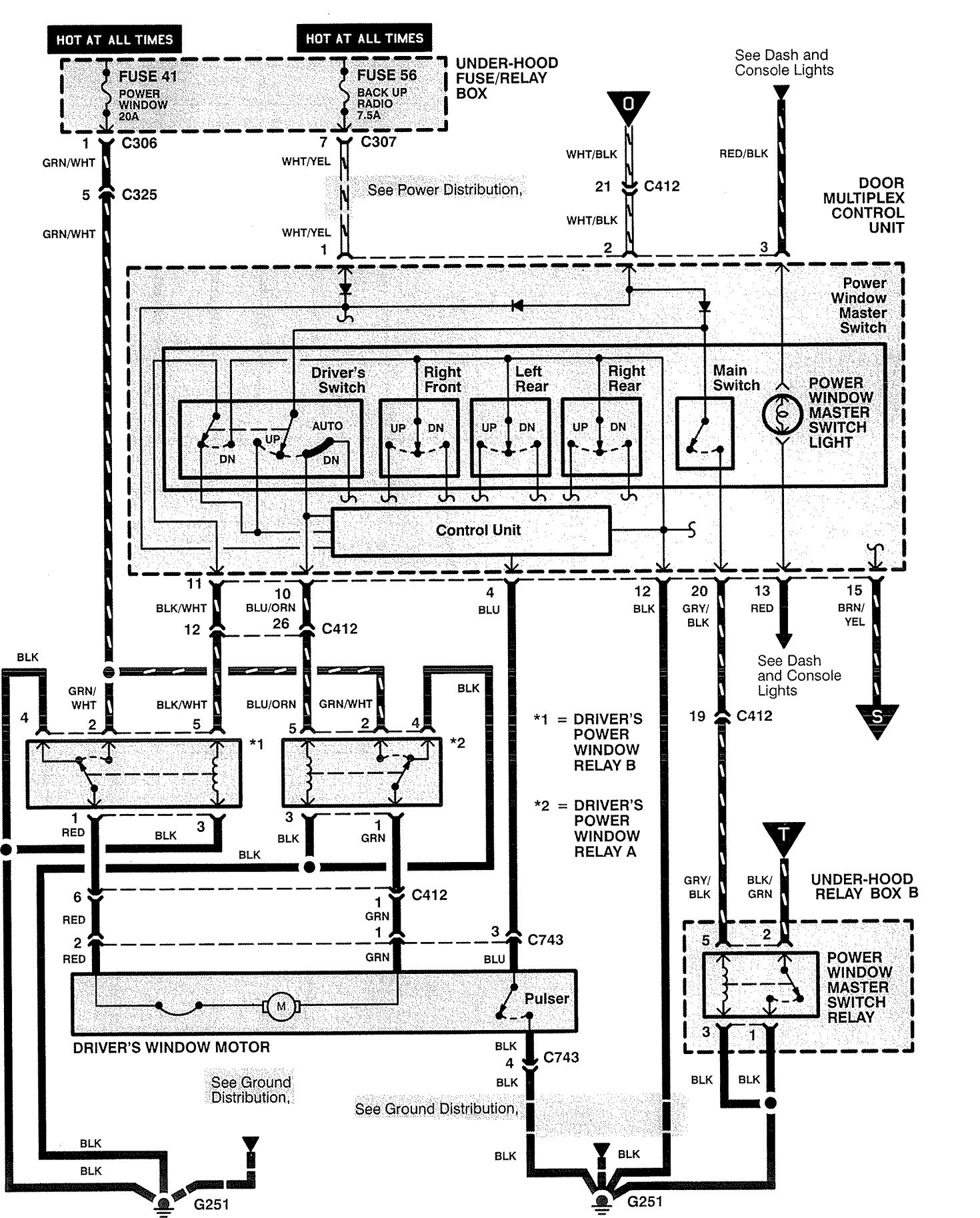

Acura RL - wiring diagram - power windows (part 2)
Acura RL – wiring diagram – power windows (part 2)

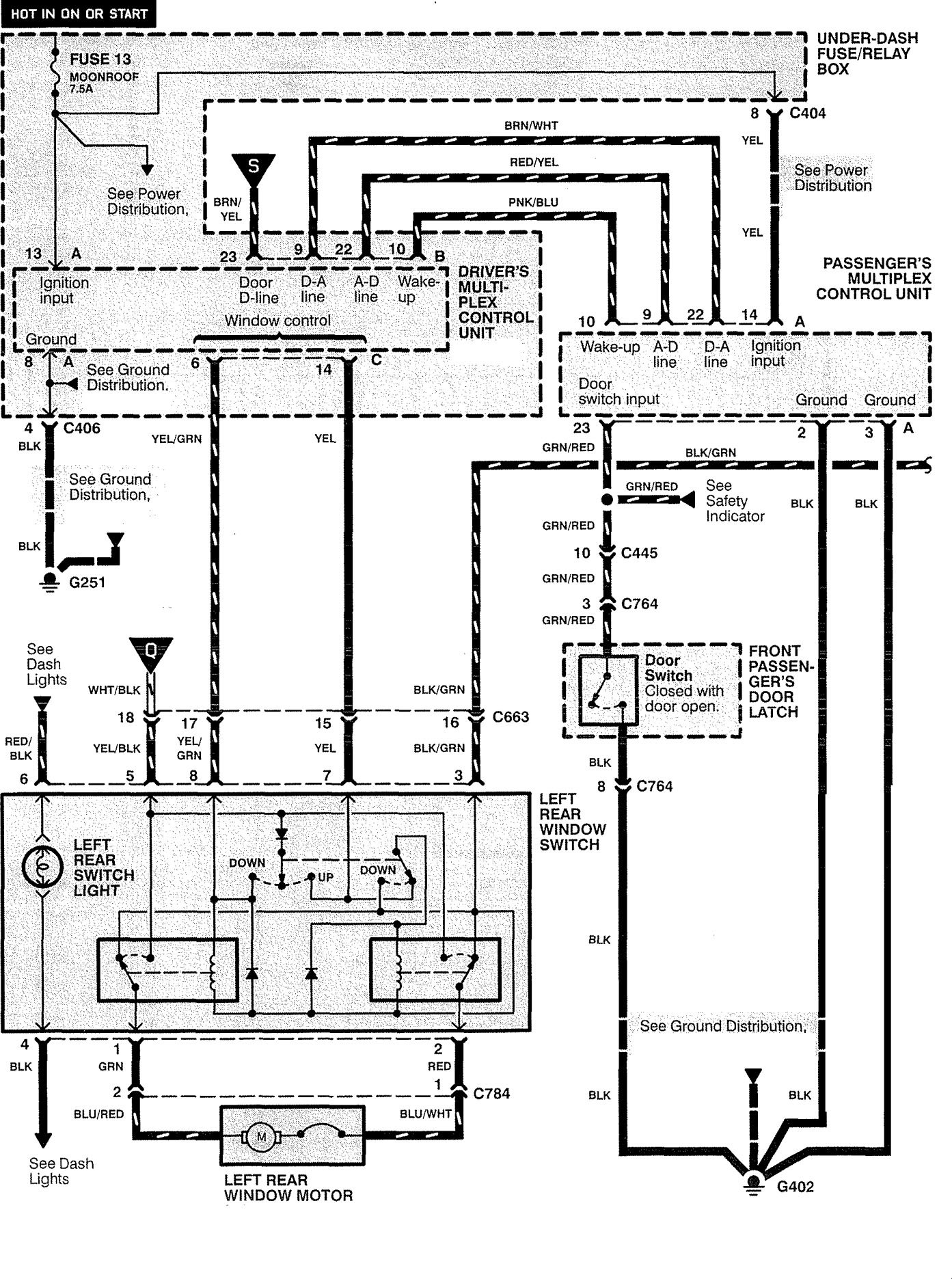

Acura RL - wiring diagram - power windows (part 3)
Acura RL – wiring diagram – power windows (part 3)

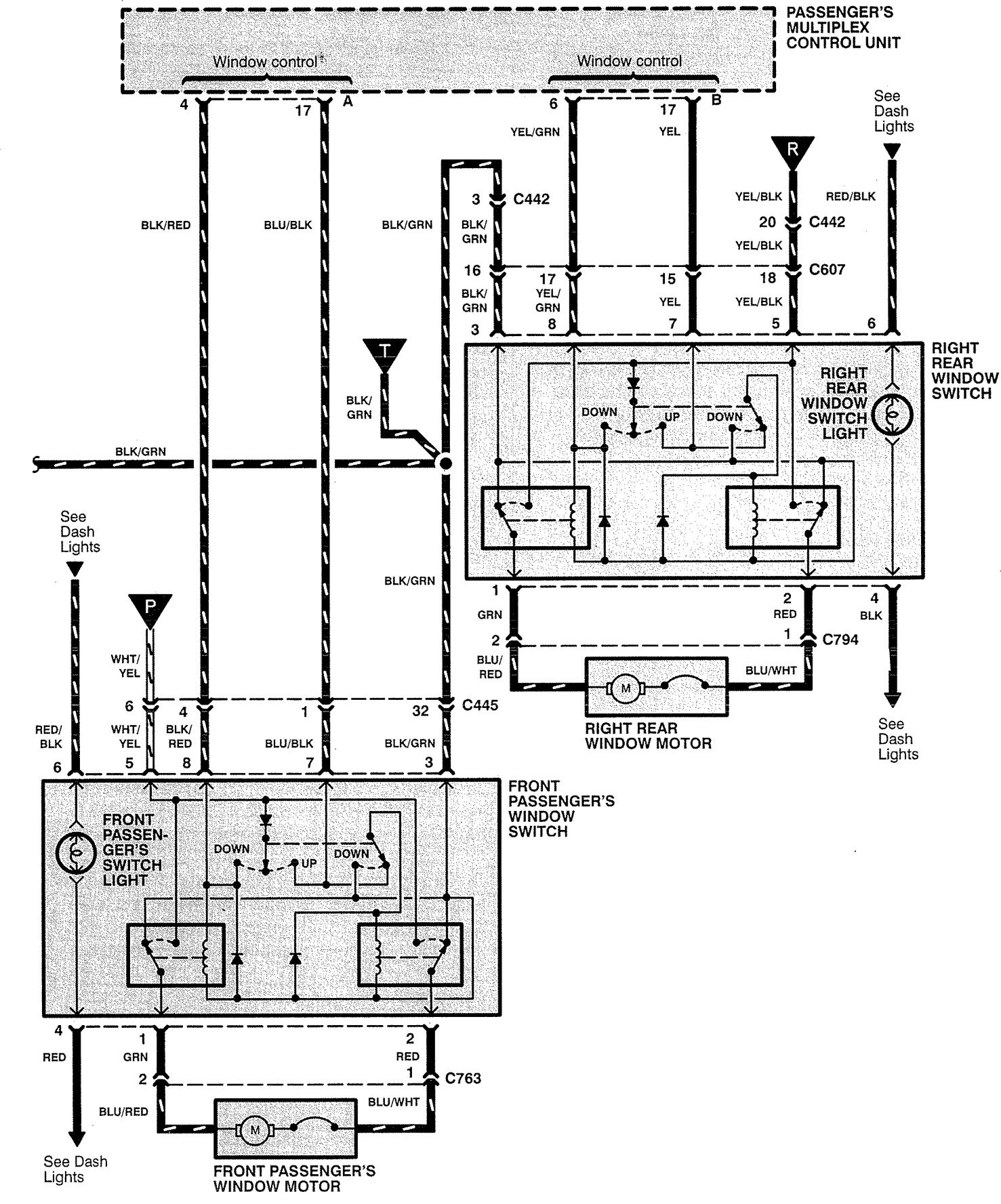

Acura RL - wiring diagram - power windows (part 4)
Acura RL – wiring diagram – power windows (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
