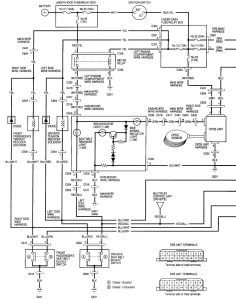

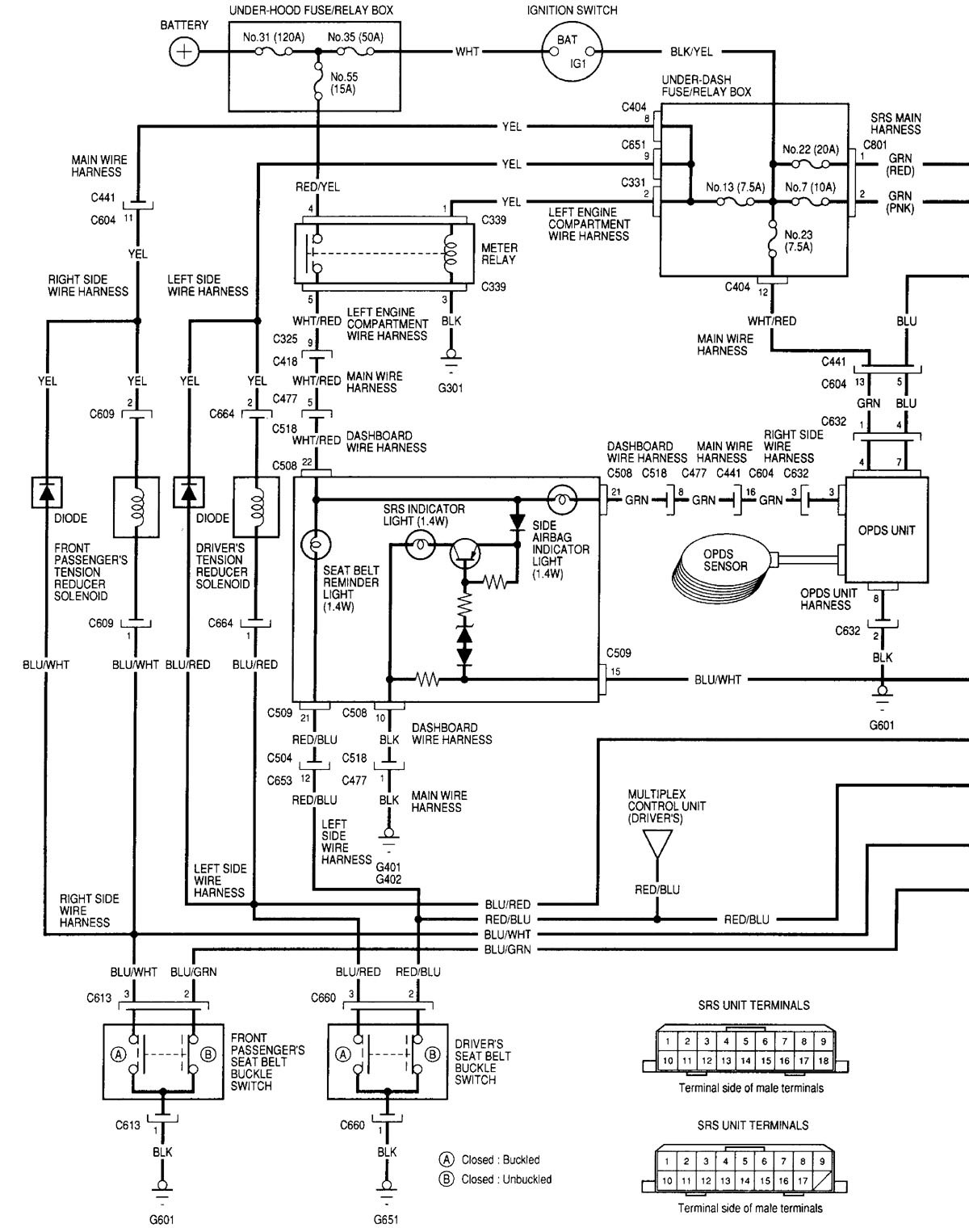

Acura RL (2000 – 2002) – wiring diagrams – air bags
Year of productions: 2000, 2001, 2002
Air bags
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Year of productions: 2000, 2001, 2002
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
