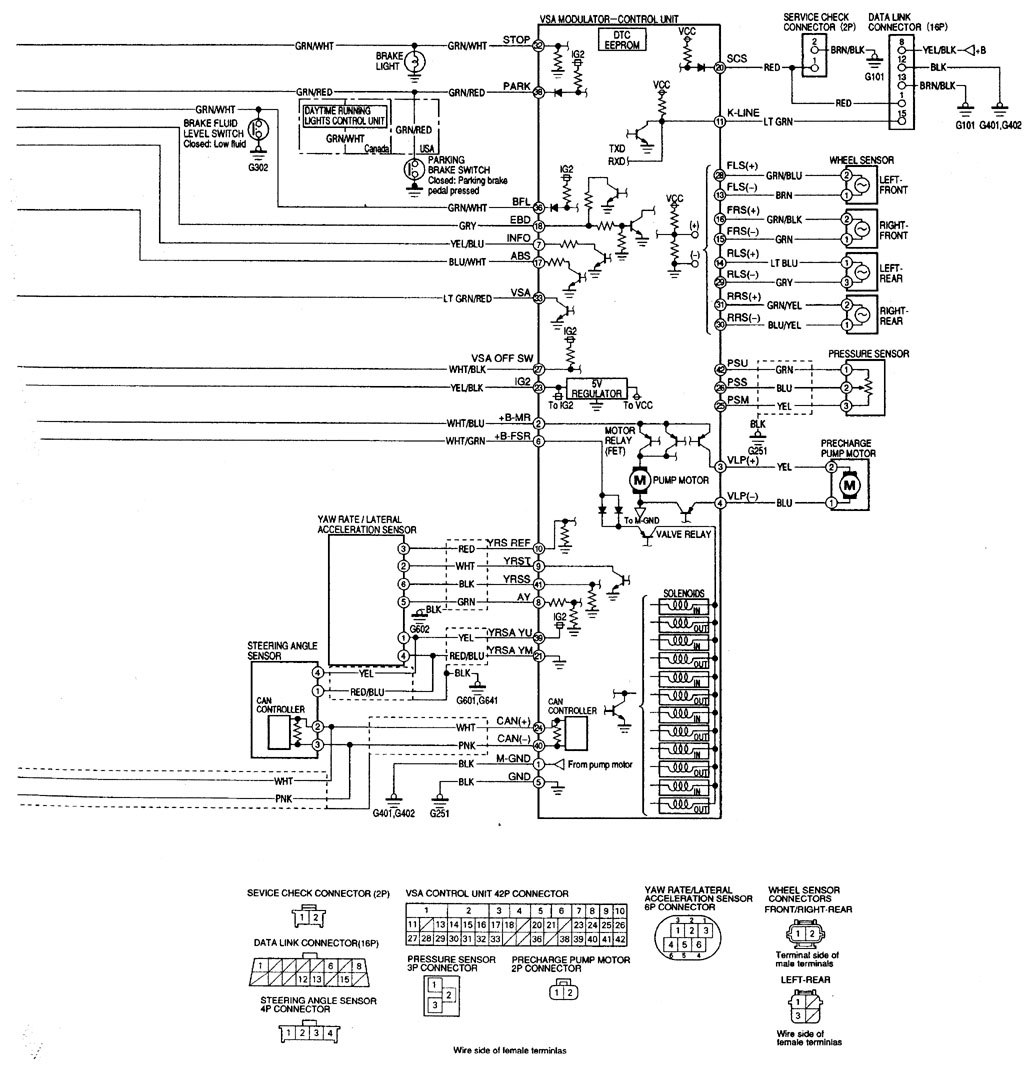

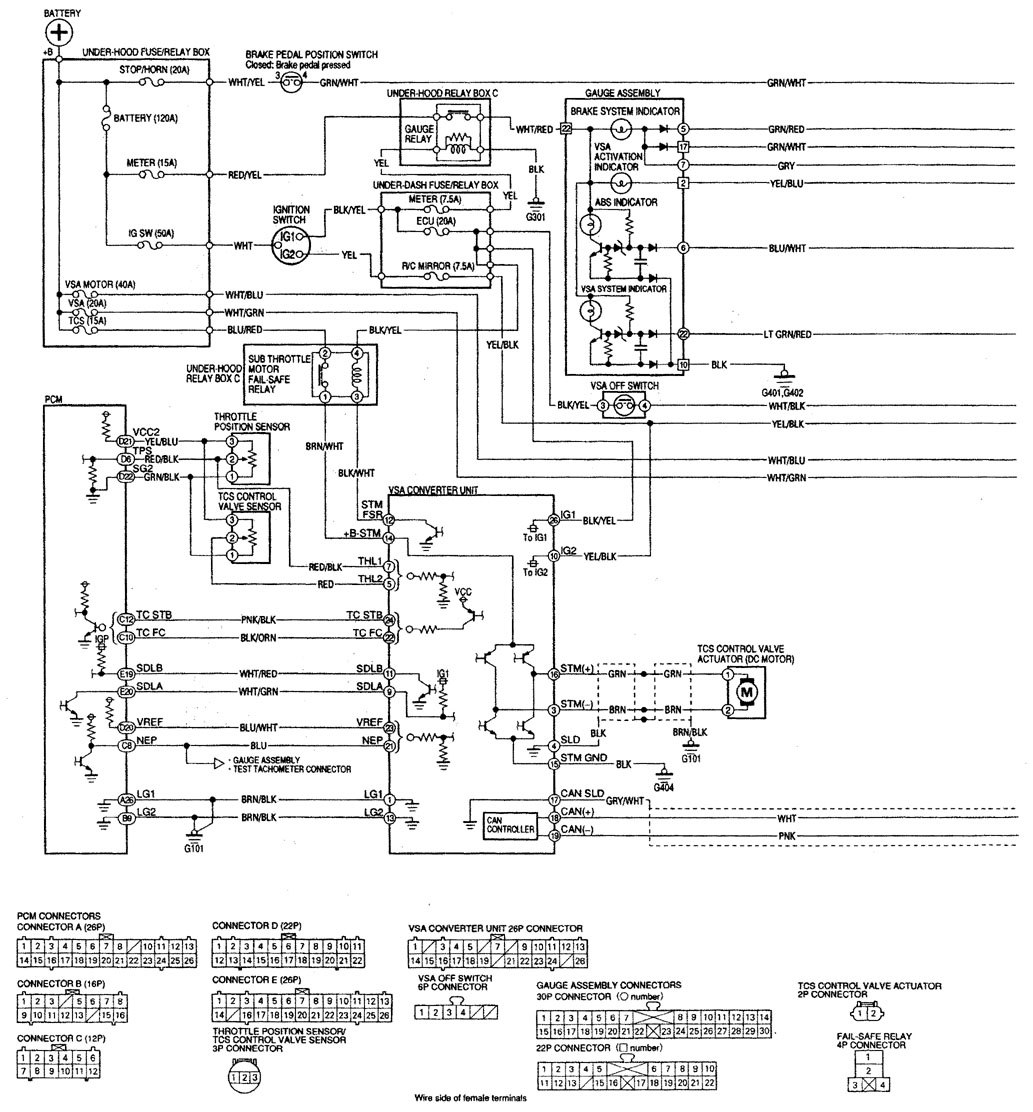

Acura RL (2000 – 2002) – wiring diagrams – brake controls

Acura Integra (1993) – wiring diagrams – shift interlock Year of productions: 1993 Shift interlock WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mercedes-Benz 600SEC (1993) – wiring diagrams – audio Year of productions:  1993 Audio WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura TL (1999) – wiring diagrams – tail lamps Year of productions:  1999 Tail lamps WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
