Acura RL (2000 – 2002) – wiring diagrams – fuel controls

Year of productions:  2000, 2001, 2002

Fuel controls

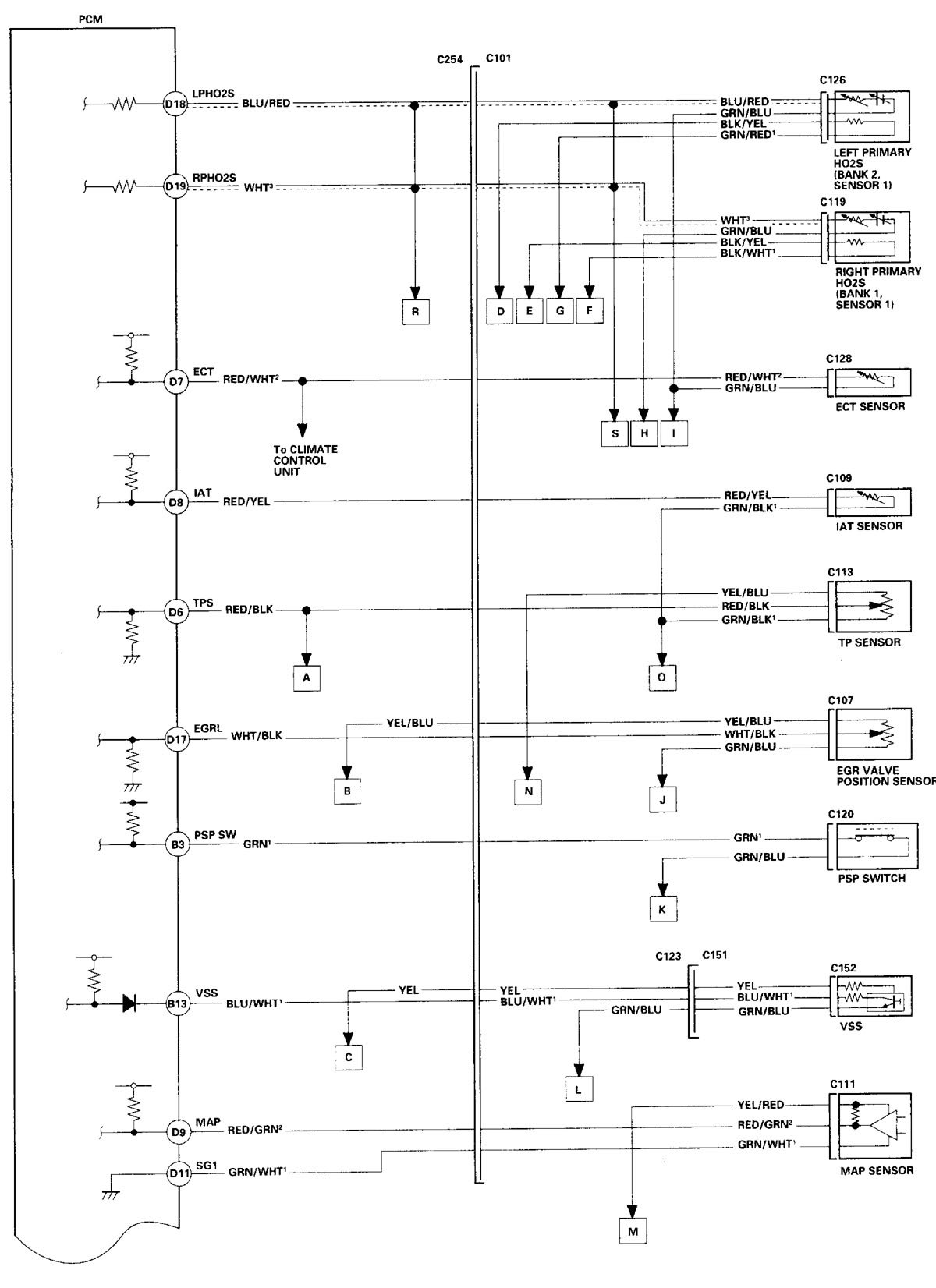

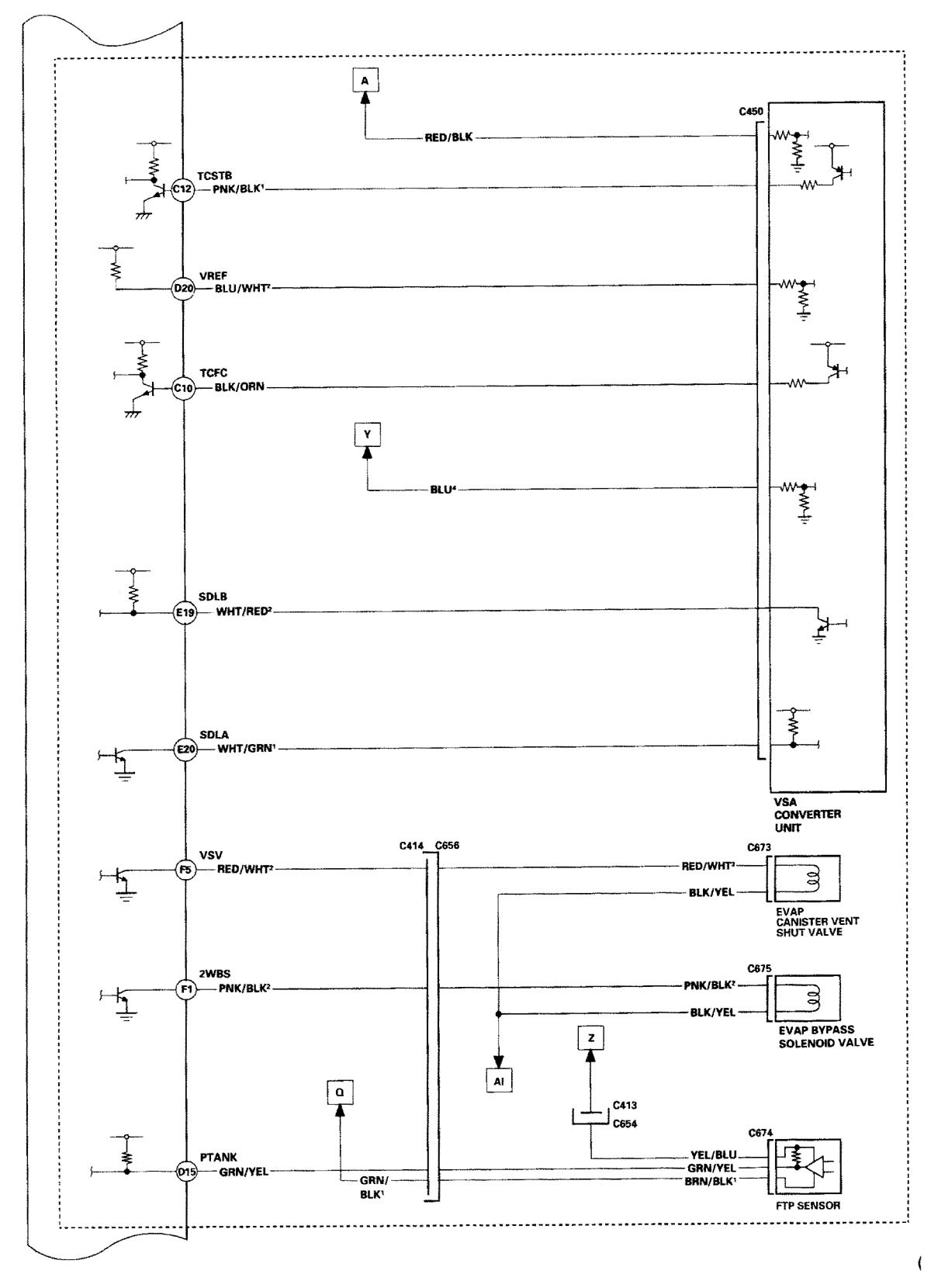

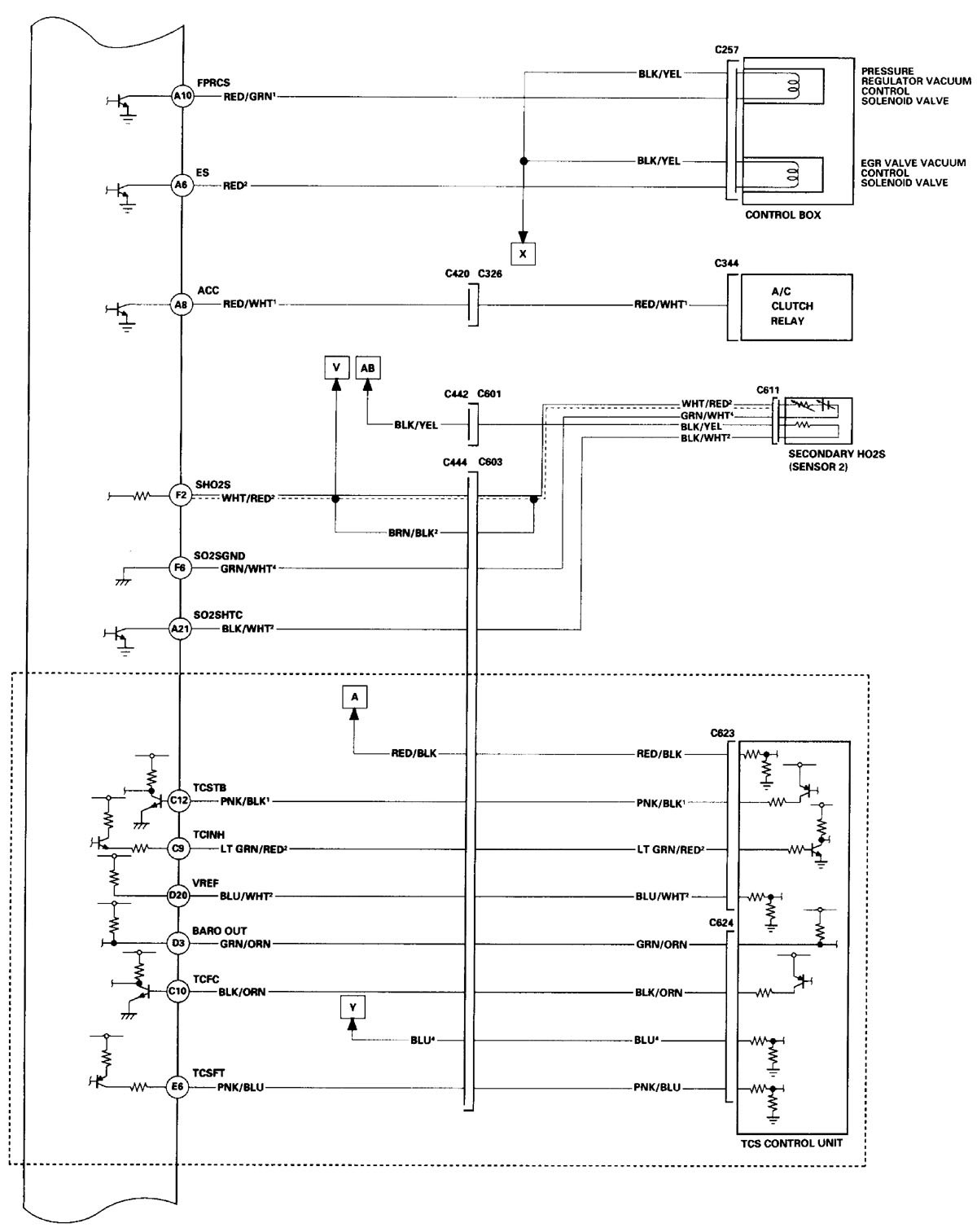

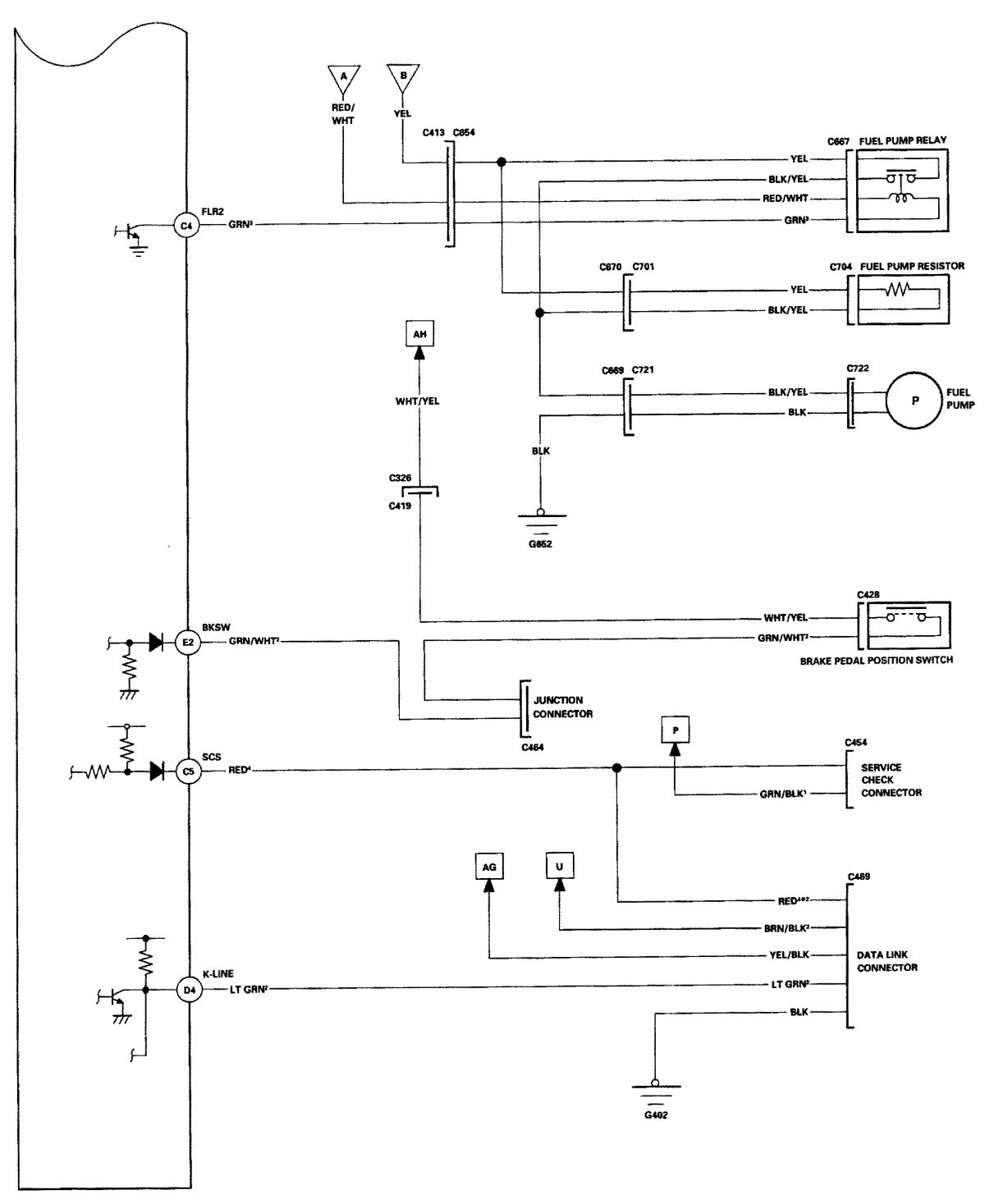

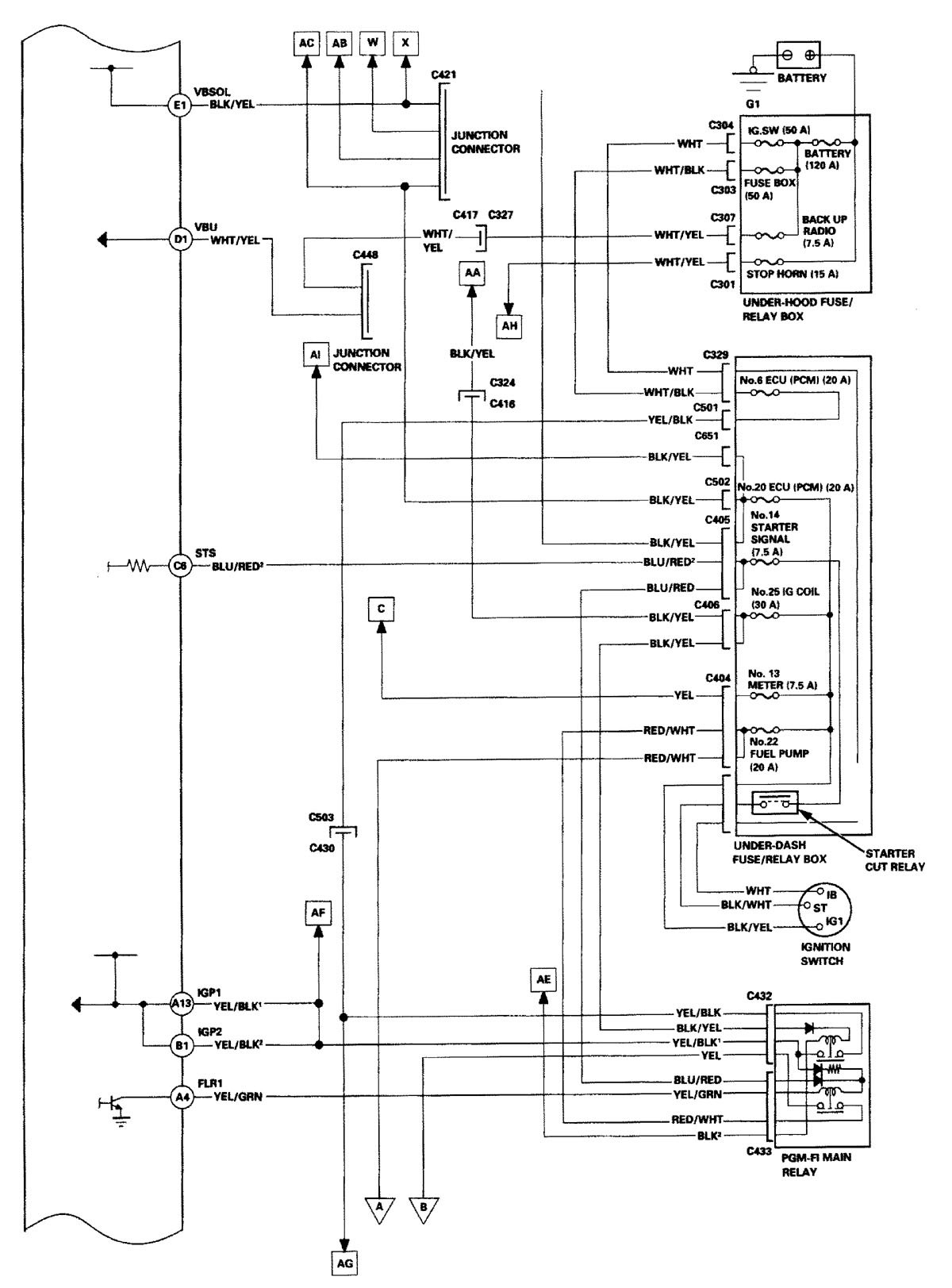

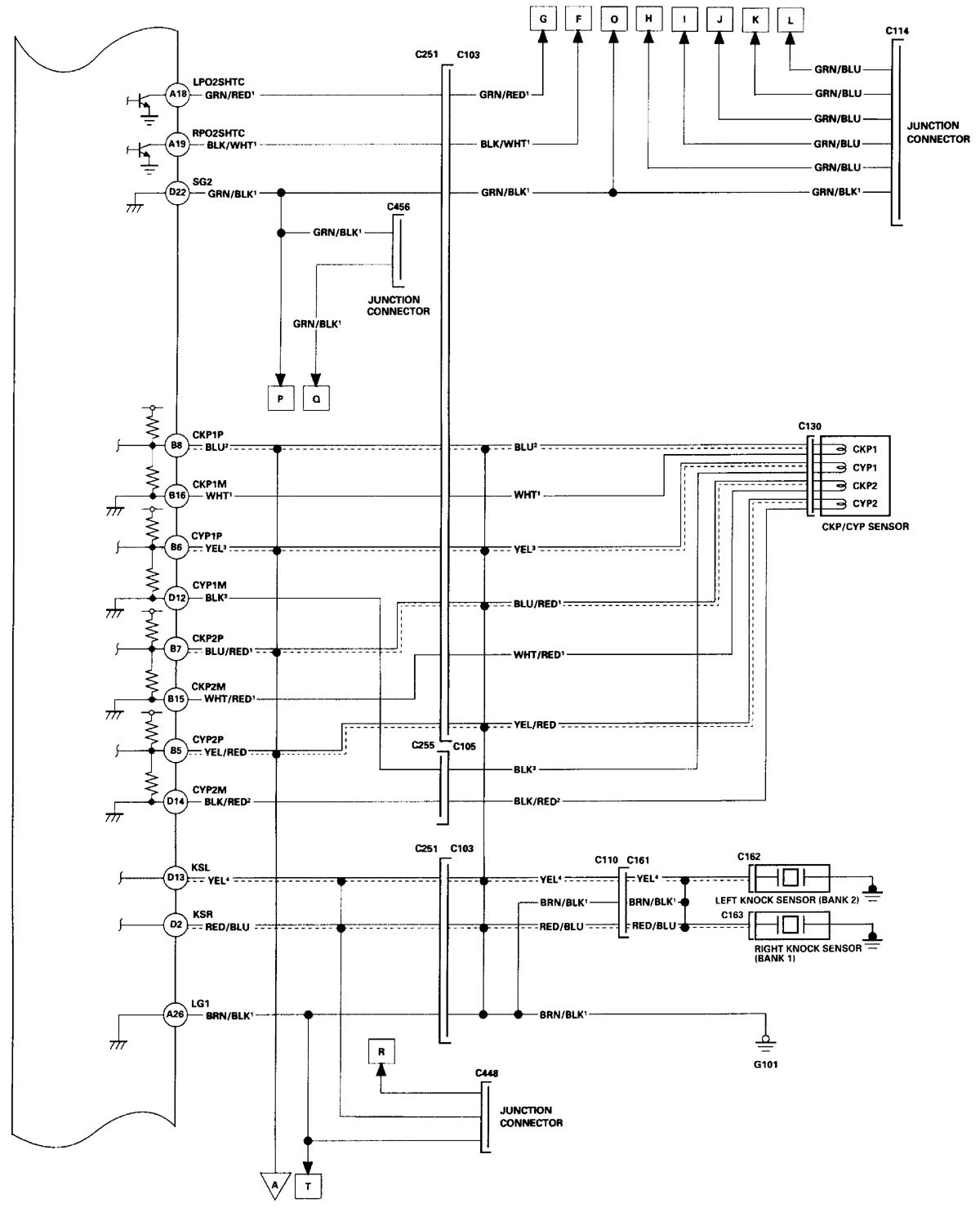

Acura RL - wiring diagram - fuel controls (part 1)
Acura RL – wiring diagram – fuel controls (part 1)
Acura RL - wiring diagram - fuel controls (part 2)
Acura RL – wiring diagram – fuel controls (part 2)

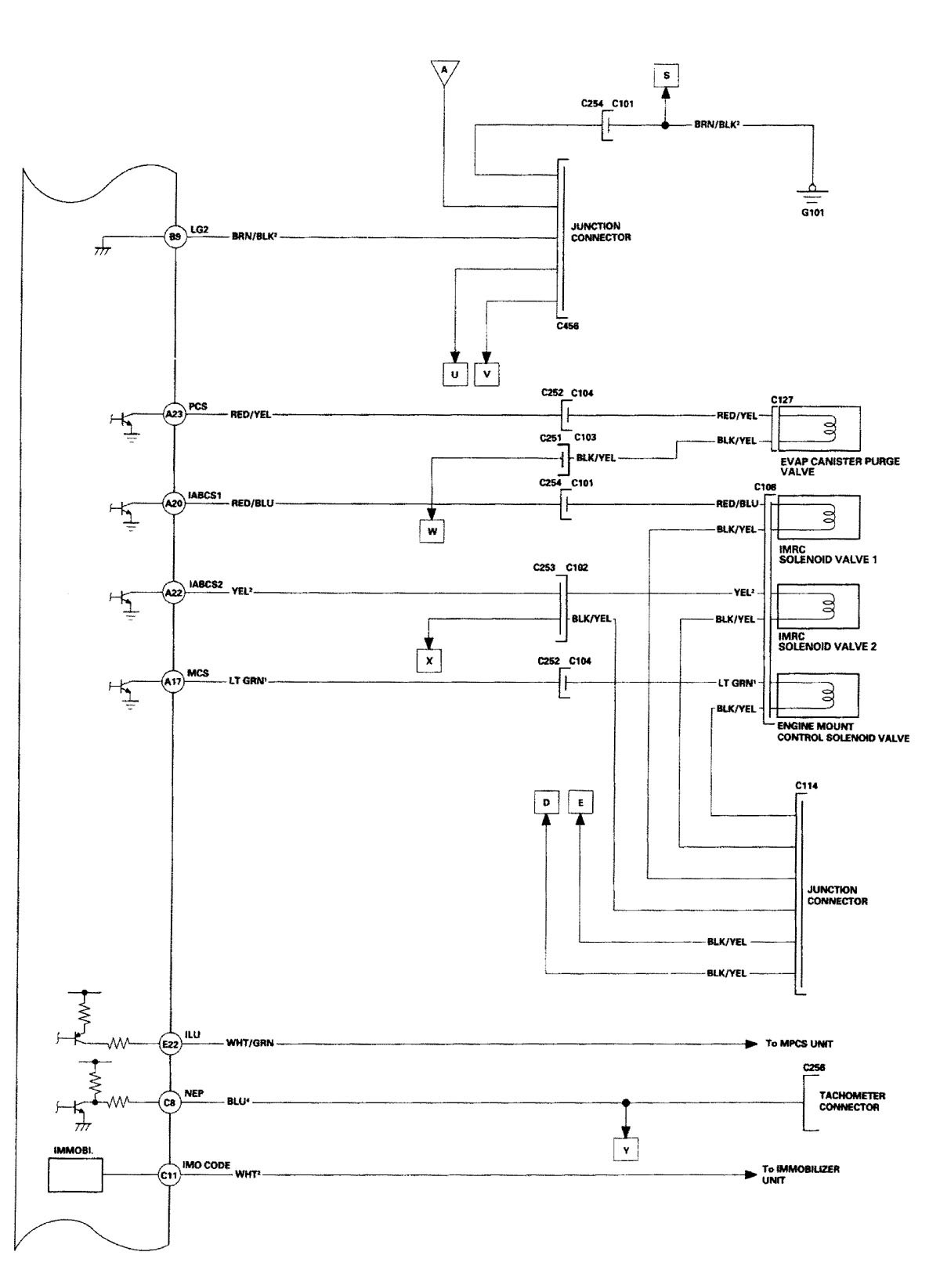

Acura RL - wiring diagram - fuel controls (part 3)
Acura RL – wiring diagram – fuel controls (part 3)

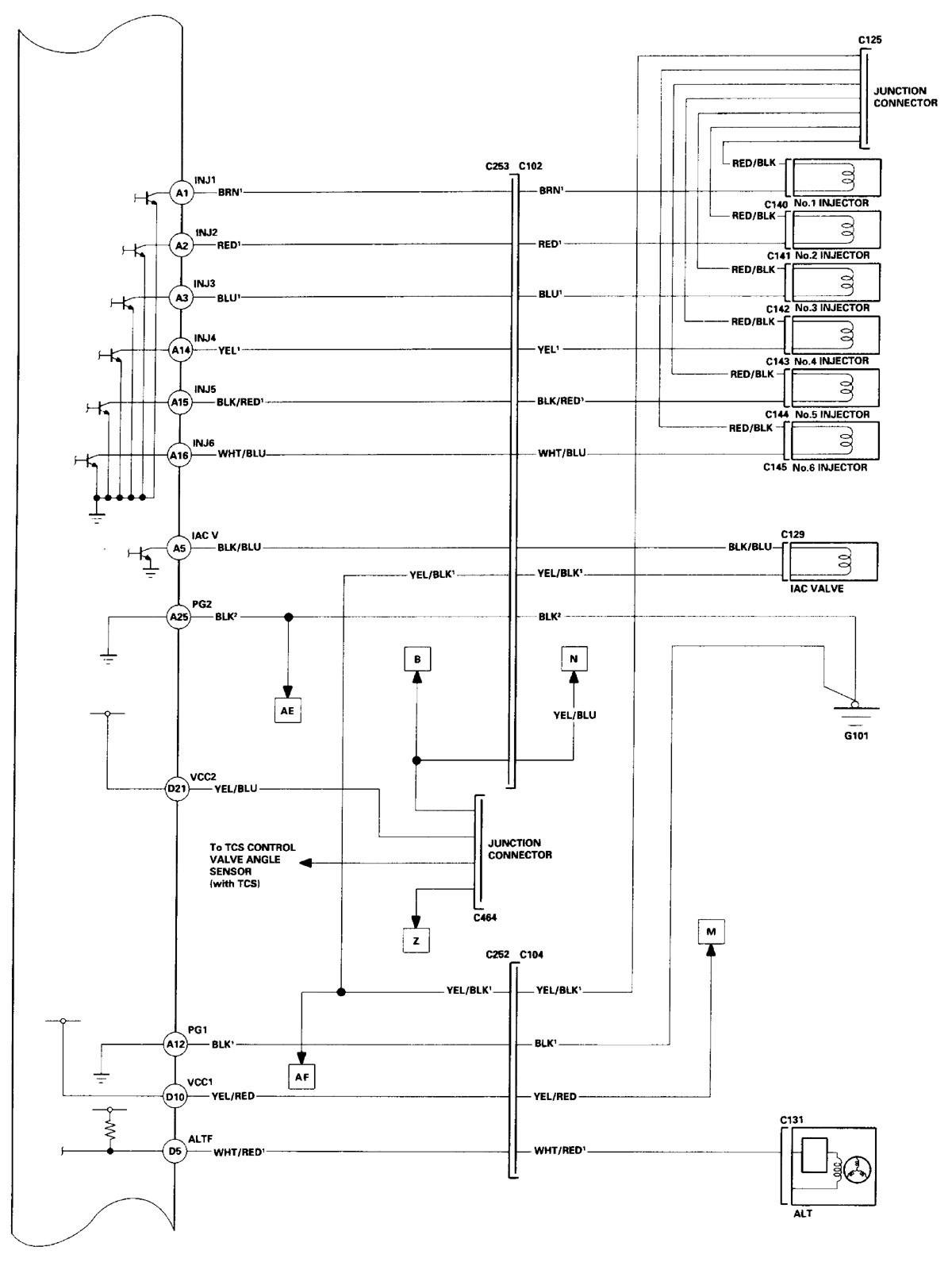

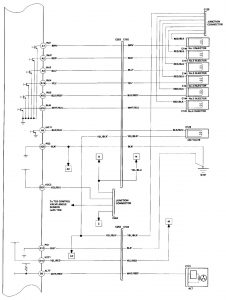

Acura RL - wiring diagram - fuel controls (part 4)
Acura RL – wiring diagram – fuel controls (part 4)

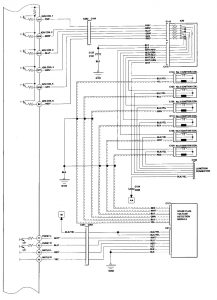

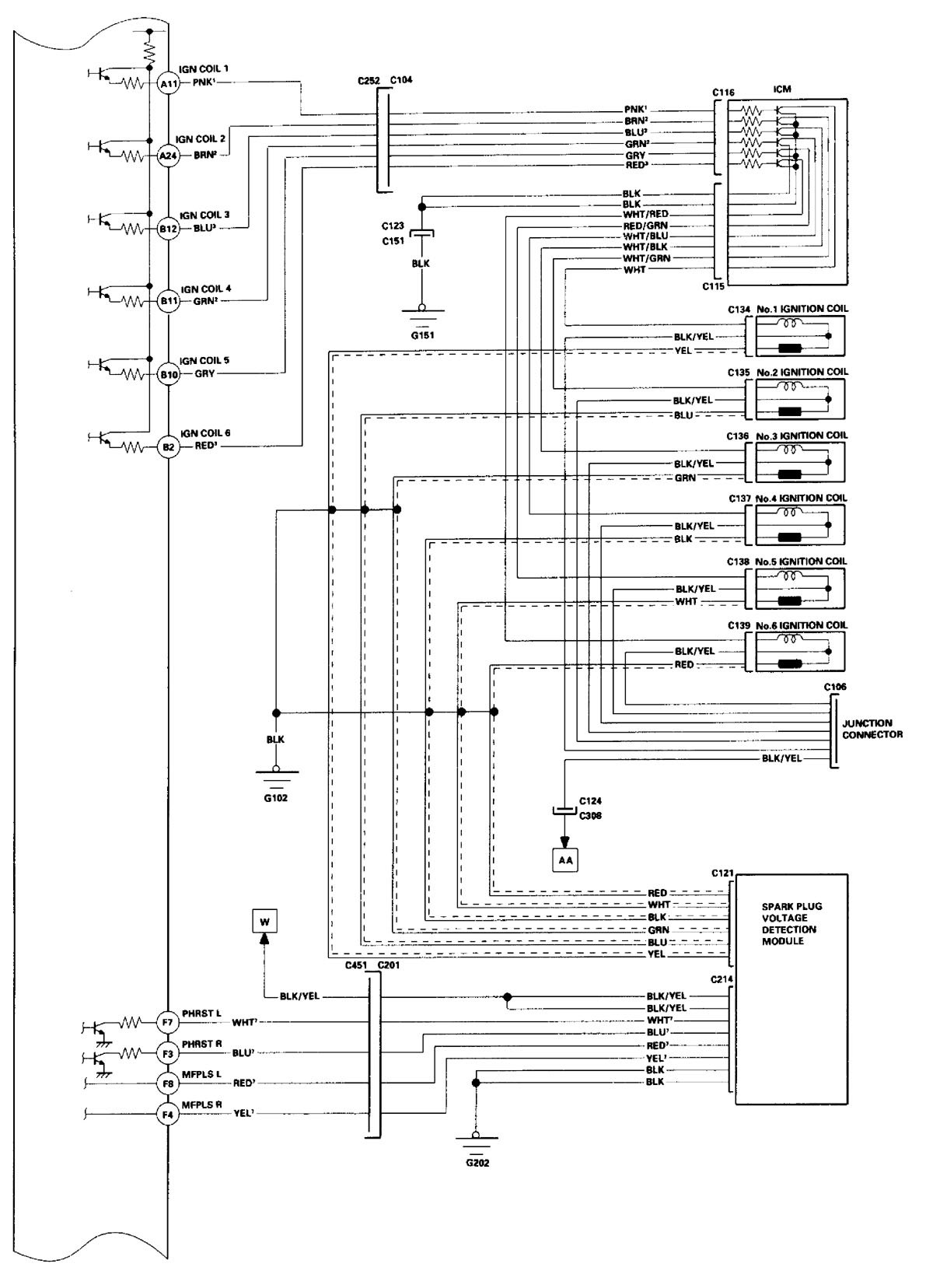

Acura RL - wiring diagram - fuel controls (part 5)
Acura RL – wiring diagram – fuel controls (part 5)
Acura RL - wiring diagram - fuel controls (part 6)
Acura RL – wiring diagram – fuel controls (part 6)

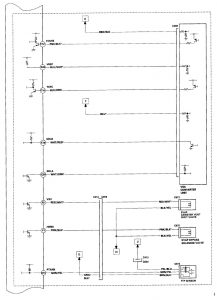

Acura RL - wiring diagram - fuel controls (part 7)
Acura RL – wiring diagram – fuel controls (part 7)

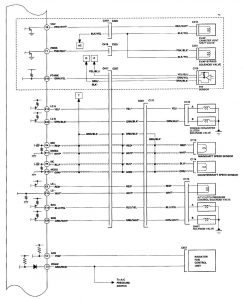

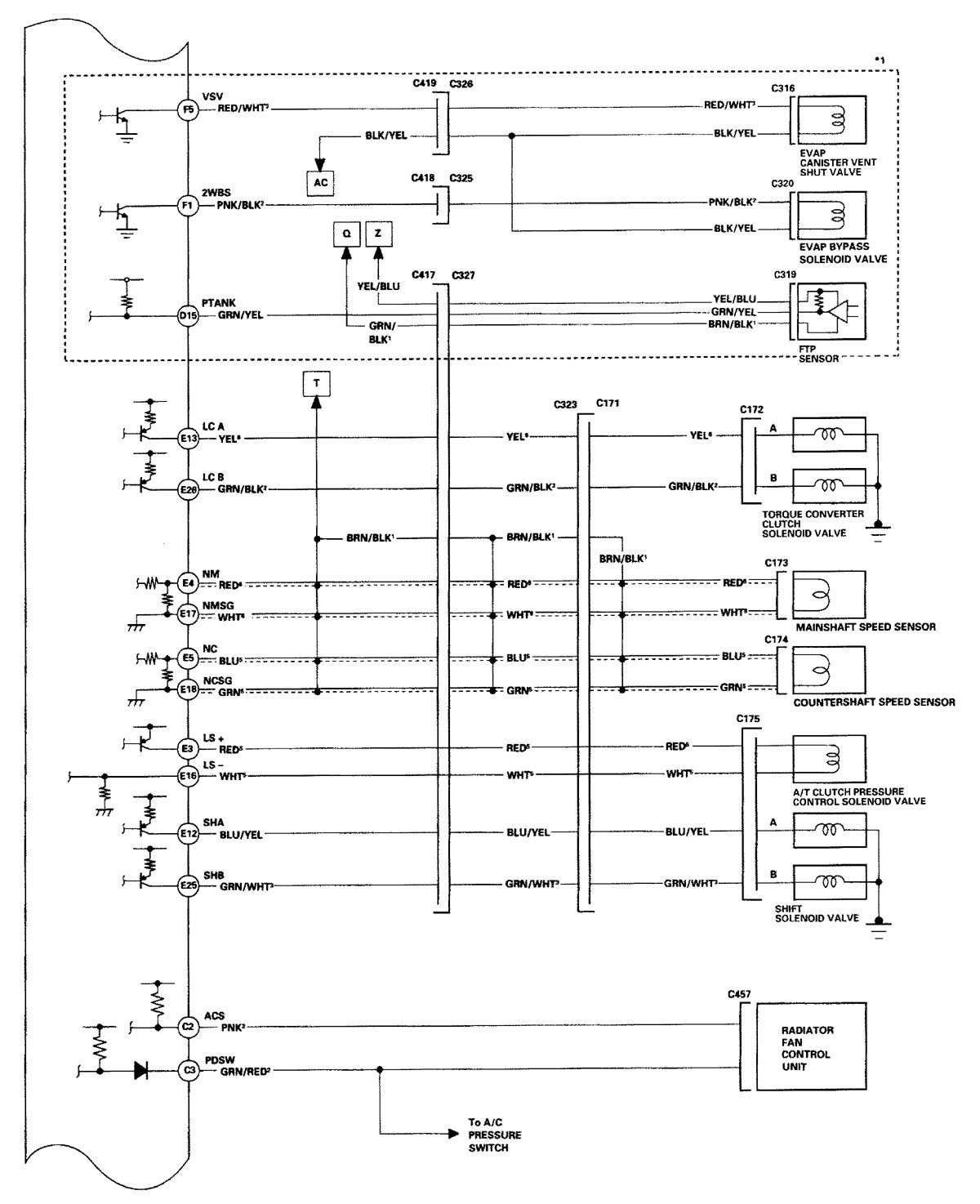

Acura RL - wiring diagram - fuel controls (part 8)
Acura RL – wiring diagram – fuel controls (part 8)

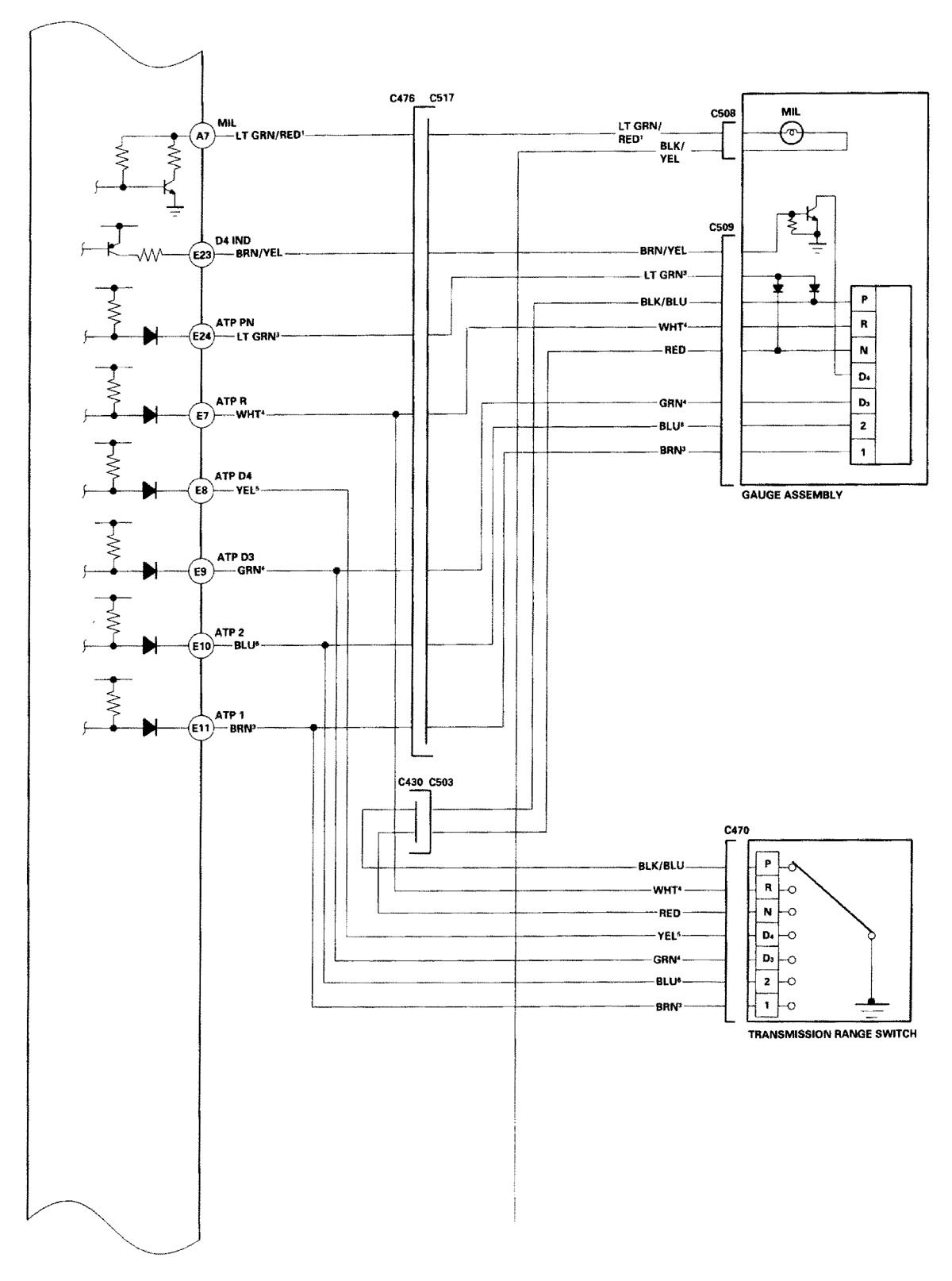

Acura RL - wiring diagram - fuel controls (part 9)
Acura RL – wiring diagram – fuel controls (part 9)

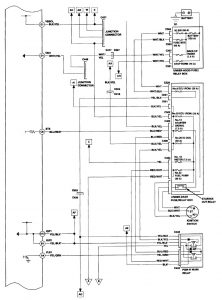

Acura RL - wiring diagram - fuel controls (part 10)
Acura RL – wiring diagram – fuel controls (part 10)
Acura RL - wiring diagram - fuel controls (part 11)
Acura RL – wiring diagram – fuel controls (part 11)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
