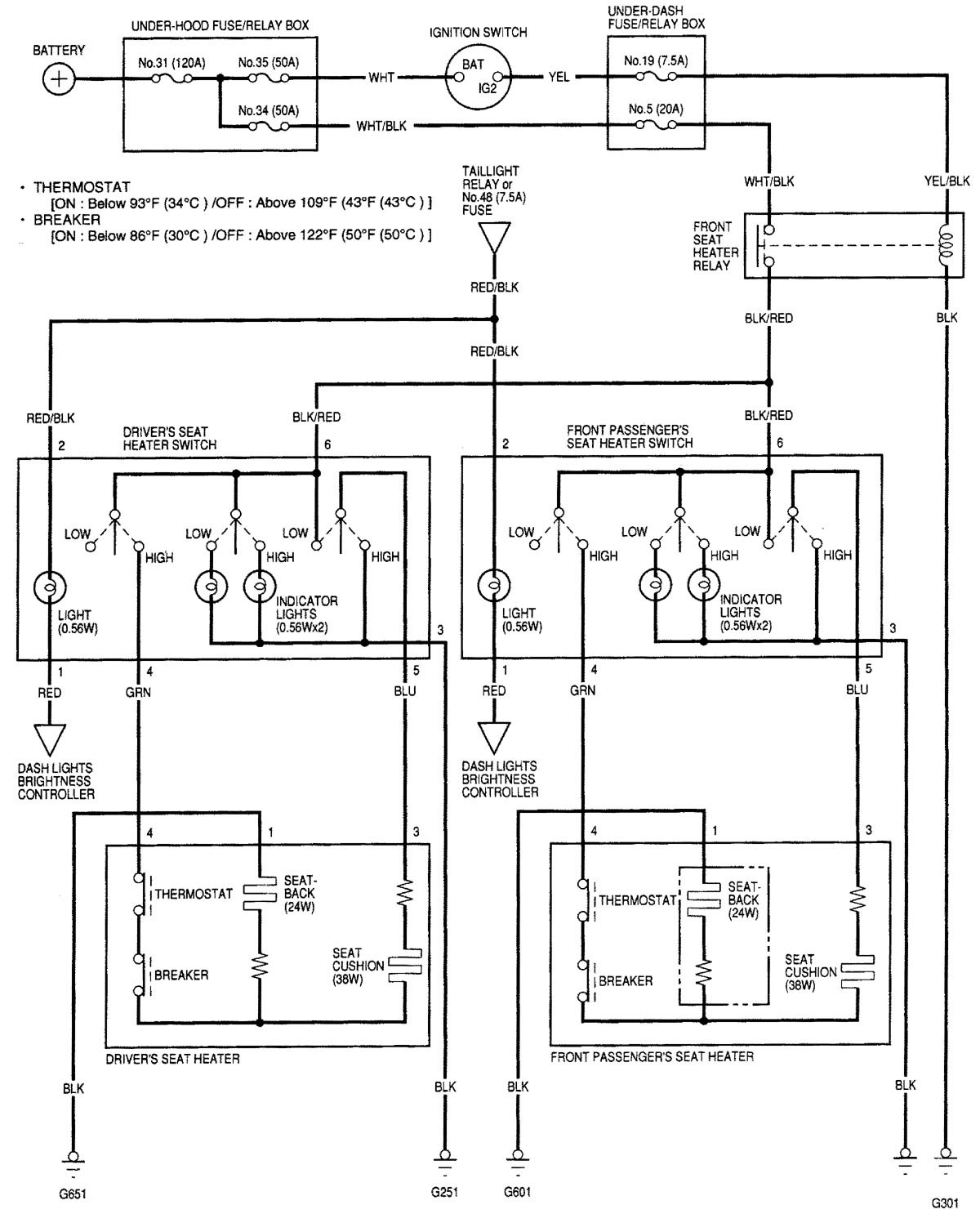

Acura RL (2000 – 2002) – wiring diagrams – heated seats

Acura Integra (2001) – wiring diagrams – horn Year of productions: 2000, 2001 Horn WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura Vigor (1992 – 1993) – wiring diagrams – ignition Year of productions:  1992, 1993 Ignition WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura Vigor (1992 – 1993) – wiring diagrams – brake controls Year of productions:  1992, 1993 Brake controls WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
