Acura RL (2000 – 2002) – wiring diagrams – heater

Acura RL (2000 – 2002) – wiring diagrams – heater

Year of productions:  2000, 2001, 2002

Heater

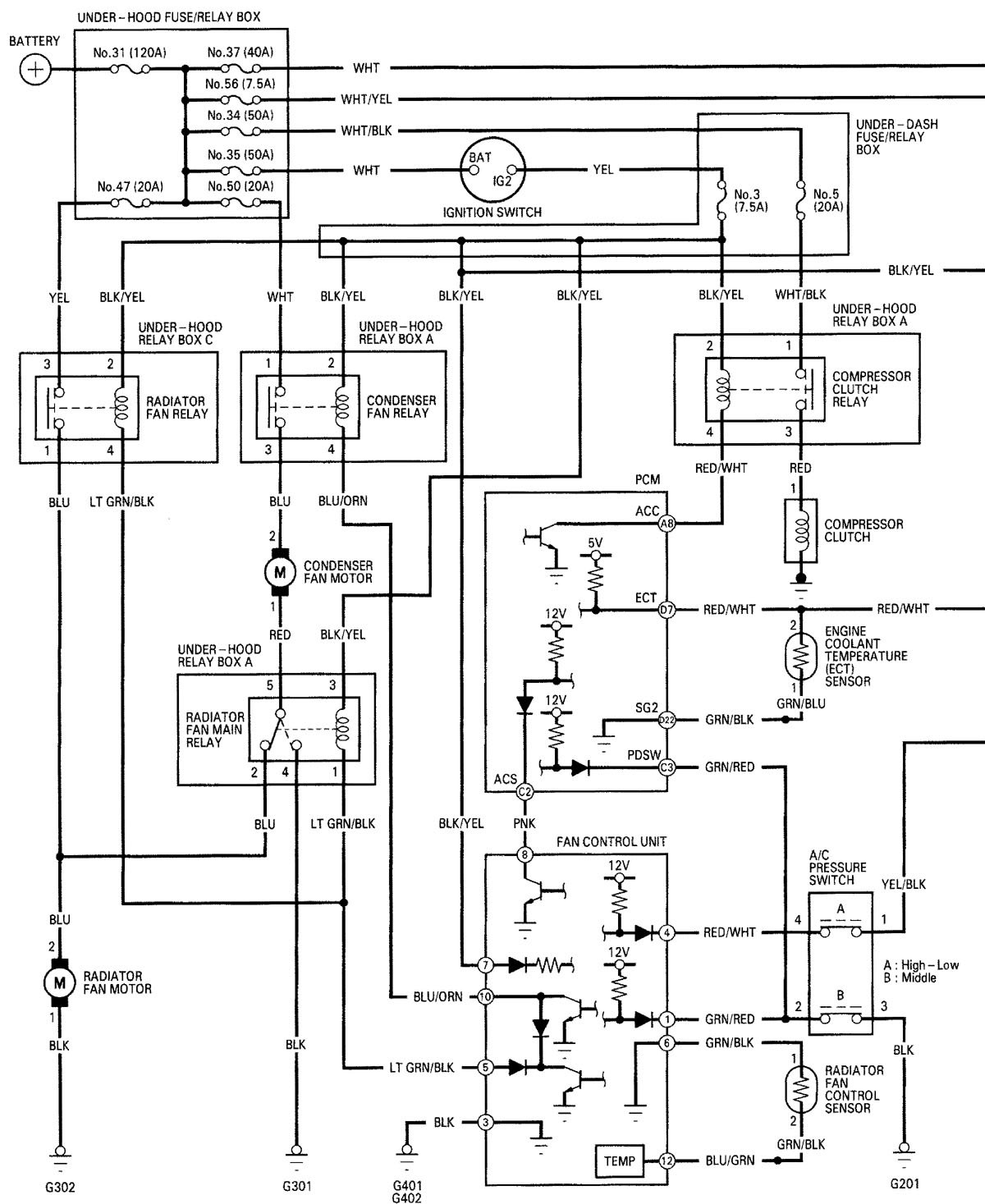

Acura RL - wiring diagram - heater (part 1)
Acura RL – wiring diagram – heater (part 1)

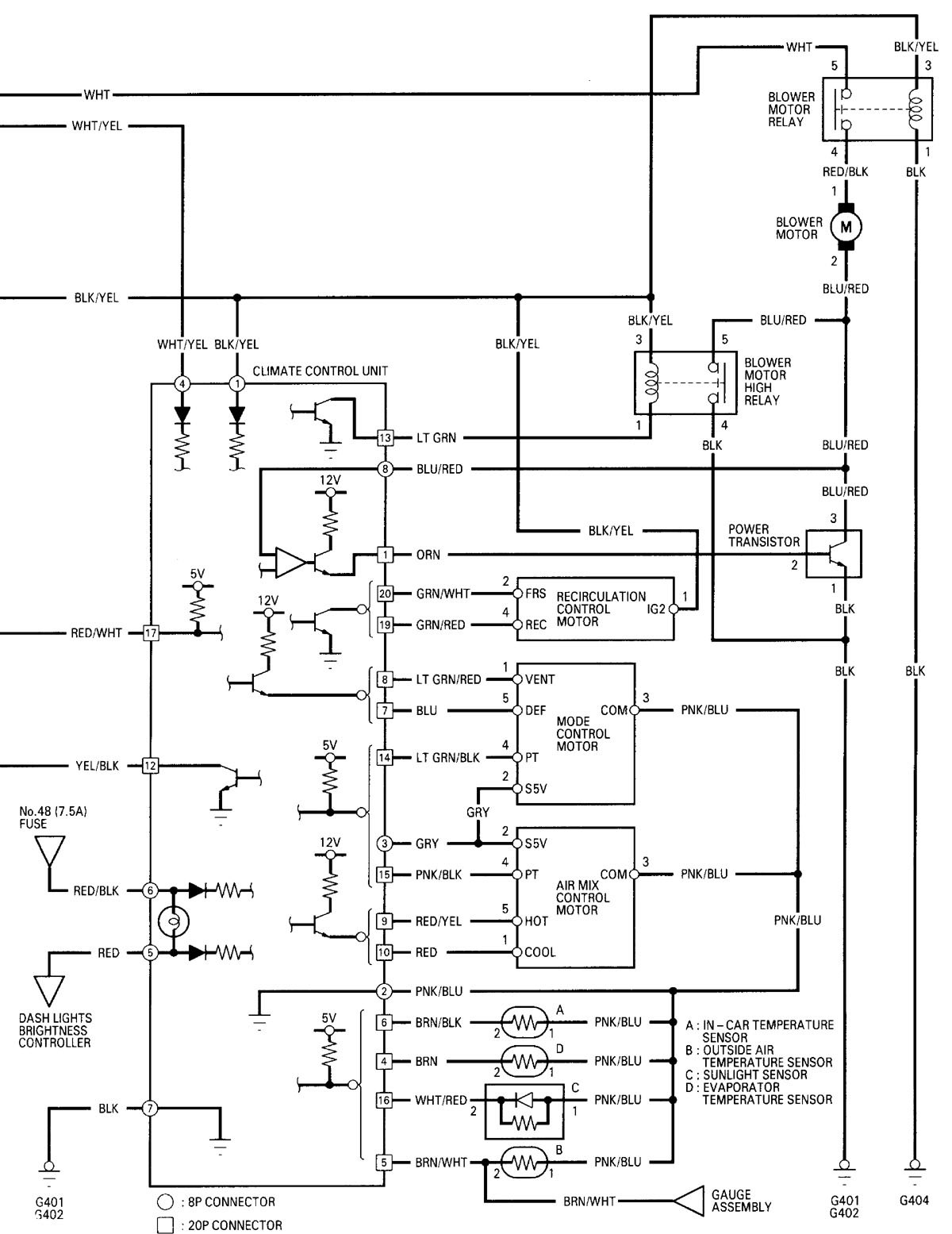

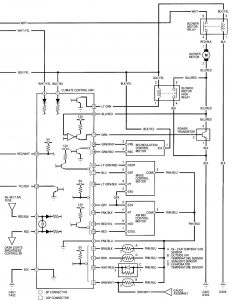

Acura RL - wiring diagram - heater (part 2)
Acura RL – wiring diagram – heater (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
