Acura RL (2000 – 2002) – wiring diagrams – illuminated entry

11 September 2017 admin Acura, RL 0

Acura RL (2000 – 2002) – wiring diagrams – illuminated entry

Year of productions:  2000, 2001, 2002

Illuminated entry

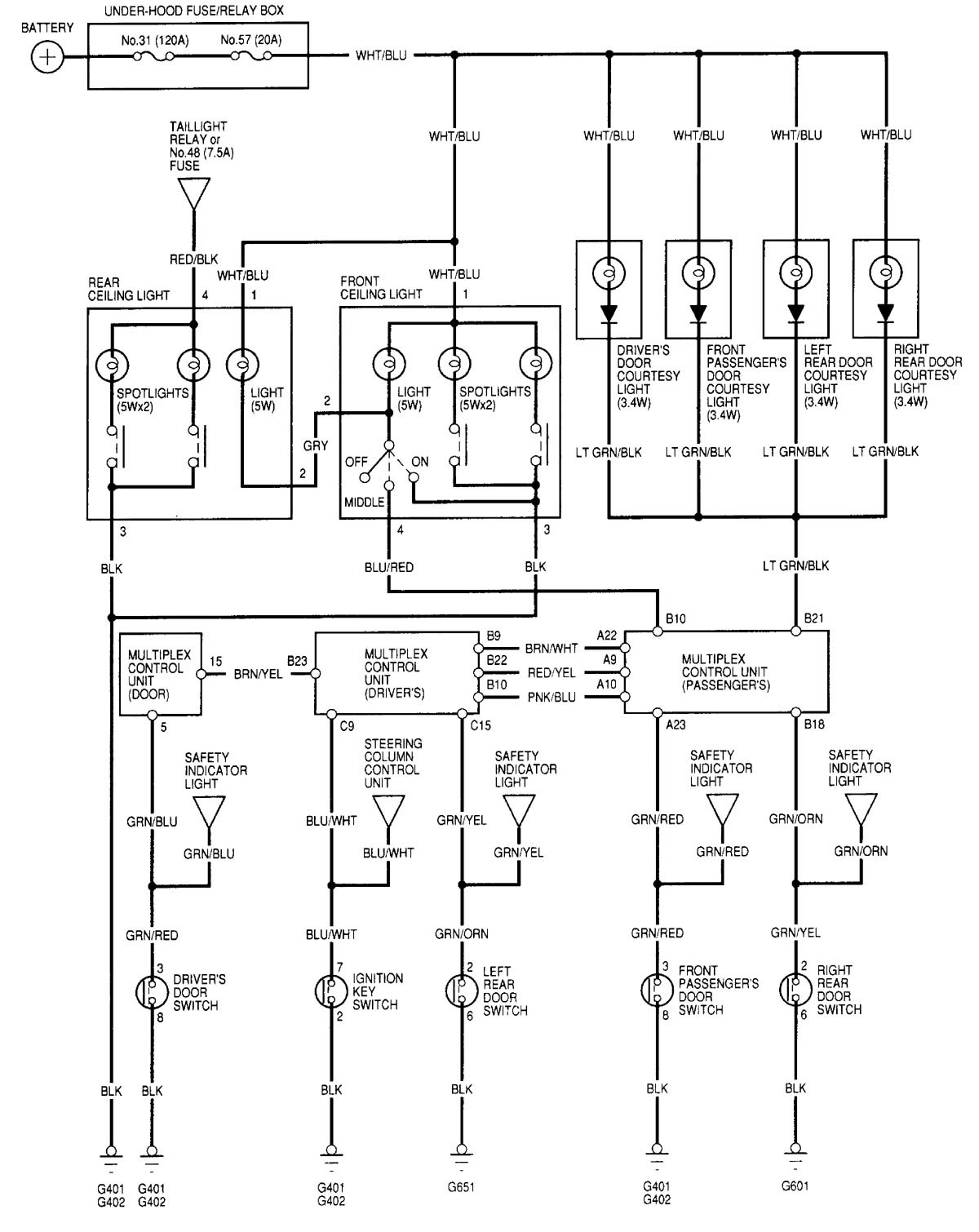

Acura RL - wiring diagram - illuminated entry
Acura RL – wiring diagram – illuminated entry

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
