Acura RL (2000 – 2002) – wiring diagrams – security/anti-theft

Year of productions:  2000, 2001, 2002

Security/Anti-theft

Version 1

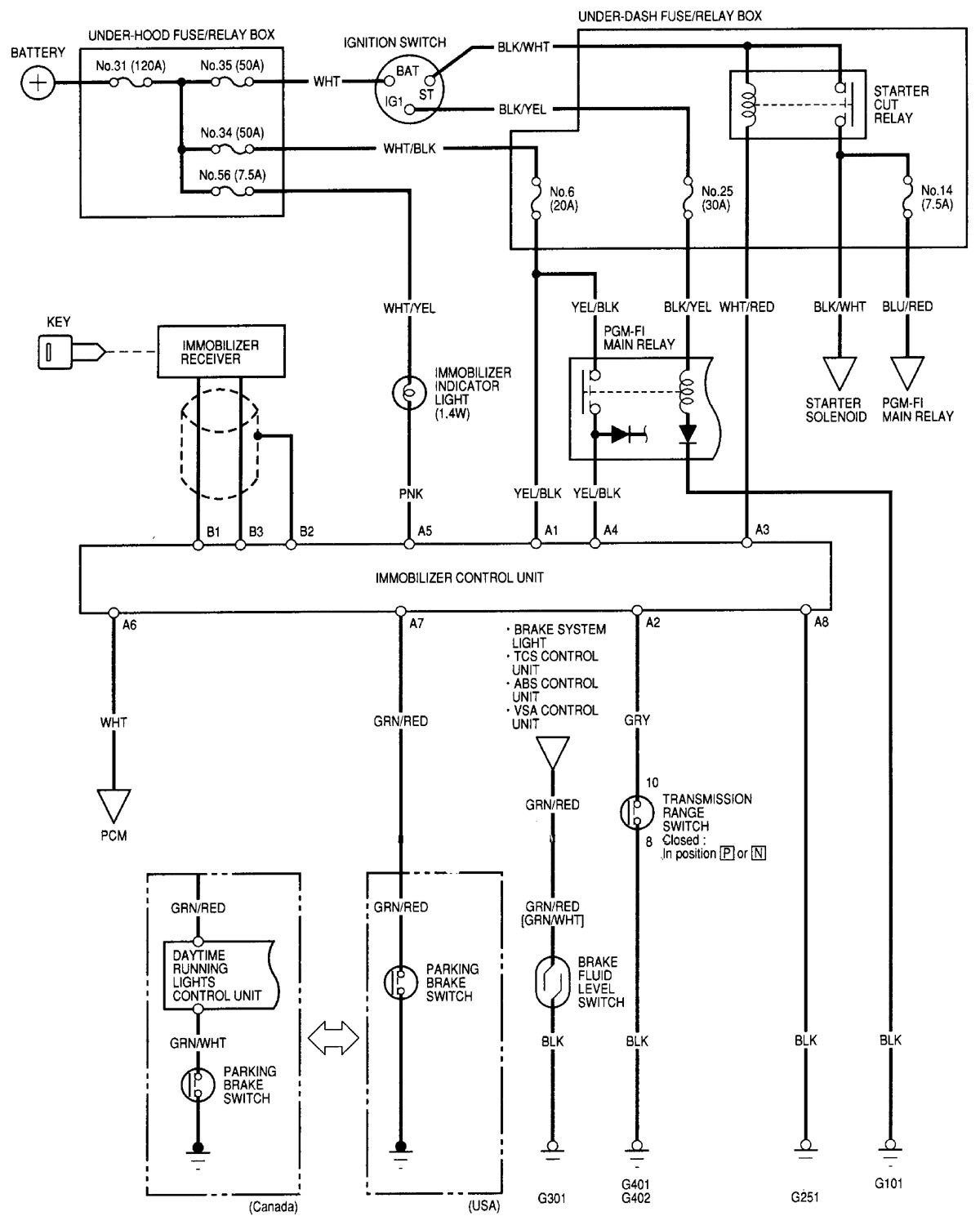

Acura RL - wiring diagram - security/anti-theft
Acura RL – wiring diagram – security/anti-theft

Version 2

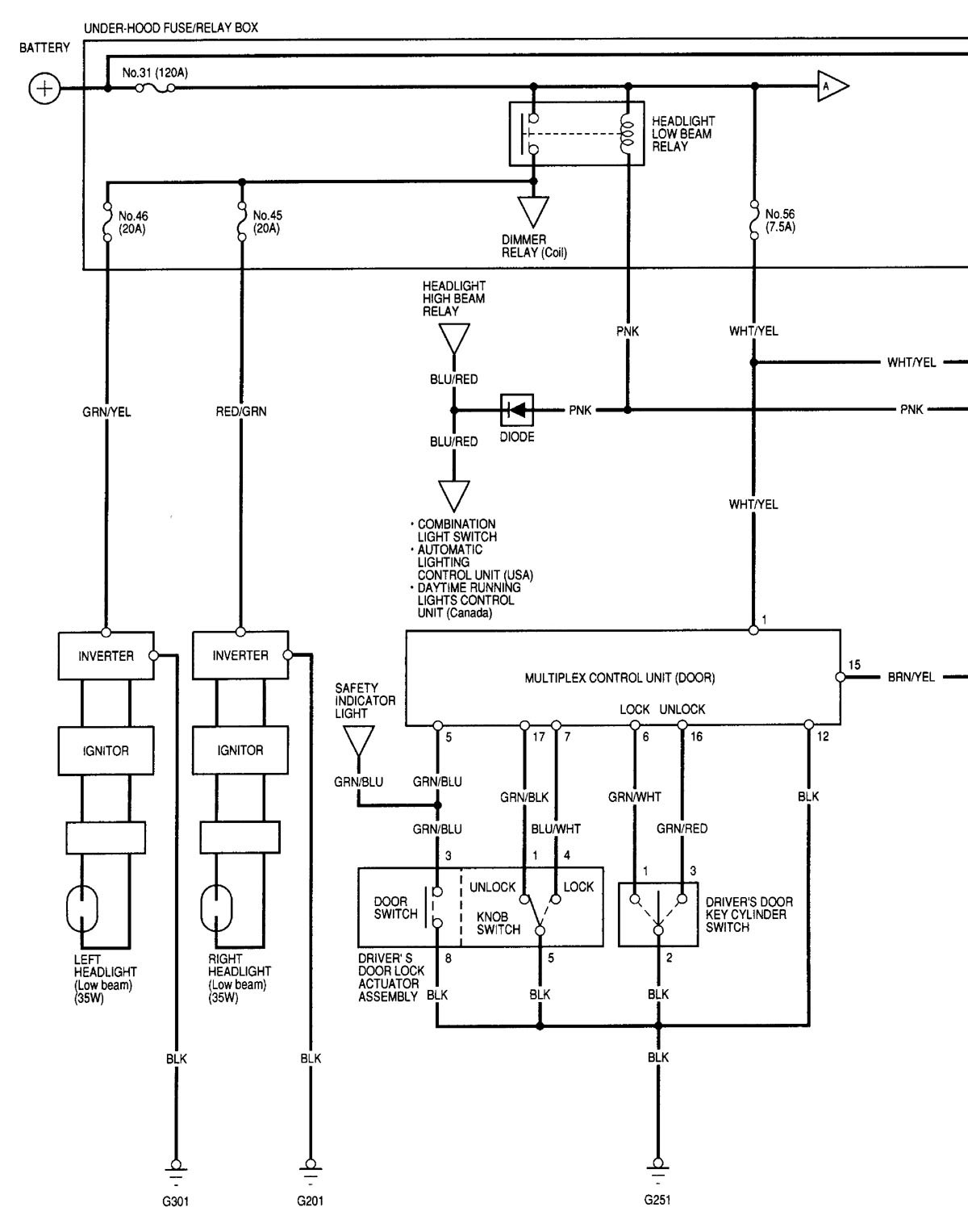

Acura RL - wiring diagram - security/anti-theft (part 1)
Acura RL – wiring diagram – security/anti-theft (part 1)

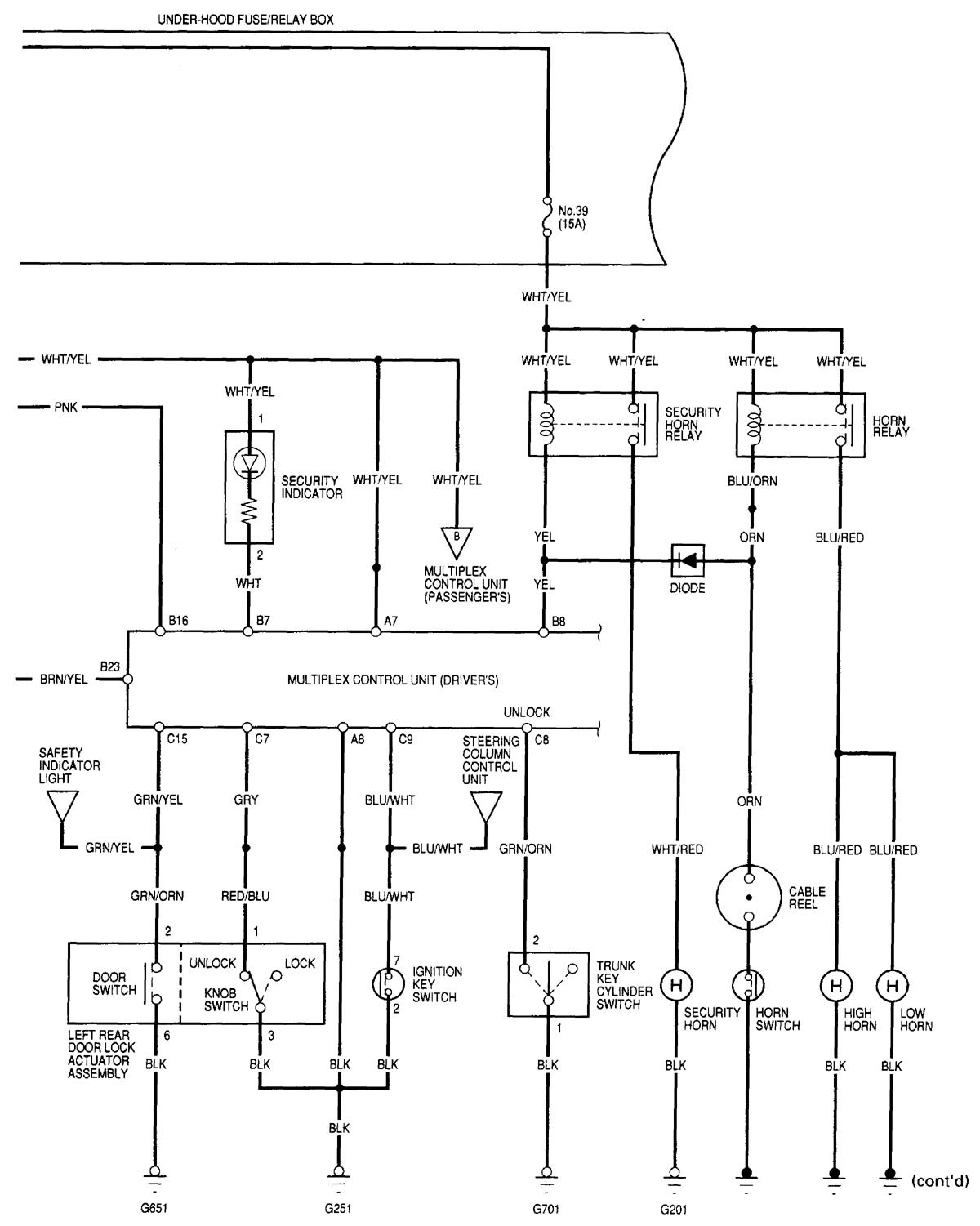

Acura RL - wiring diagram - security/anti-theft (part 2)
Acura RL – wiring diagram – security/anti-theft (part 2)

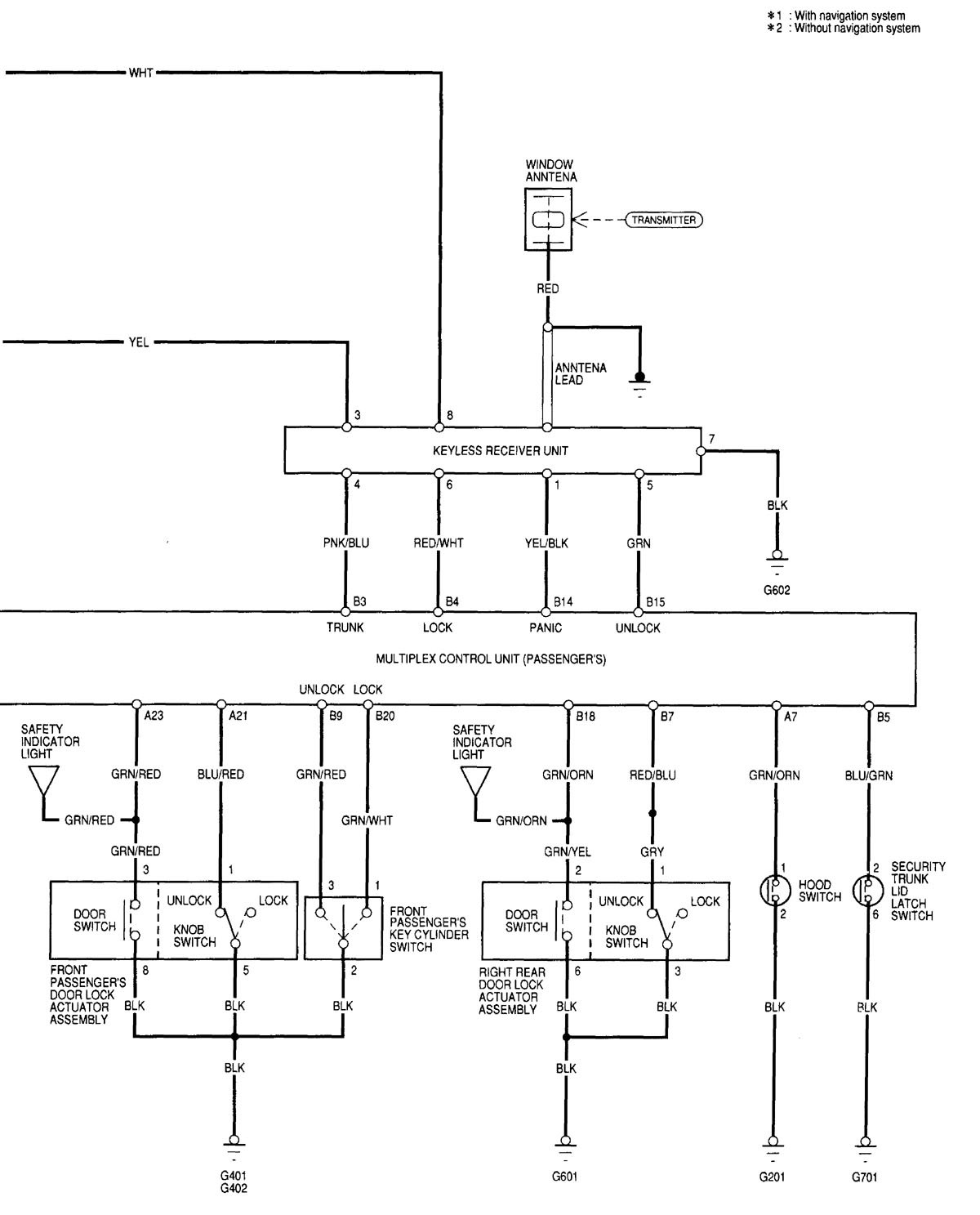

Acura RL - wiring diagram - security/anti-theft (part 3)
Acura RL – wiring diagram – security/anti-theft (part 3)

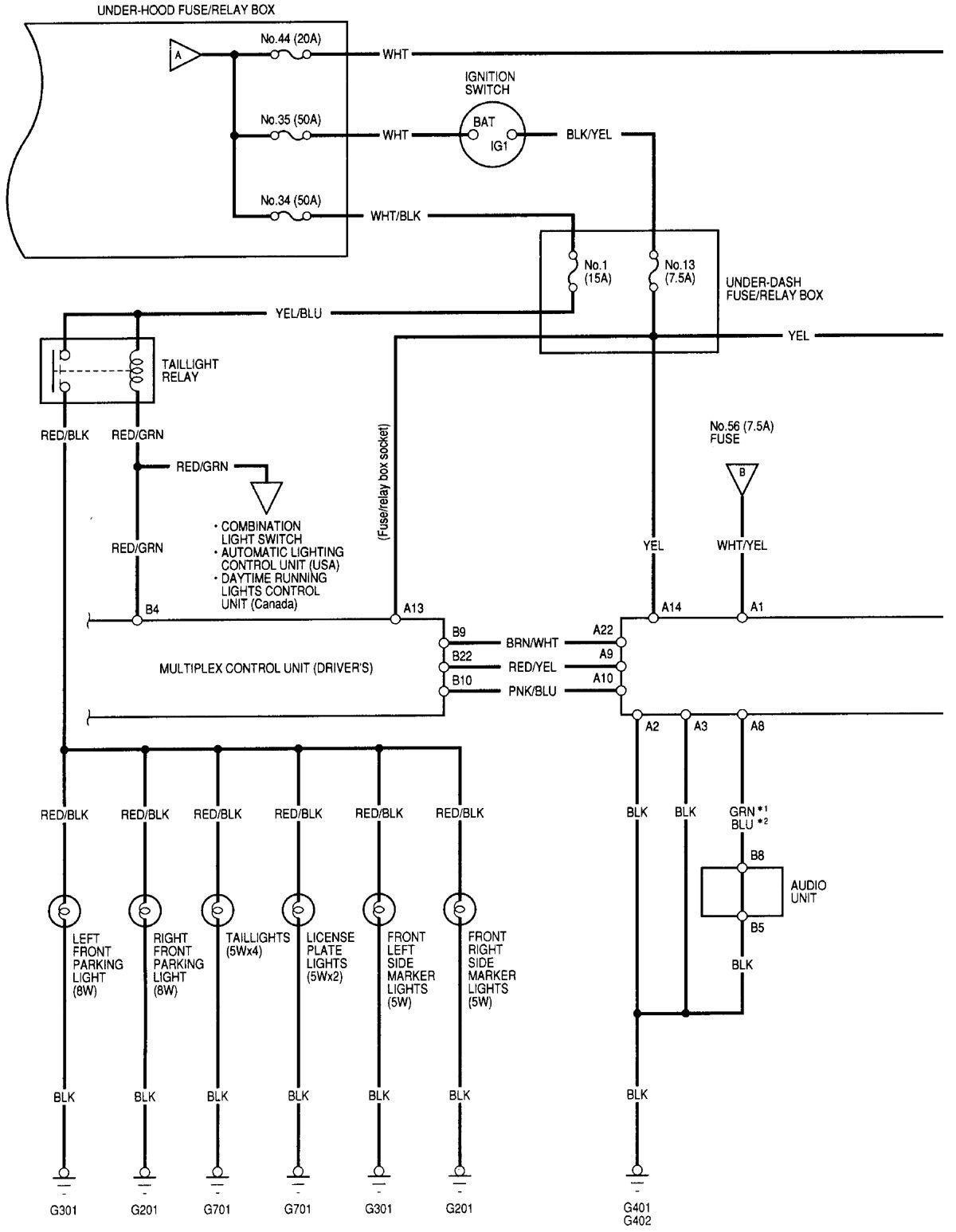

Acura RL - wiring diagram - security/anti-theft (part 4)
Acura RL – wiring diagram – security/anti-theft (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
