Acura RL (2000 – 2002) – wiring diagrams – speed control

Acura RL (2000 – 2002) – wiring diagrams – speed control

Year of productions:  2000, 2001, 2002

Speed control

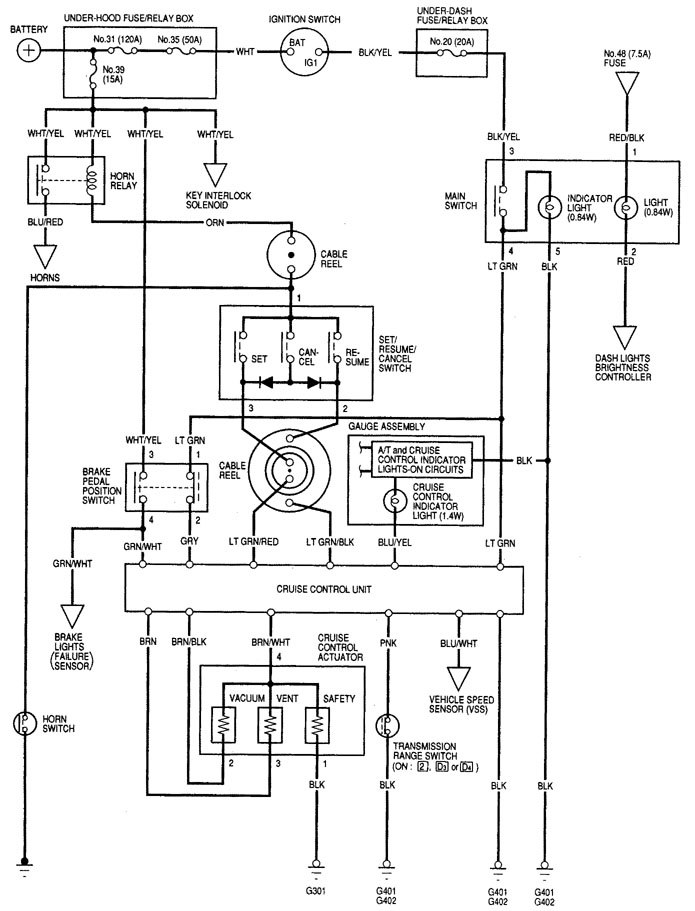

Acura RL - wiring diagram - speed control
Acura RL – wiring diagram – speed control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
