Year of productions:  2000, 2001, 2002

Transaxle controls

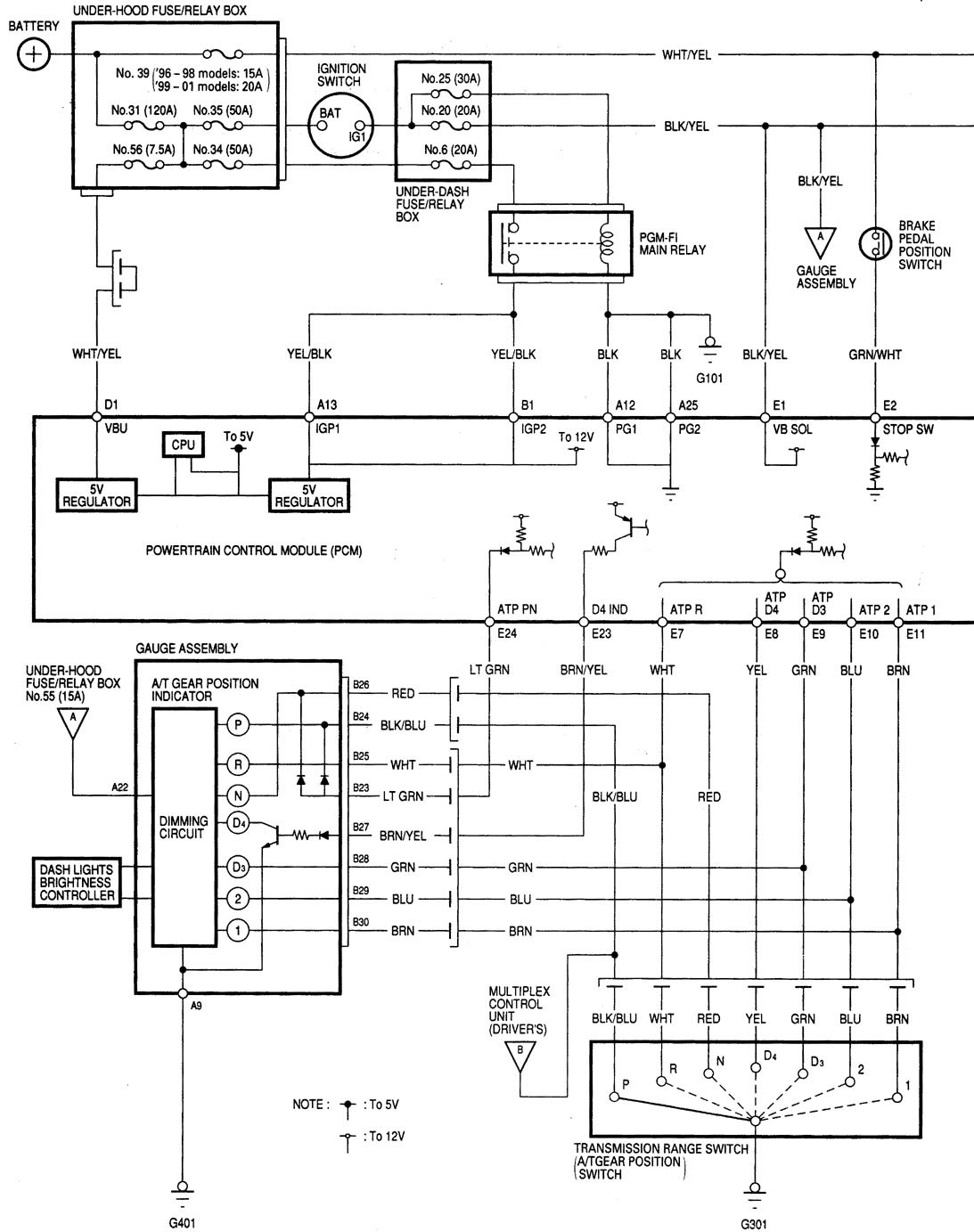

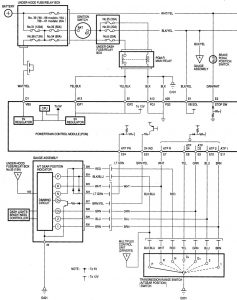

Acura RL - wiring diagram - transaxle controls (part 1)
Acura RL – wiring diagram – transaxle controls (part 1)

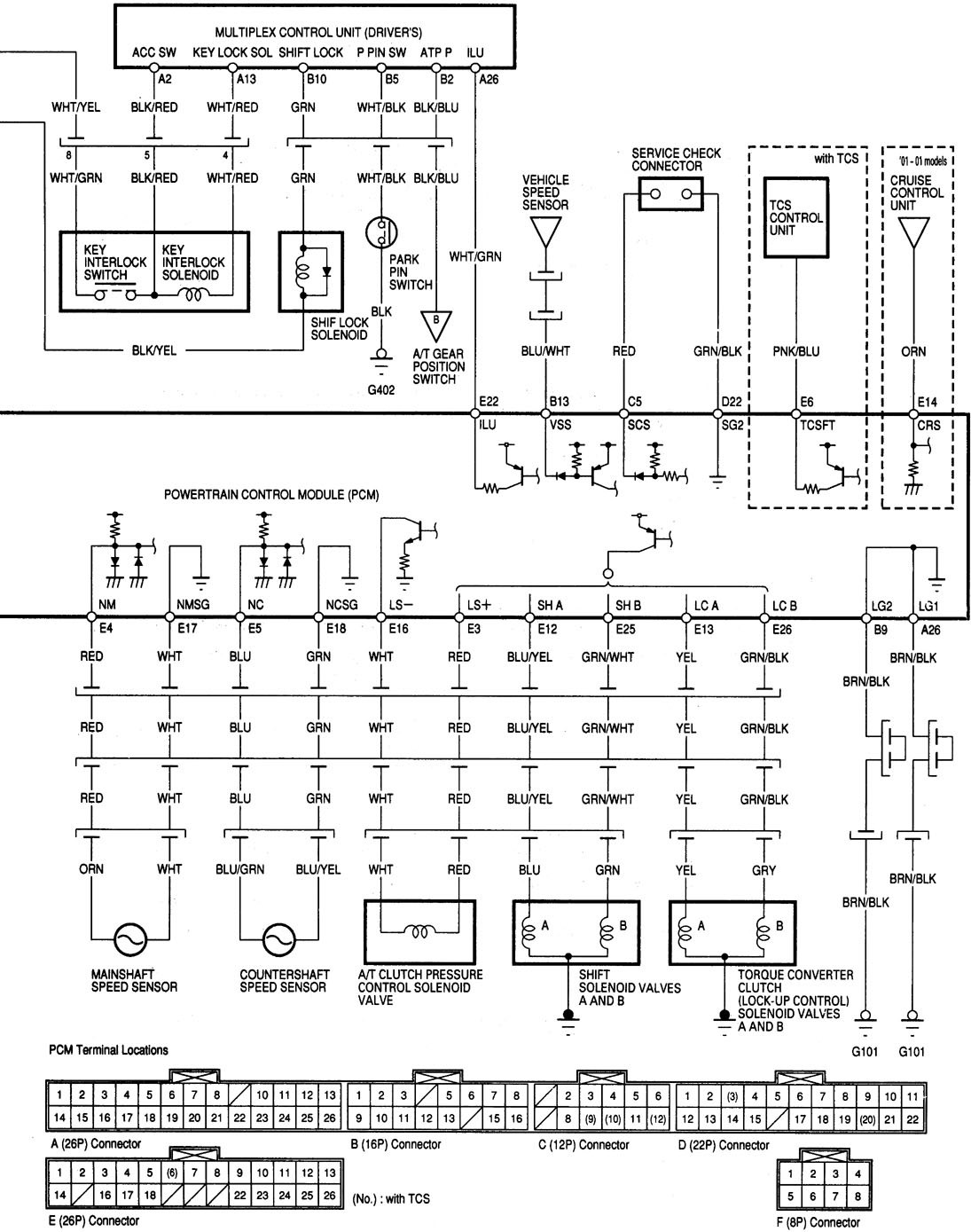

Acura RL - wiring diagram - transaxle controls (part 2)
Acura RL – wiring diagram – transaxle controls (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
