Acura RL (2003 – 2004) – wiring diagrams – fuel controls

Year of productions:  2003, 2004

Fuel controls

Version 1

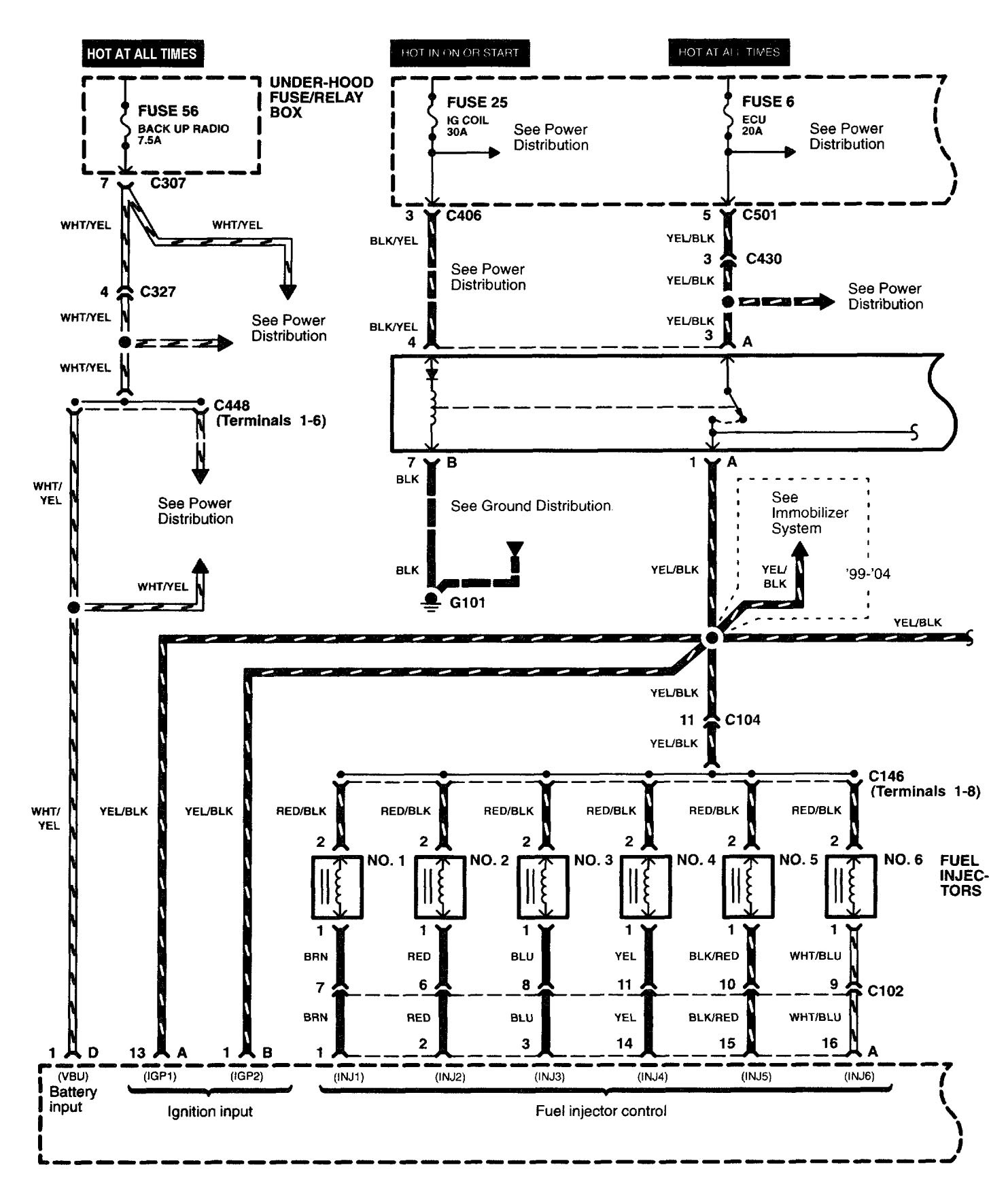

Acura RL - wiring diagram - fuel controls (part 1)
Acura RL – wiring diagram – fuel controls (part 1)

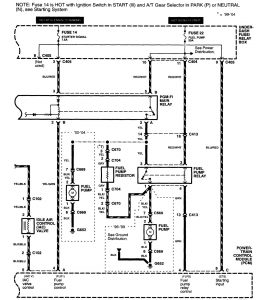

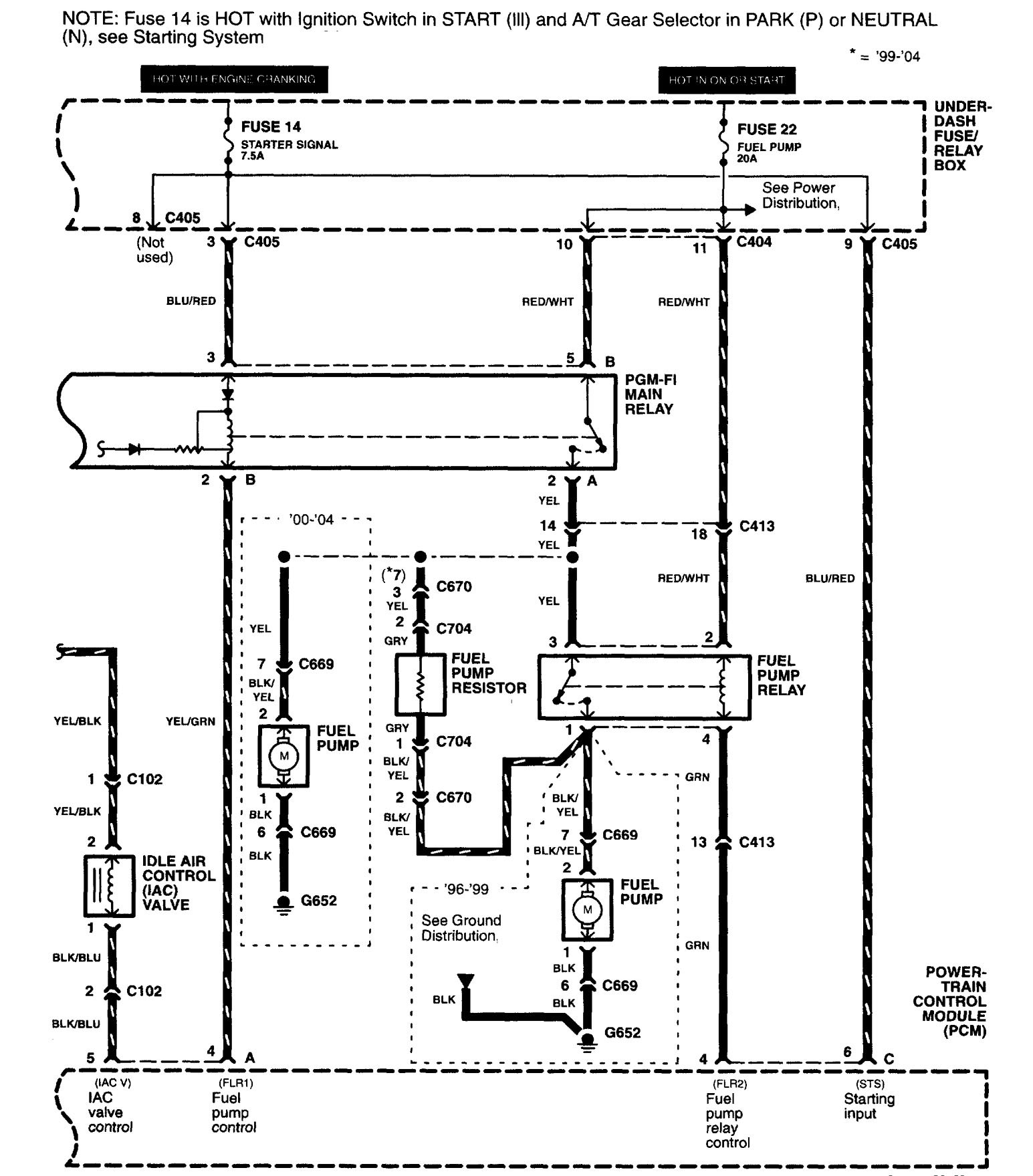

Acura RL - wiring diagram - fuel controls (part 2)
Acura RL – wiring diagram – fuel controls (part 2)

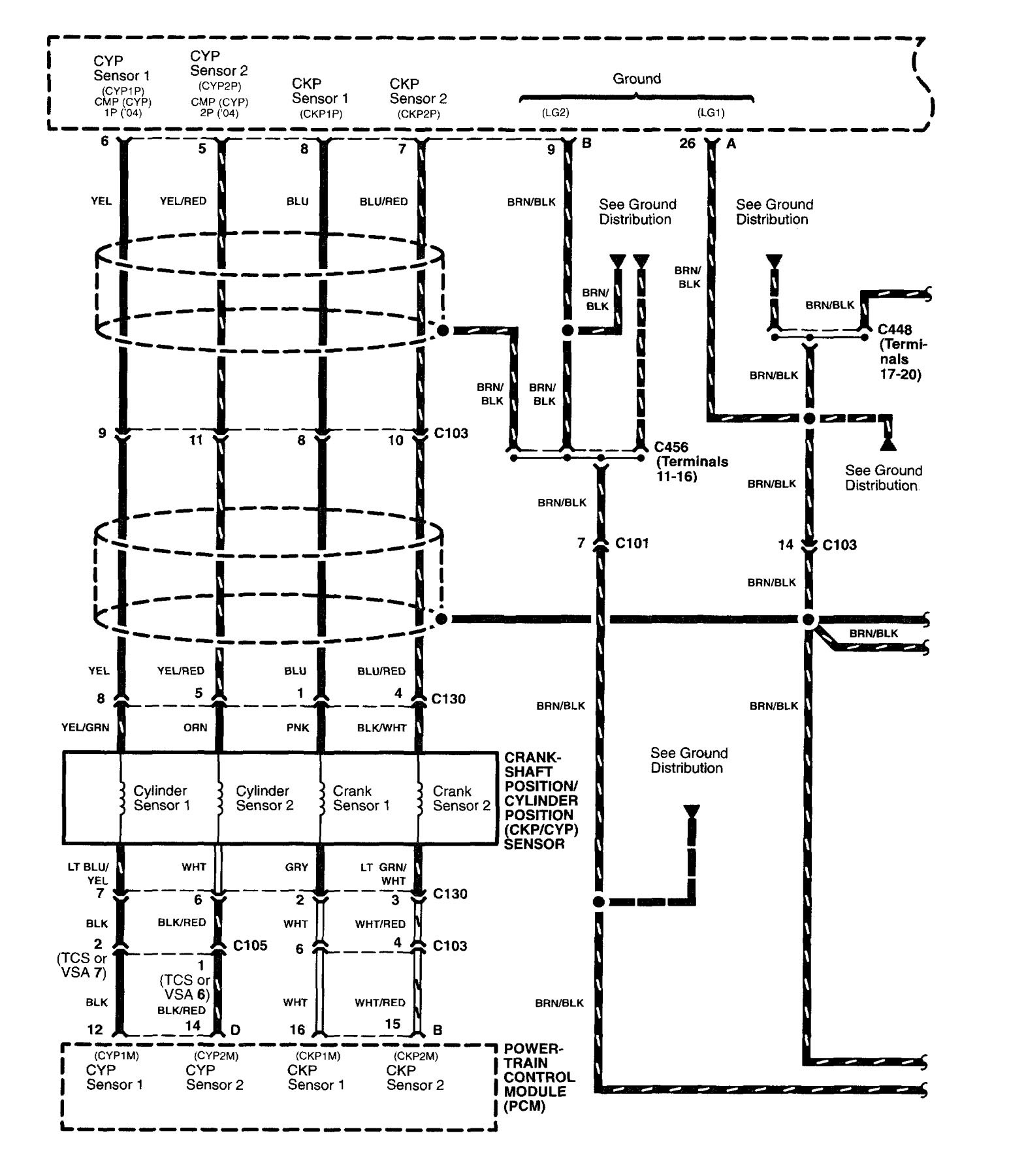

Acura RL - wiring diagram - fuel controls (part 3)
Acura RL – wiring diagram – fuel controls (part 3)

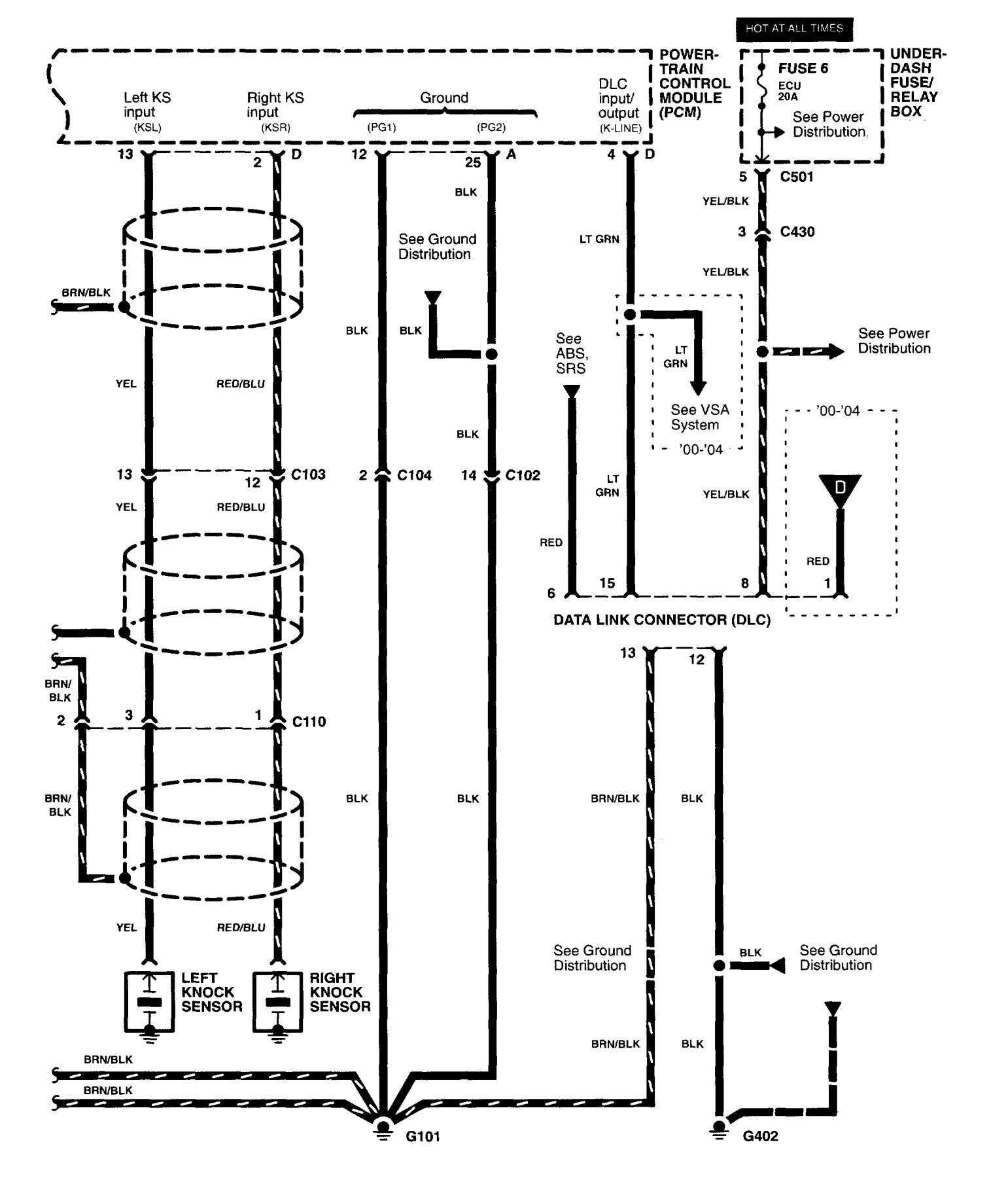

Acura RL - wiring diagram - fuel controls (part 4)
Acura RL – wiring diagram – fuel controls (part 4)

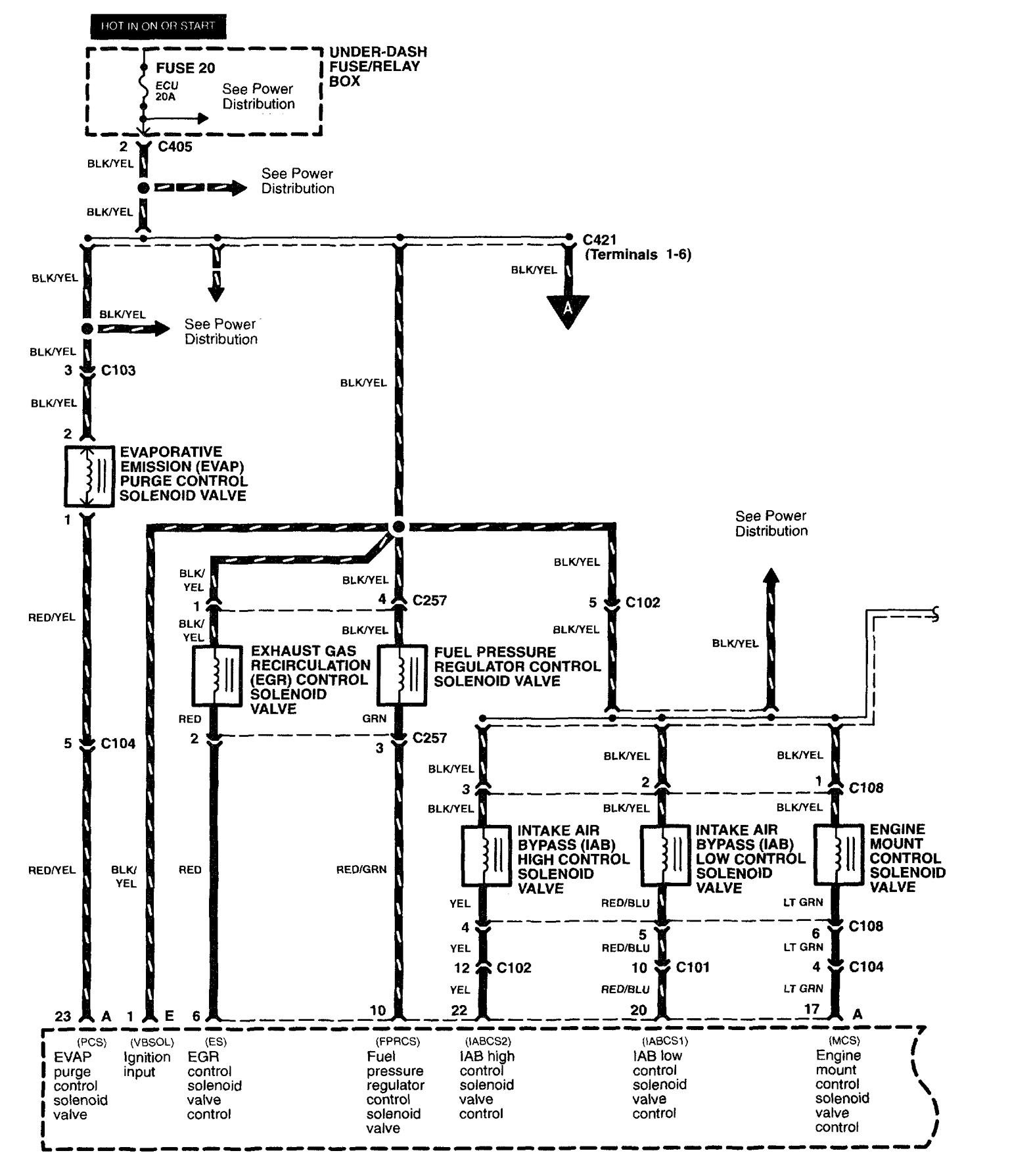

Acura RL - wiring diagram - fuel controls (part 5)
Acura RL – wiring diagram – fuel controls (part 5)
Acura RL - wiring diagram - fuel controls (part 6)
Acura RL – wiring diagram – fuel controls (part 6)

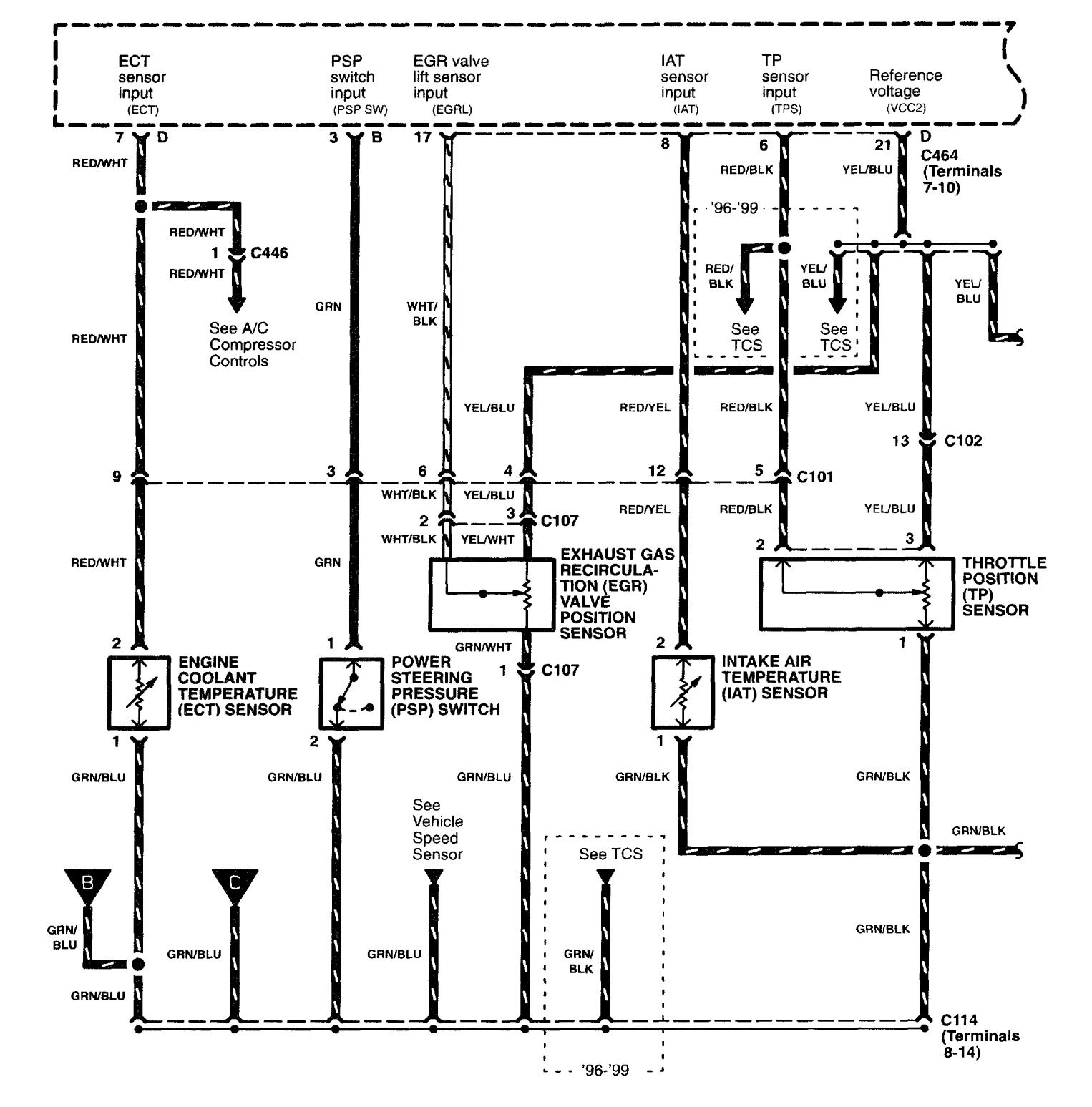

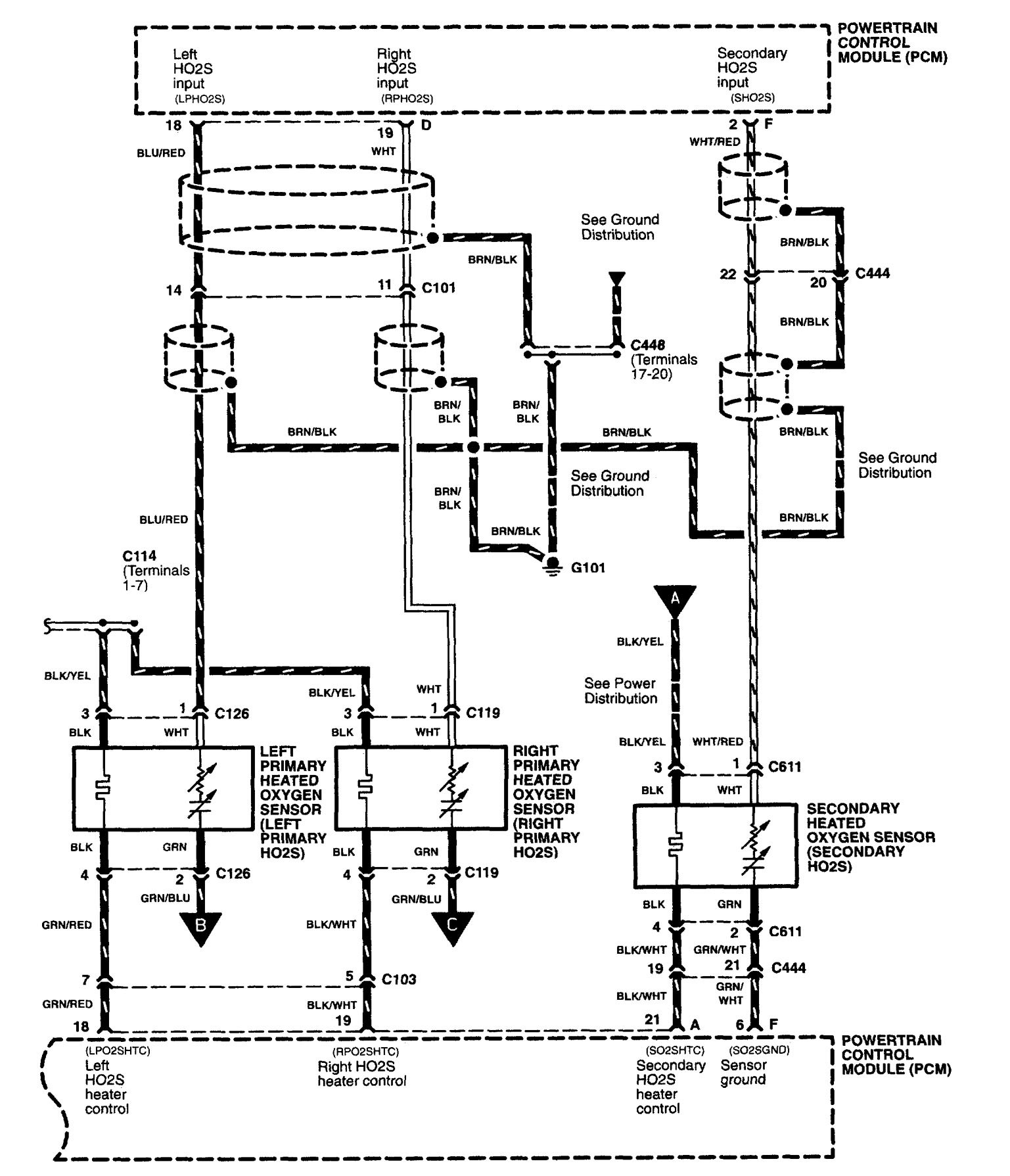

Acura RL - wiring diagram - fuel controls (part 7)
Acura RL – wiring diagram – fuel controls (part 7)

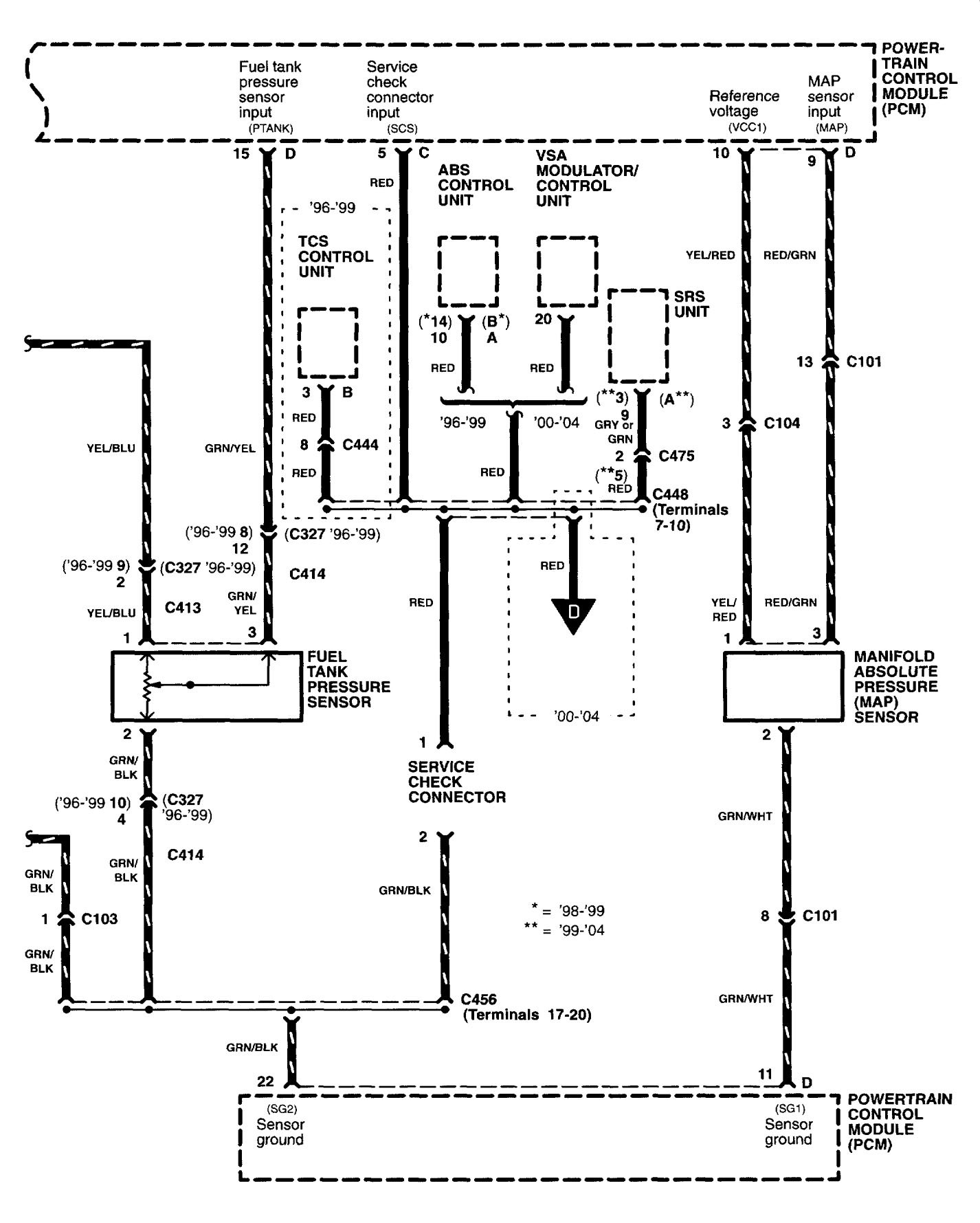

Acura RL - wiring diagram - fuel controls (part 8)
Acura RL – wiring diagram – fuel controls (part 8)
Acura RL - wiring diagram - fuel controls (part 9)
Acura RL – wiring diagram – fuel controls (part 9)

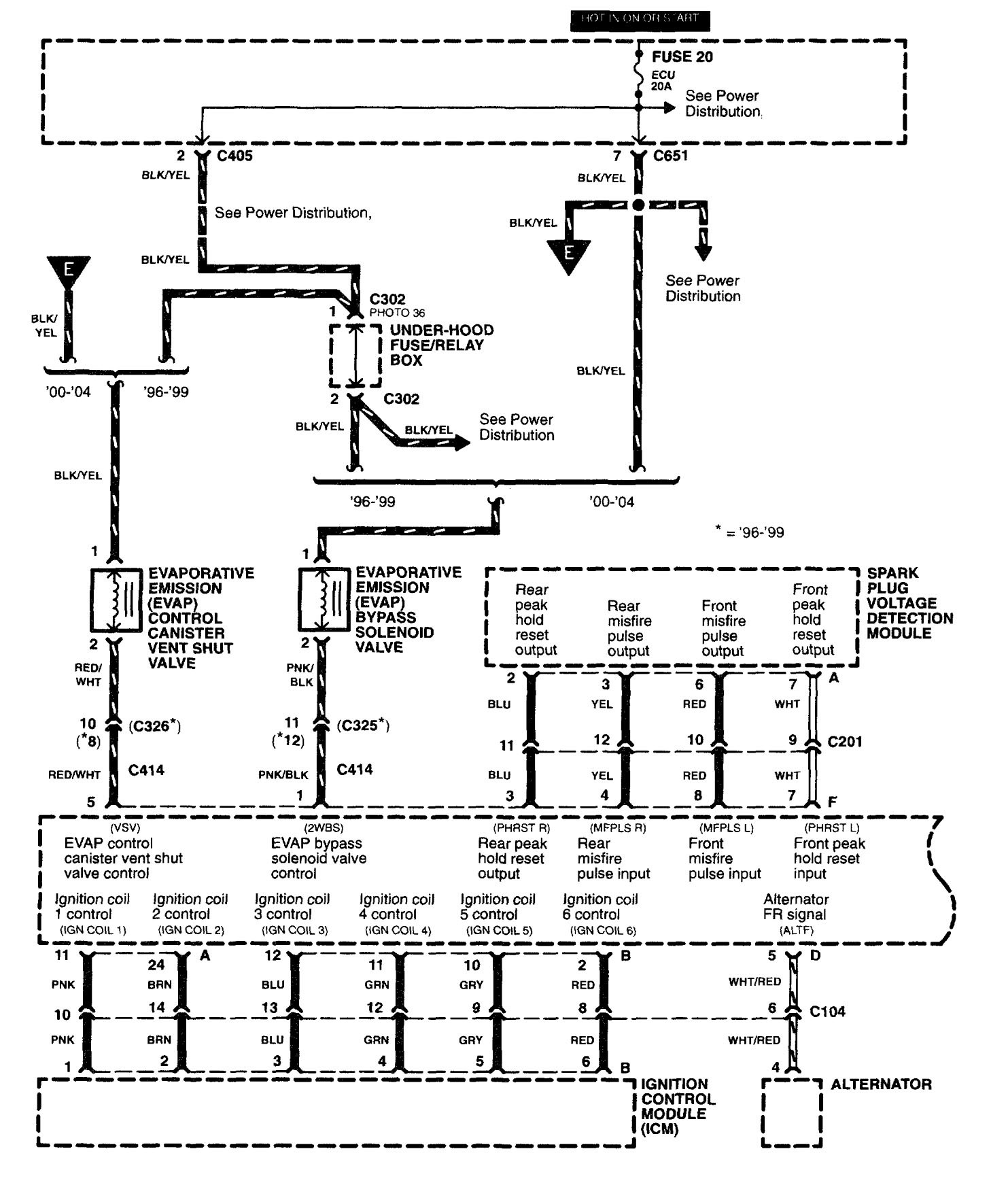

Acura RL - wiring diagram - fuel controls (part 10)
Acura RL – wiring diagram – fuel controls (part 10)

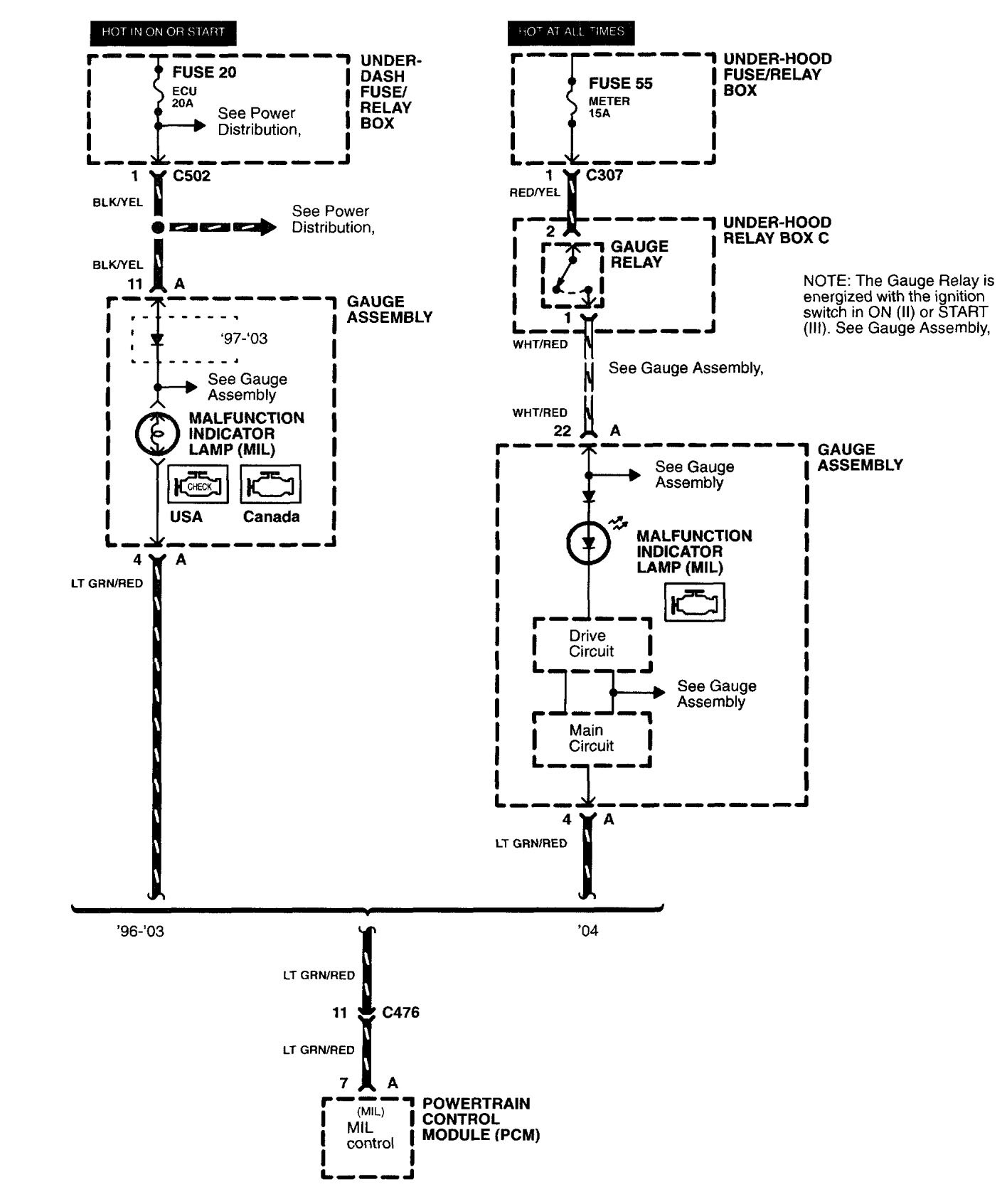

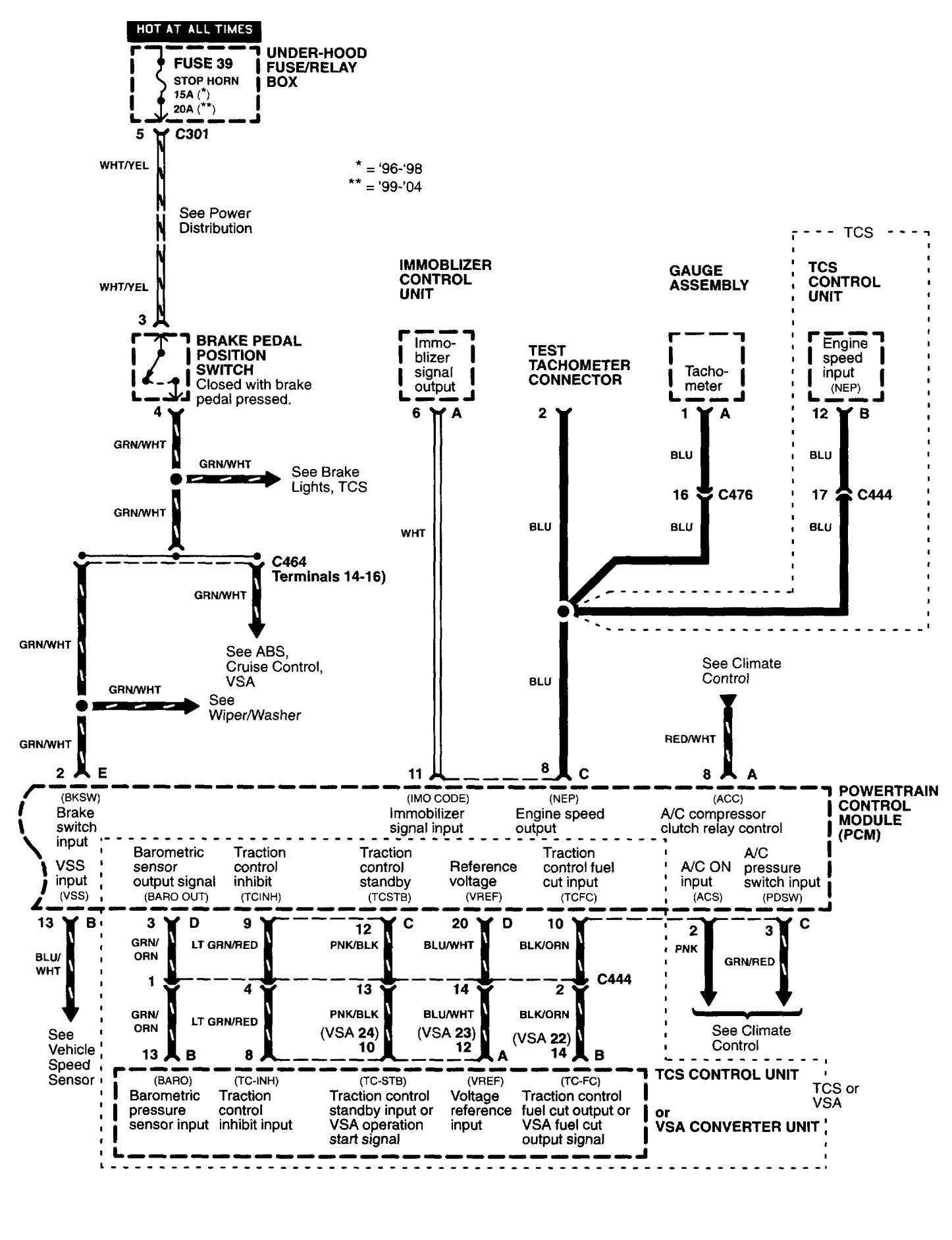

Acura RL - wiring diagram - fuel controls (part 11)
Acura RL – wiring diagram – fuel controls (part 11)

Version 2

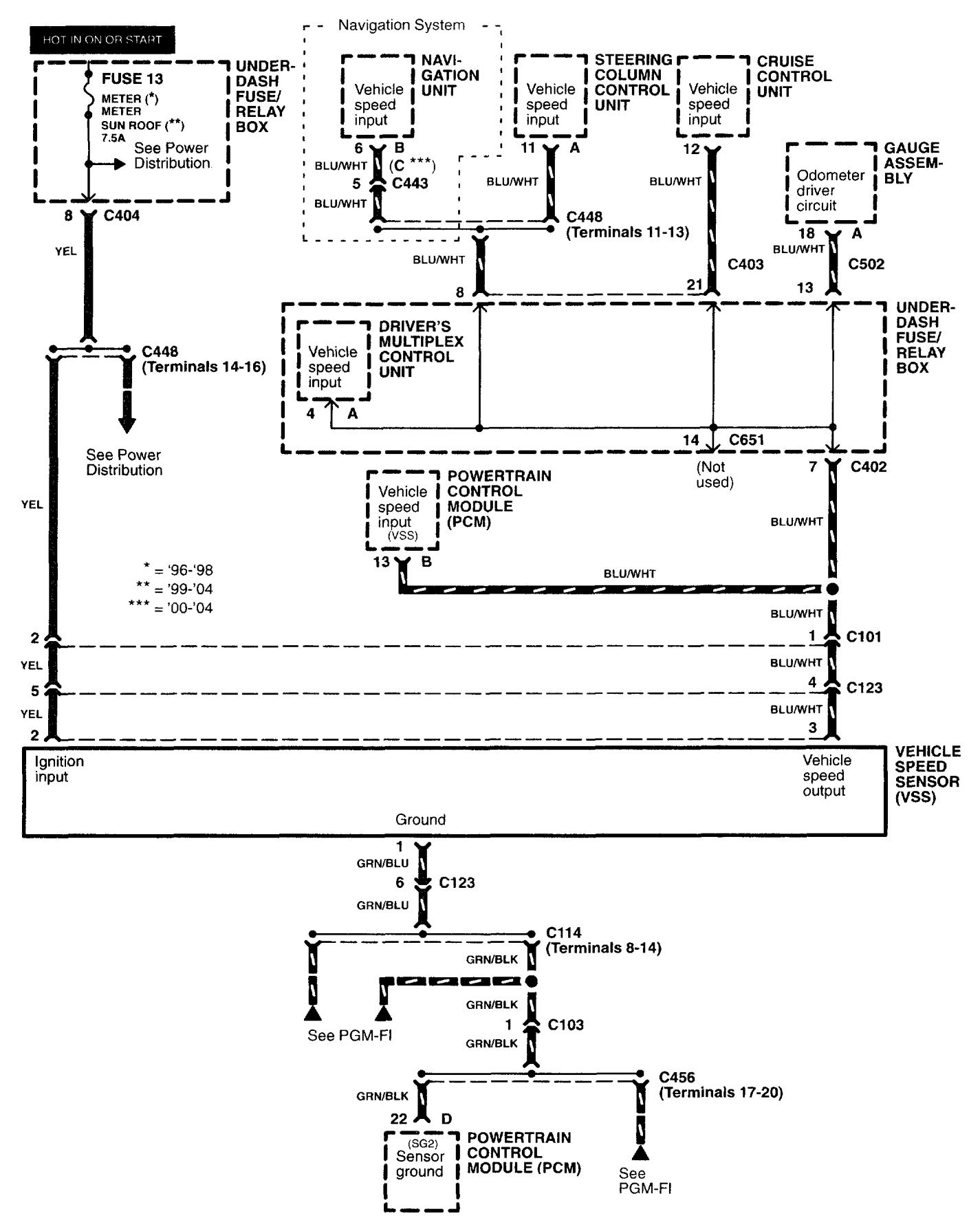

Acura RL - wiring diagram - fuel controls
Acura RL – wiring diagram – fuel controls

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
