Acura RL (2003 – 2004) – wiring diagrams – ground distribution

Year of productions:  2003, 2004

Ground distribution

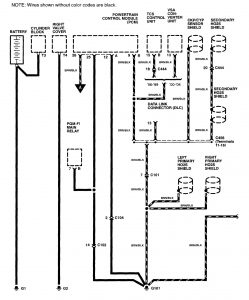

Acura RL - fuse box - ground distribution (part 1)
Acura RL – fuse box –
ground distribution (part 1)

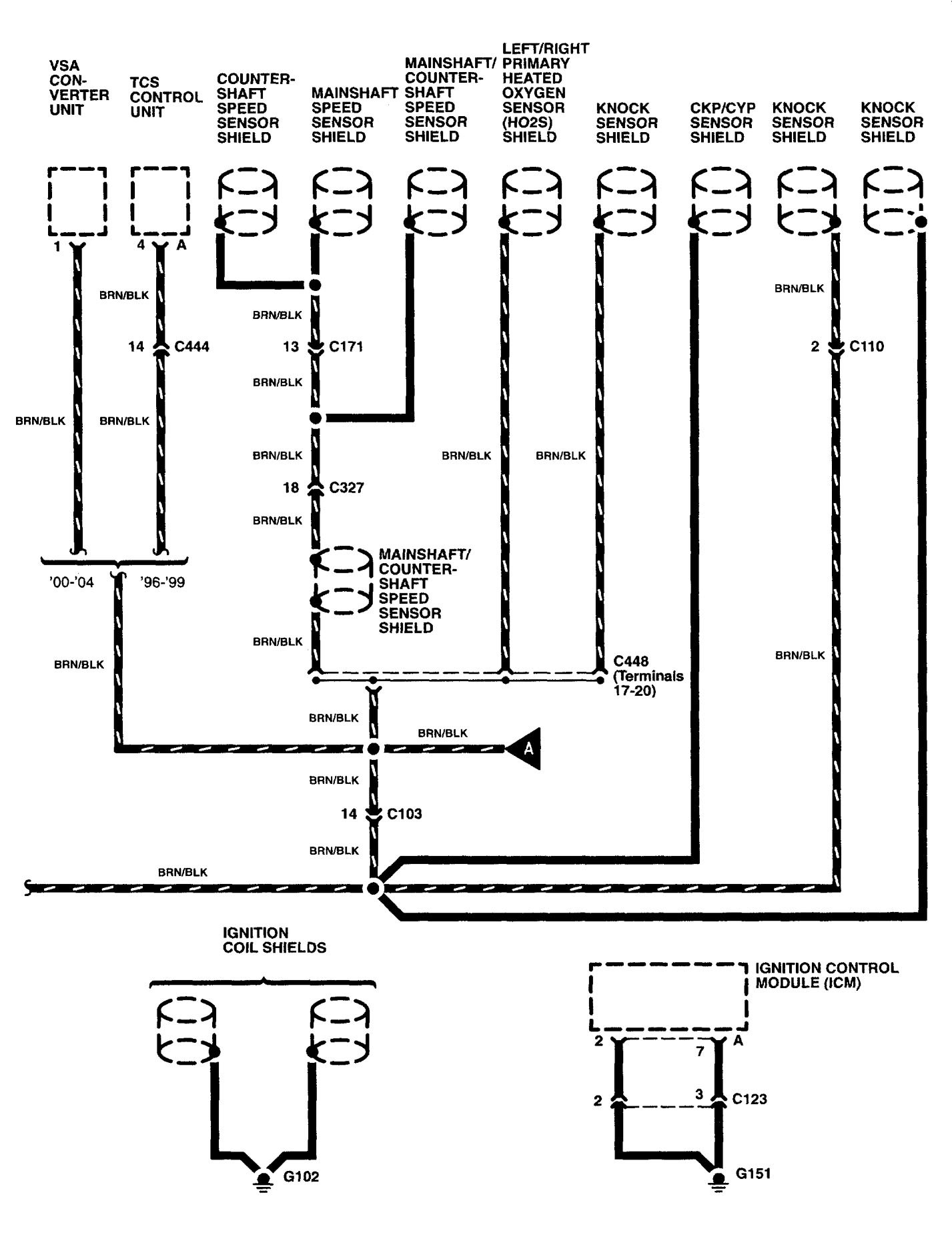

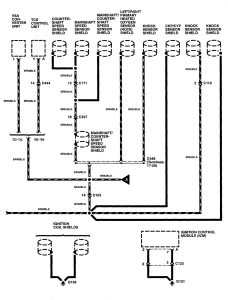

Acura RL - fuse box - ground distribution (part 2)
Acura RL – fuse box –
ground distribution (part 2)

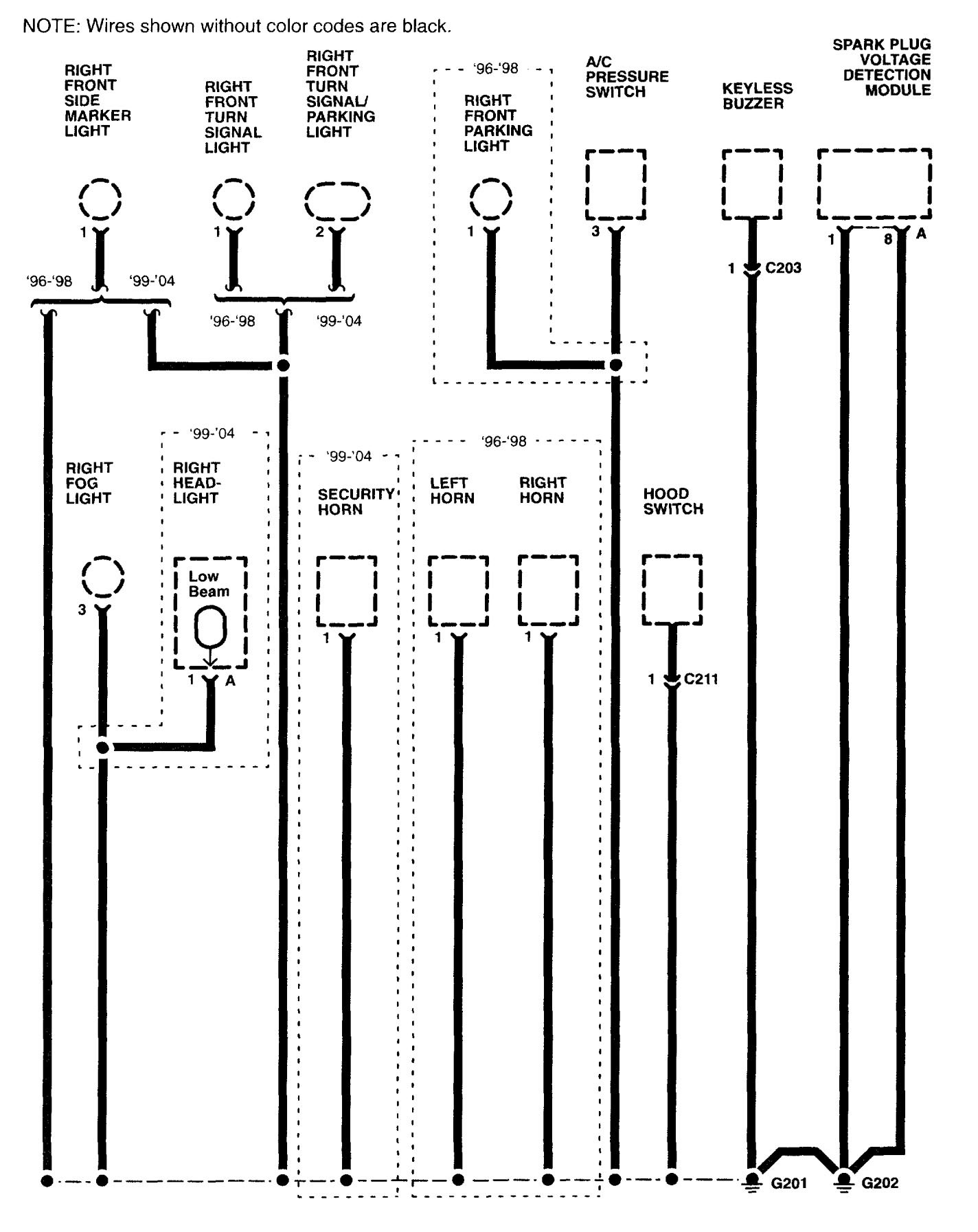

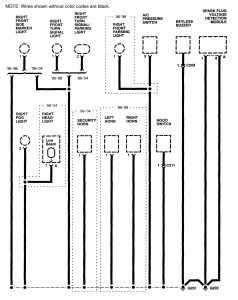

Acura RL - fuse box - ground distribution (part 3)
Acura RL – fuse box –
ground distribution (part 3)

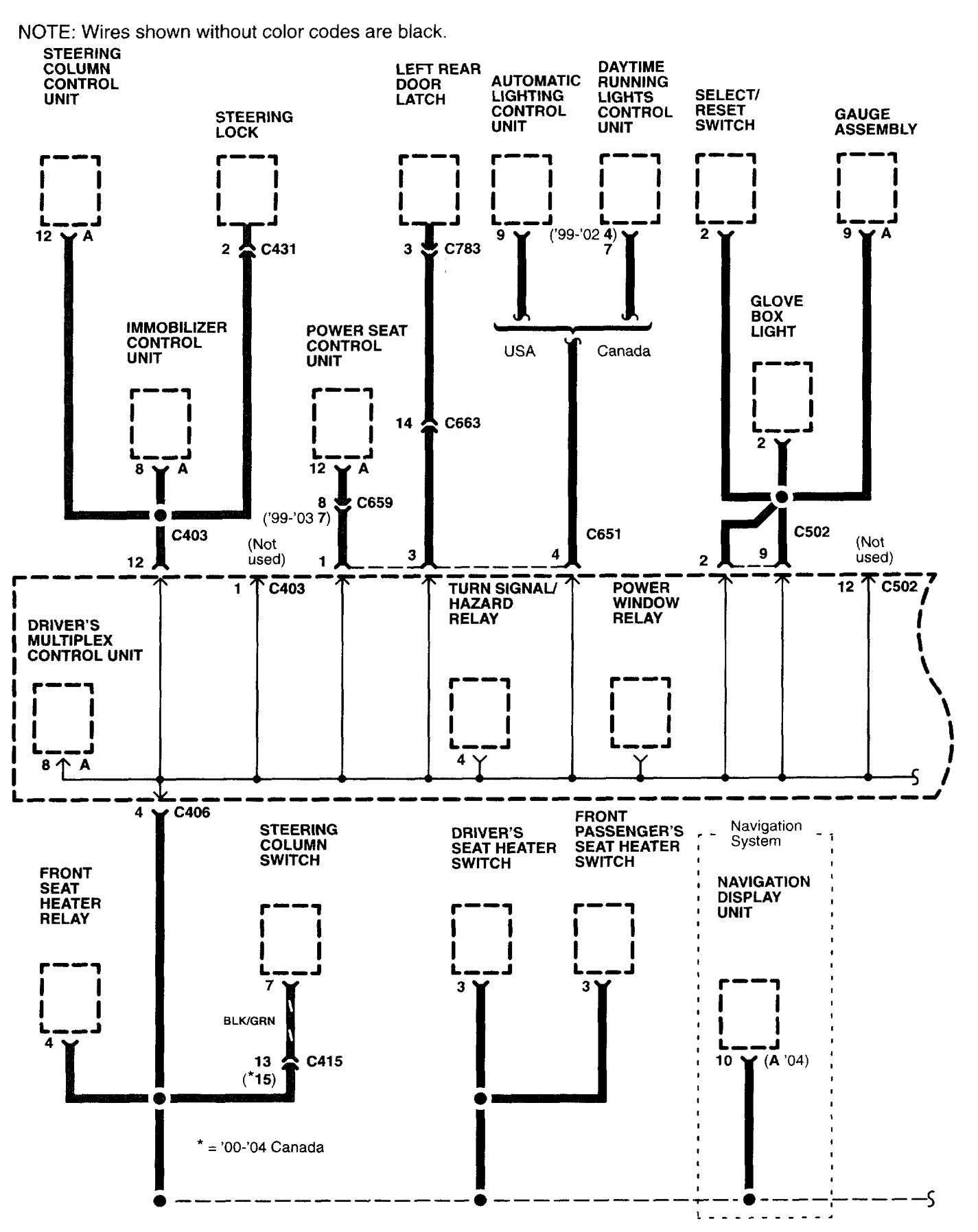

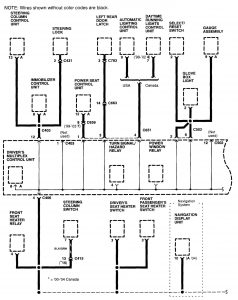

Acura RL - fuse box - ground distribution (part 4)
Acura RL – fuse box –
ground distribution (part 4)

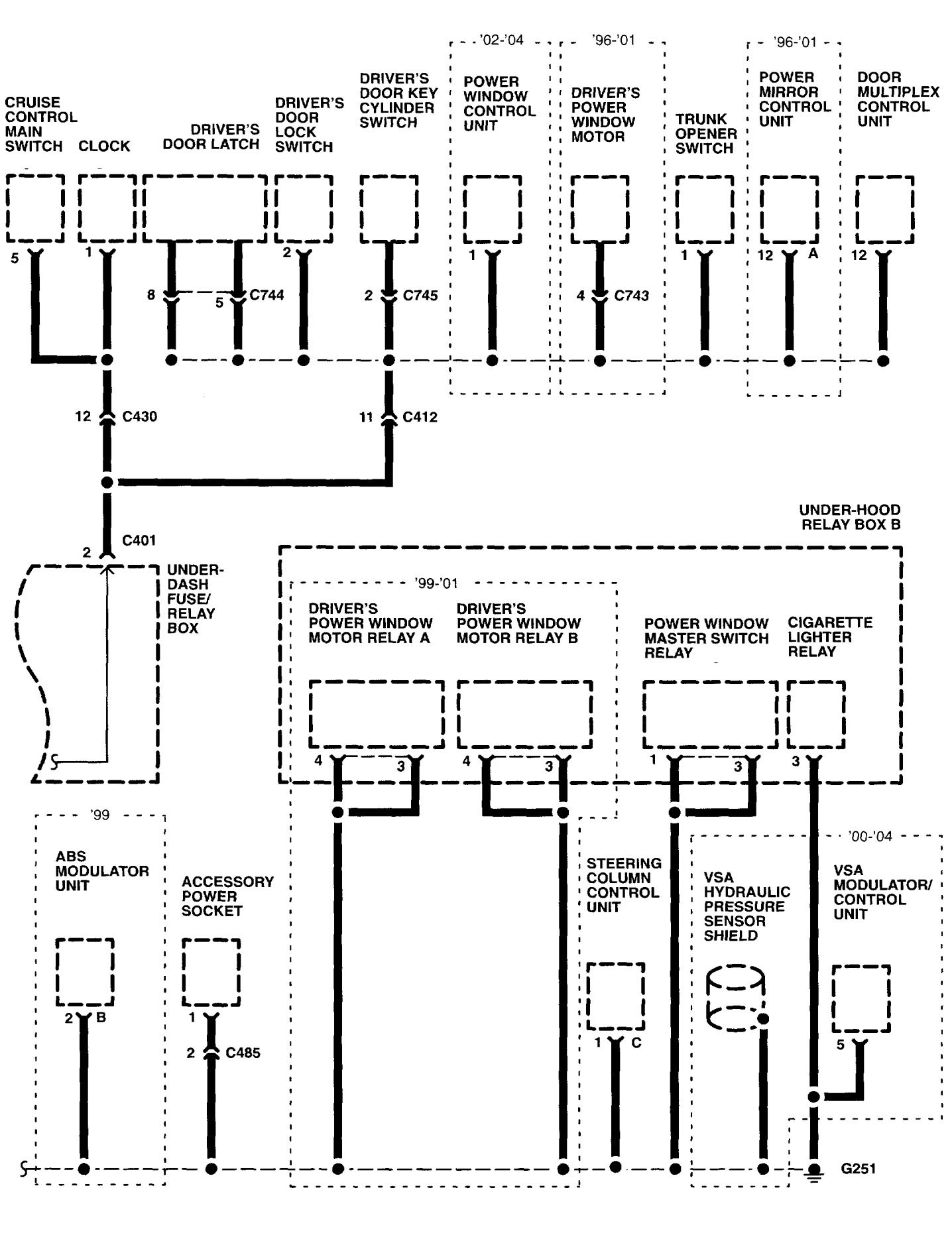

Acura RL - fuse box - ground distribution (part 5)
Acura RL – fuse box –
ground distribution (part 5)

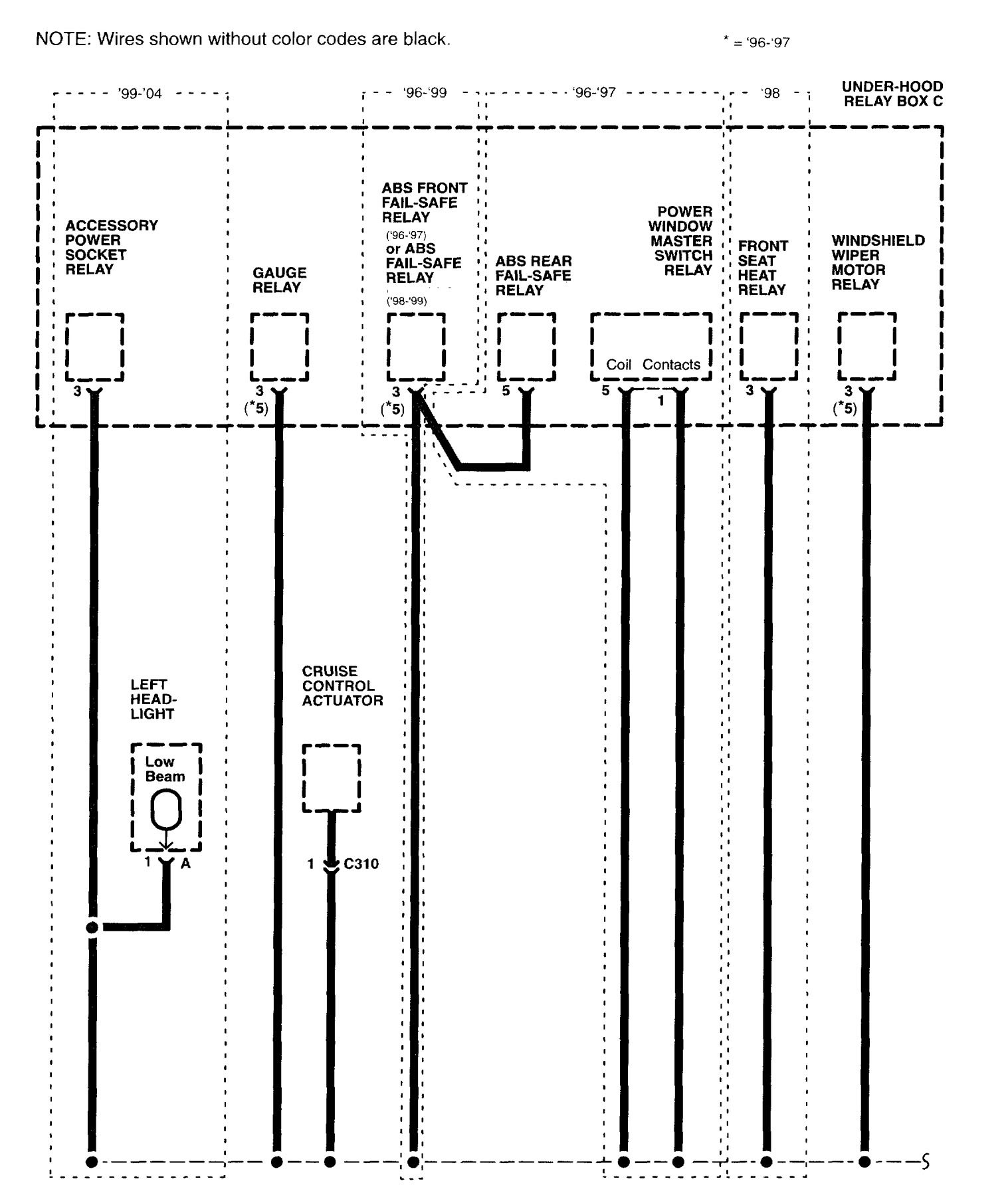

Acura RL - fuse box - ground distribution (part 6)
Acura RL – fuse box –
ground distribution (part 6)

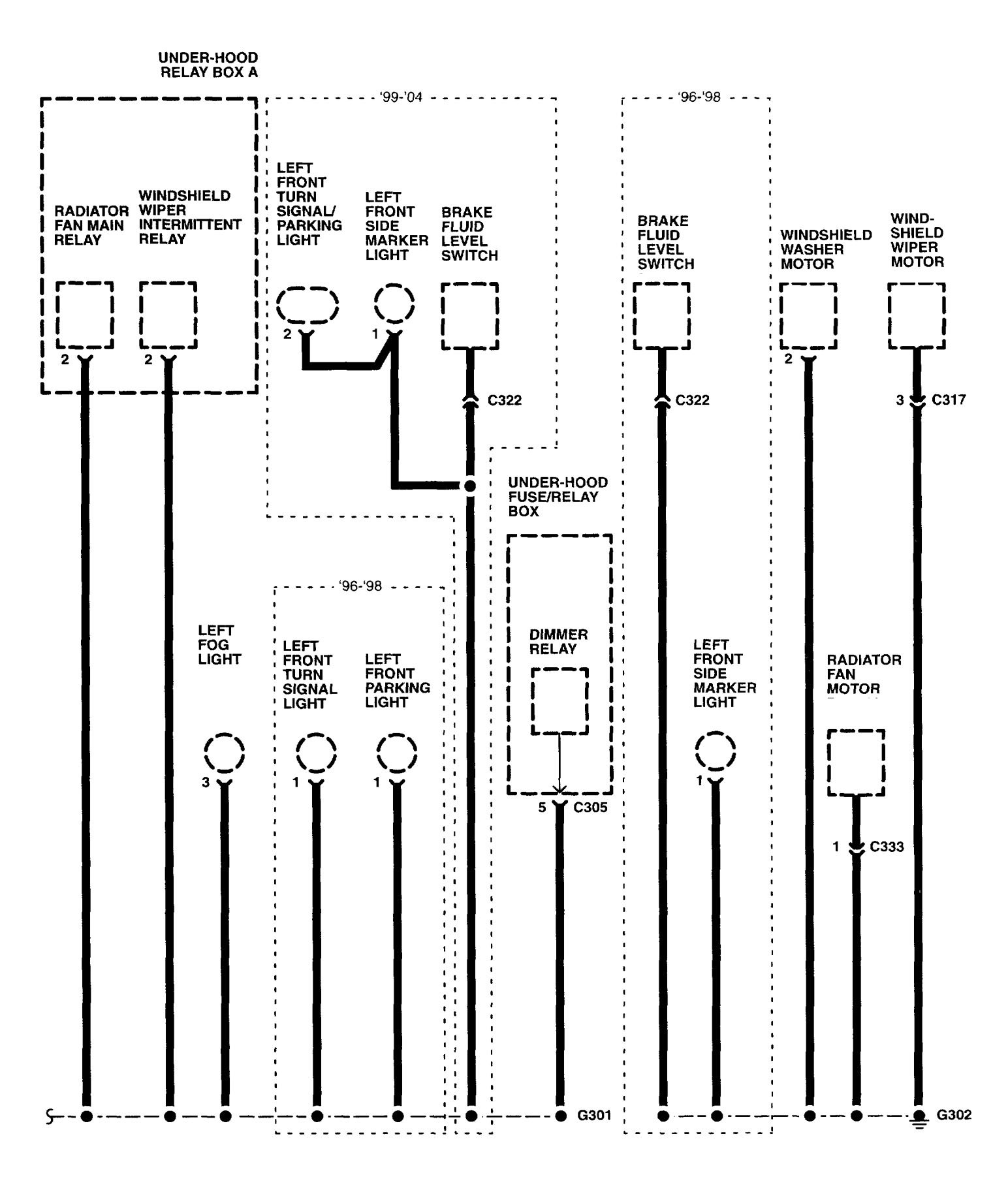

Acura RL - fuse box - ground distribution (part 7)
Acura RL – fuse box –
ground distribution (part 7)

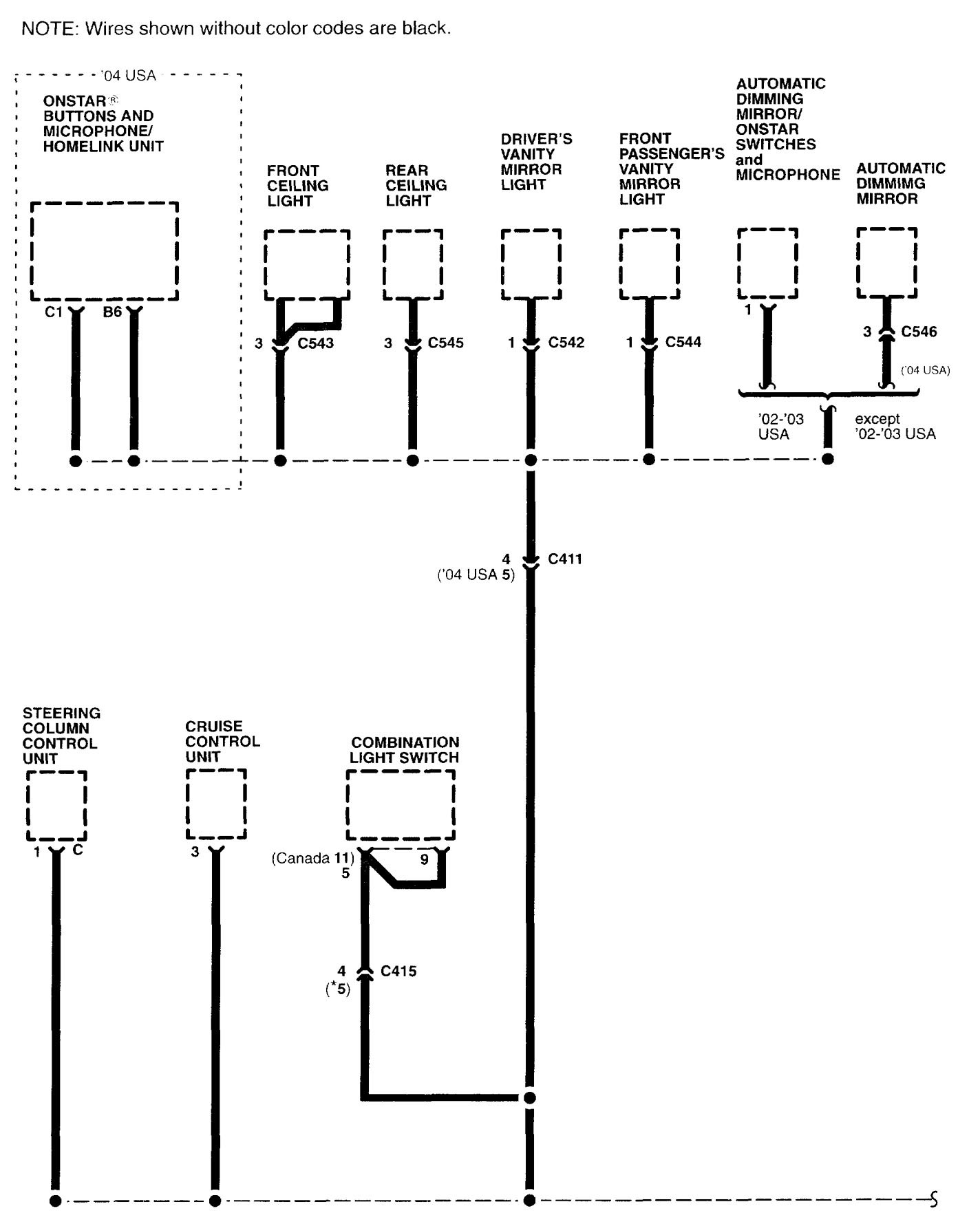

Acura RL - fuse box - ground distribution (part 8)
Acura RL – fuse box –
ground distribution (part 8)

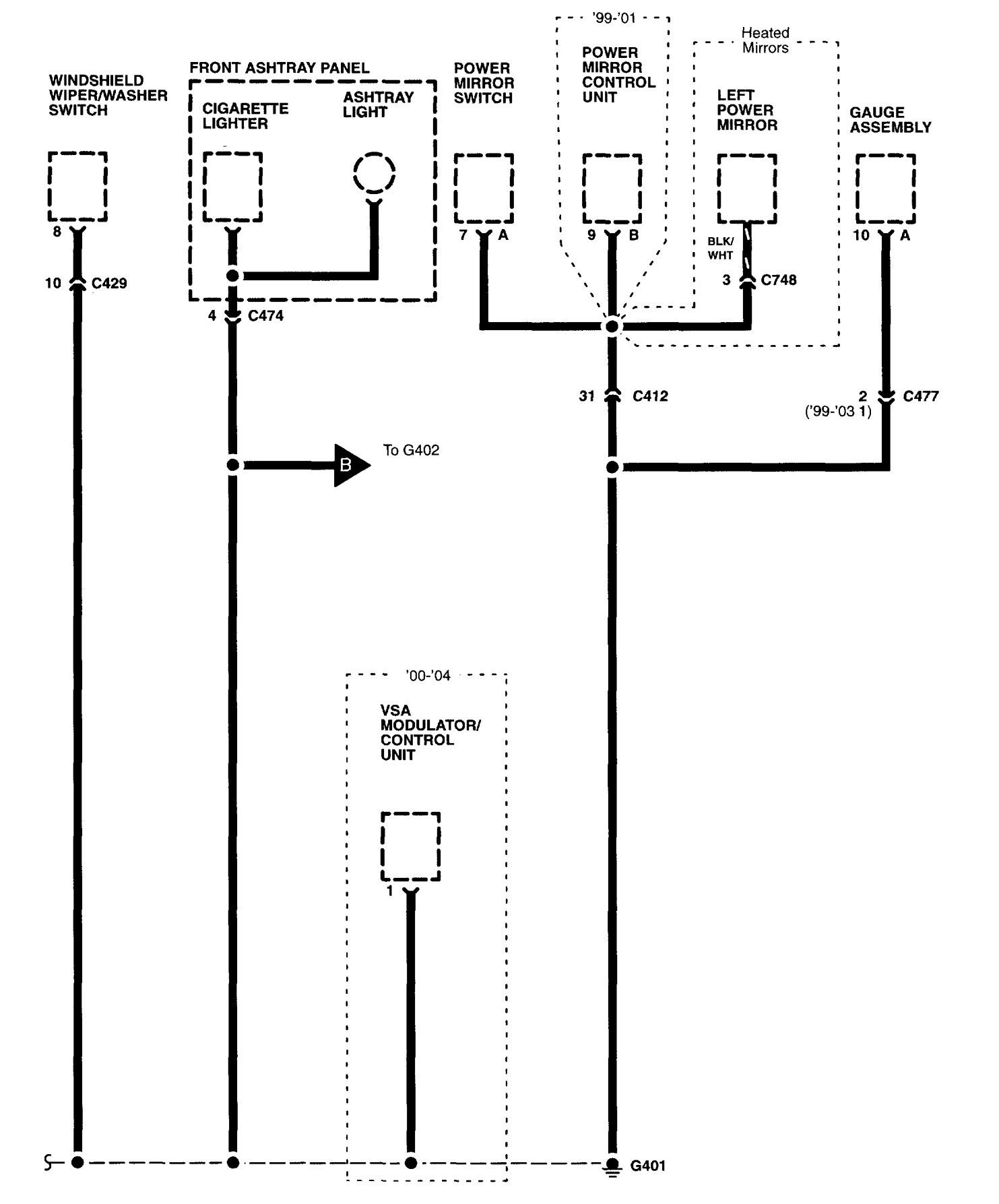

Acura RL - fuse box - ground distribution (part 9)
Acura RL – fuse box –
ground distribution (part 9)

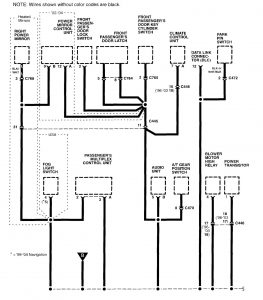

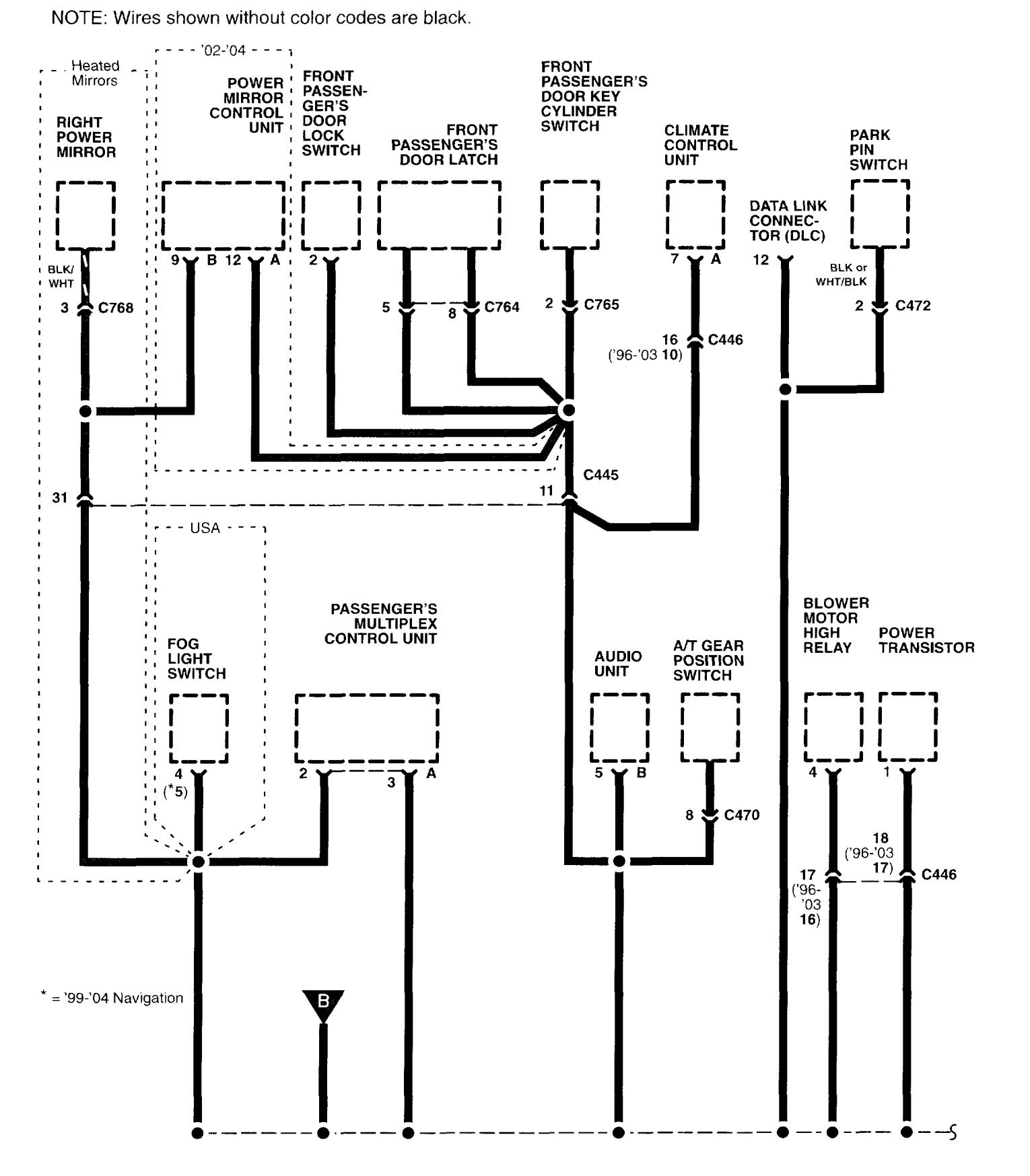

Acura RL - fuse box - ground distribution (part 10)
Acura RL – fuse box –
ground distribution (part 10)

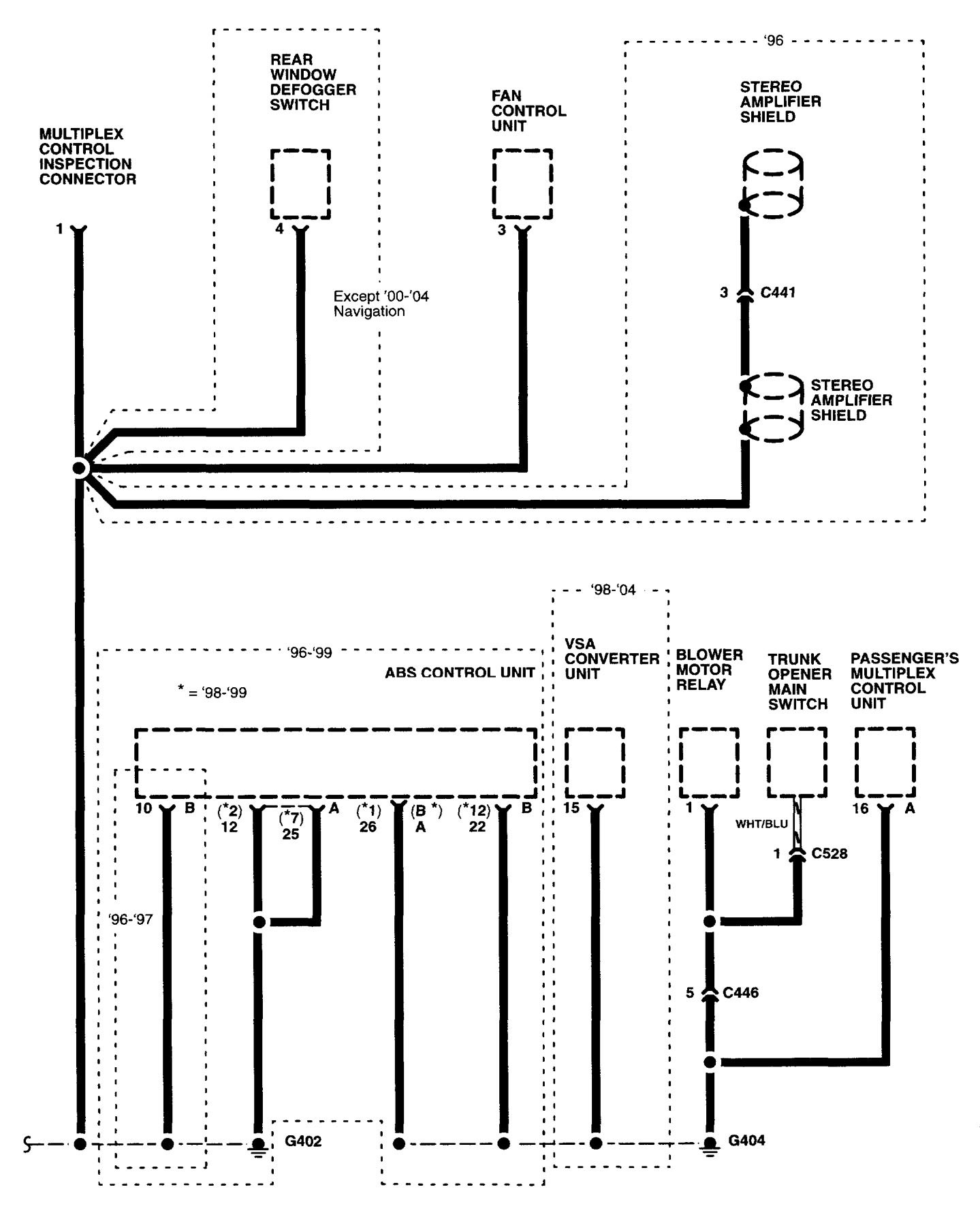

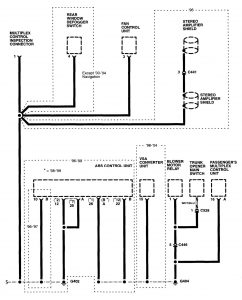

Acura RL - fuse box - ground distribution (part 11)
Acura RL – fuse box –
ground distribution (part 11)

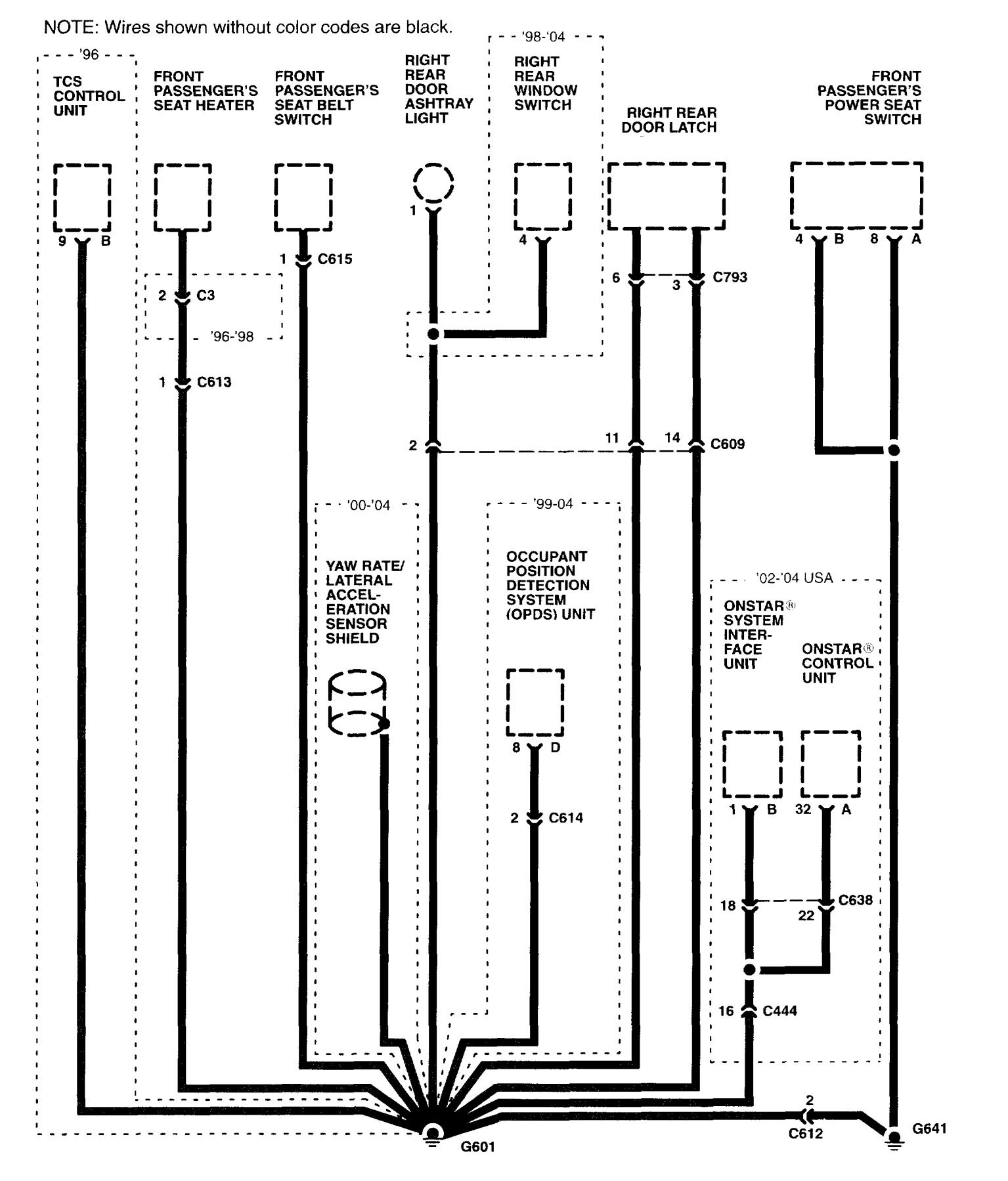

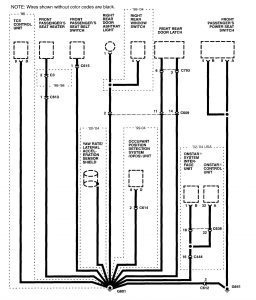

Acura RL - fuse box - ground distribution (part 12)
Acura RL – fuse box –
ground distribution (part 12)

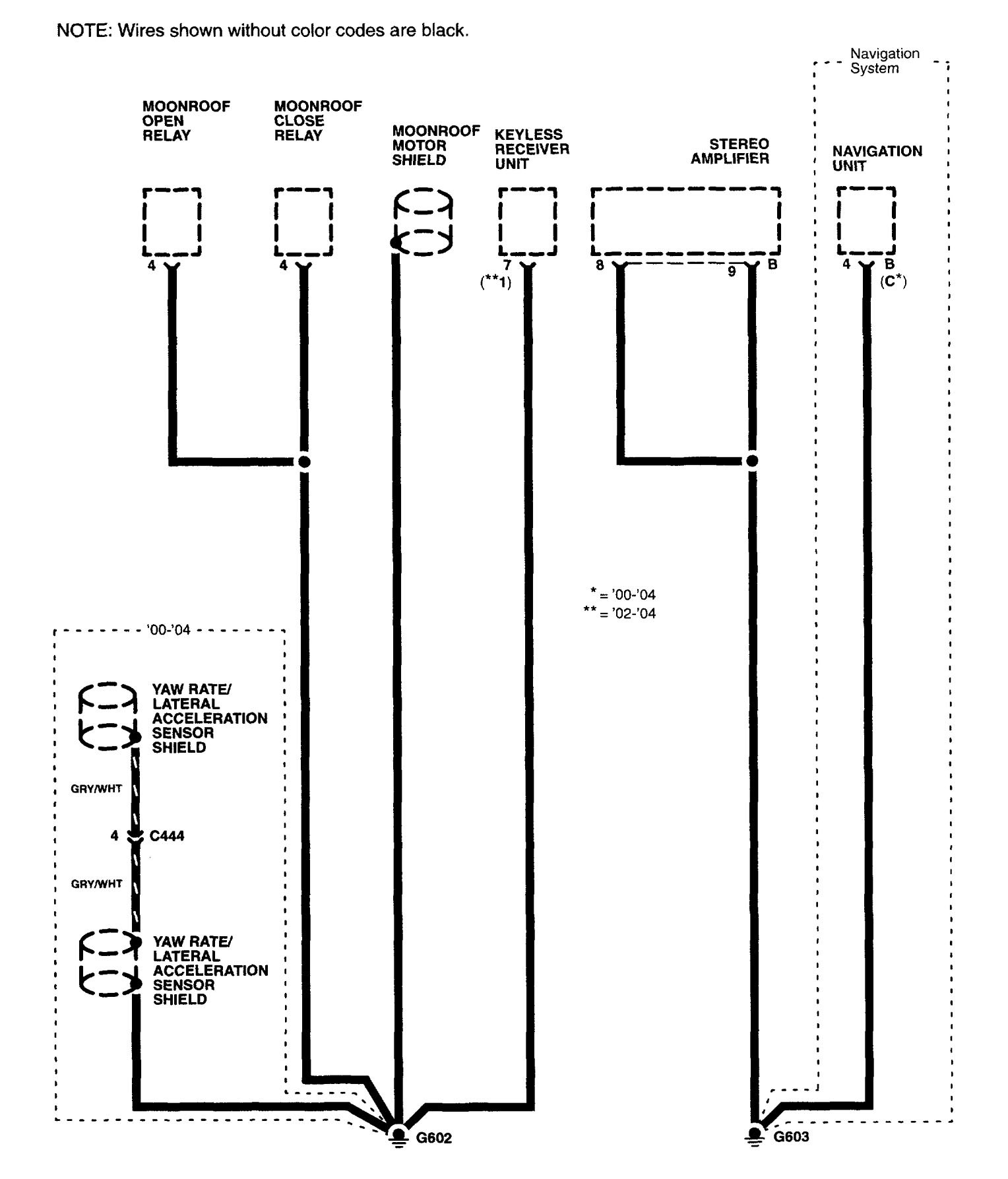

Acura RL - fuse box - ground distribution (part 13)
Acura RL – fuse box –
ground distribution (part 13)

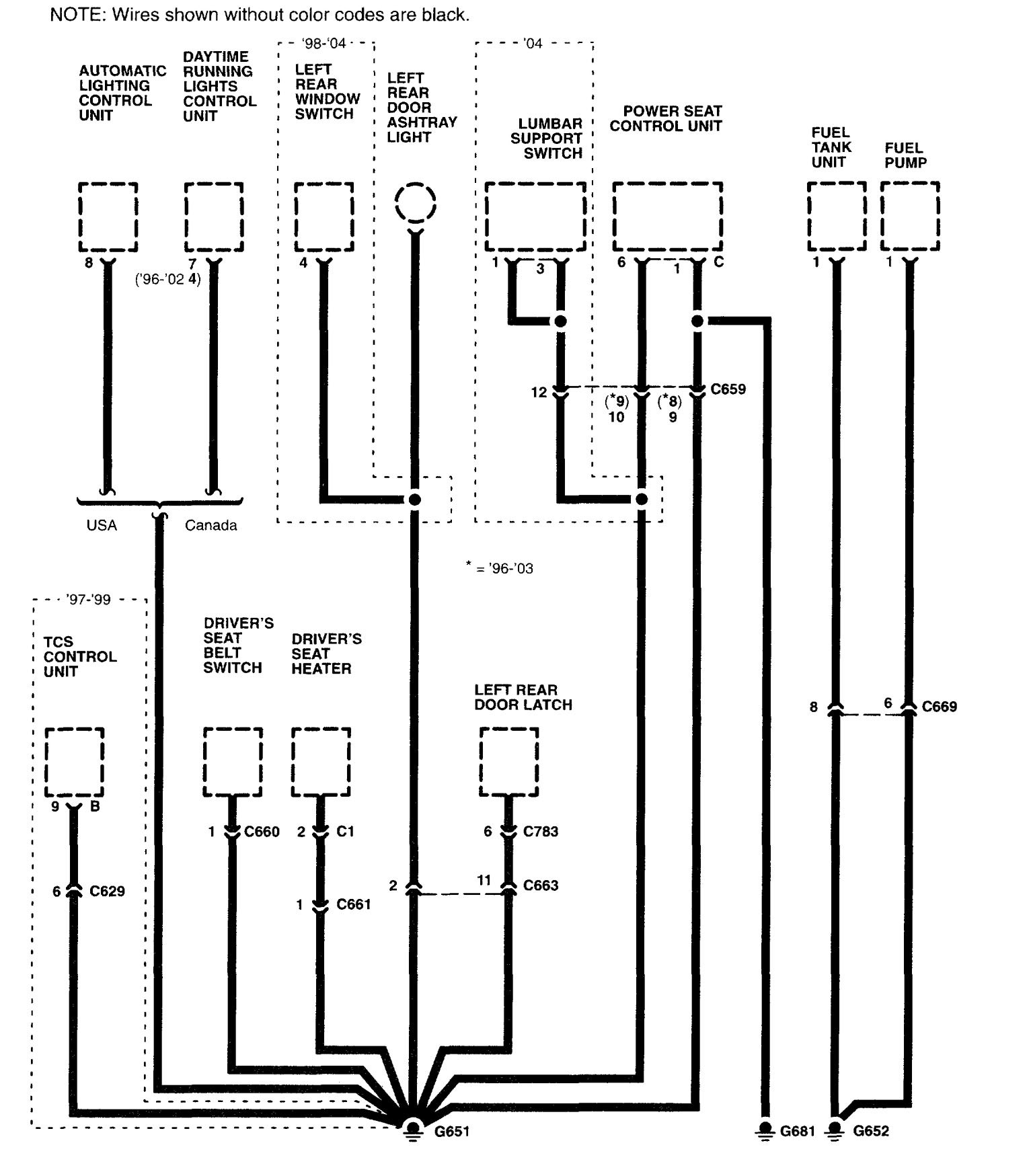

Acura RL - fuse box - ground distribution (part 14)
Acura RL – fuse box –
ground distribution (part 14)

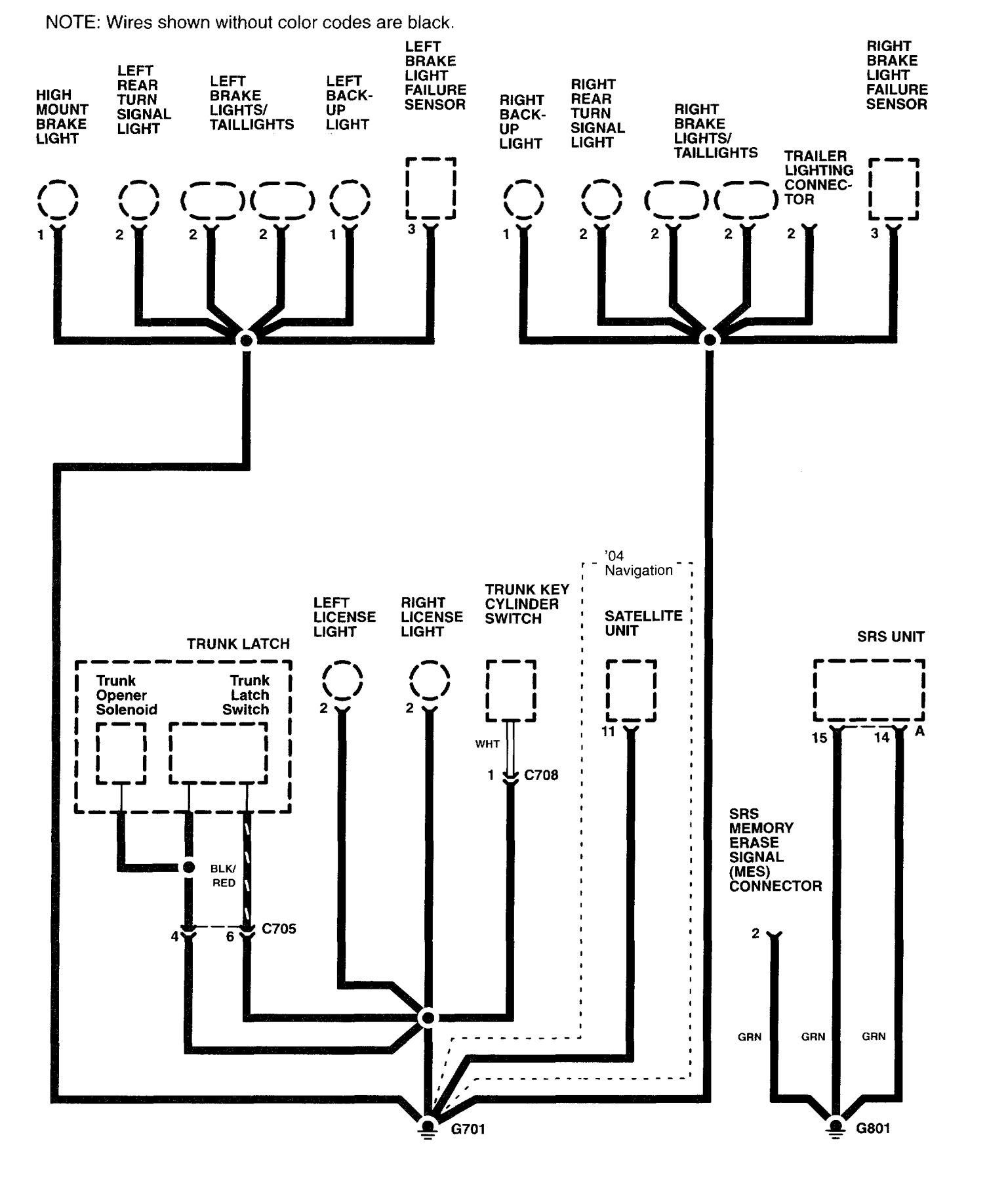

Acura RL - fuse box - ground distribution (part 15)
Acura RL – fuse box –
ground distribution (part 15)

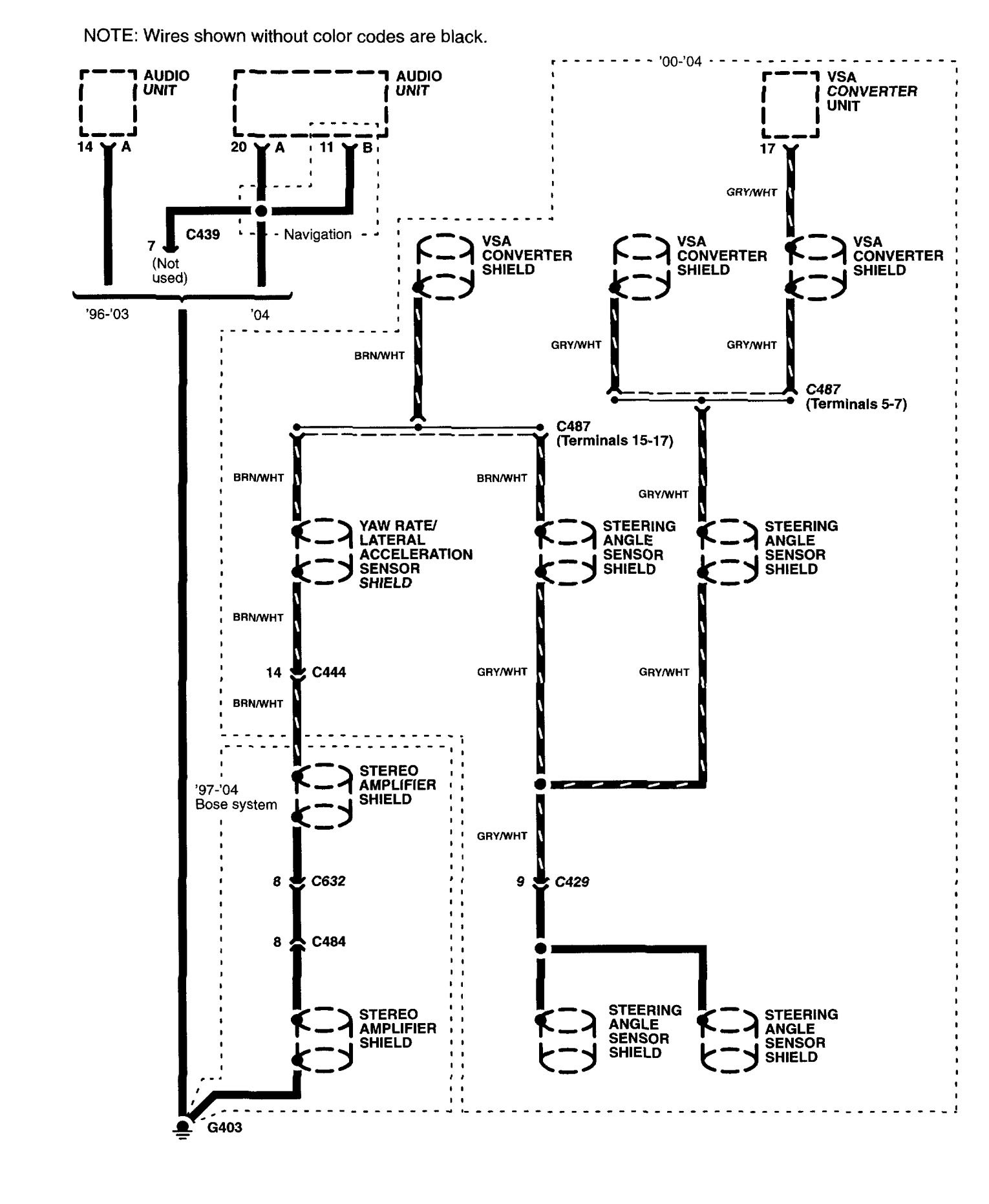

Acura RL - fuse box - ground distribution (part 16)
Acura RL – fuse box –
ground distribution (part 16)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
