Acura RL (2003 – 2004) – wiring diagrams – instrument panel lamps

Acura RL (2003 – 2004) – wiring diagrams – instrument panel lamps

Year of production:  2003, 2004

Instrument panel lamps

Version 1

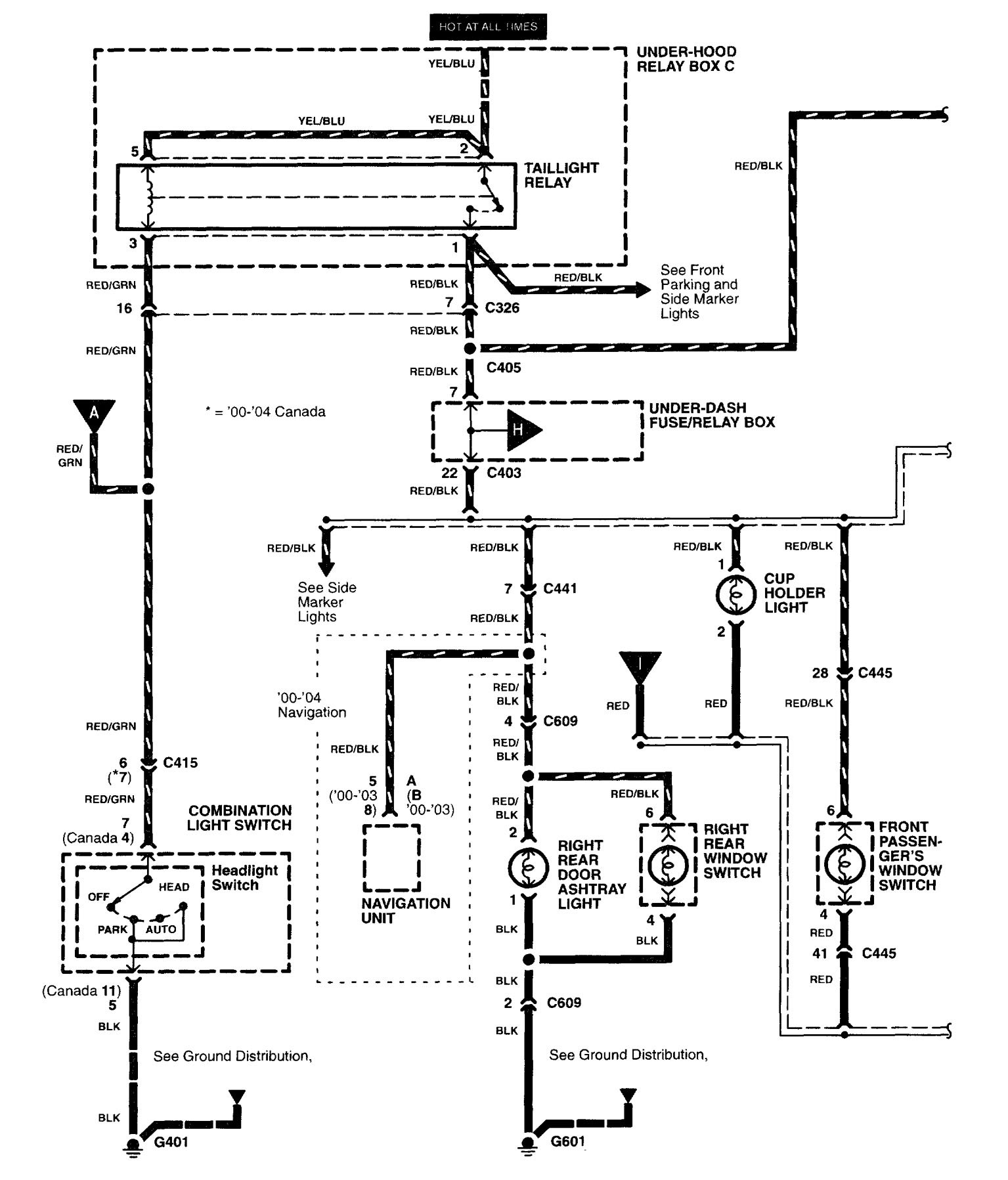

Acura RL - wiring diagram - instrument panel lamp (part 1)
Acura RL – wiring diagram – instrument panel lamp (part 1)

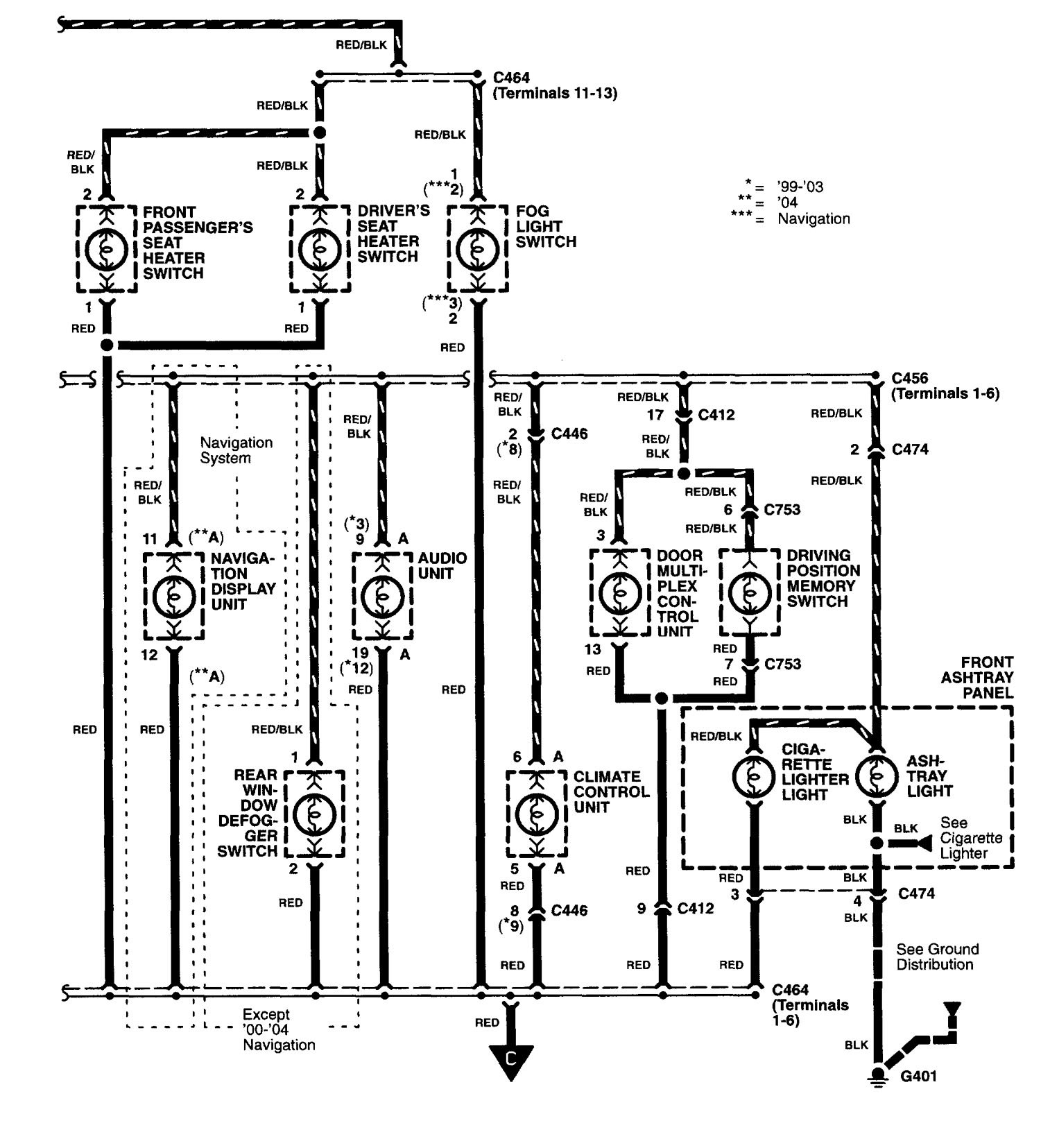

Acura RL - wiring diagram - instrument panel lamp (part 2)
Acura RL – wiring diagram – instrument panel lamp (part 2)

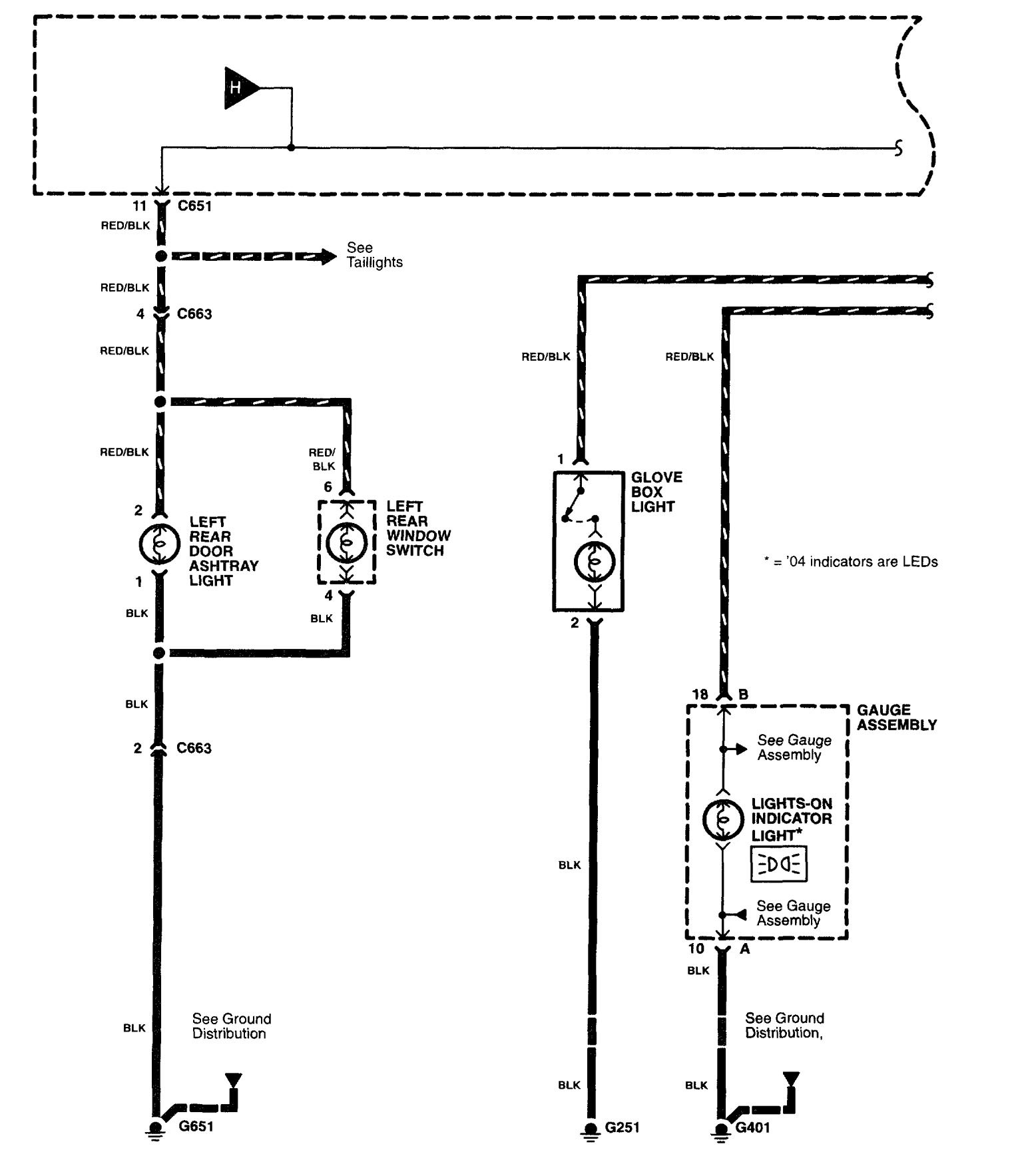

Acura RL - wiring diagram - instrument panel lamp (part 3)
Acura RL – wiring diagram – instrument panel lamp (part 3)

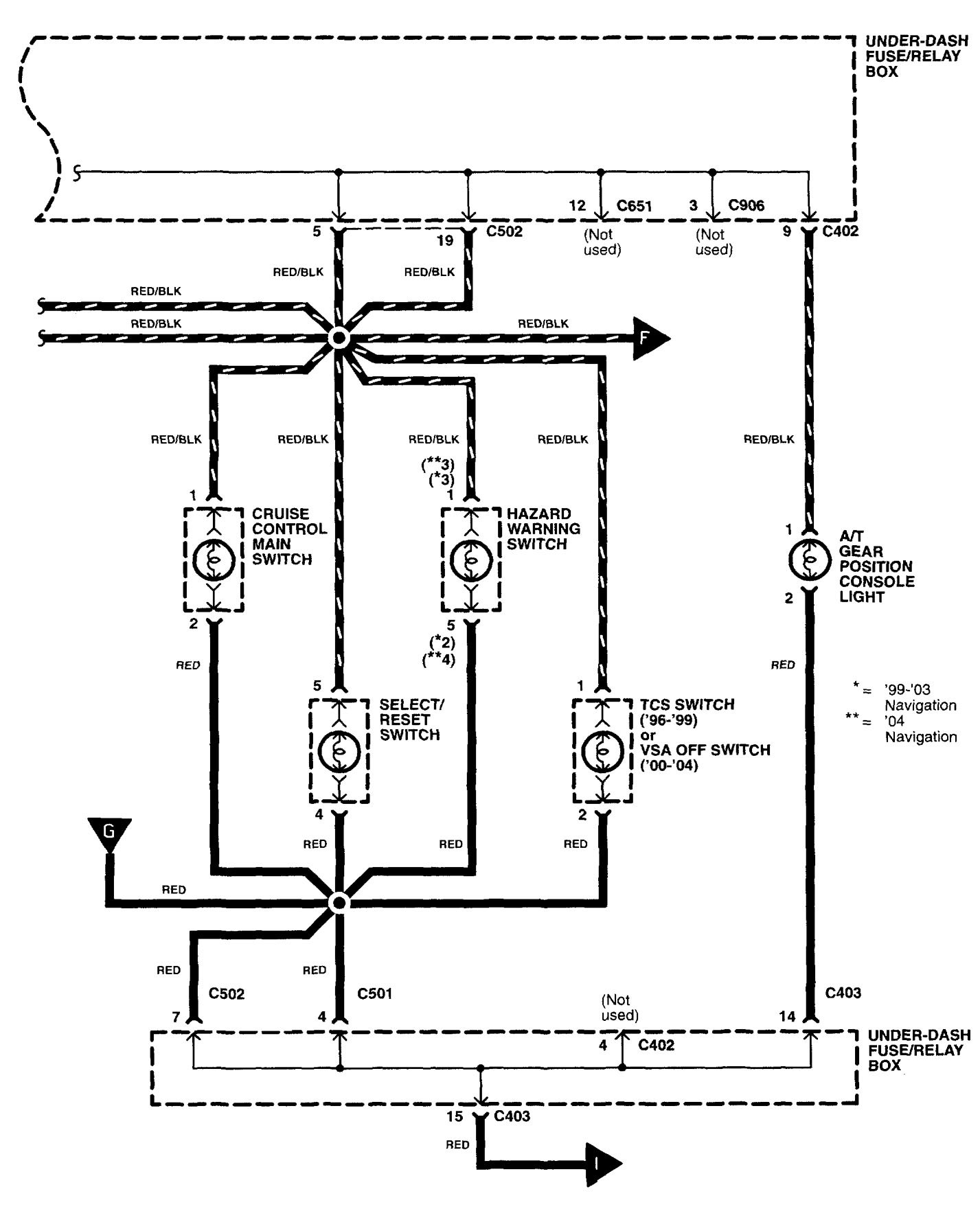

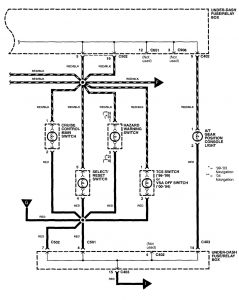

Acura RL - wiring diagram - instrument panel lamp (part 4)
Acura RL – wiring diagram – instrument panel lamp (part 4)

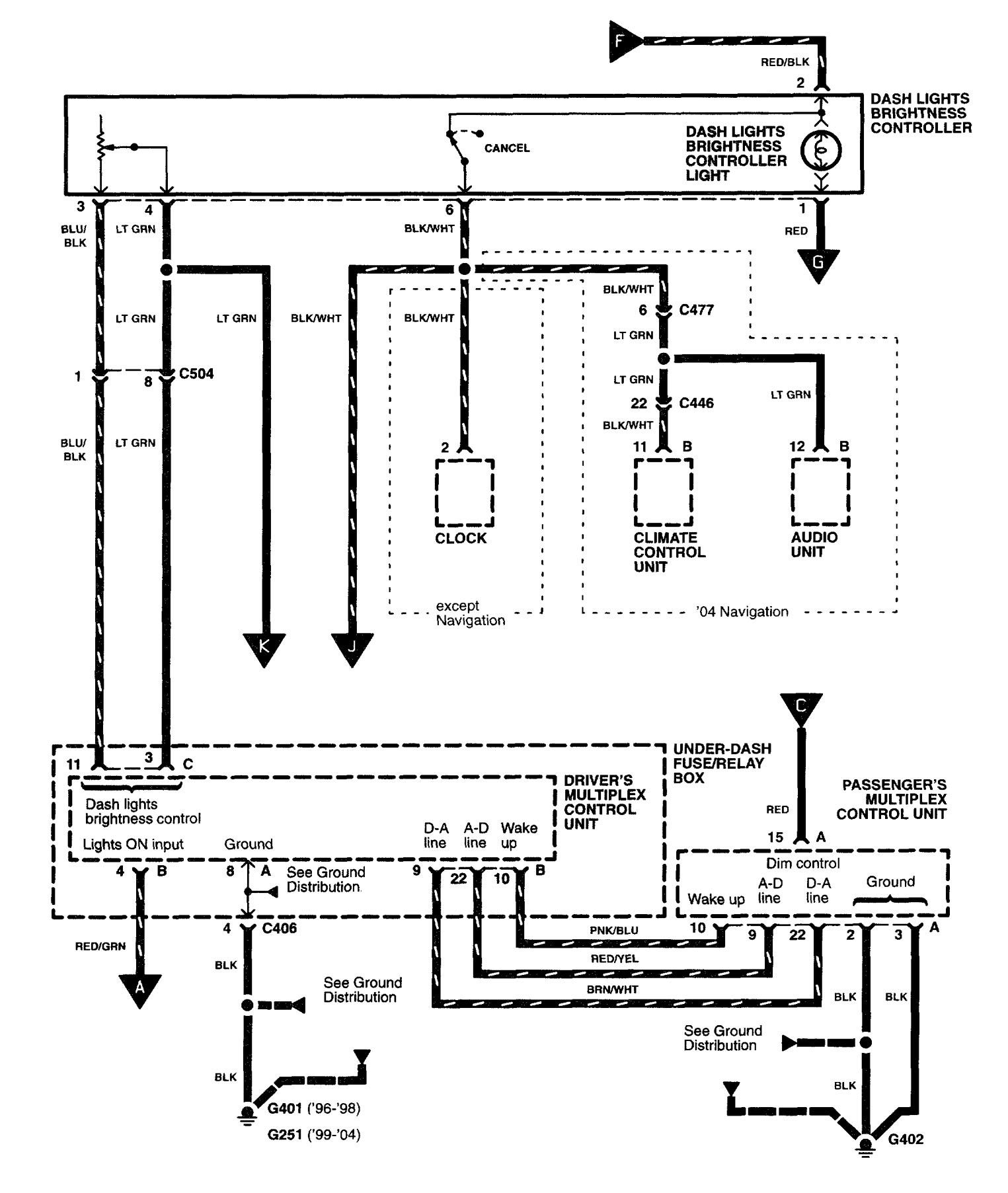

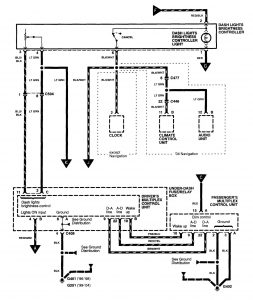

Acura RL - wiring diagram - instrument panel lamp (part 5)
Acura RL – wiring diagram – instrument panel lamp (part 5)

Version2

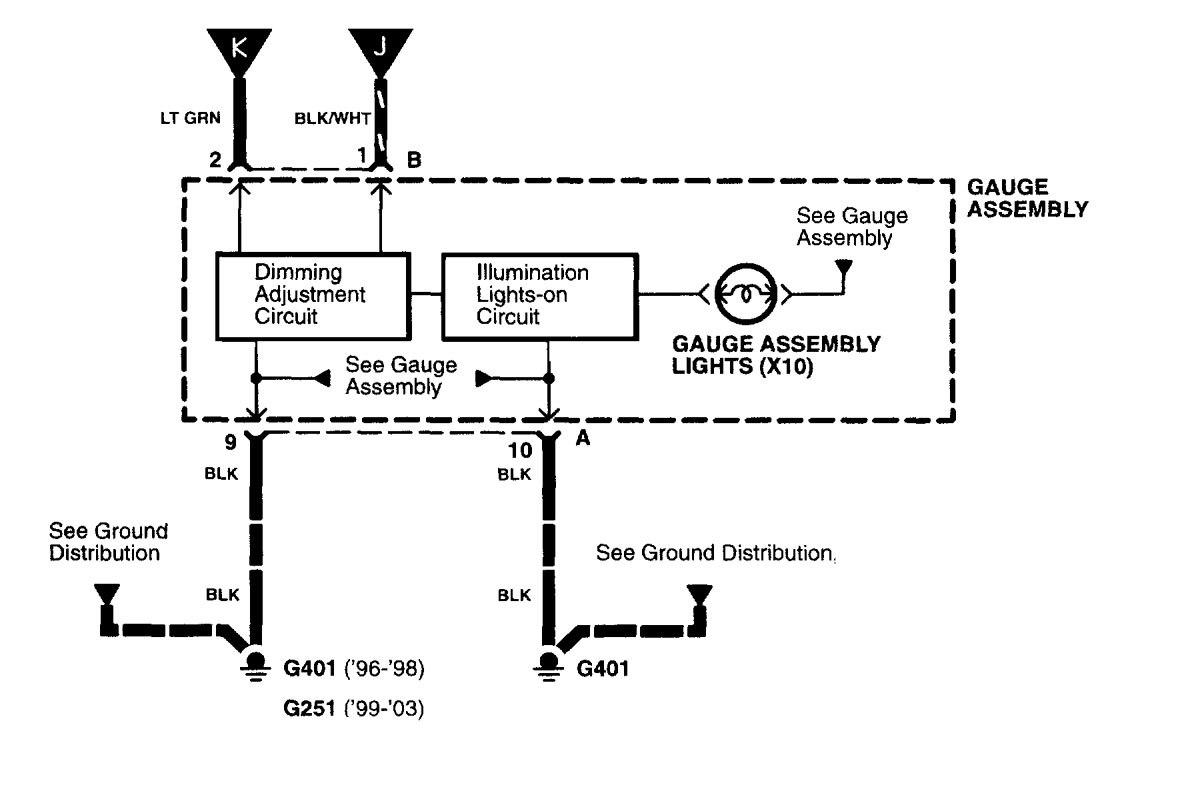

Acura RL - wiring diagram - instrument panel lamp
Acura RL – wiring diagram – instrument panel lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
