Acura RL (2003) – wiring diagrams – instrumentation

Acura RL (2003) – wiring diagrams – instrumentation

Year of productions:  2003

Instrumentation

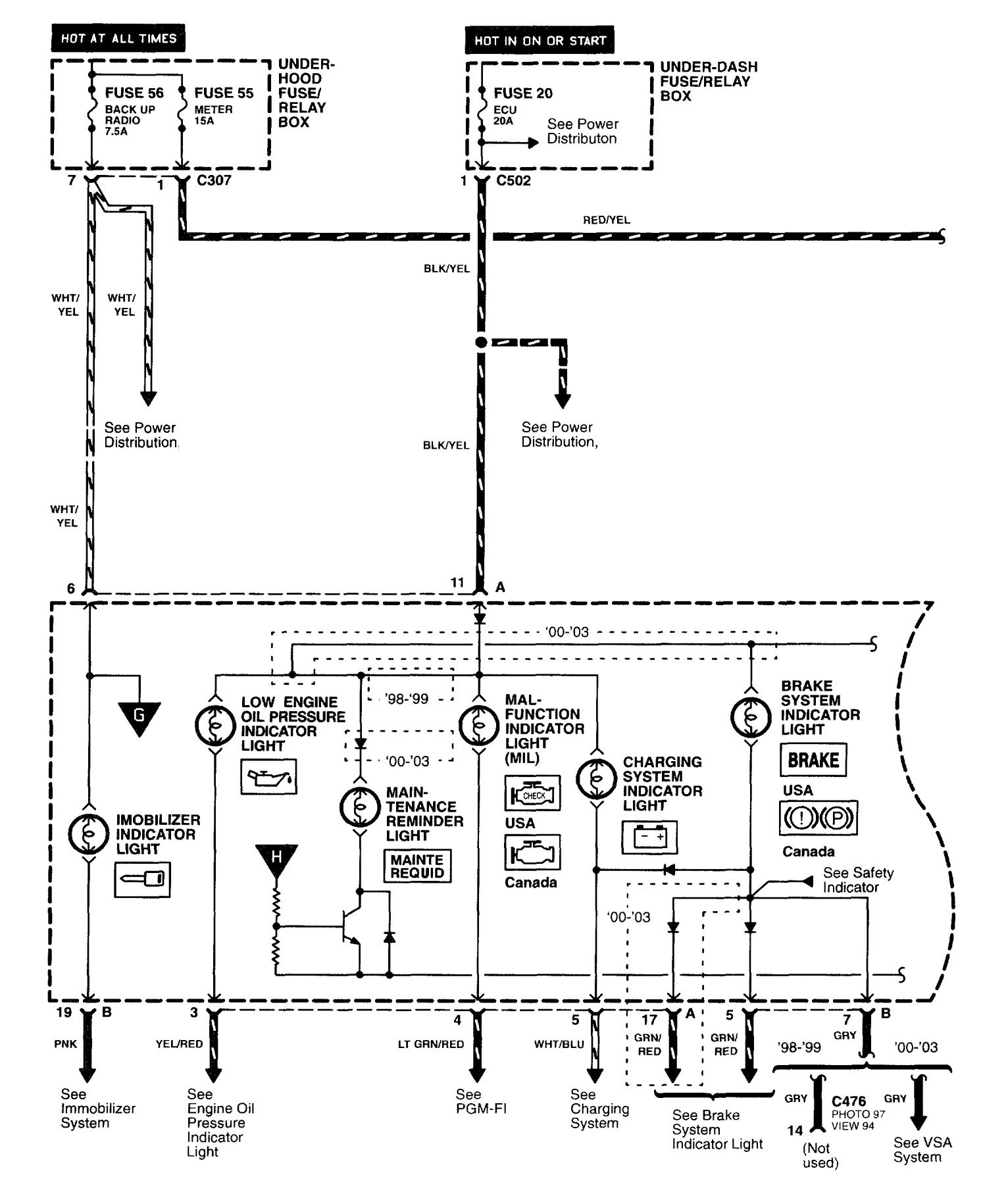

Acura RL - wiring diagram - instrumentation (part 1)
Acura RL – wiring diagram – instrumentation (part 1)

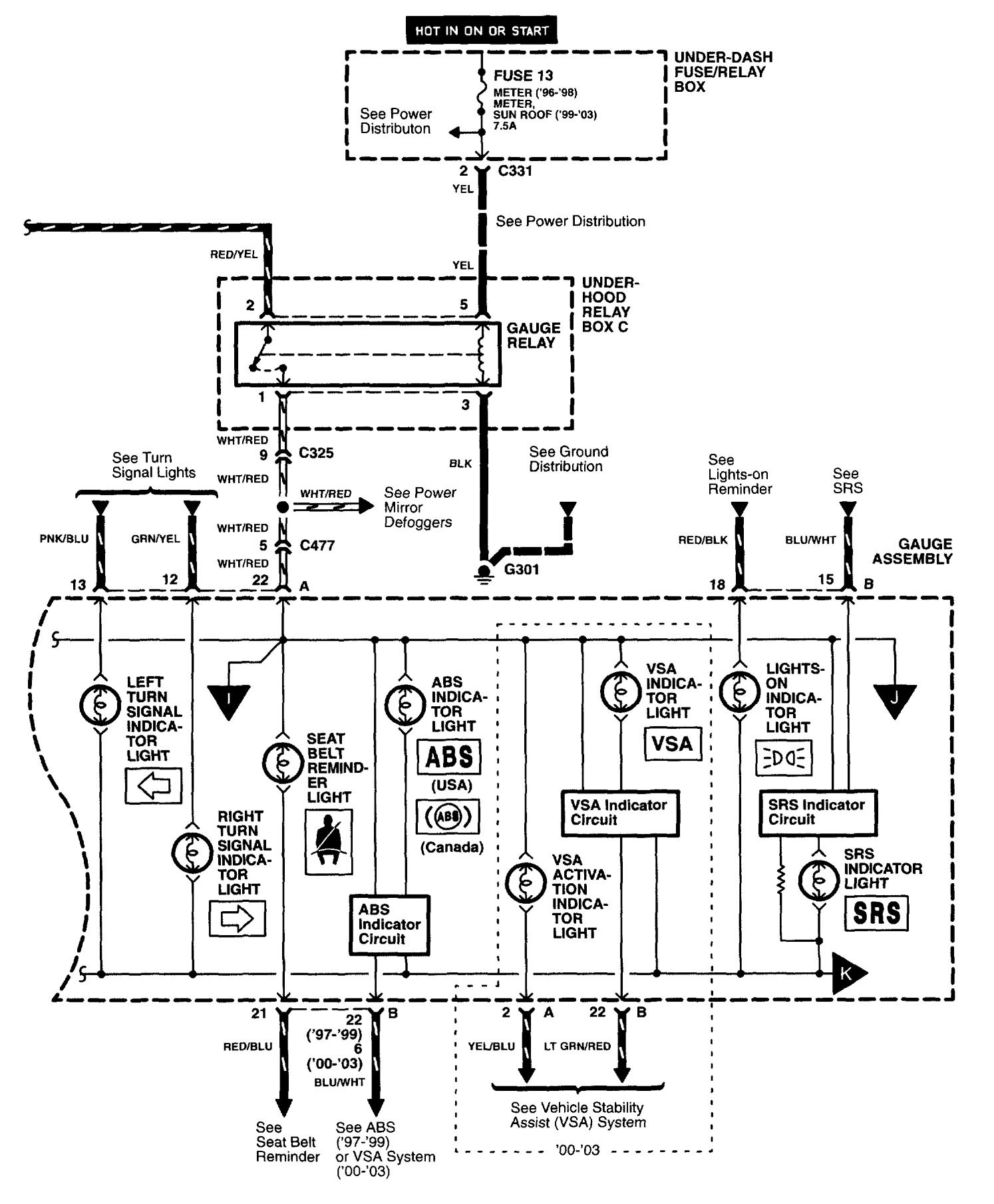

Acura RL - wiring diagram - instrumentation (part 2)
Acura RL – wiring diagram – instrumentation (part 2)

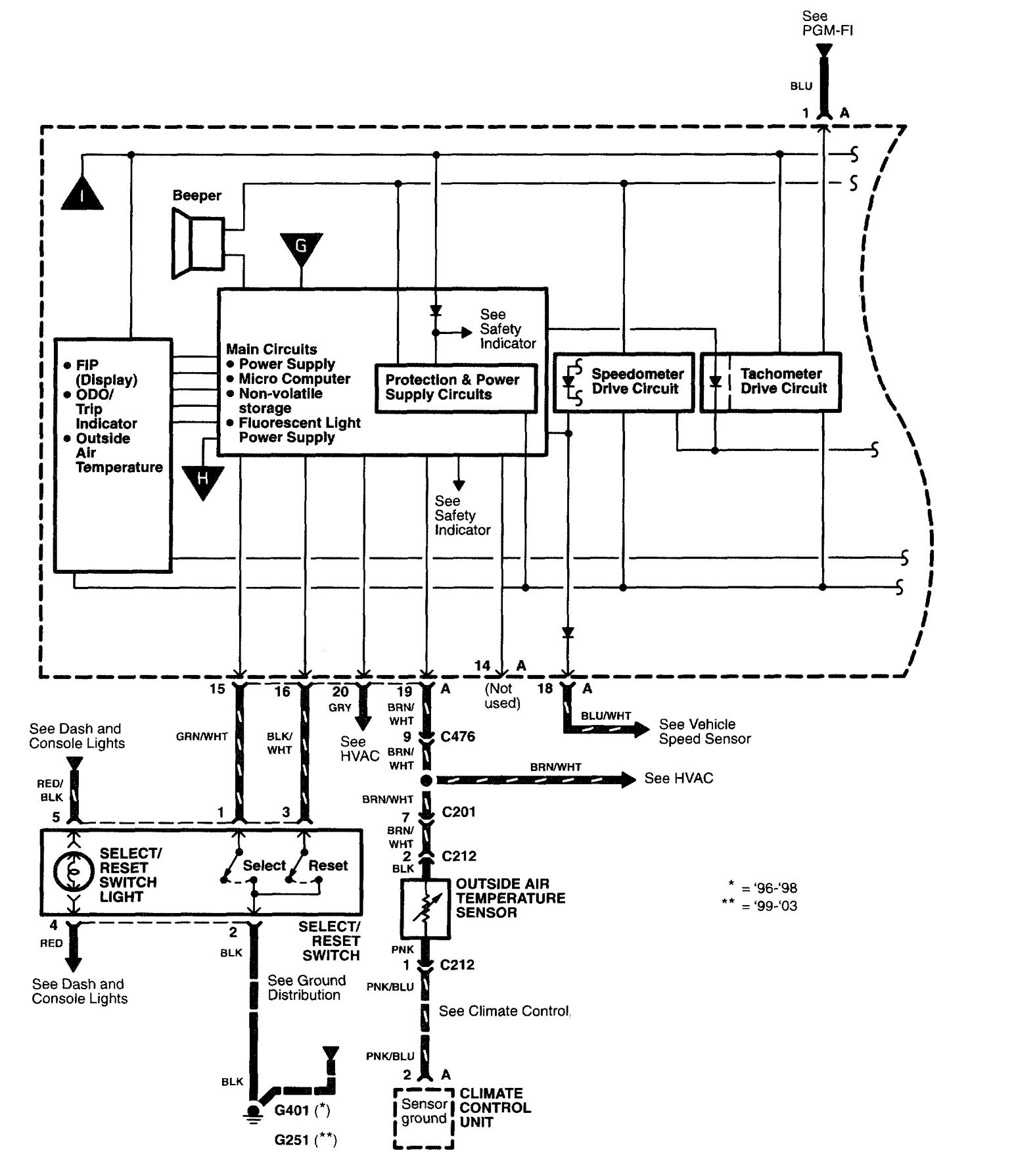

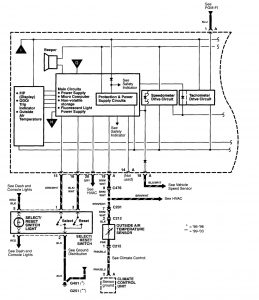

Acura RL - wiring diagram - instrumentation (part 3)
Acura RL – wiring diagram – instrumentation (part 3)

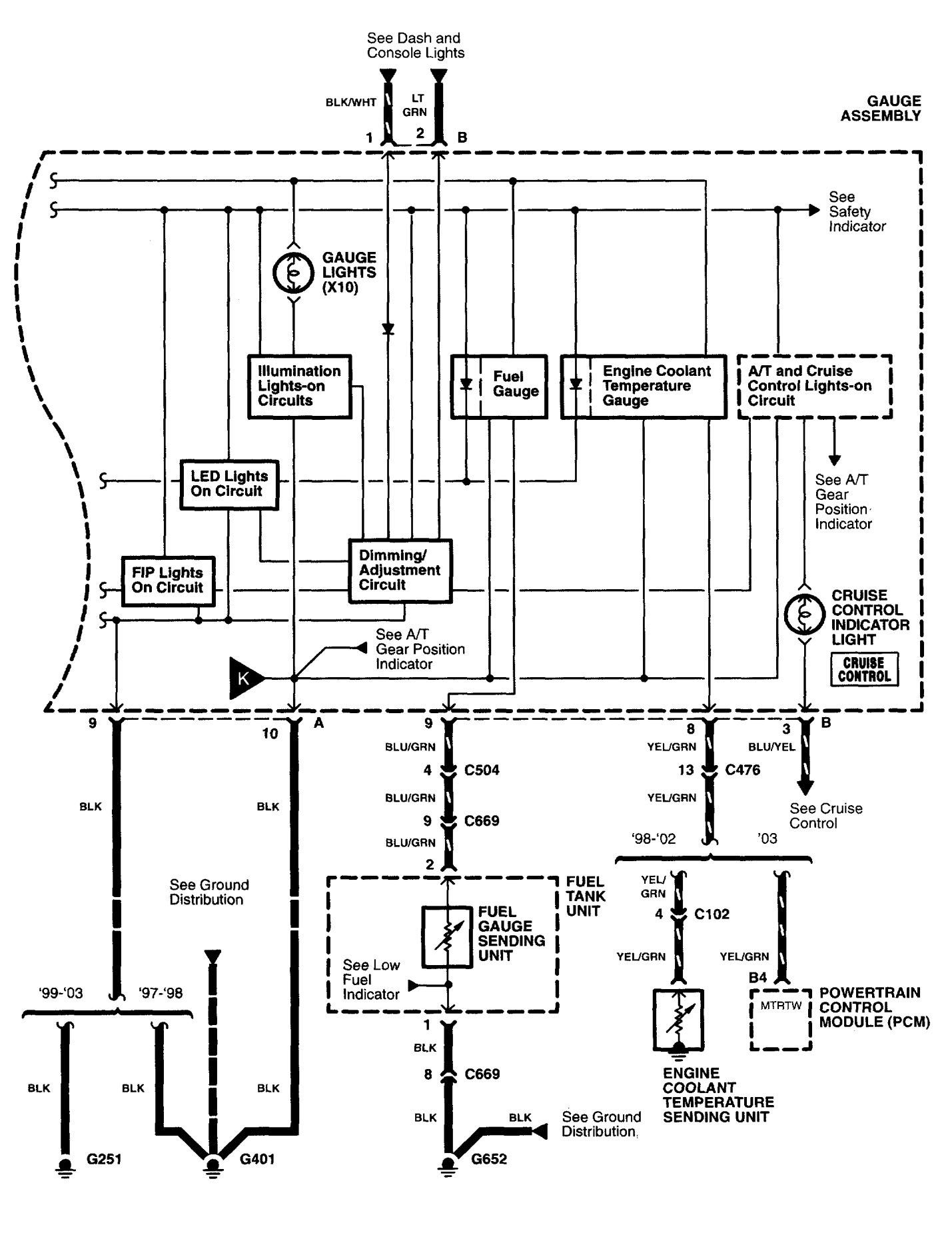

Acura RL - wiring diagram - instrumentation (part 4)
Acura RL – wiring diagram – instrumentation (part 4)

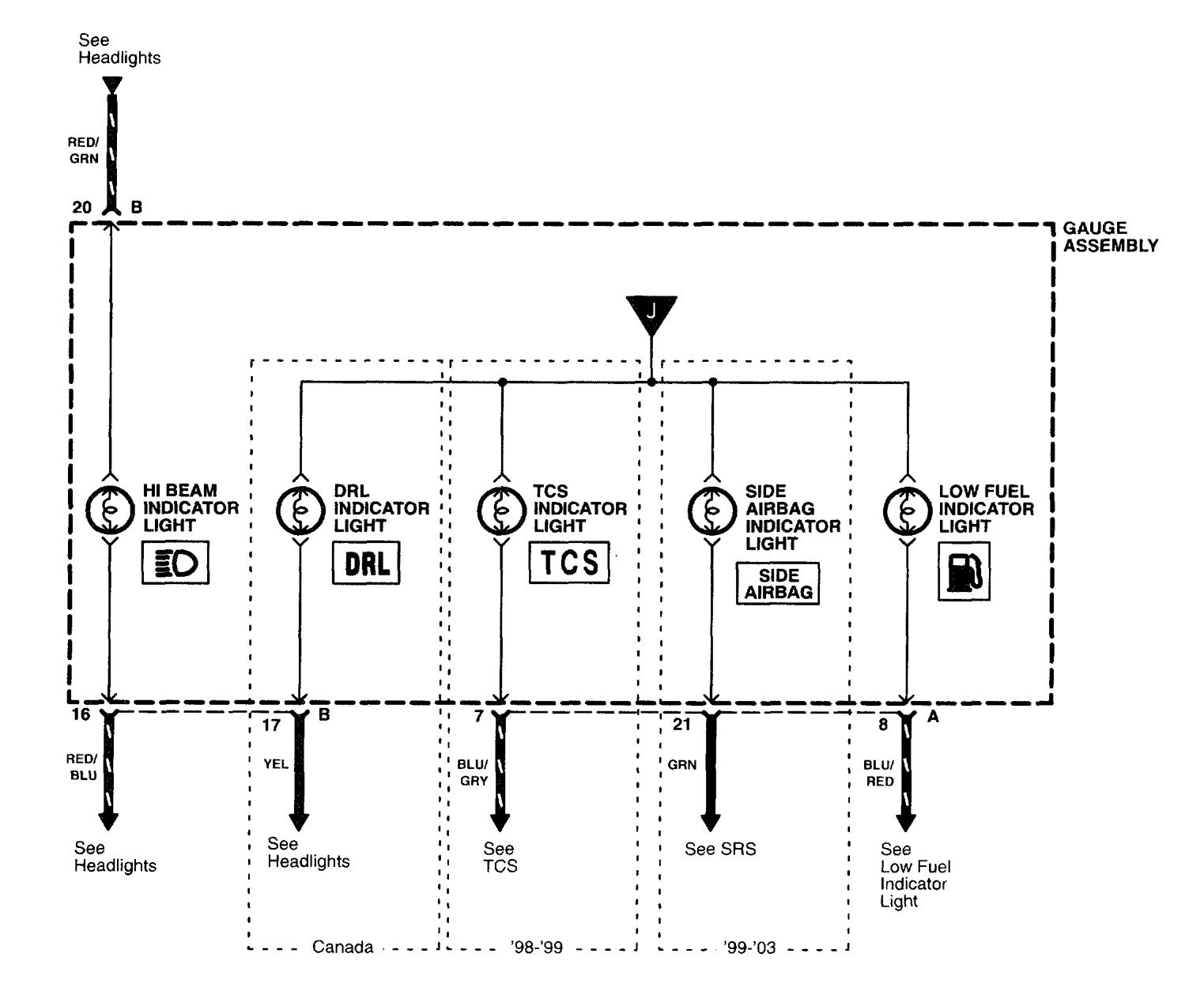

Acura RL - wiring diagram - instrumentation (part 5)
Acura RL – wiring diagram – instrumentation (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
