Acura RL (2003 – 2004) – wiring diagrams – power distribution

14 September 2017 admin Acura, RL 0

Acura RL (2003 – 2004) – wiring diagrams – power distribution

Year of productions: 2003, 2004

Power distribution

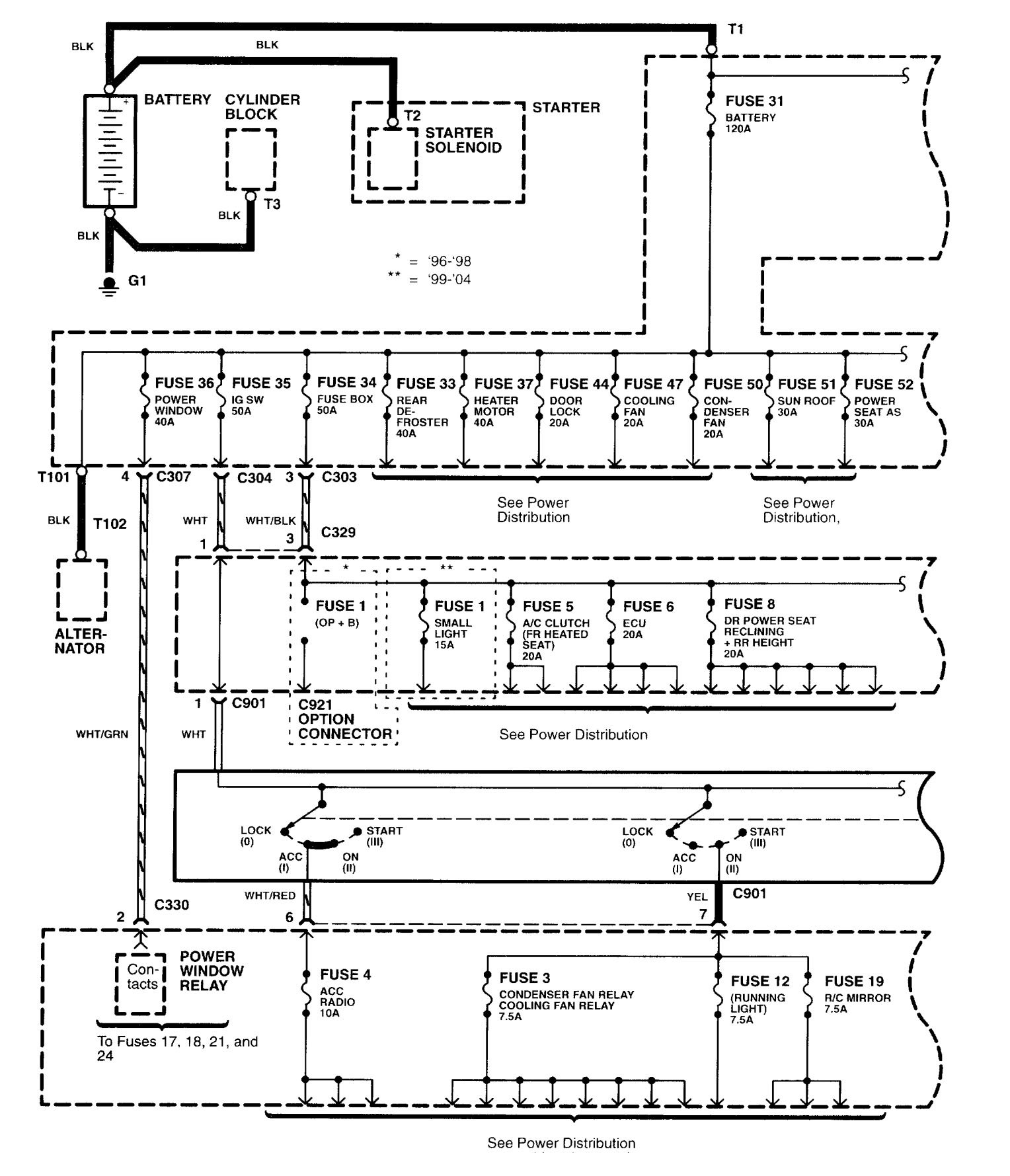

Acura RL - fuse box - power distribution (part 1) — Acura RL – fuse box – power distribution (part 1)

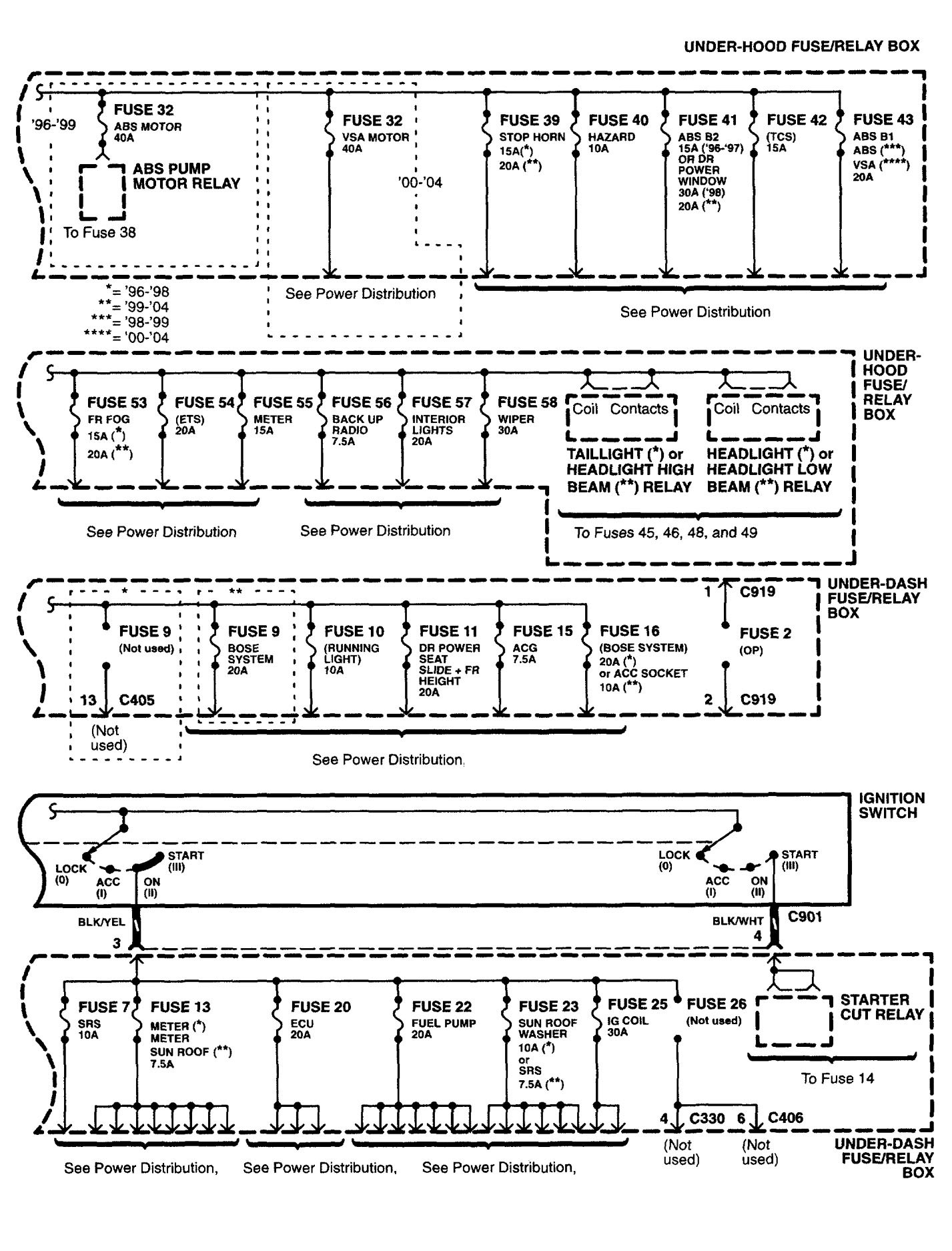

Acura RL - fuse box - power distribution (part 2) — Acura RL – fuse box – power distribution (part 2)

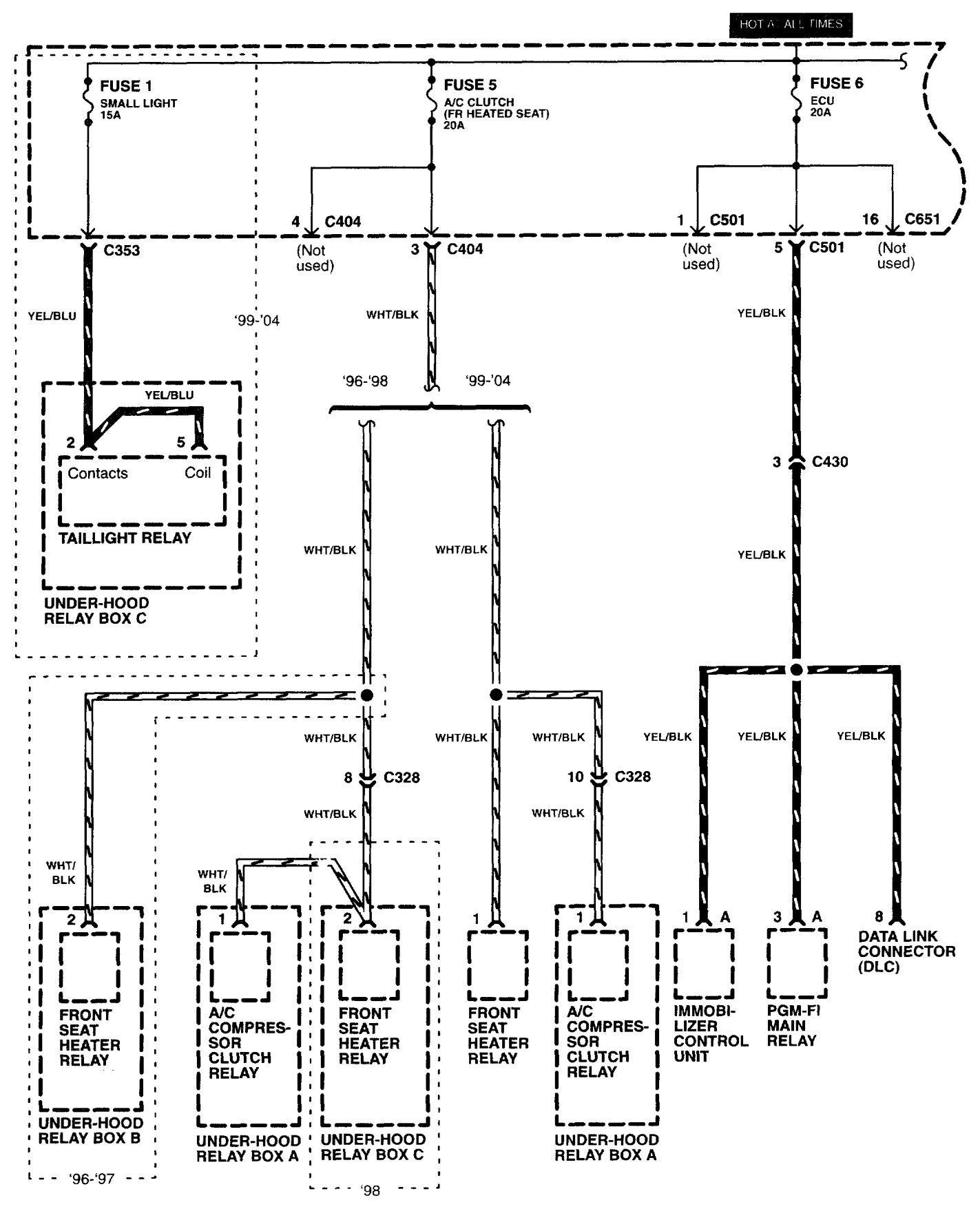

Acura RL - fuse box - power distribution (part 3) — Acura RL – fuse box – power distribution (part 3)

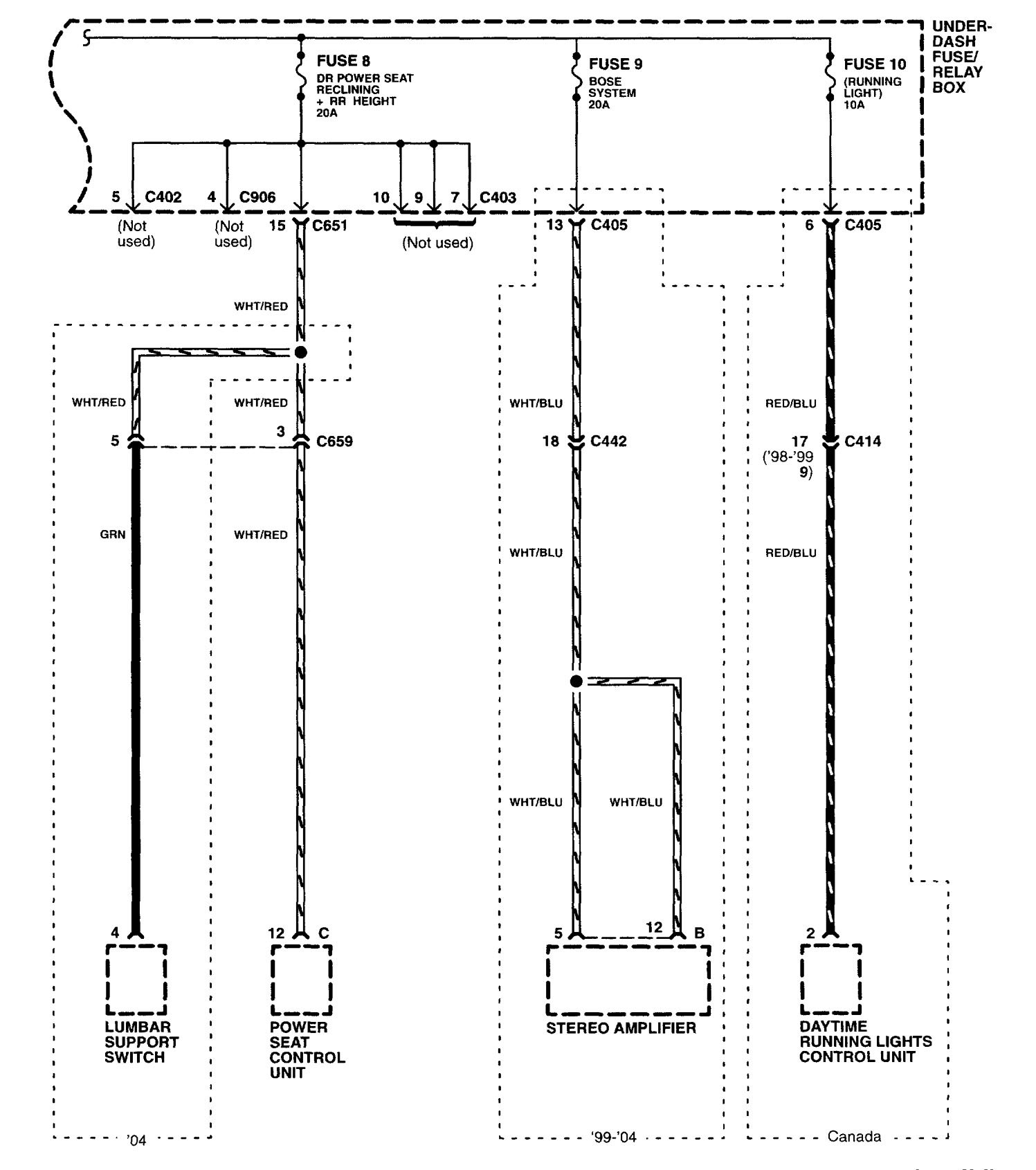

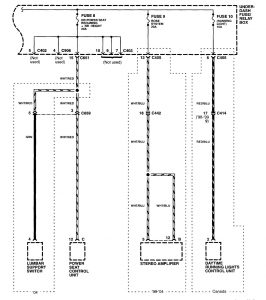

Acura RL - fuse box - power distribution (part 4) — Acura RL – fuse box – power distribution (part 4)

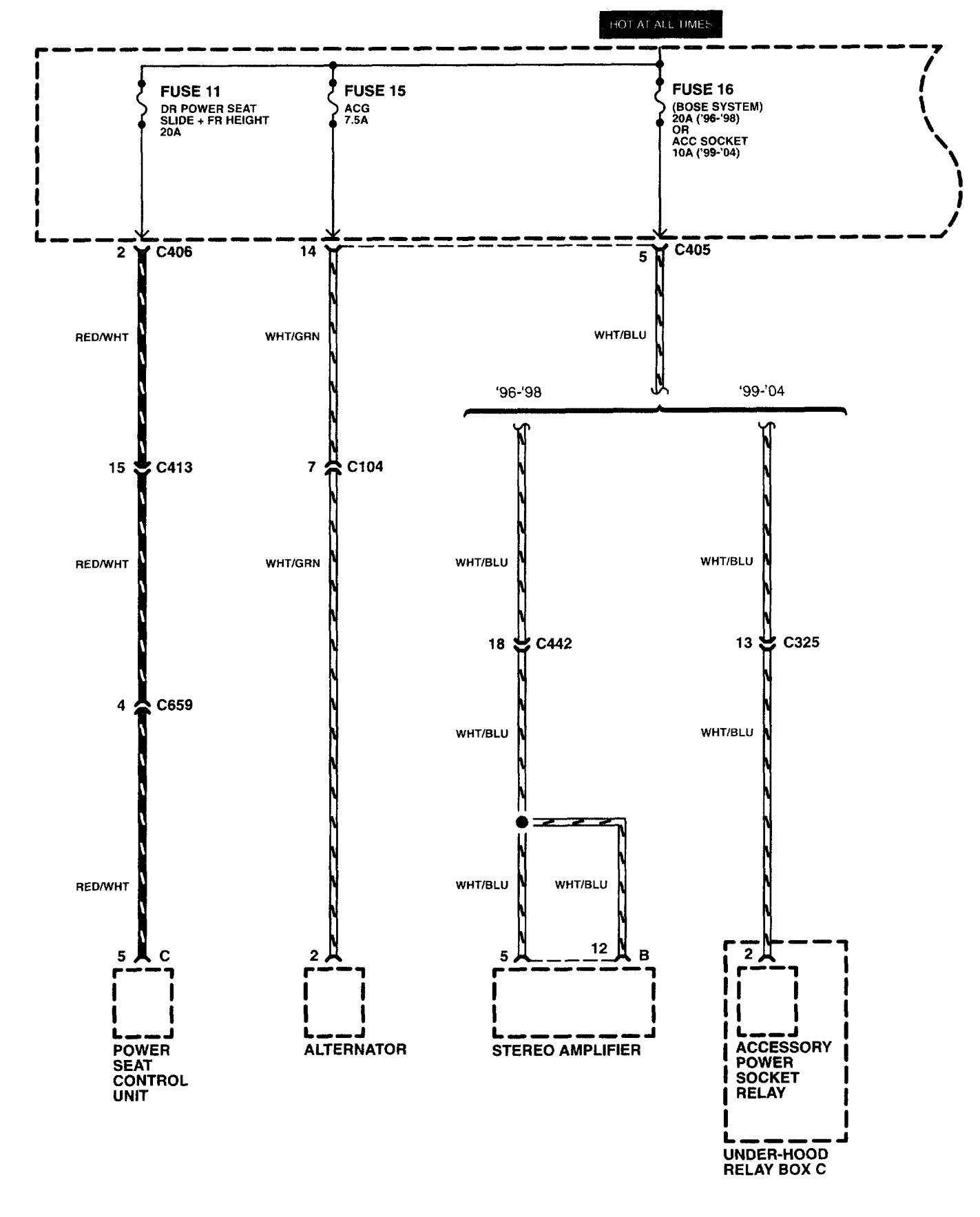

Acura RL - fuse box - power distribution (part 5) — Acura RL – fuse box – power distribution (part 5)

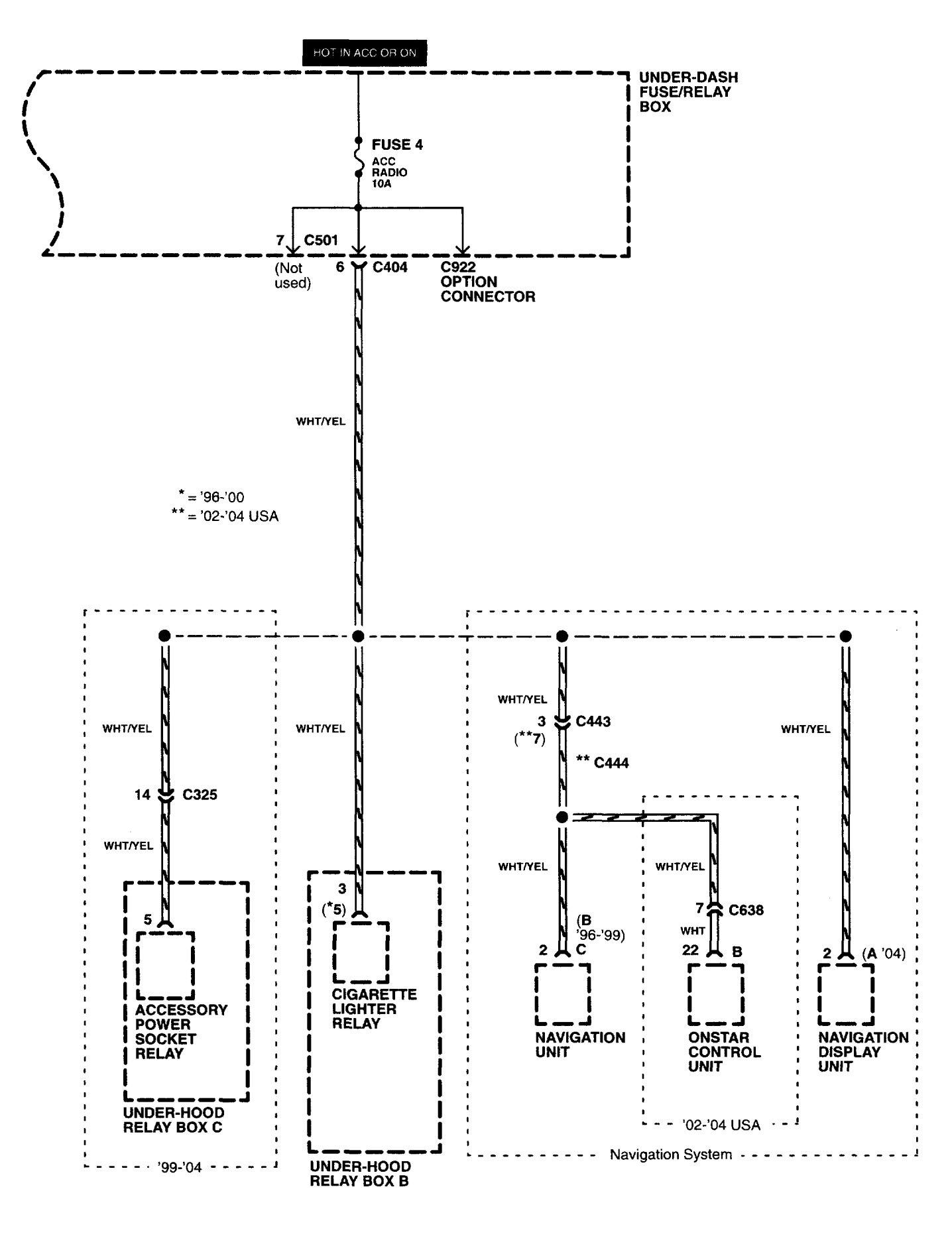

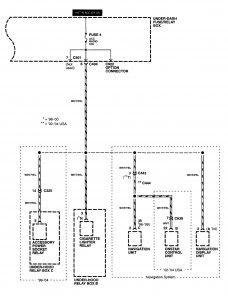

Acura RL - fuse box - power distribution (part 6) — Acura RL – fuse box – power distribution (part 6)

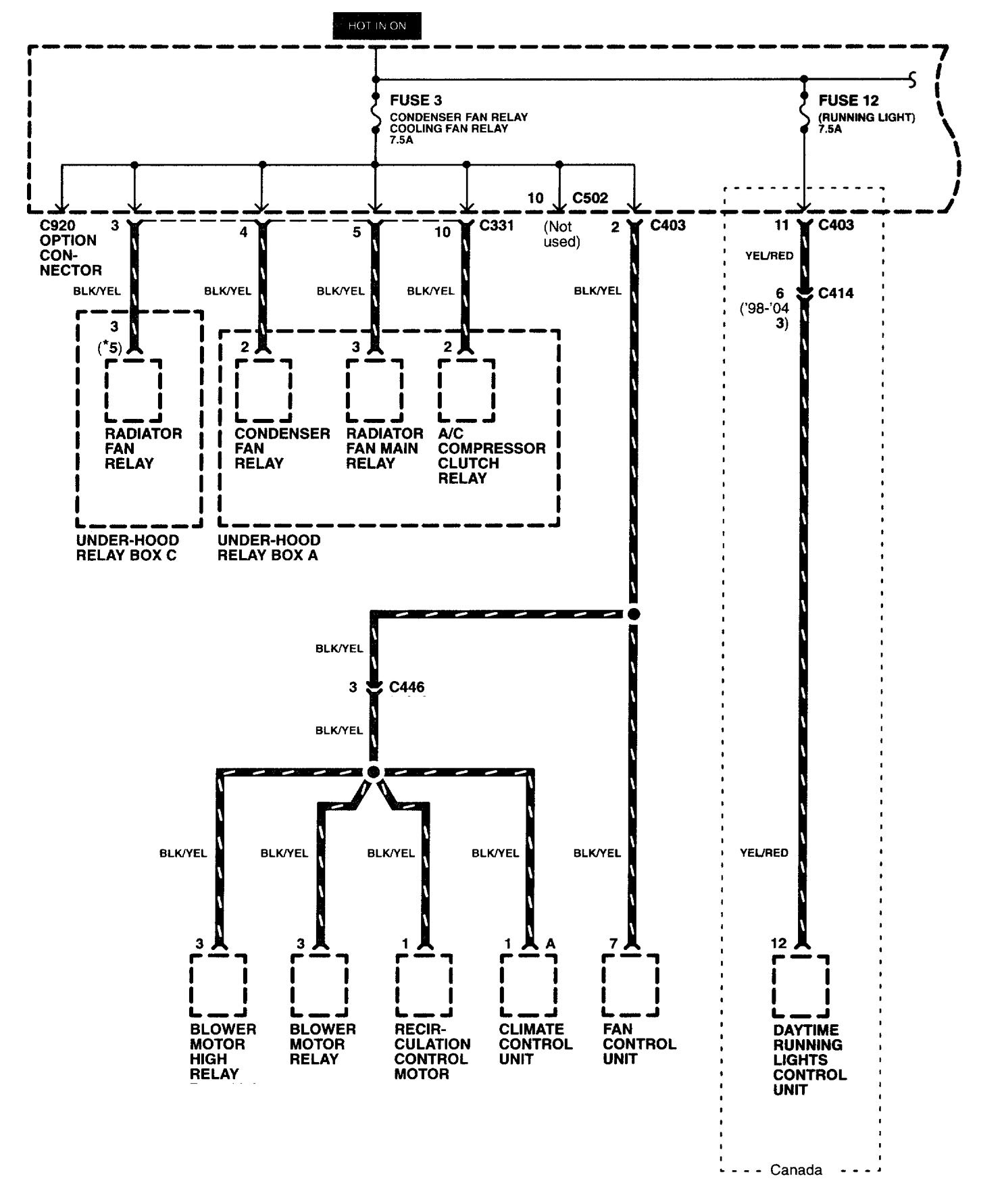

Acura RL - fuse box - power distribution (part 7) — Acura RL – fuse box – power distribution (part 7)

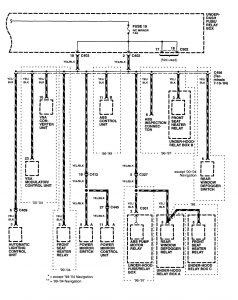

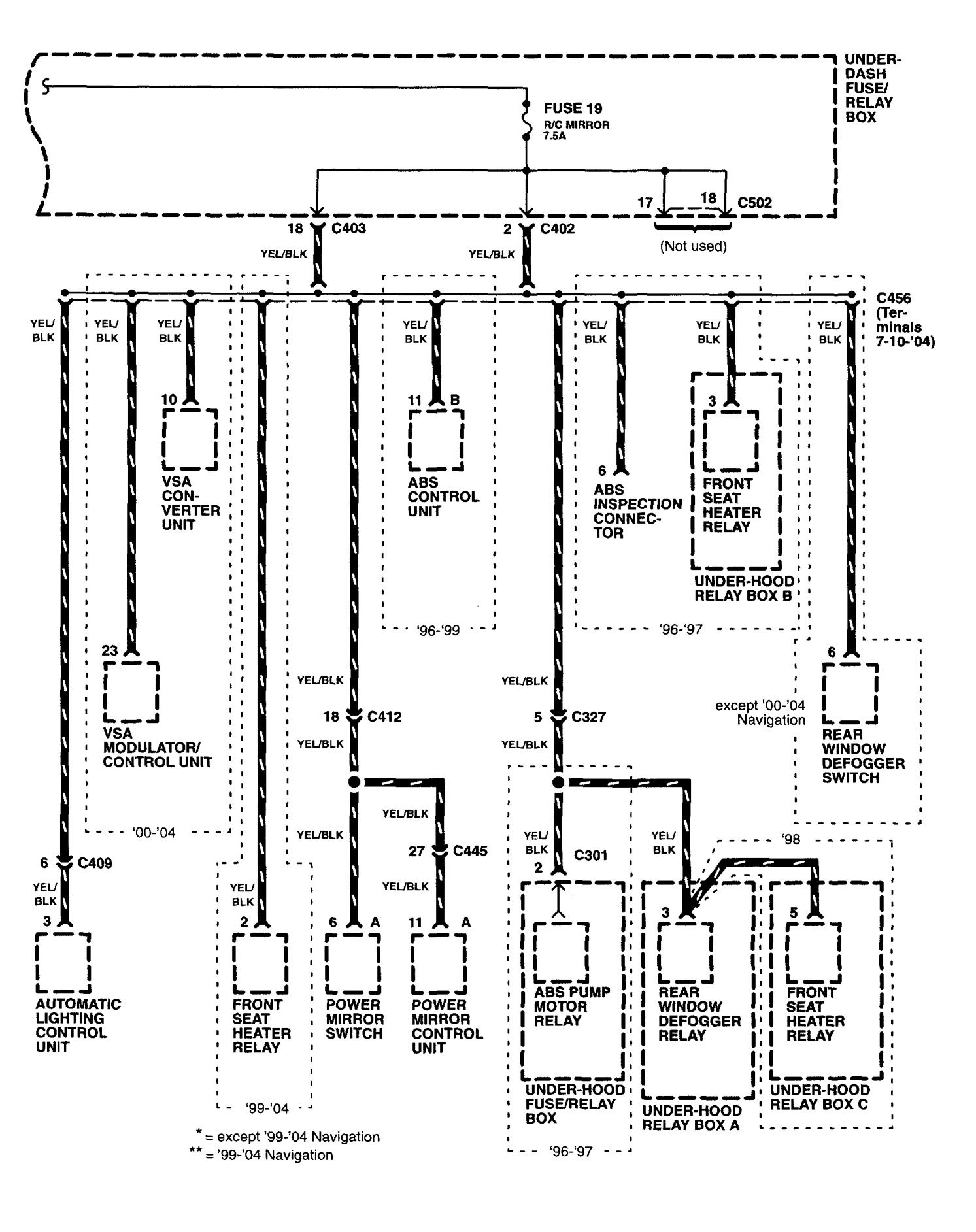

Acura RL - fuse box - power distribution (part 8) — Acura RL – fuse box – power distribution (part 8)

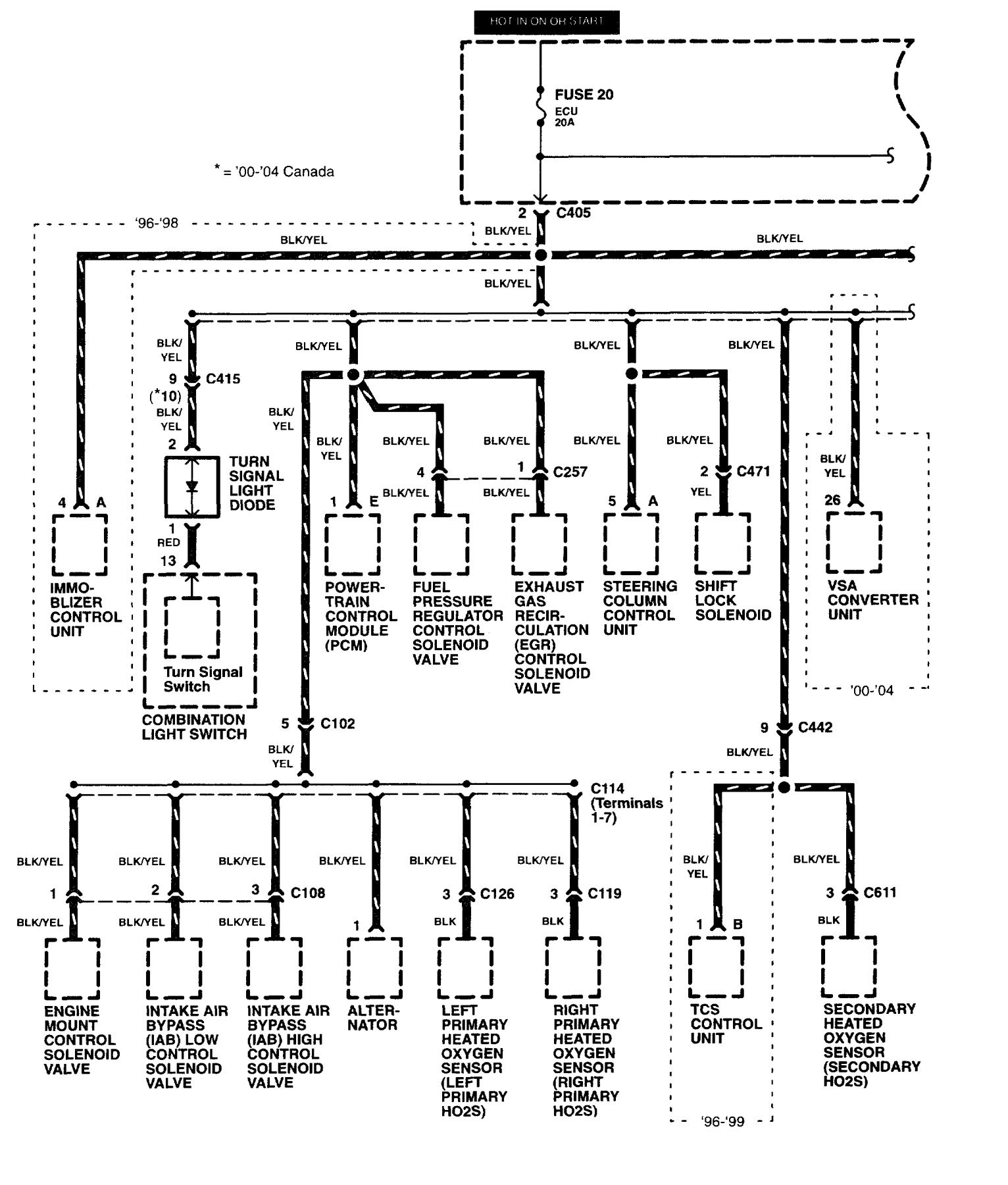

Acura RL - fuse box - power distribution (part 9) — Acura RL – fuse box – power distribution (part 9)

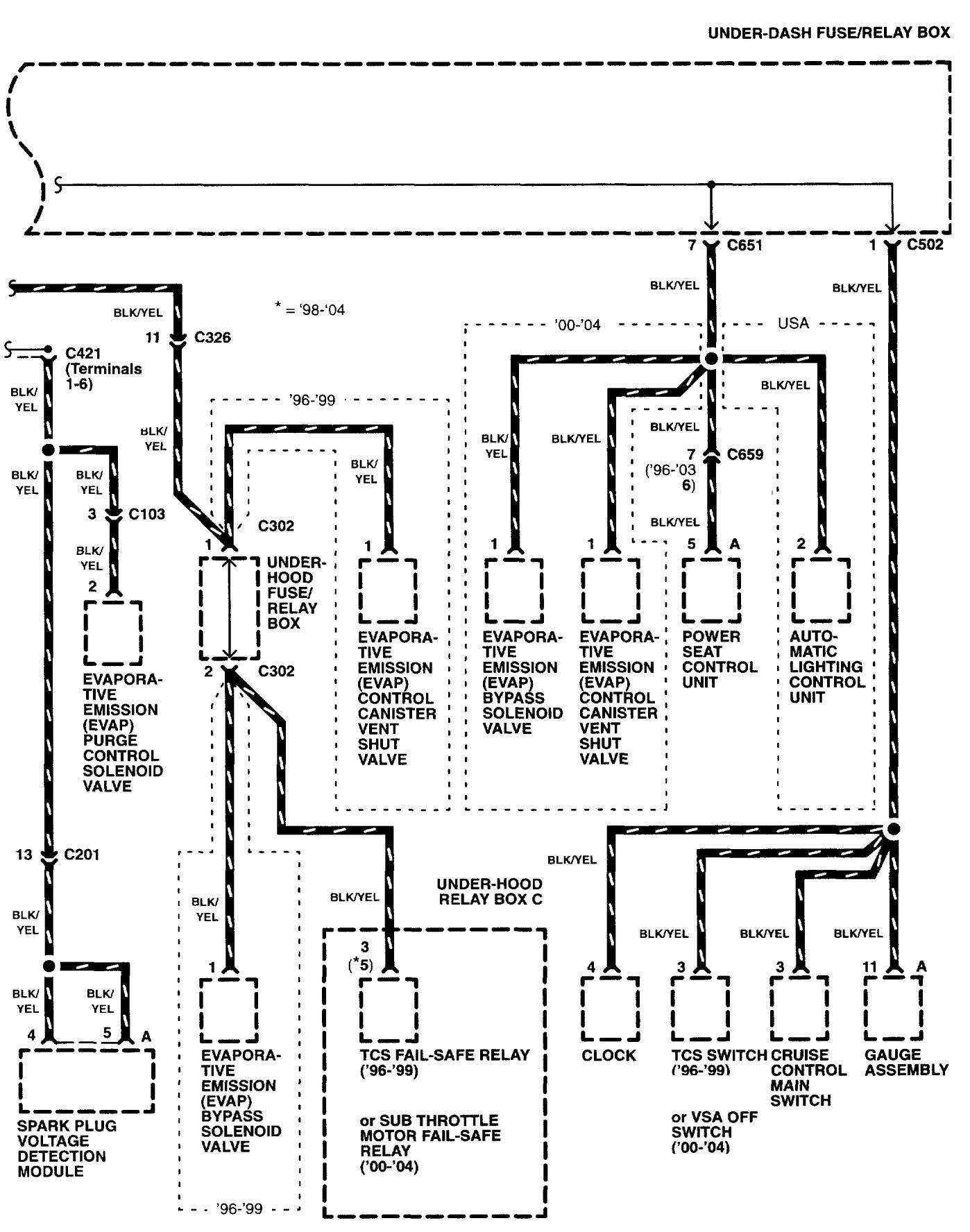

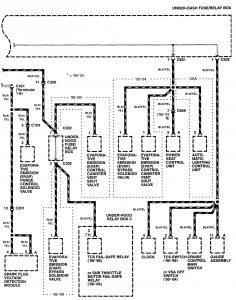

Acura RL - fuse box - power distribution (part 10) — Acura RL – fuse box – power distribution (part 10)

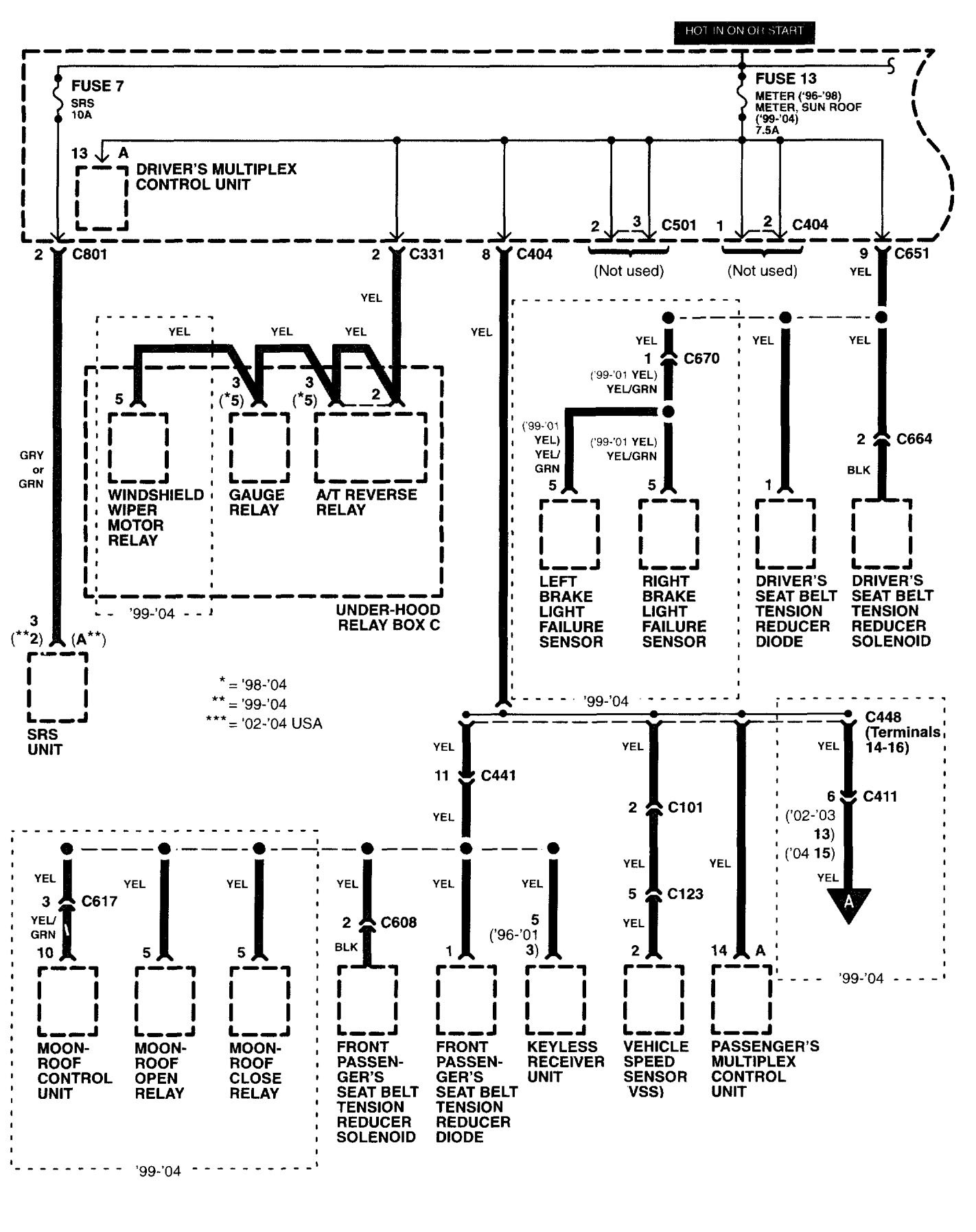

Acura RL - fuse box - power distribution (part 11) — Acura RL – fuse box – power distribution (part 11)

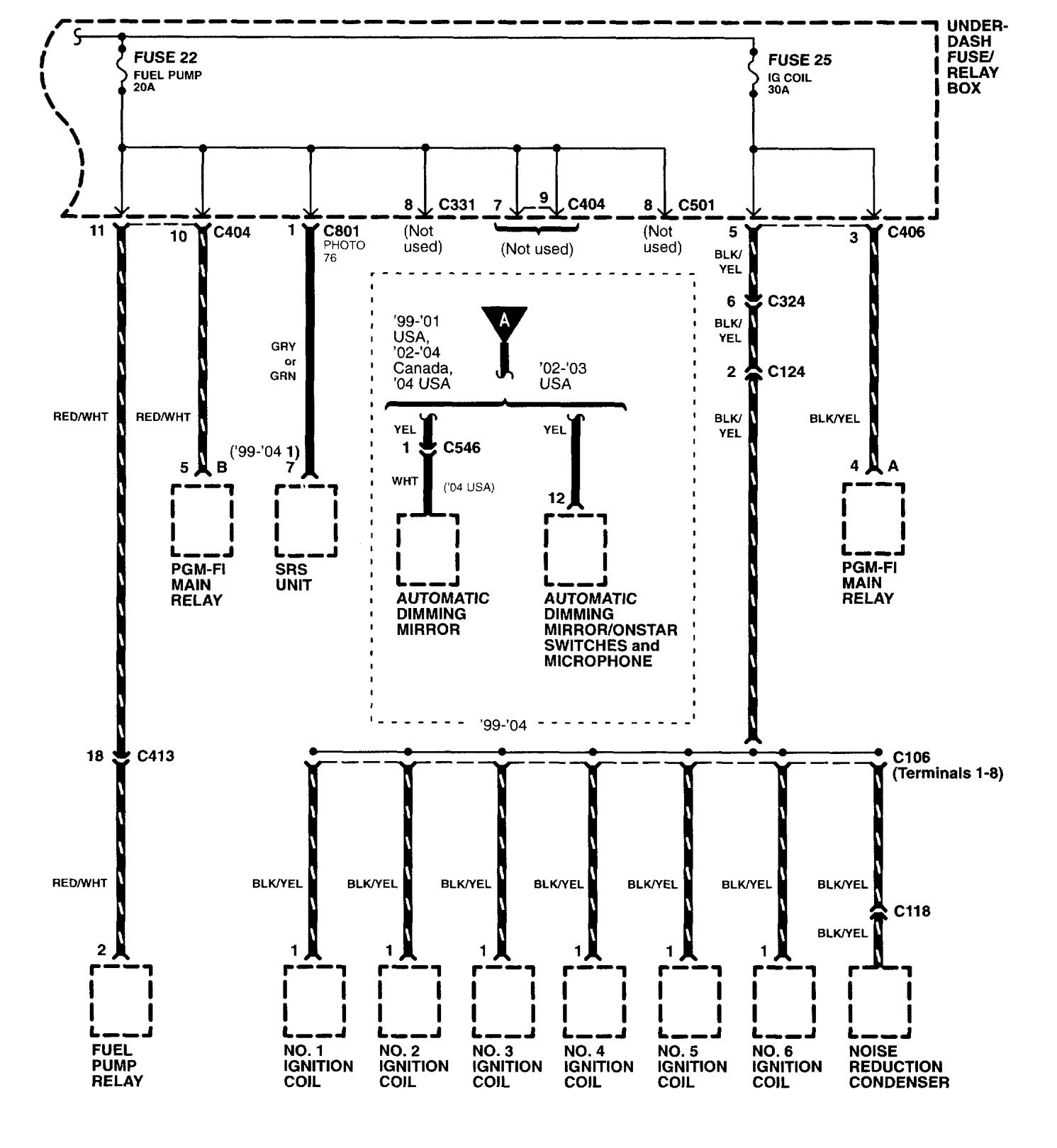

Acura RL - fuse box - power distribution (part 12) — Acura RL – fuse box – power distribution (part 12)

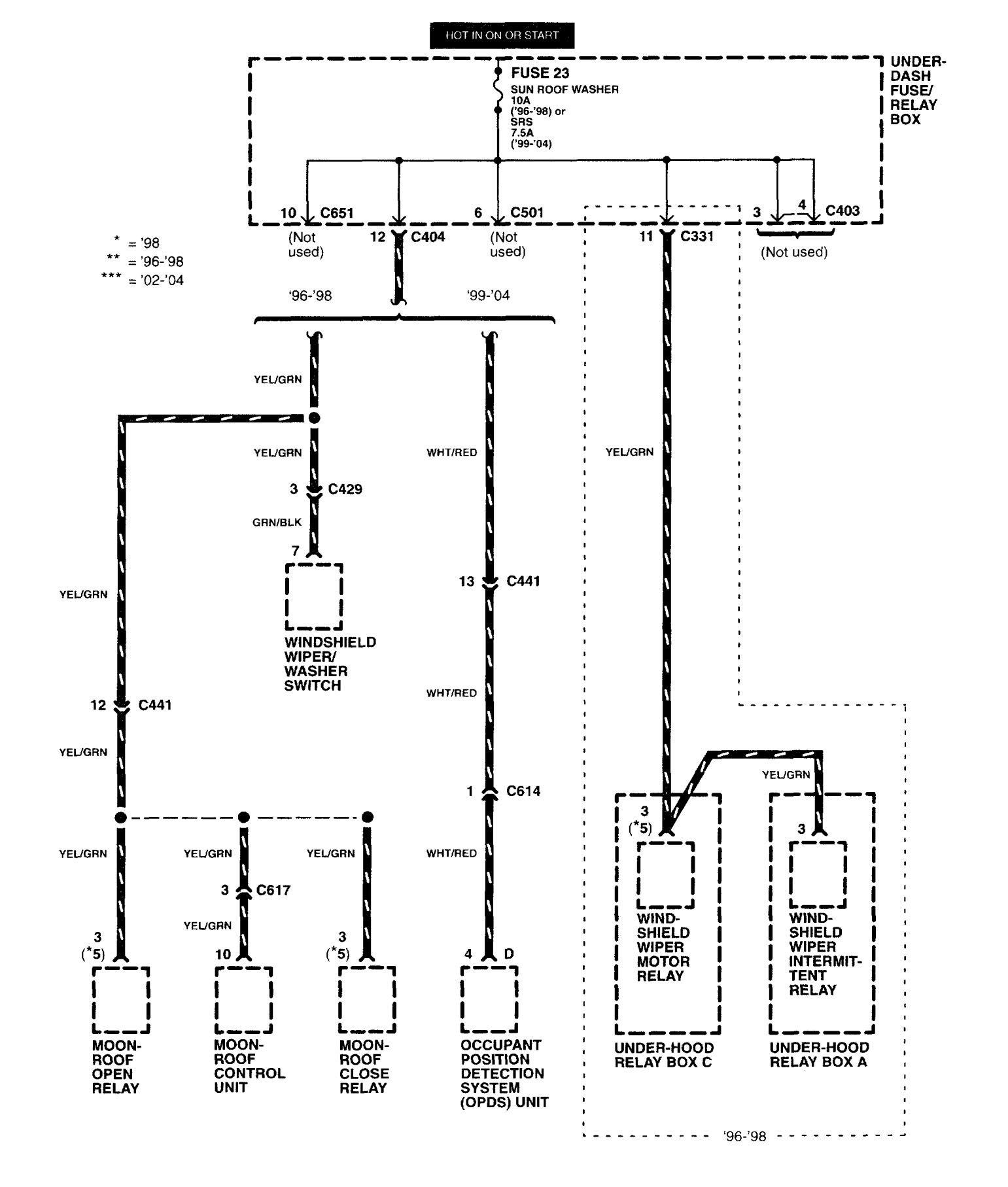

Acura RL - fuse box - power distribution (part 13) — Acura RL – fuse box – power distribution (part 13)

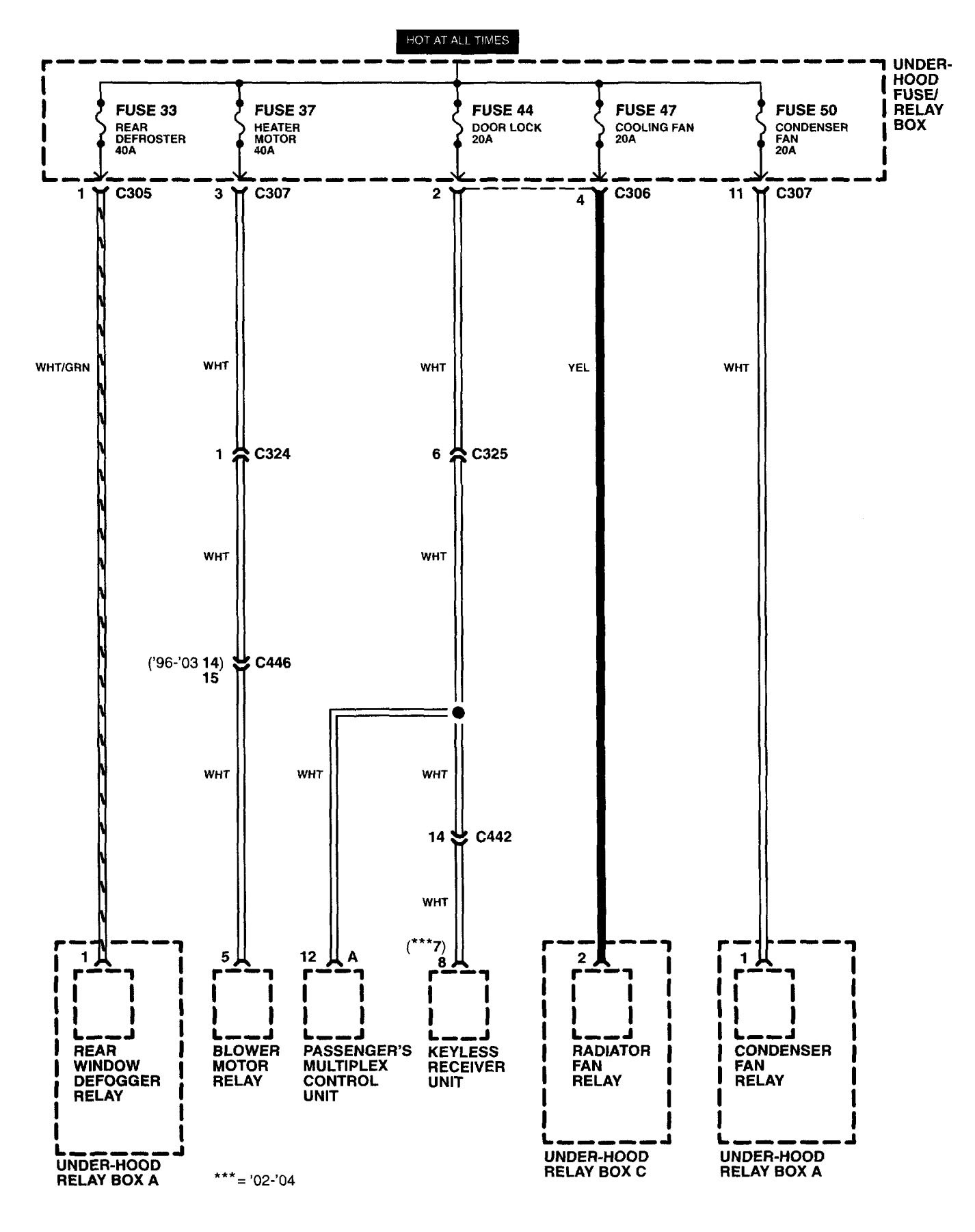

Acura RL - fuse box - power distribution (part 14) — Acura RL – fuse box – power distribution (part 14)

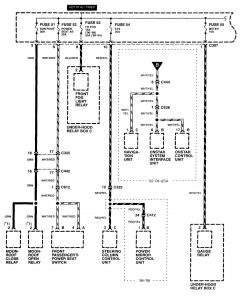

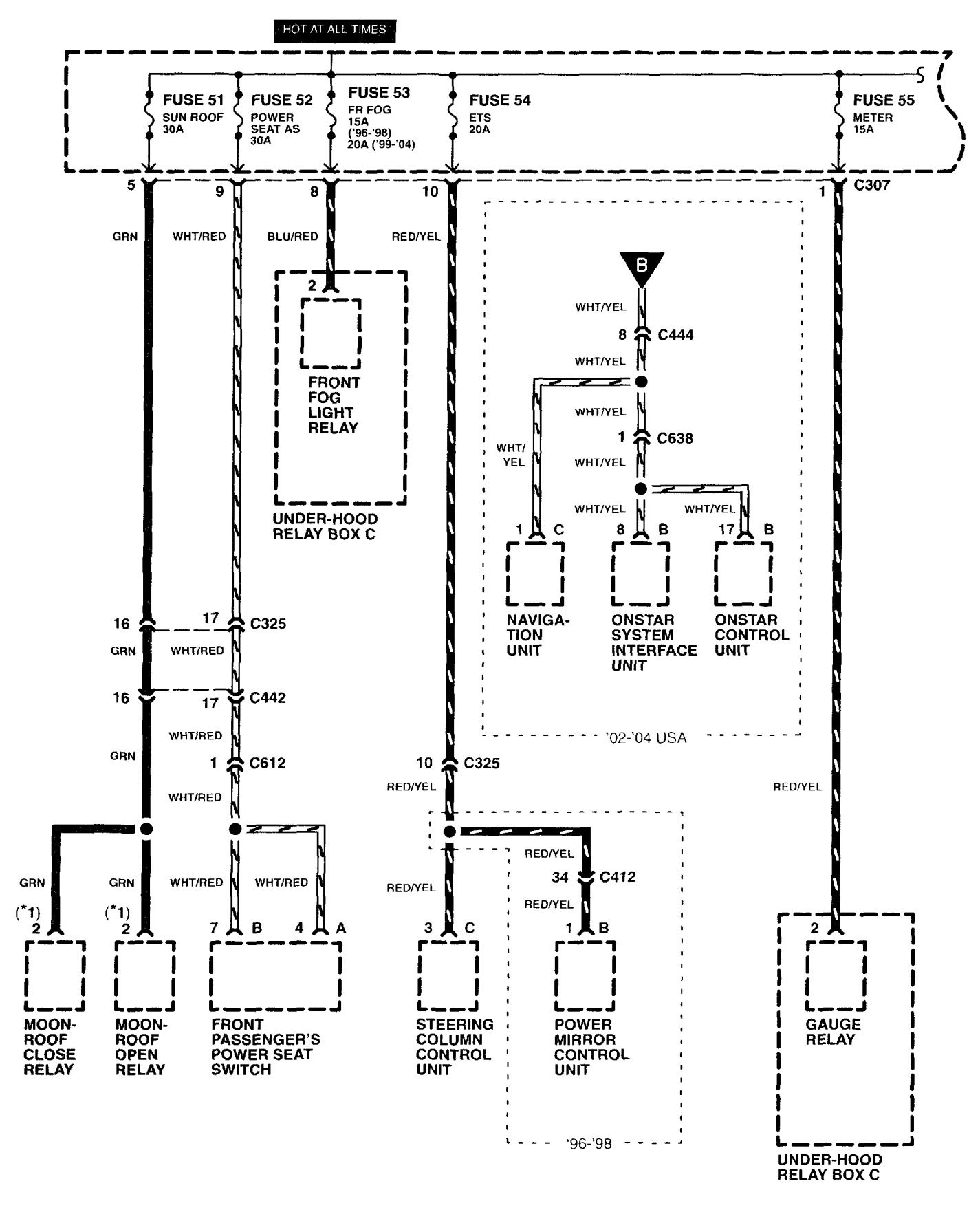

Acura RL - fuse box - power distribution (part 15) — Acura RL – fuse box – power distribution (part 15)

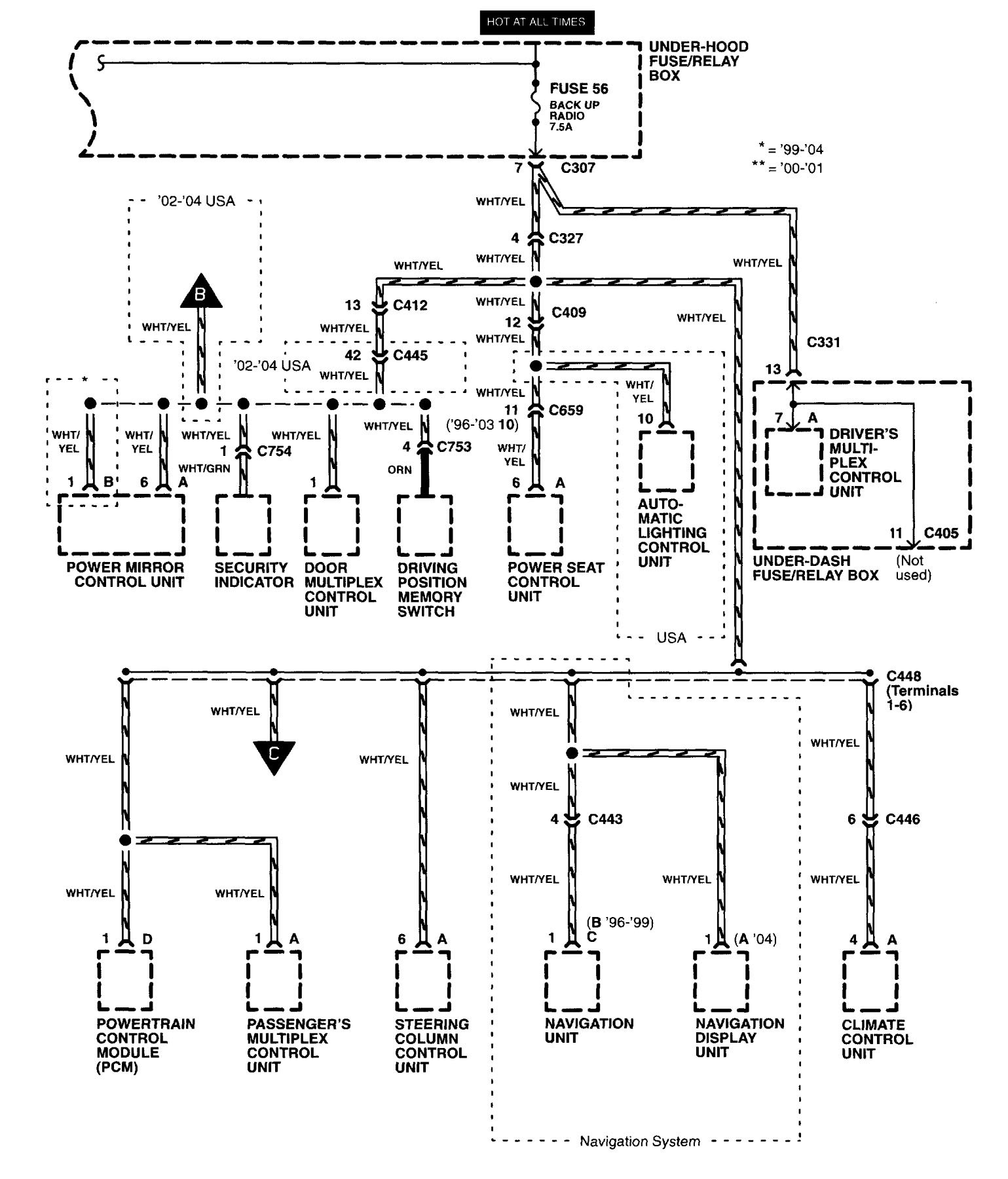

Acura RL - fuse box - power distribution (part 16) — Acura RL – fuse box – power distribution (part 16)

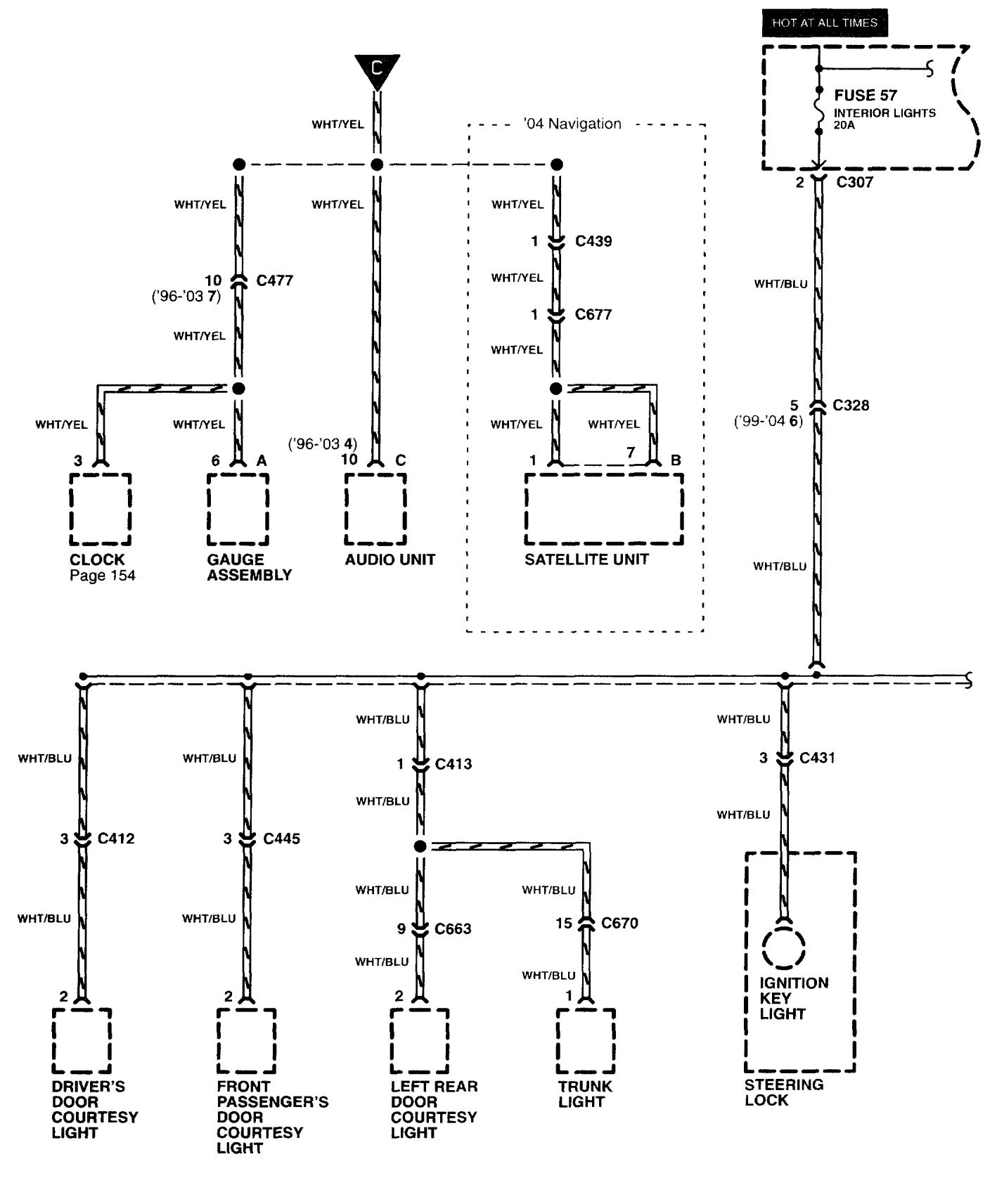

Acura RL - fuse box - power distribution (part 17) — Acura RL – fuse box – power distribution (part 17)

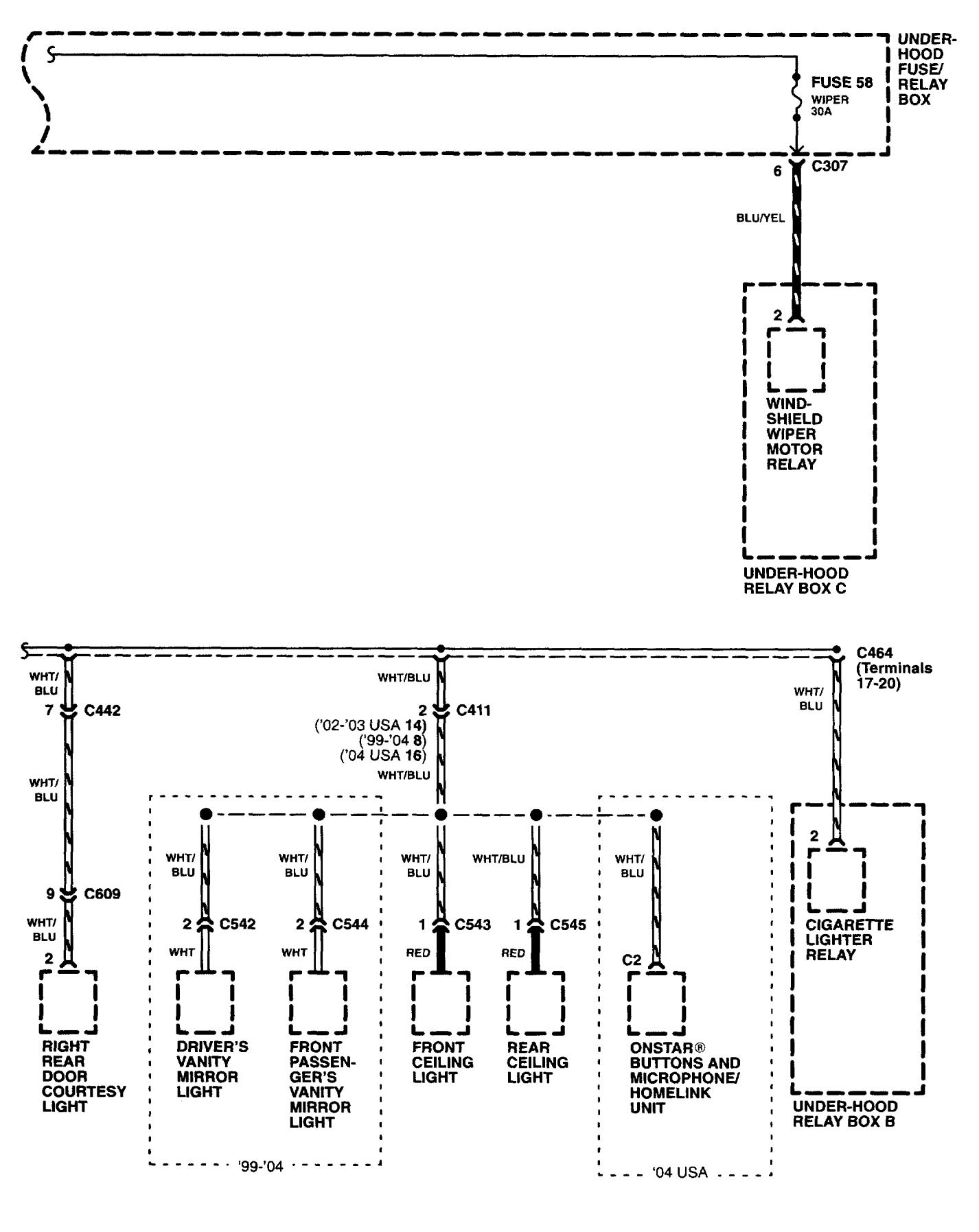

Acura RL - fuse box - power distribution (part 18) — Acura RL – fuse box – power distribution (part 18)

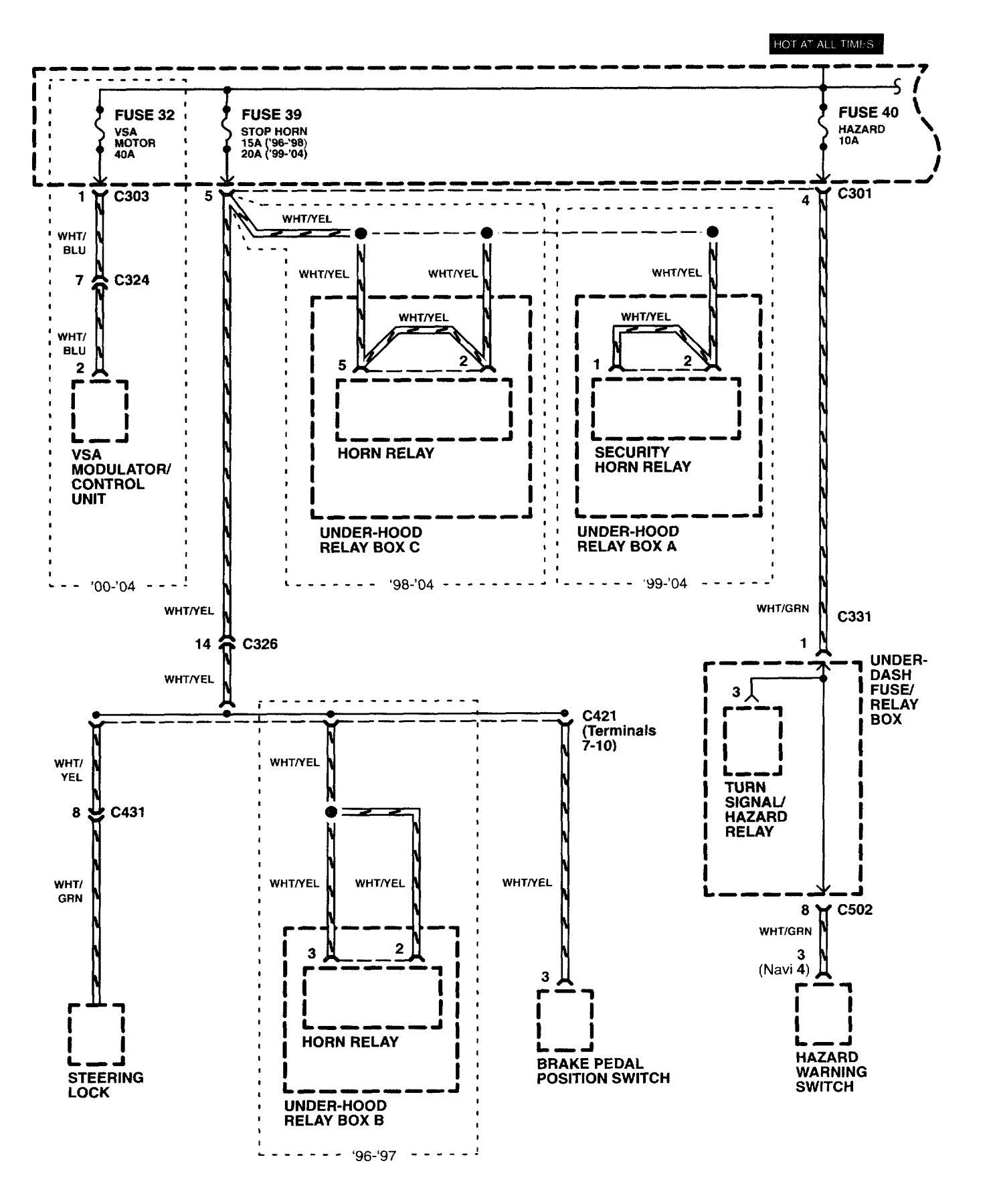

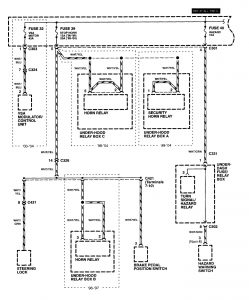

Acura RL - fuse box - power distribution (part 19) — Acura RL – fuse box – power distribution (part 19)

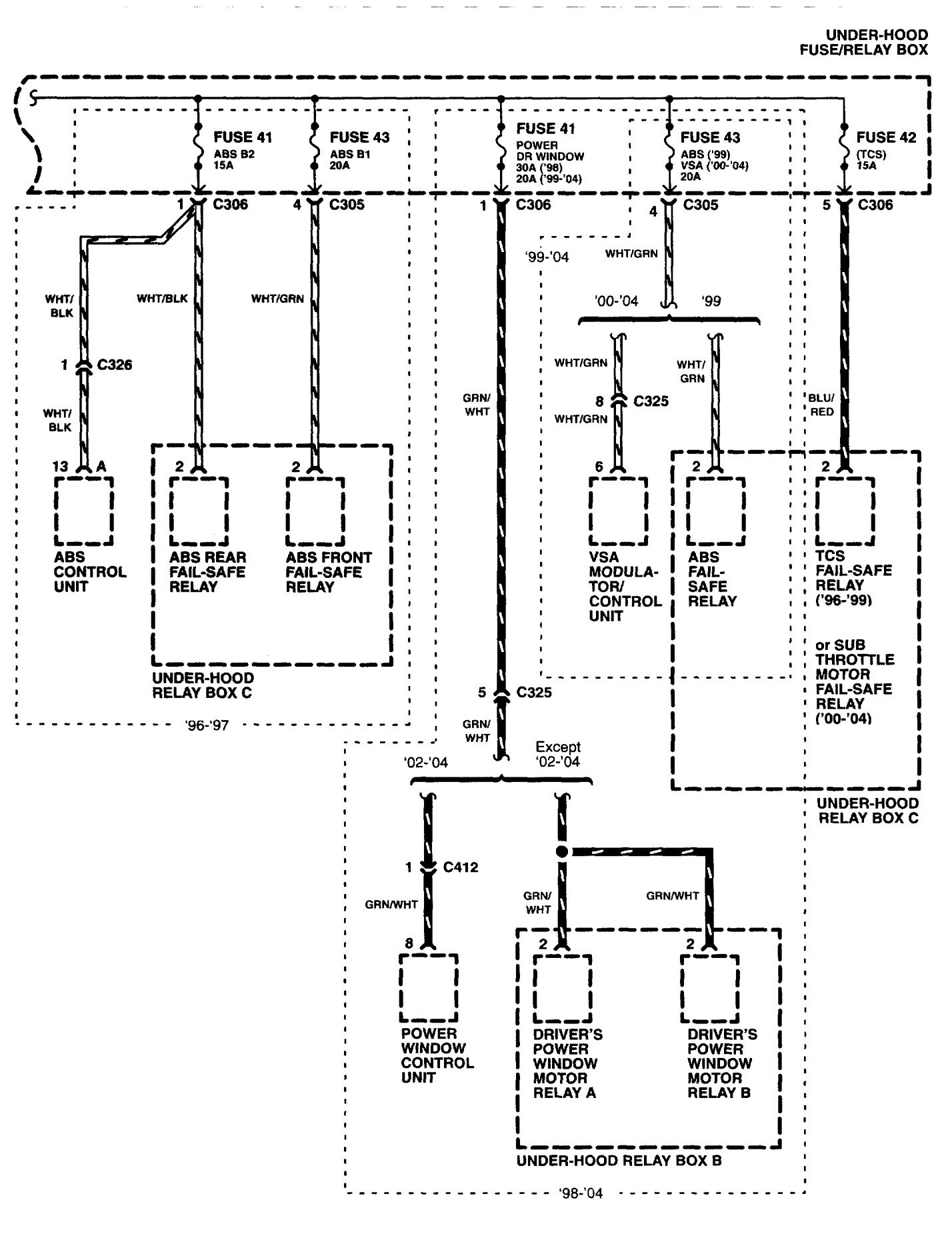

Acura RL - fuse box - power distribution (part 20) — Acura RL – fuse box – power distribution (part 20)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
