Acura RL (2003 – 2004) – wiring diagrams – power lumbar

Acura RL (2003 – 2004) – wiring diagrams – power lumbar

Year of productions:  2003, 2004

Power lumbar

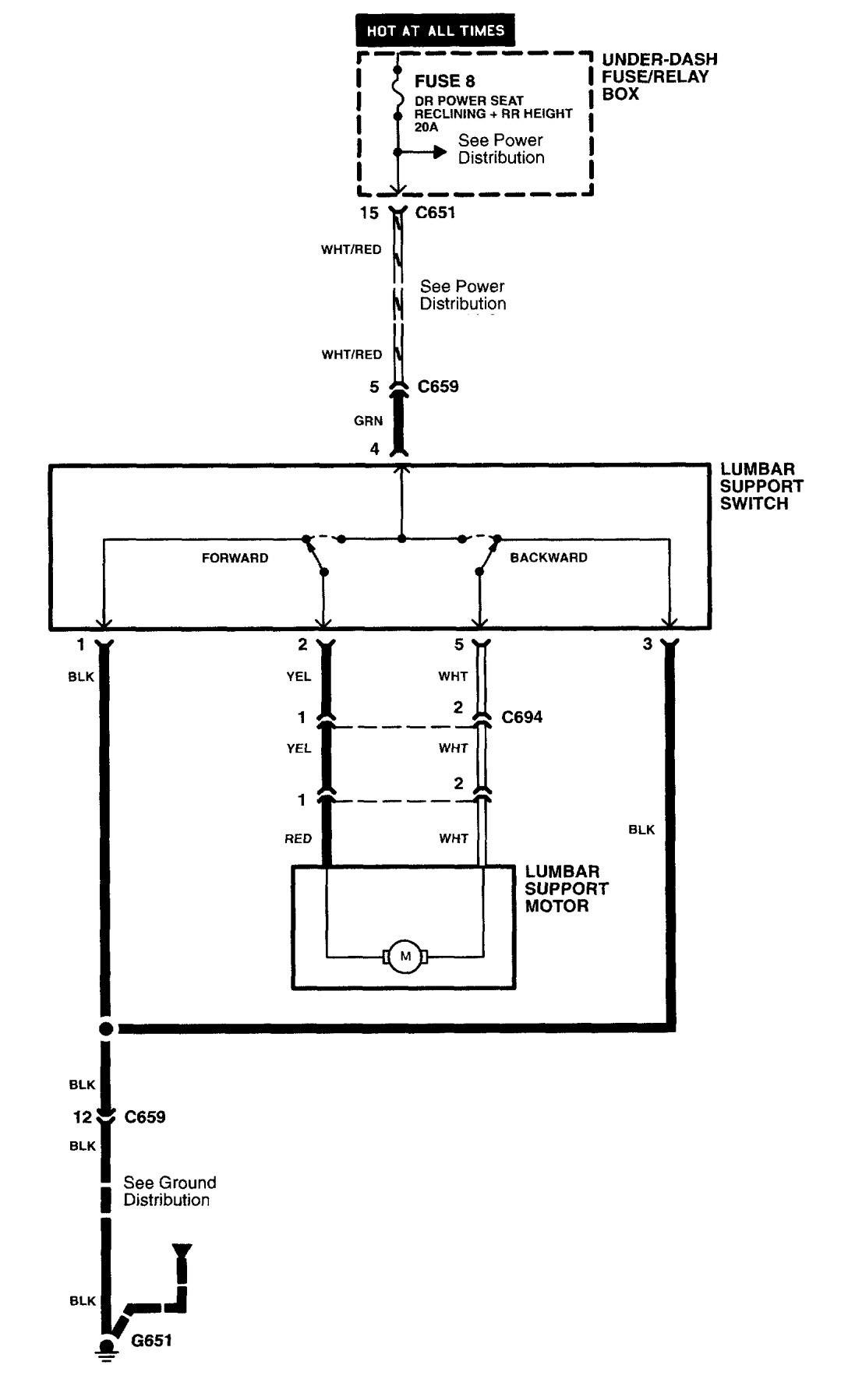

Acura RL - wiring diagram - power lumbar
Acura RL – wiring diagram – power lumbar

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
