Acura RL (2003 – 2004) – wiring diagrams – power seats

12 September 2017 admin Acura, RL 0

Acura RL (2003 – 2004) – wiring diagrams – power seats

Year of productions:  2003, 2004

Power seats

Version 1

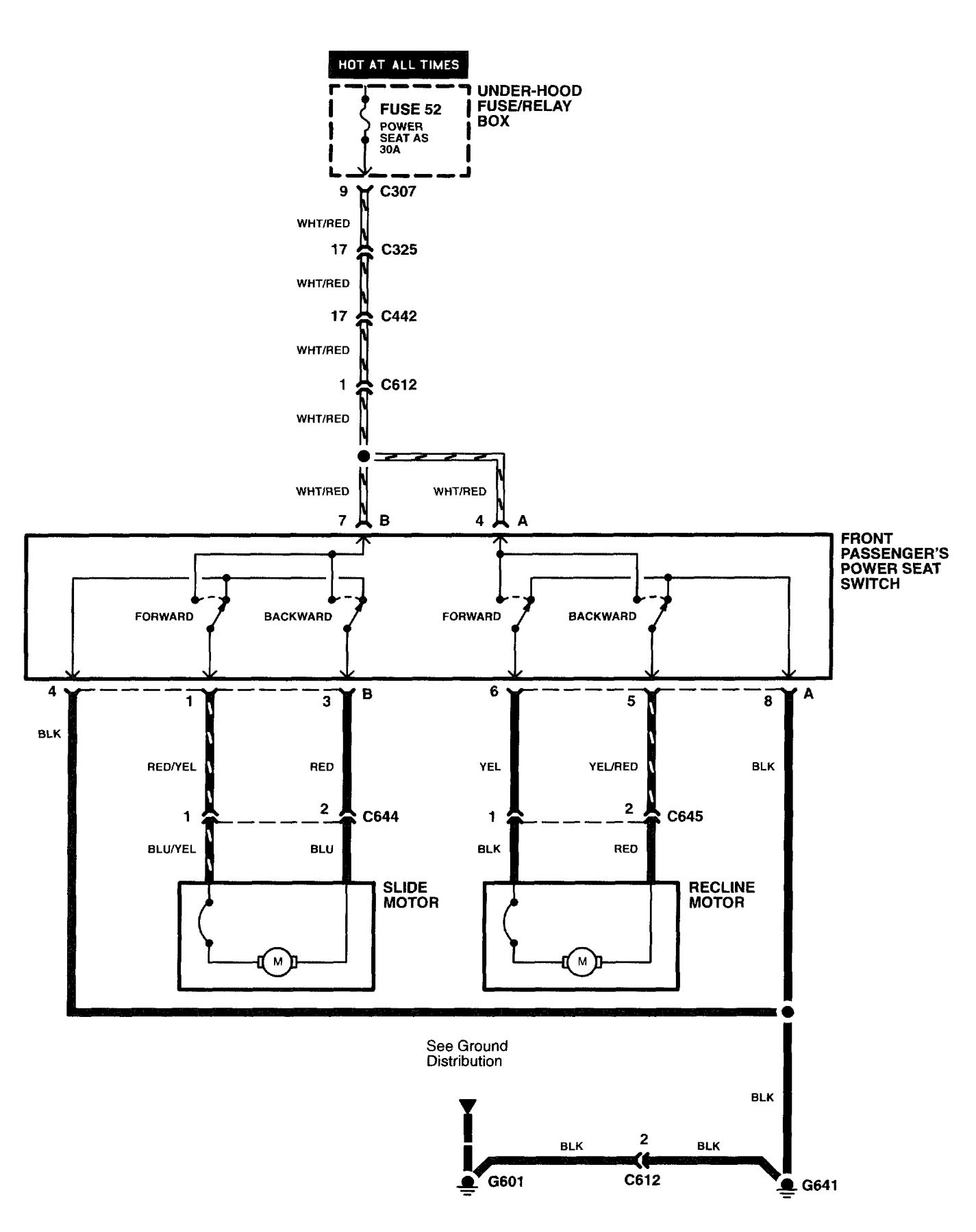

Acura RL - wiring diagram - power seats
Acura RL – wiring diagram – power seats

Version 2

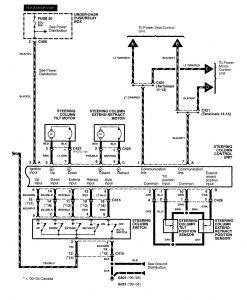

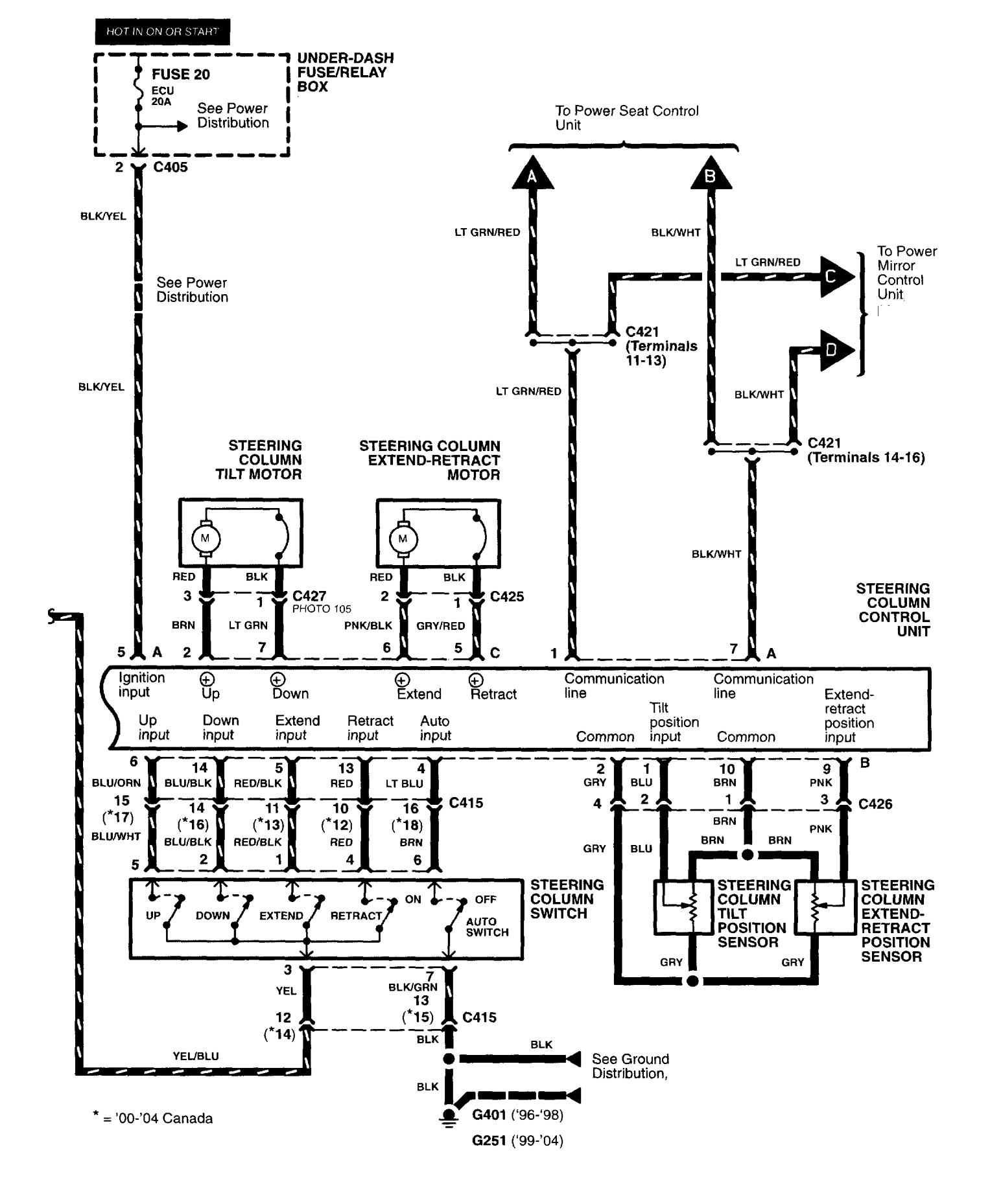

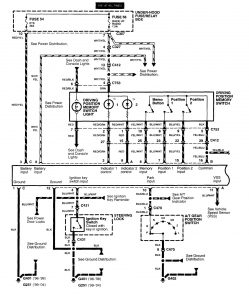

Acura RL - wiring diagram - power seats (part 1)
Acura RL – wiring diagram – power seats (part 1)

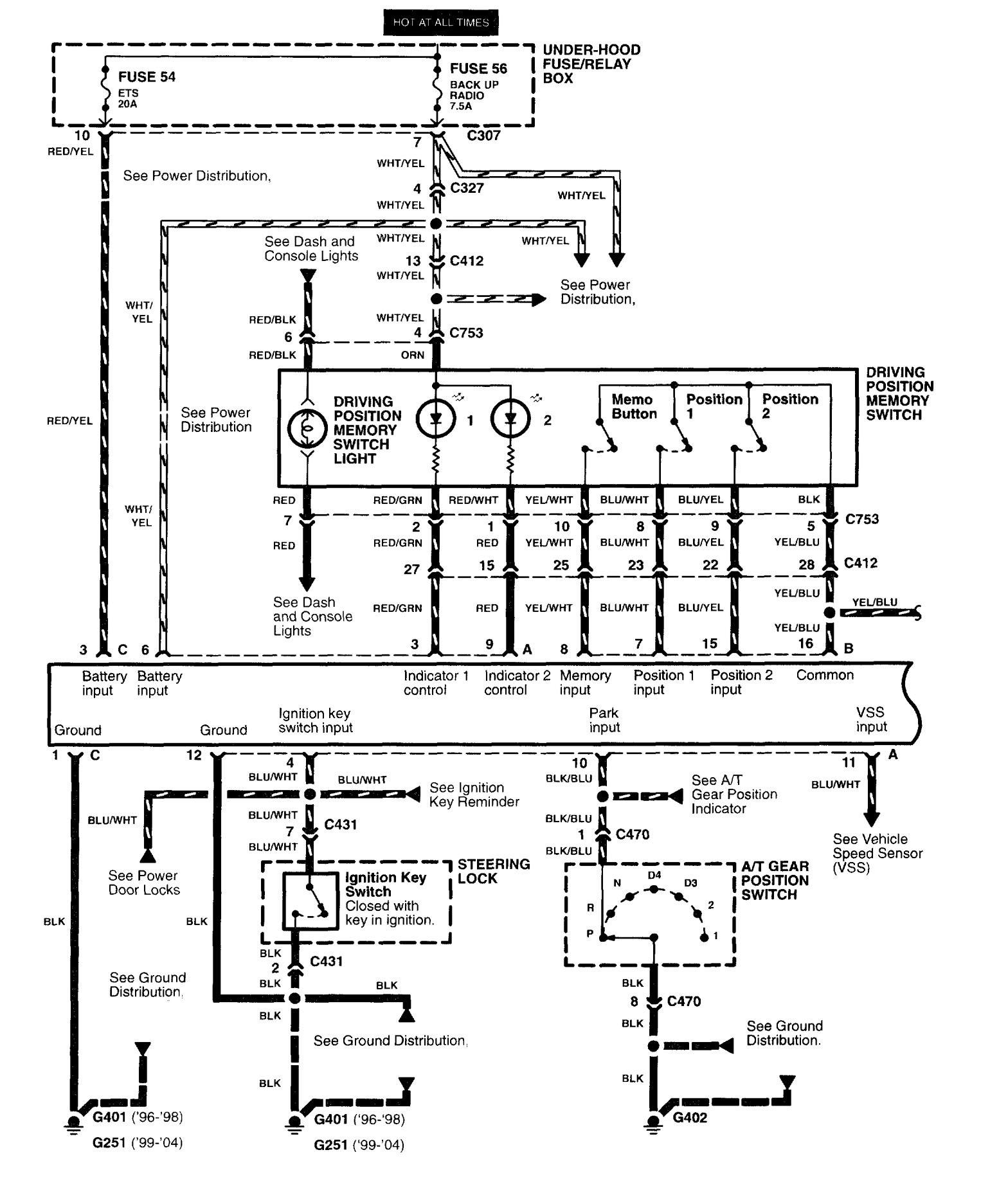

Acura RL - wiring diagram - power seats (part 2)
Acura RL – wiring diagram – power seats (part 2)

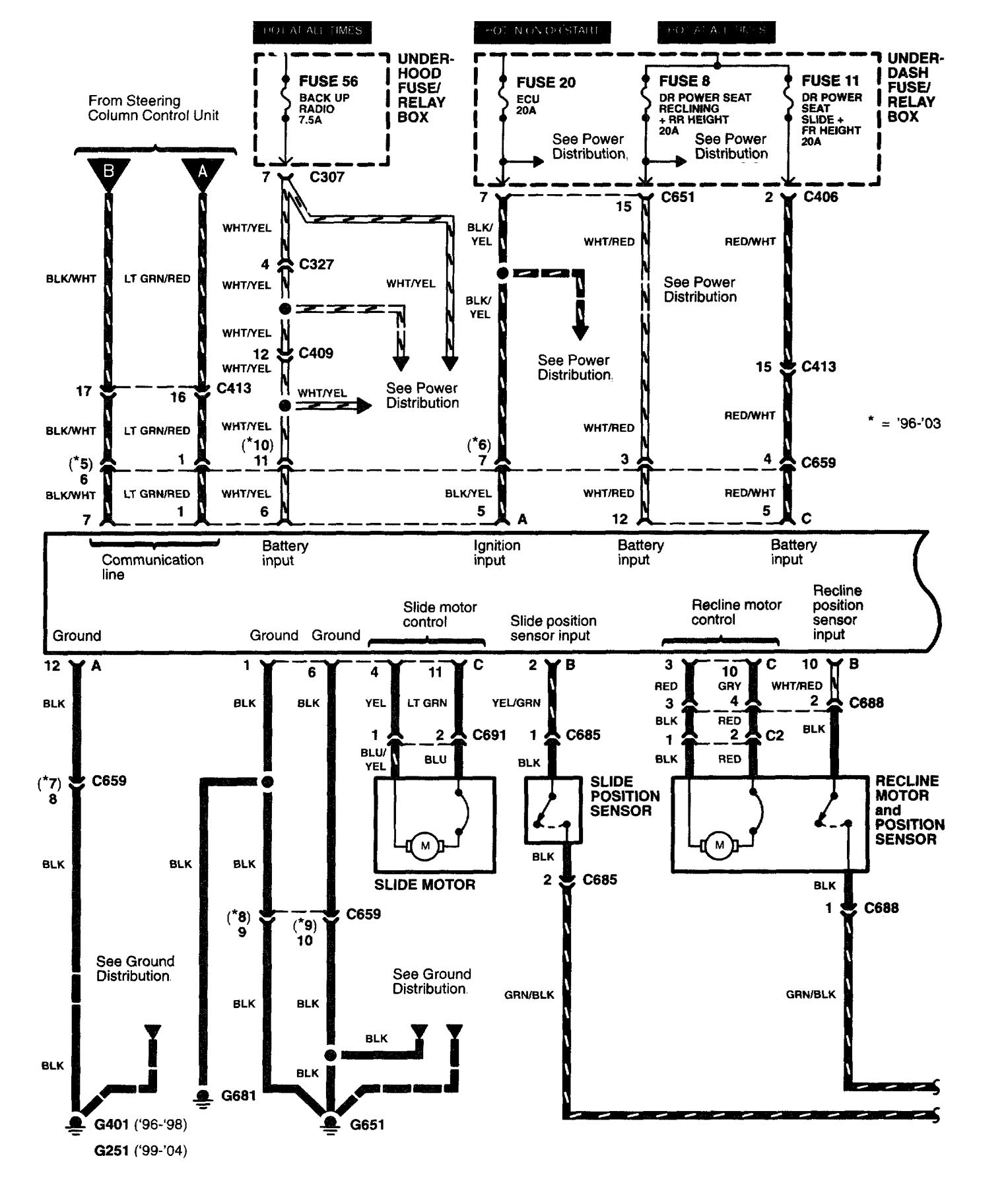

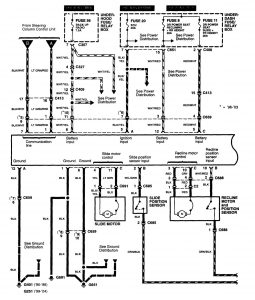

Acura RL - wiring diagram - power seats (part 3)
Acura RL – wiring diagram – power seats (part 3)

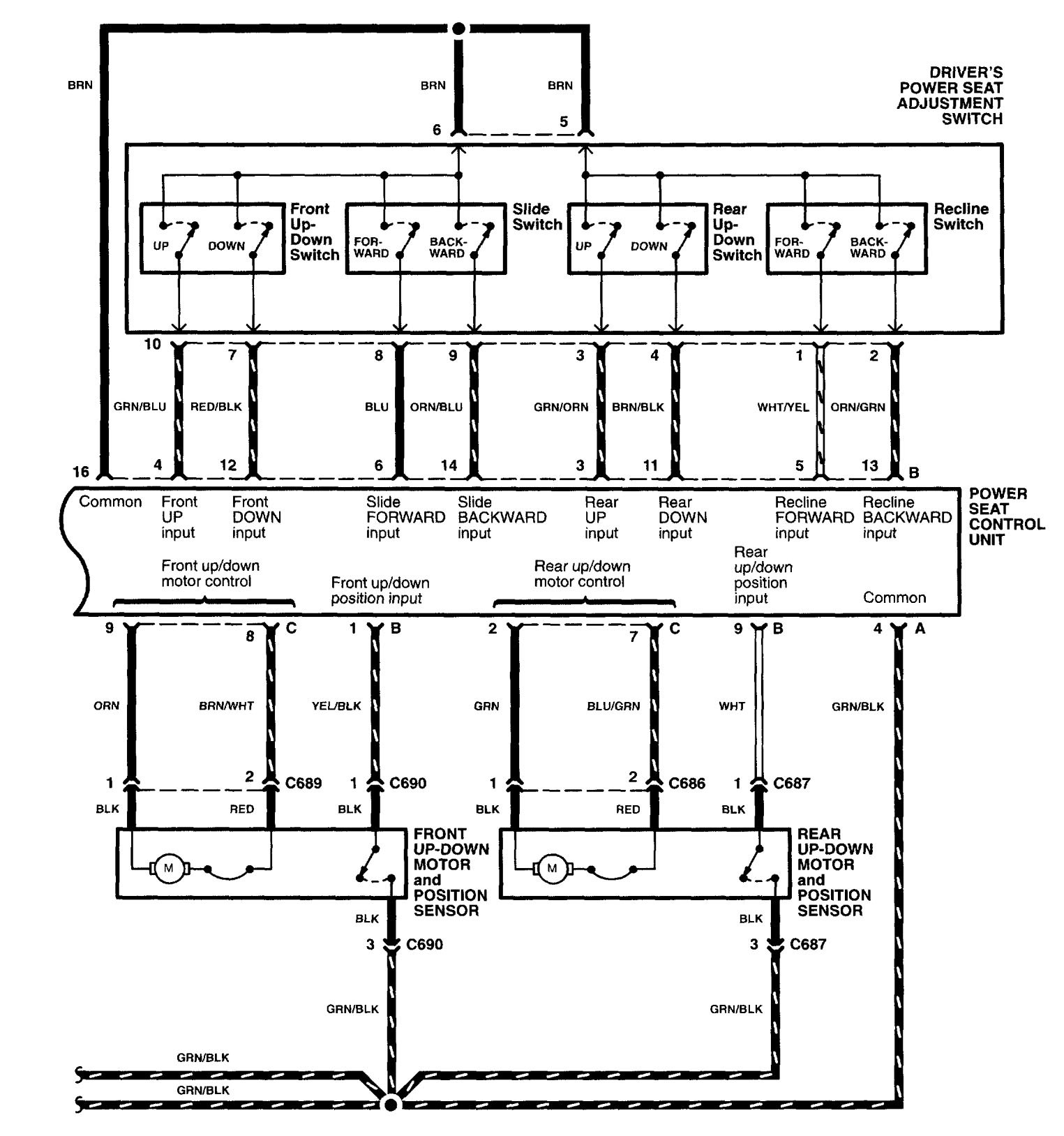

Acura RL - wiring diagram - power seats (part 4)
Acura RL – wiring diagram – power seats (part 4)

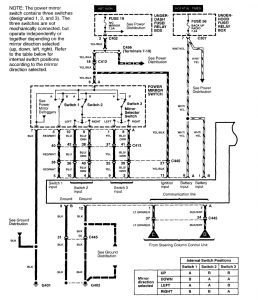

Acura RL - wiring diagram - power seats (part 5)
Acura RL – wiring diagram – power seats (part 5)
Acura RL - wiring diagram - power seats (part 6)
Acura RL – wiring diagram – power seats (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
