Acura RL (2003 – 2004) – wiring diagrams – rear window defogger

Acura RL (2003 – 2004) – wiring diagrams – rear window defogger

Year of productions:  2003, 2004

Rear window defogger

Version 1

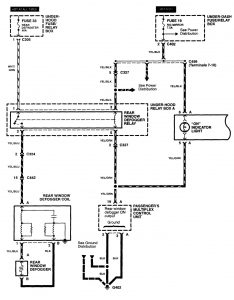

Acura RL - wiring diagram - rear window defogger (part 1)
Acura RL – wiring diagram – rear window defogger (part 1)

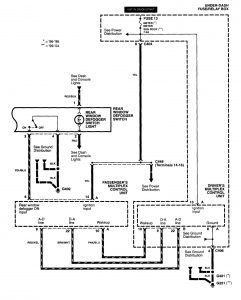

Acura RL - wiring diagram - rear window defogger (part 2)
Acura RL – wiring diagram – rear window defogger (part 2)

Version 2

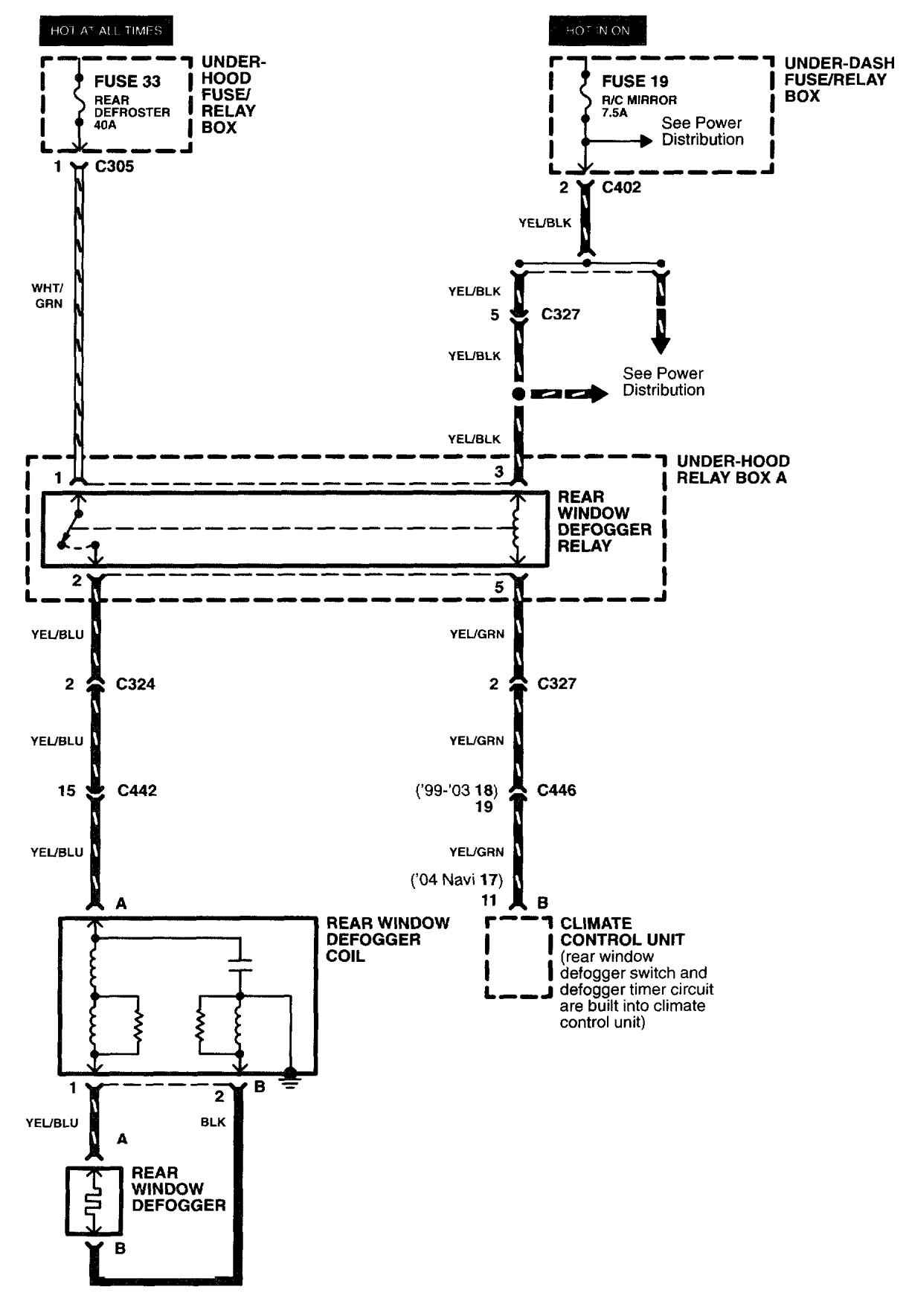

Acura RL - wiring diagram - rear window defogger
Acura RL – wiring diagram – rear window defogger

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
