Acura RL (2003 – 2004) – wiring diagrams – security/anti-theft

12 September 2017 admin Acura, RL 0

Acura RL (2003 – 2004) – wiring diagrams – security/anti-theft

Year of productions:  2003, 2004

Security/Anti-theft

Version 1

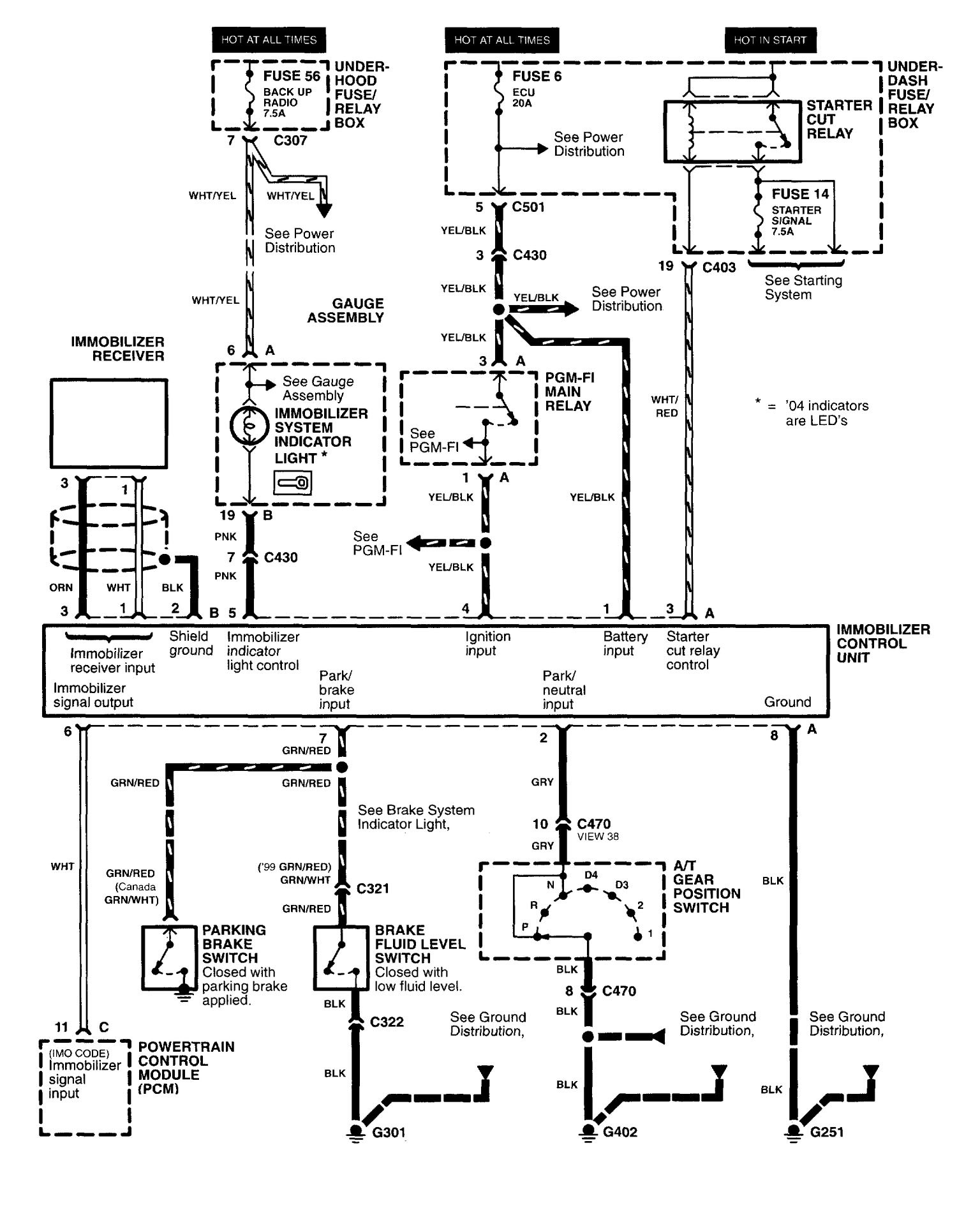

Acura RL - wiring diagram - security/anti-theft (part 1)
Acura RL – wiring diagram – security/anti-theft (part 1)

Version 2

Acura RL - wiring diagram - security/anti-theft (part 1)
Acura RL – wiring diagram – security/anti-theft (part 1)
Acura RL - wiring diagram - security/anti-theft (part 2)
Acura RL – wiring diagram – security/anti-theft (part 2)

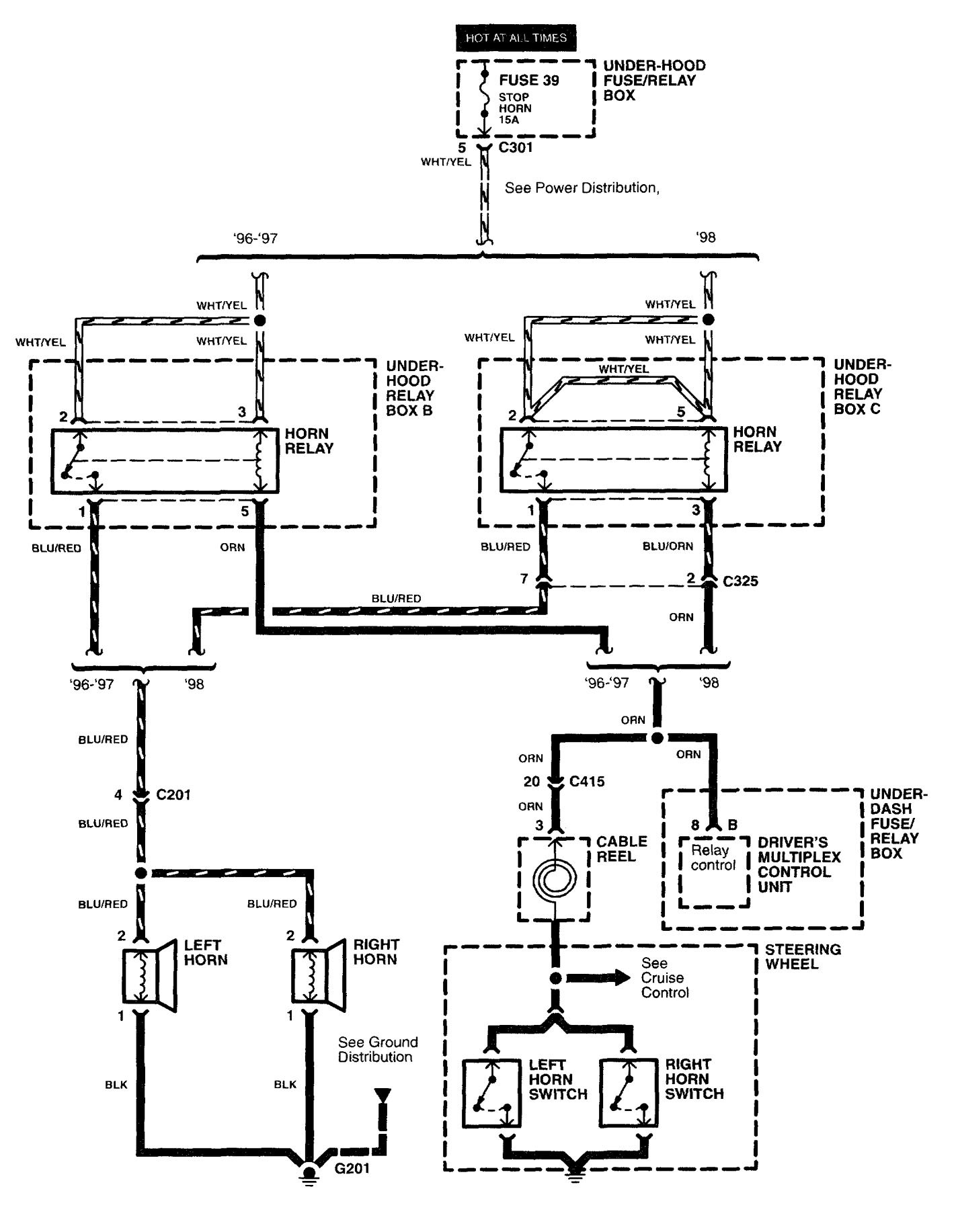

Acura RL - wiring diagram - security/anti-theft (part 3)
Acura RL – wiring diagram – security/anti-theft (part 3)

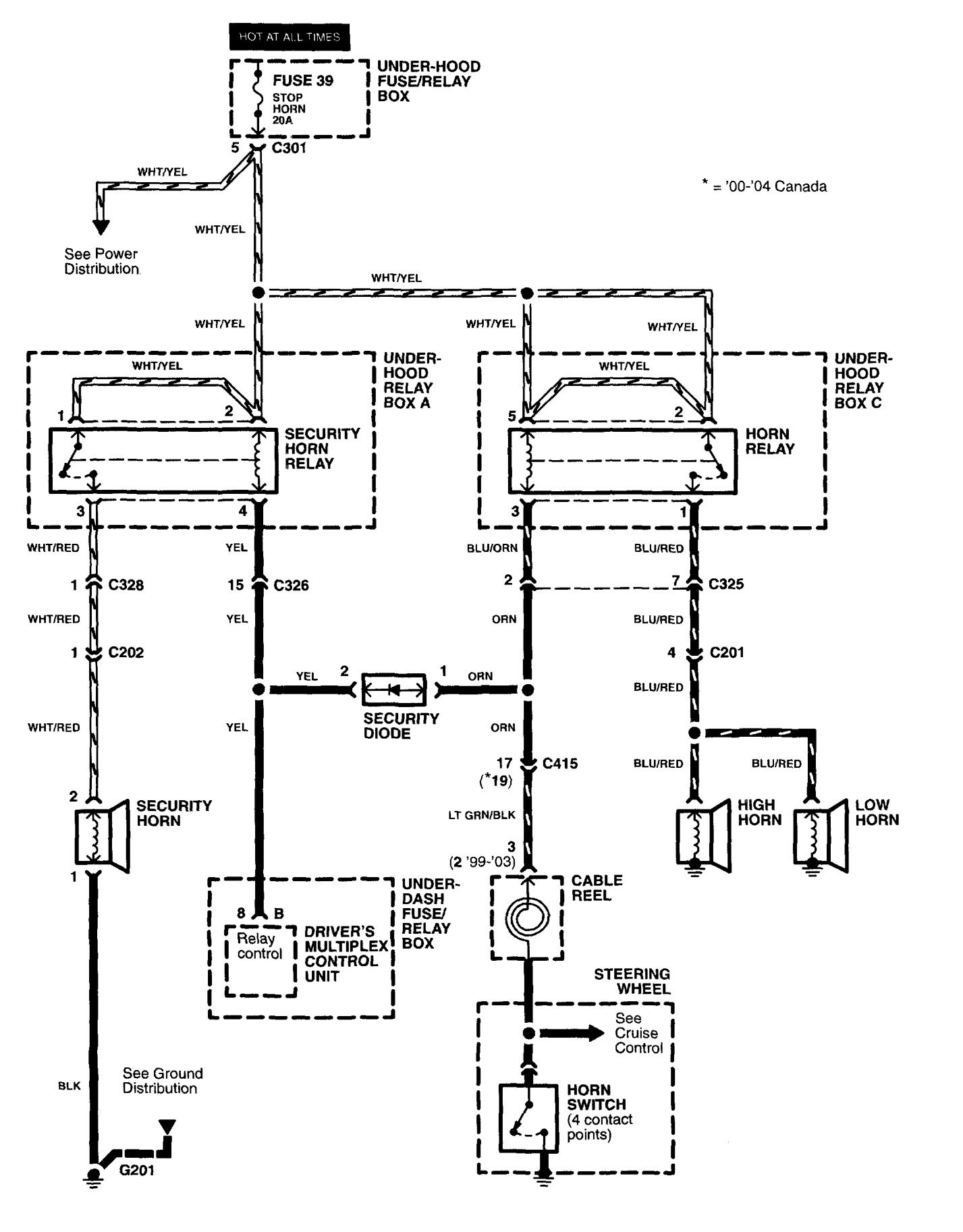

Acura RL - wiring diagram - security/anti-theft (part 4)
Acura RL – wiring diagram – security/anti-theft (part 4)

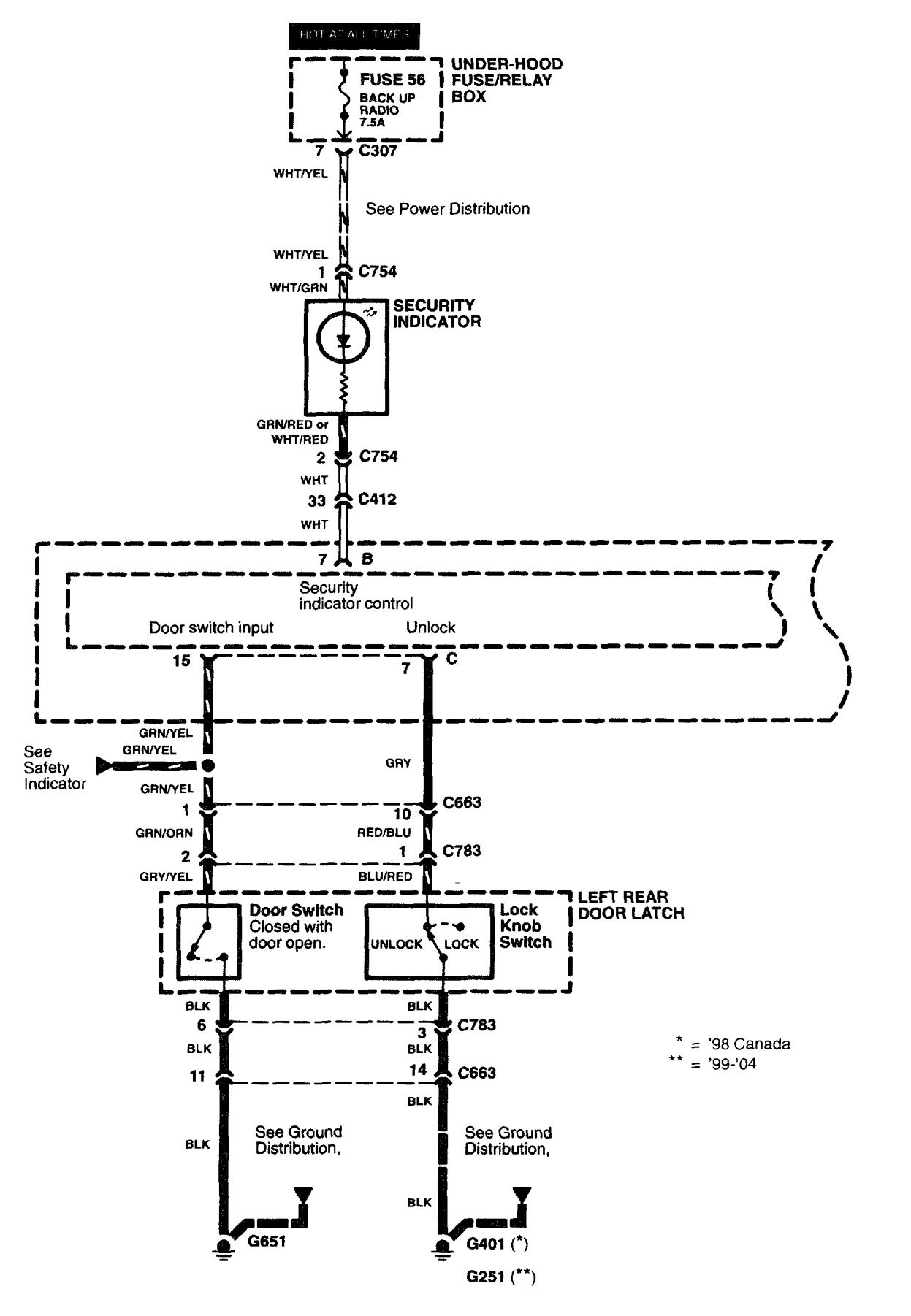

Acura RL - wiring diagram - security/anti-theft (part 5)
Acura RL – wiring diagram – security/anti-theft (part 5)

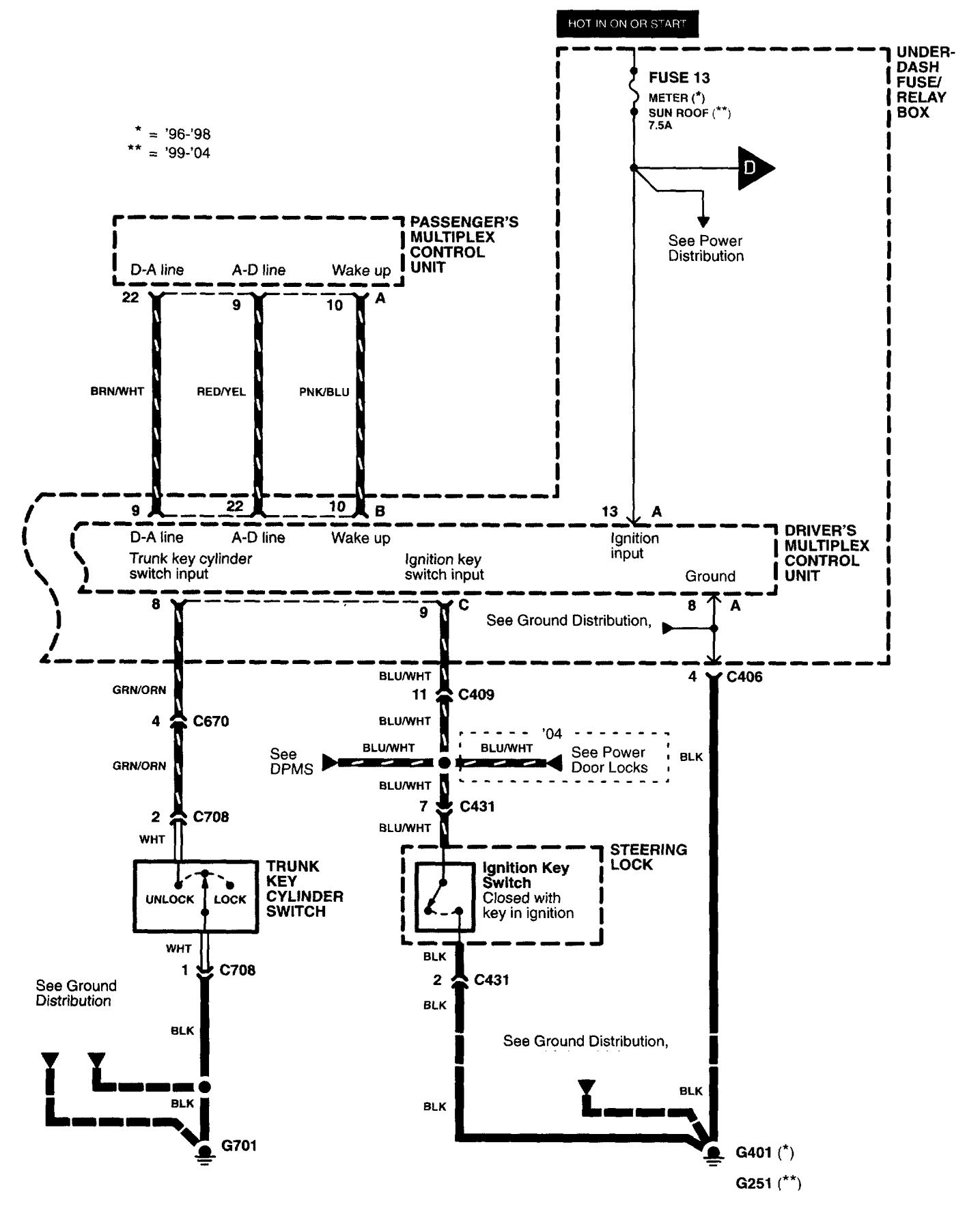

Acura RL - wiring diagram - security/anti-theft (part 6)
Acura RL – wiring diagram – security/anti-theft (part 6)

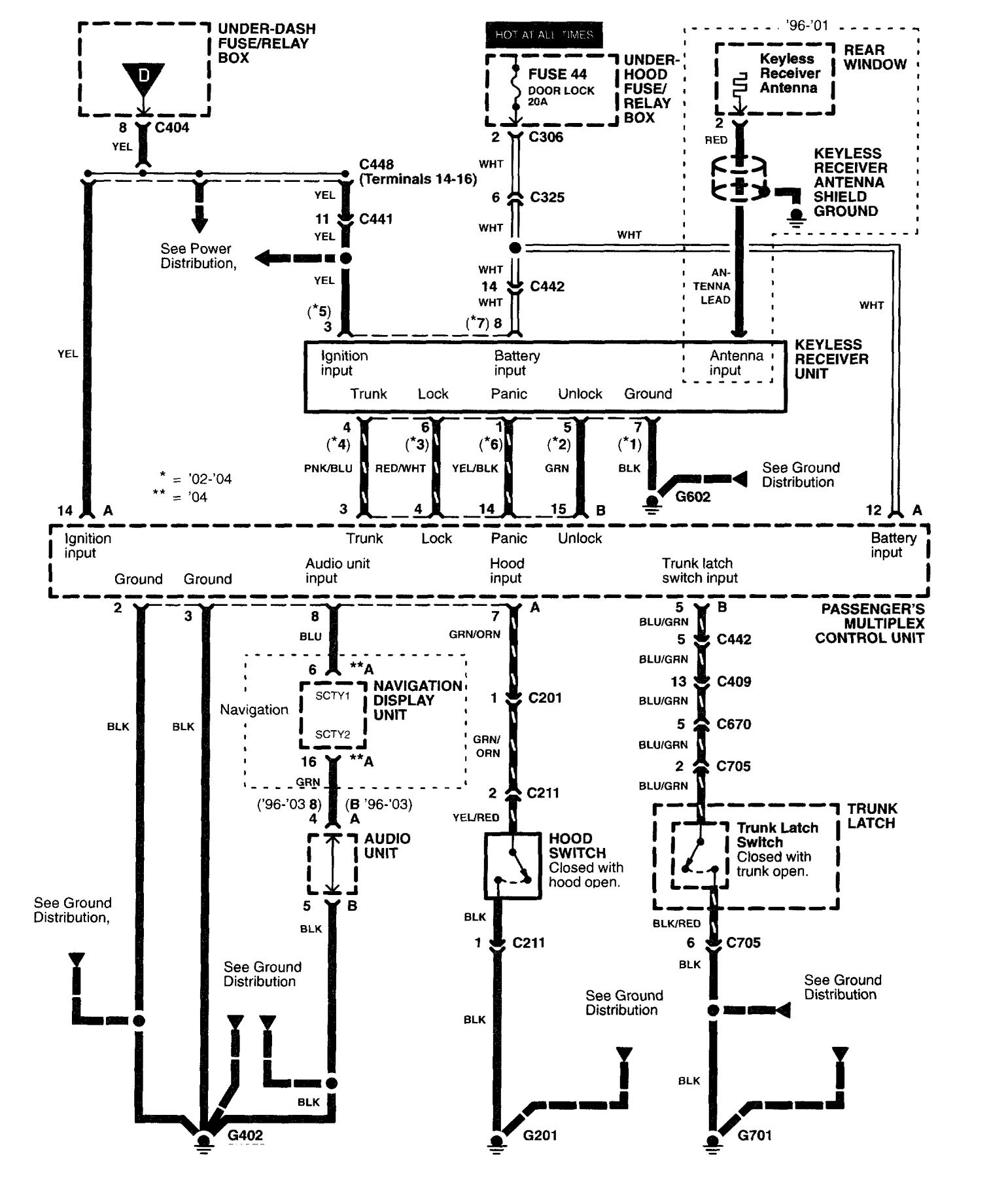

Acura RL - wiring diagram - security/anti-theft (part 7)
Acura RL – wiring diagram – security/anti-theft (part 7)

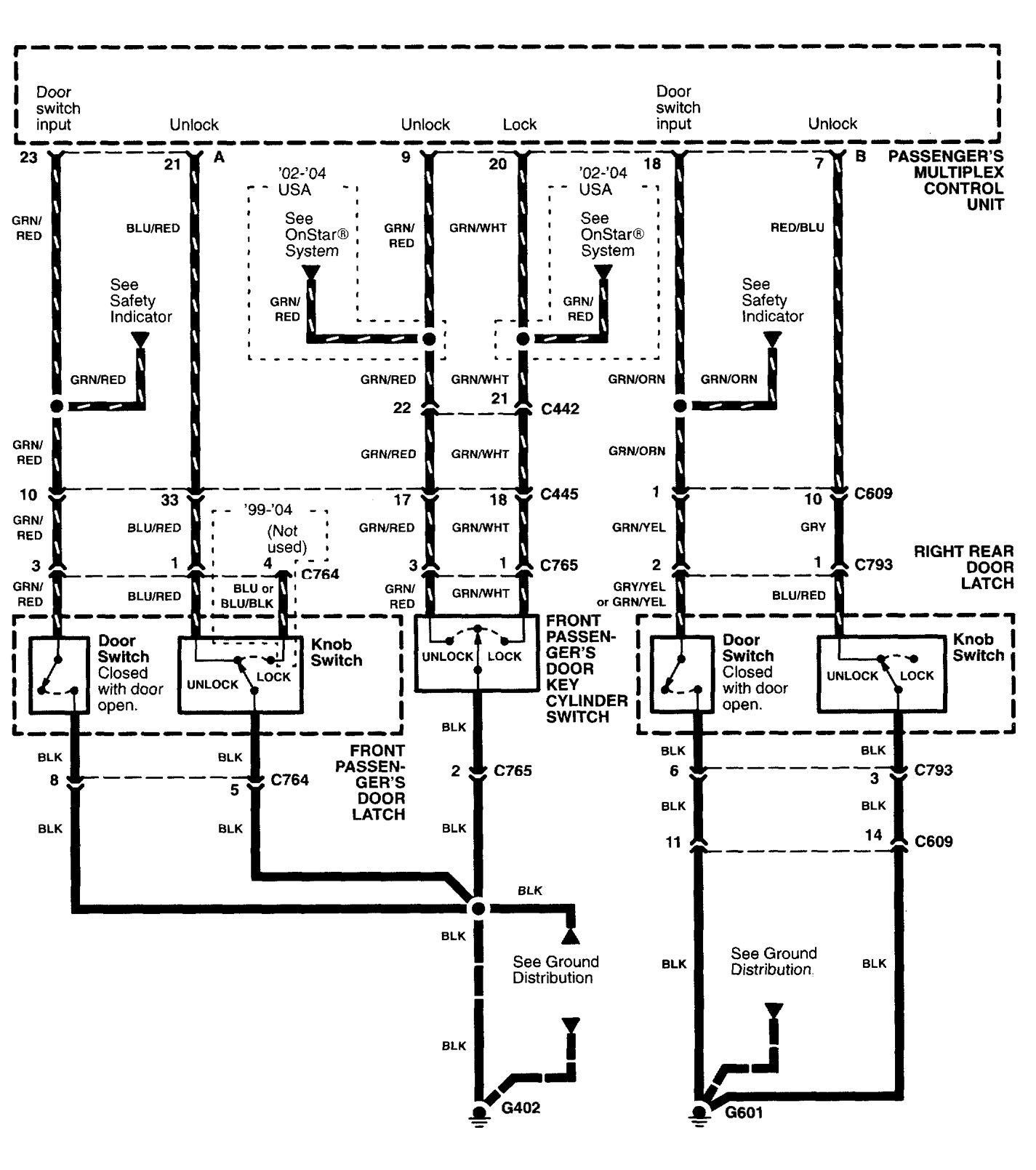

Acura RL - wiring diagram - security/anti-theft (part 8)
Acura RL – wiring diagram – security/anti-theft (part 8)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
