Acura RL (2003 – 2004) – wiring diagrams – stop lamp

Acura RL (2003 – 2004) – wiring diagrams – stop lamp

Year of production:  2003, 2004

Stop lamp

Version 1

Acura RL - wiring diagram - stop lamp
Acura RL – wiring diagram – stop lamp

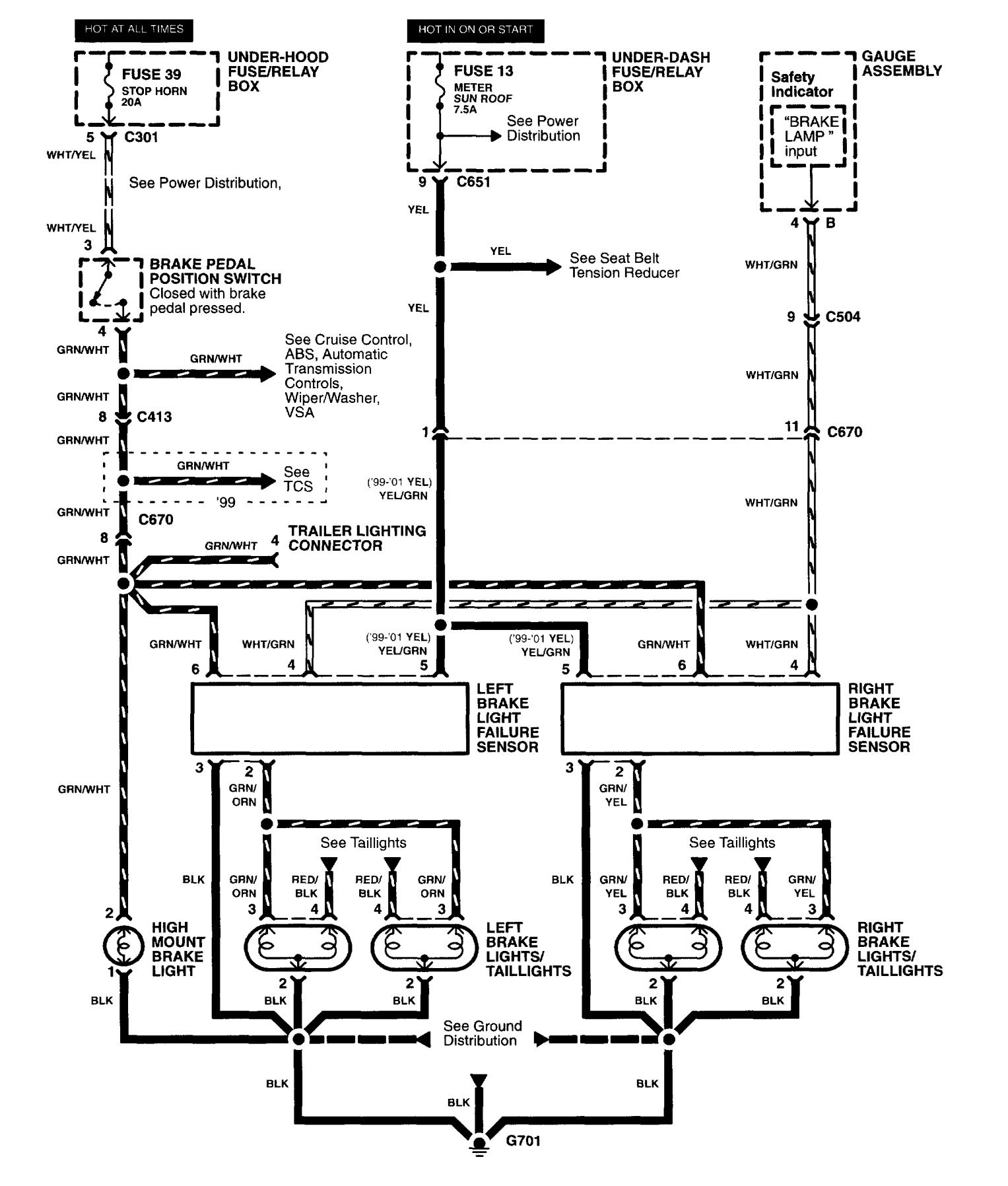

Version 2

Acura RL - wiring diagram - stop lamp
Acura RL – wiring diagram – stop lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
