Acura RL (2003 – 2004) – wiring diagrams – wiper/washer

Acura RL (2003 – 2004) – wiring diagrams – wiper/washer

Year of productions:  2003, 2004

Wiper/washer

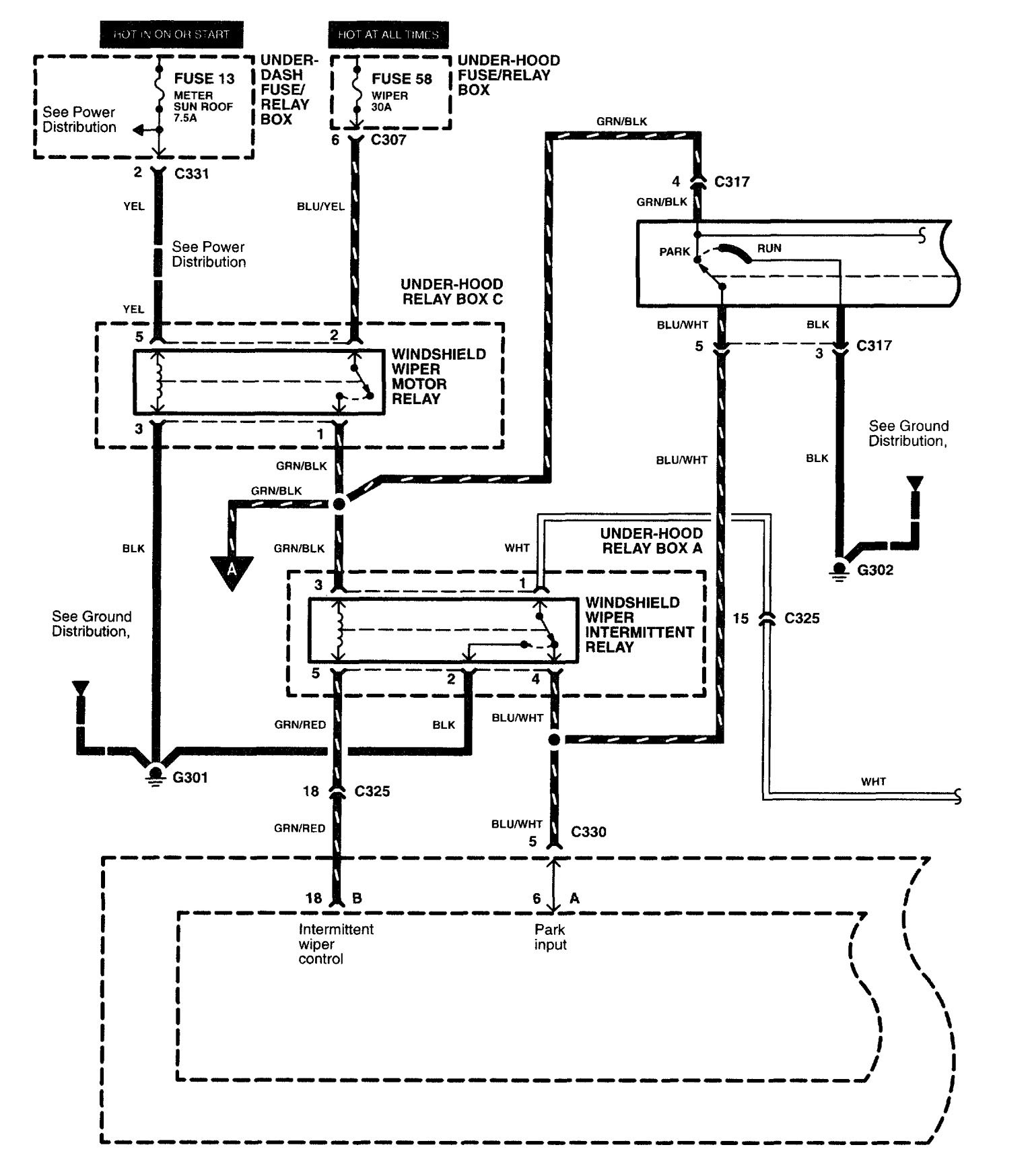

Acura RL - wiring diagram - wiper/washer (part 1)
Acura RL – wiring diagram – wiper/washer (part 1)

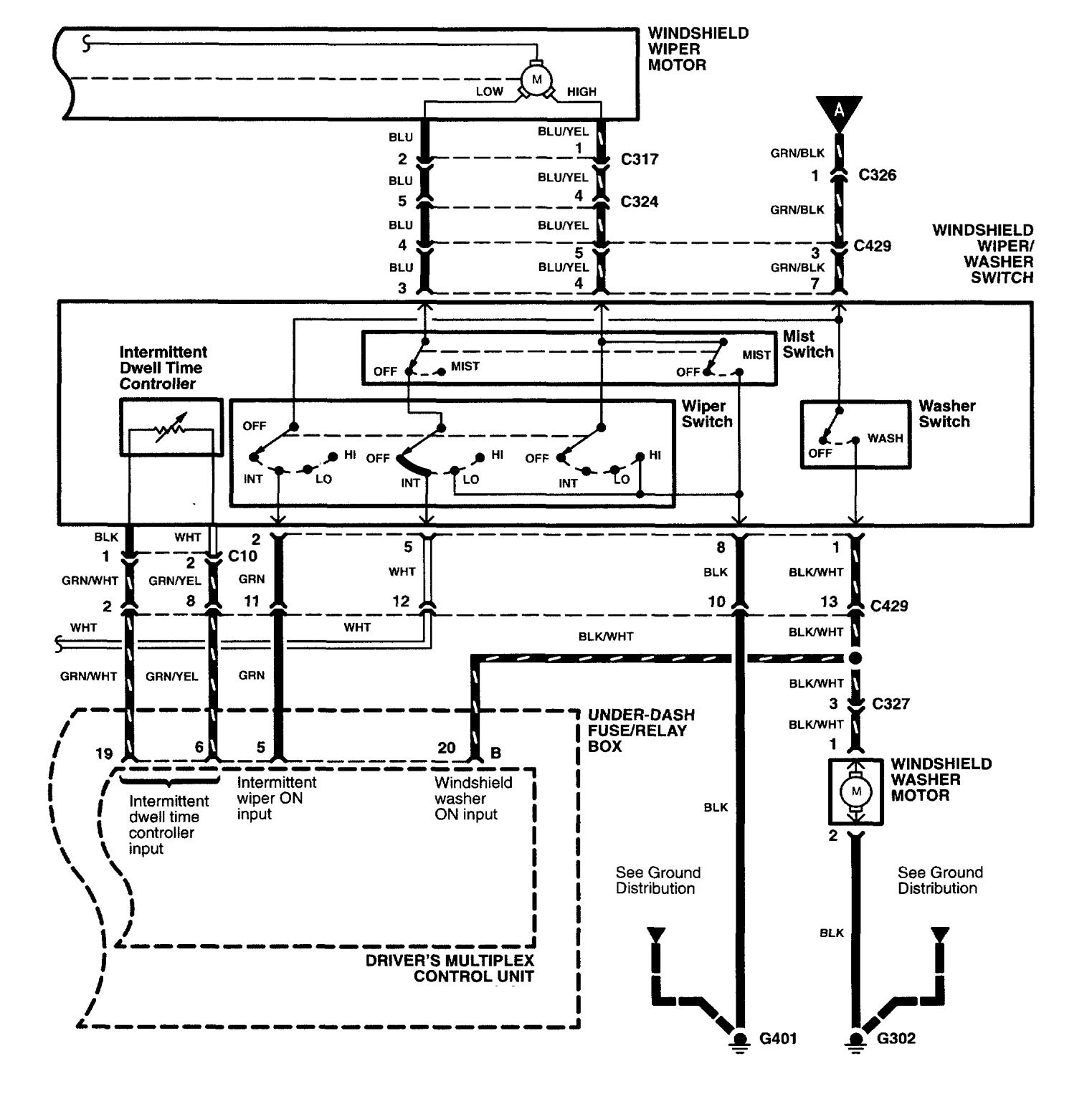

Acura RL - wiring diagram - wiper/washer (part 2)
Acura RL – wiring diagram – wiper/washer (part 2)
Acura RL - wiring diagram - wiper/washer (part 3)
Acura RL – wiring diagram – wiper/washer (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
