Year of productions:  2004

Audio

Version 1

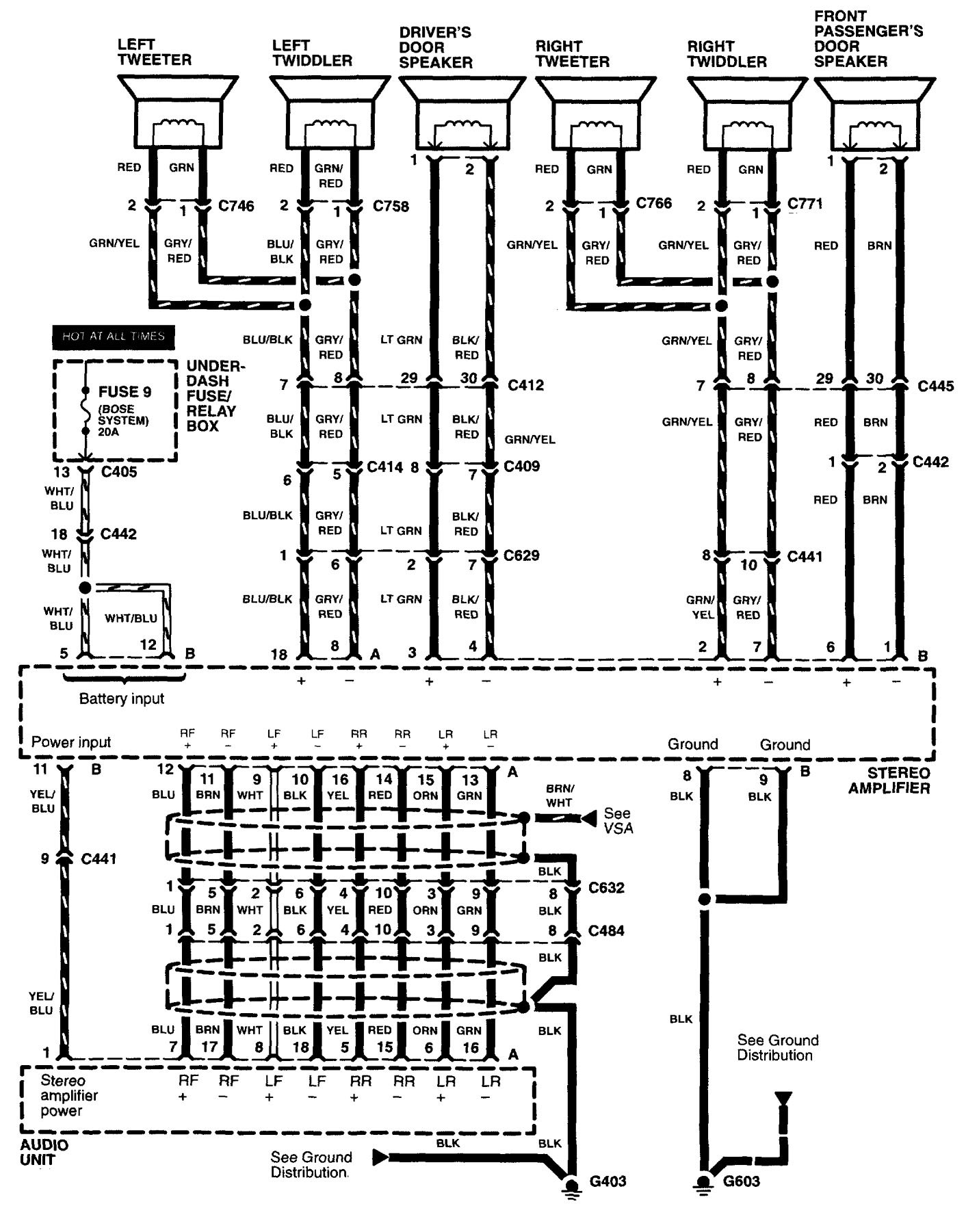

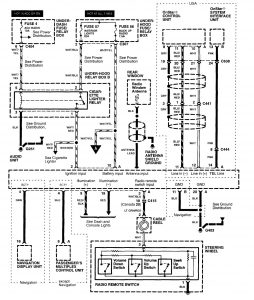

Acura RL - wiring diagram -  audio (part 1)
Acura RL – wiring diagram – audio (part 1)
Acura RL - wiring diagram -  audio (part 2)
Acura RL – wiring diagram – audio (part 2)

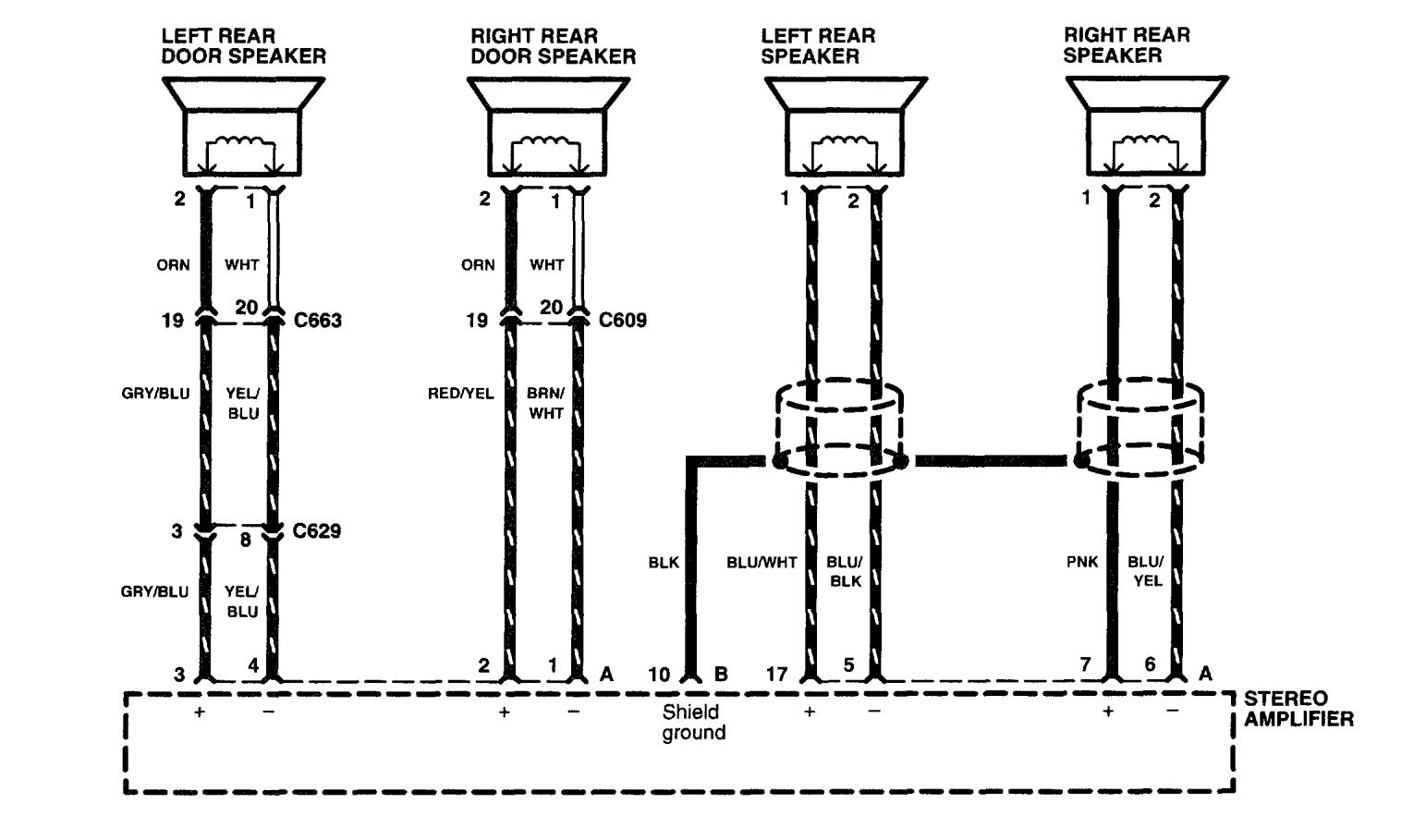

Acura RL - wiring diagram -  audio (part 3)
Acura RL – wiring diagram – audio (part 3)

Version 2

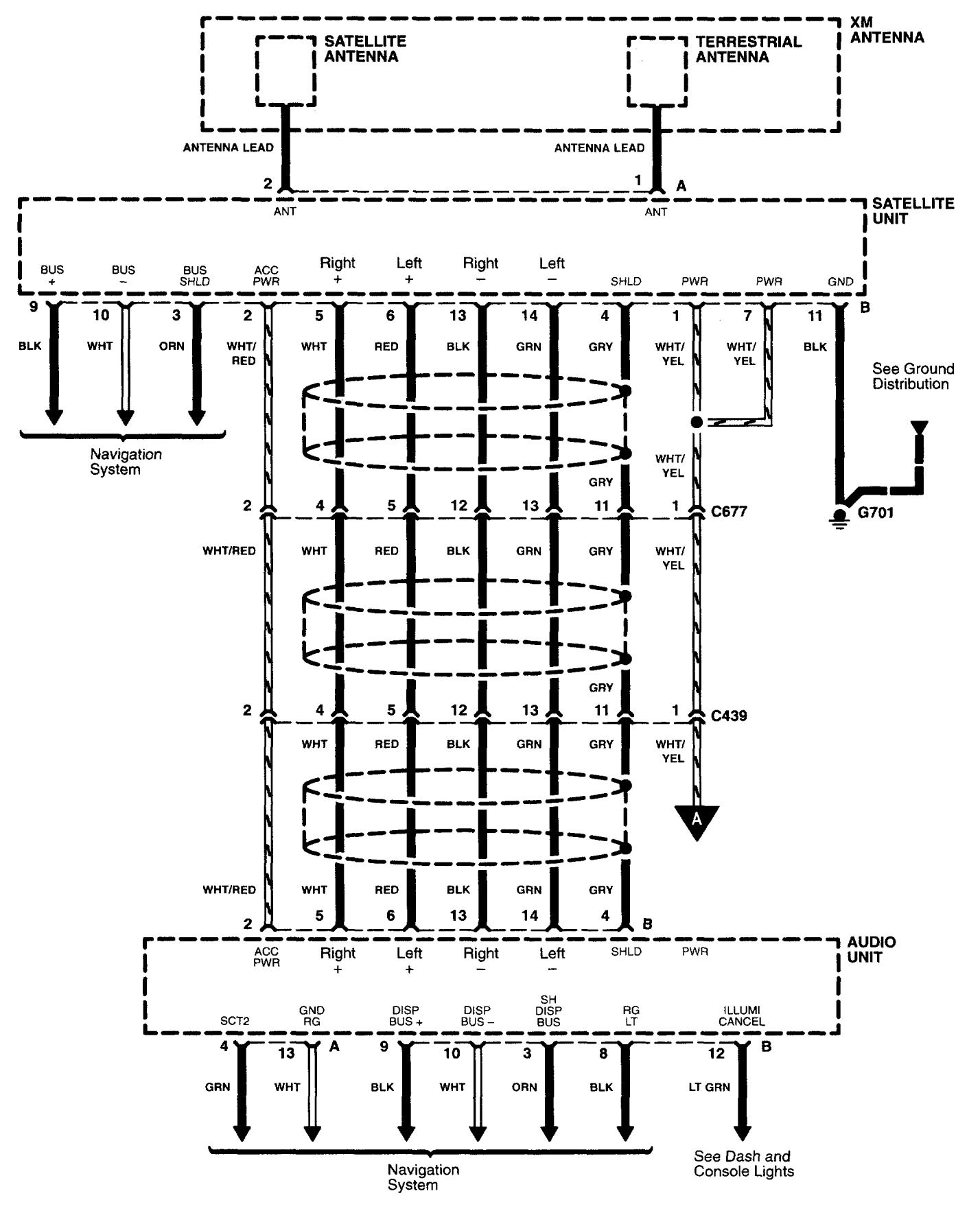

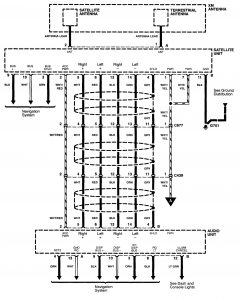

Acura RL - wiring diagram -  audio
Acura RL – wiring diagram – audio

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
