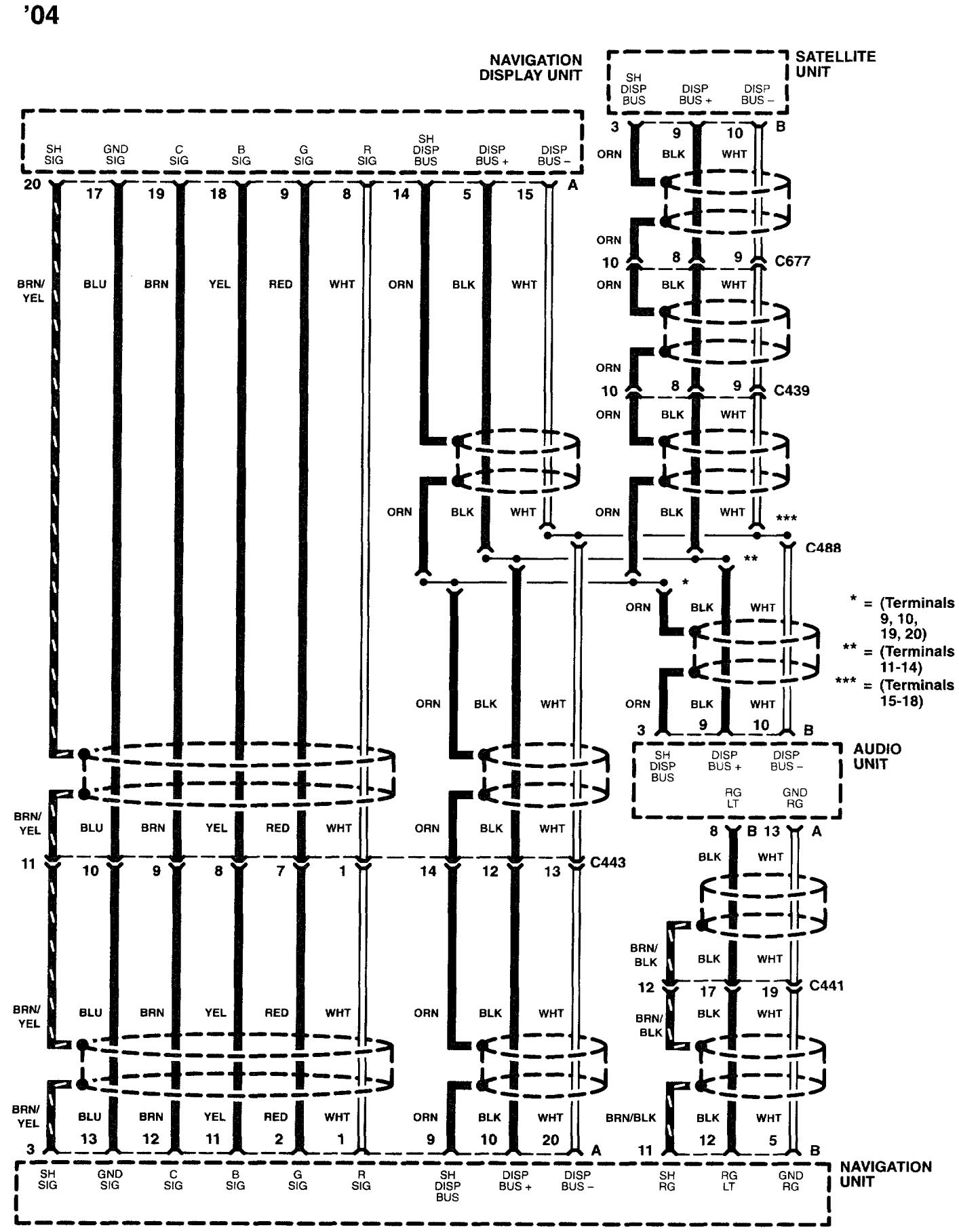

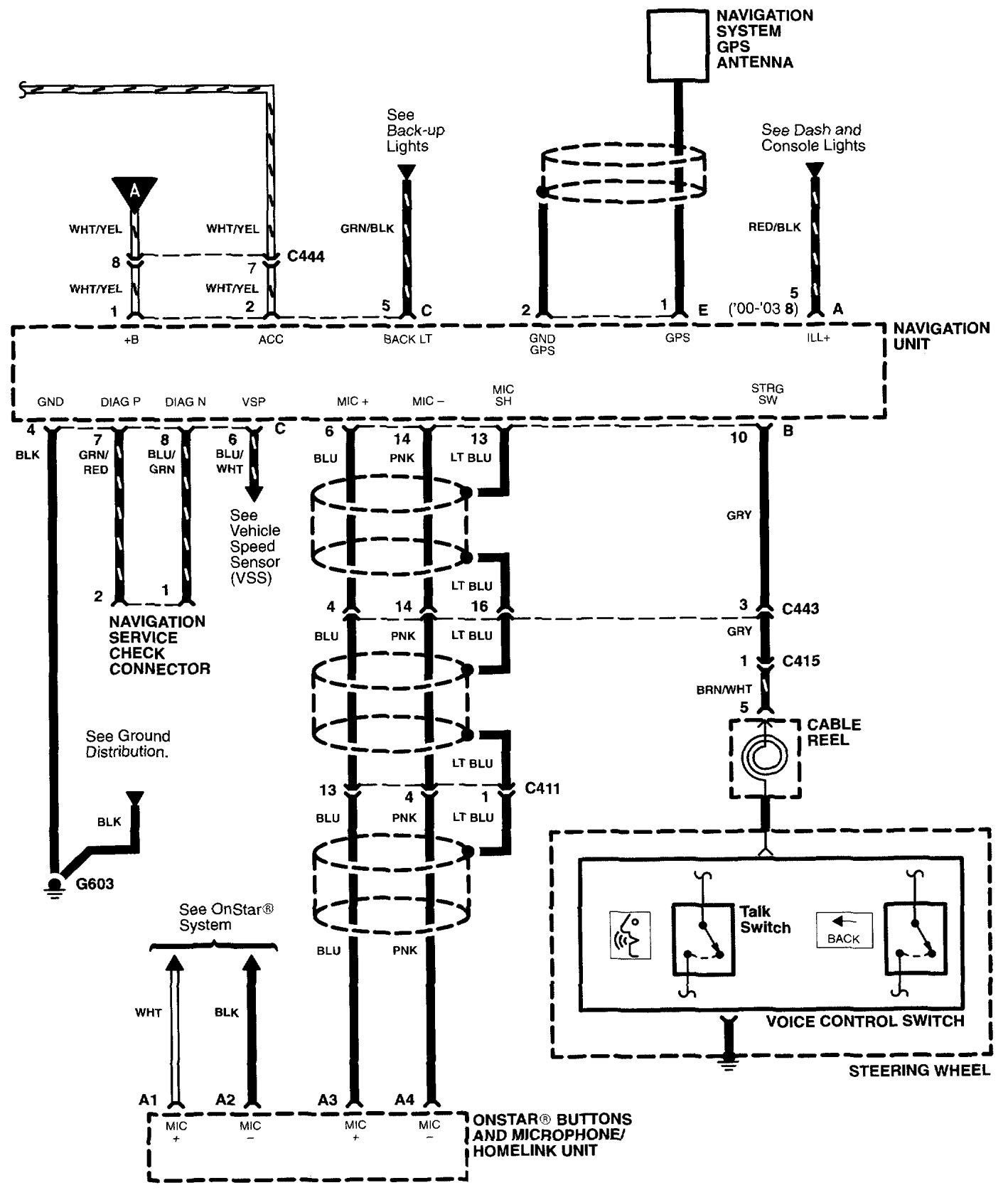

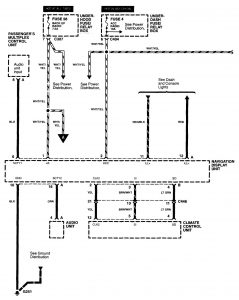

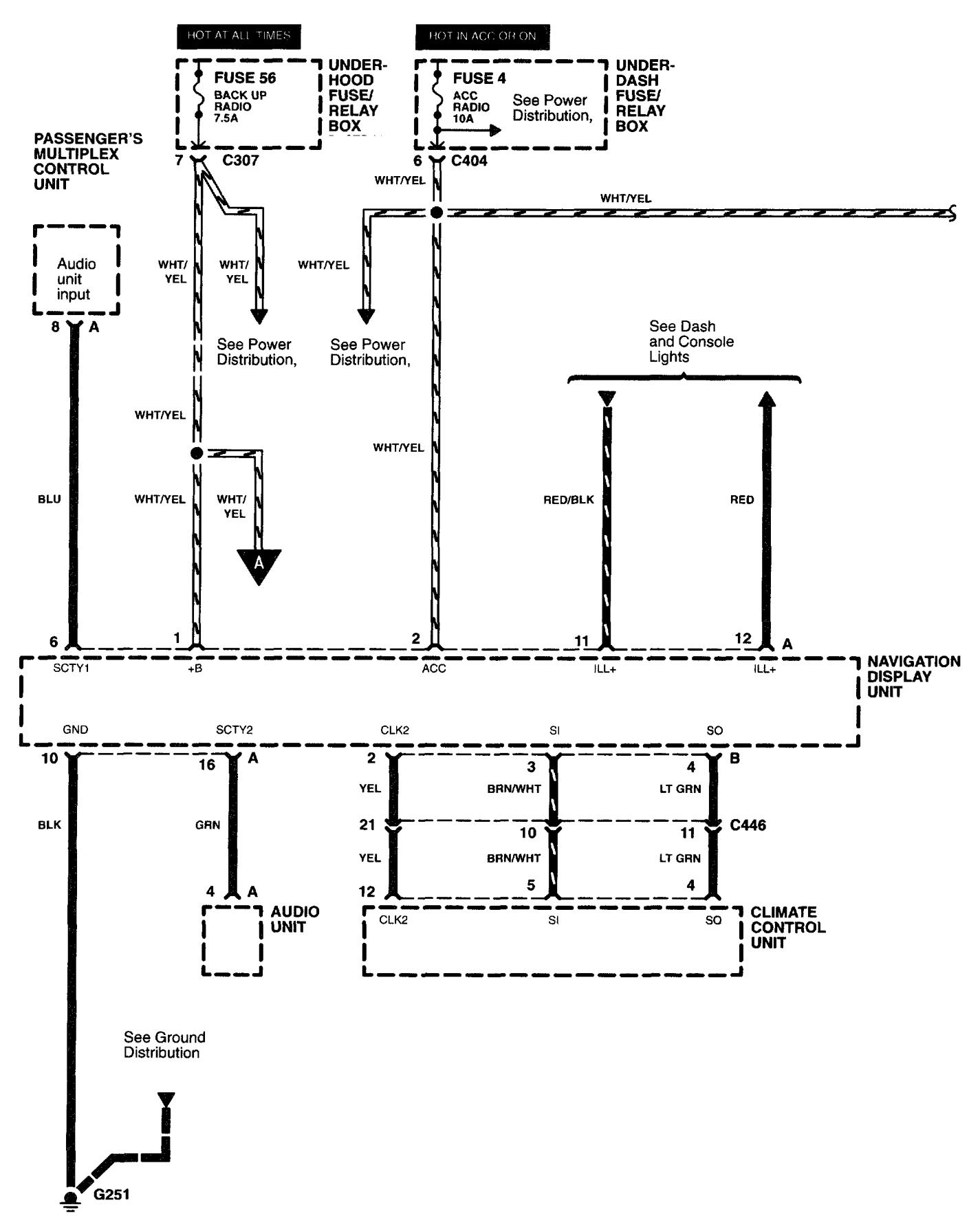

Acura RL (2004) – wiring diagrams – navigation system
Year of productions: 2004
Navigation system
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Year of productions: 2004
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
