Acura RL (2005) – wiring diagrams – adaptive front lighting system

30 September 2017 admin Acura, RL 0

Acura RL (2005) – wiring diagrams – adaptive front lighting system

Year of productions:  2005

Adaptive front lighting system

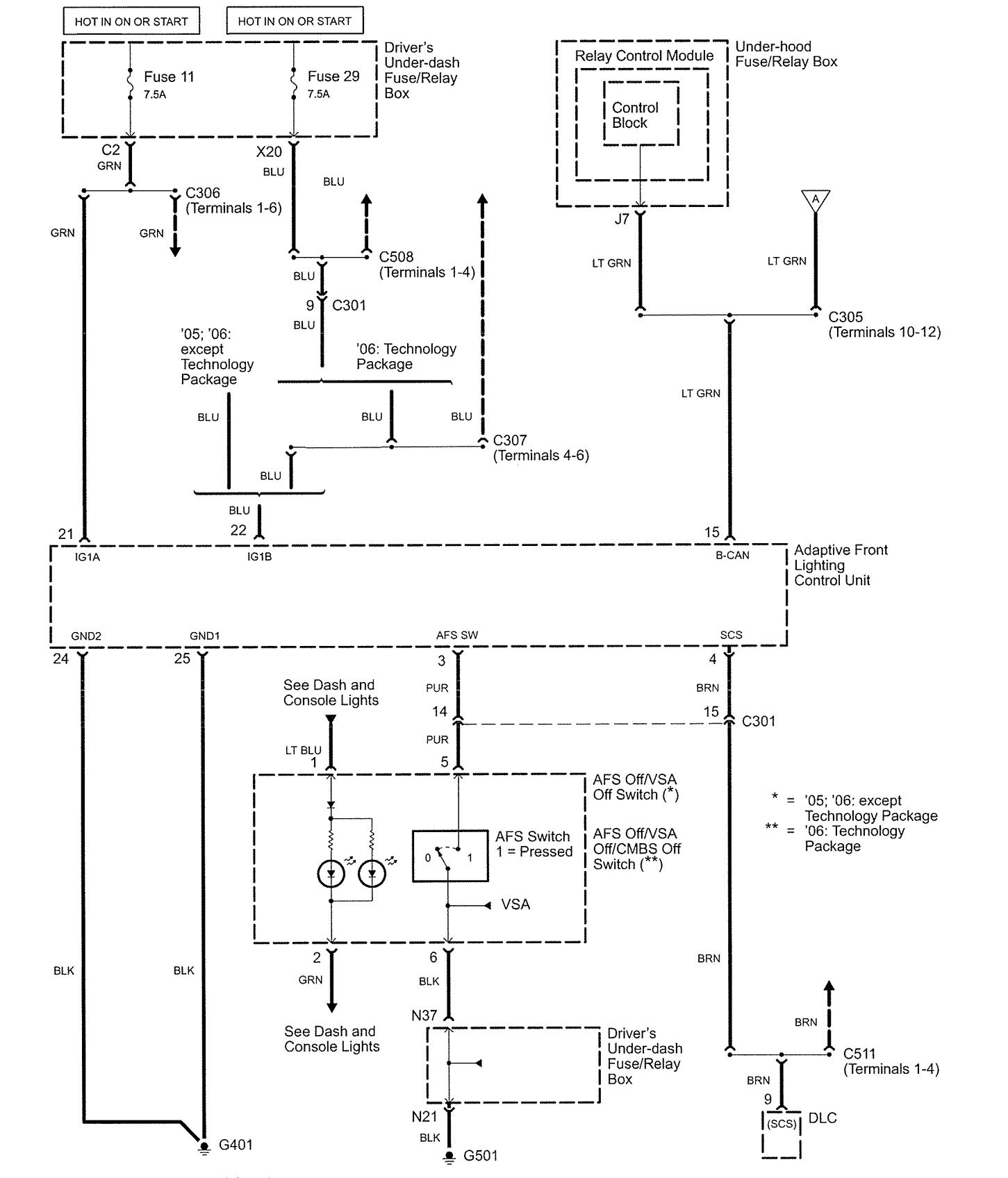

Acura RL - wiring diagram - adaptive front lighting system (part 1)
Acura RL – wiring diagram – adaptive front lighting system (part 1)

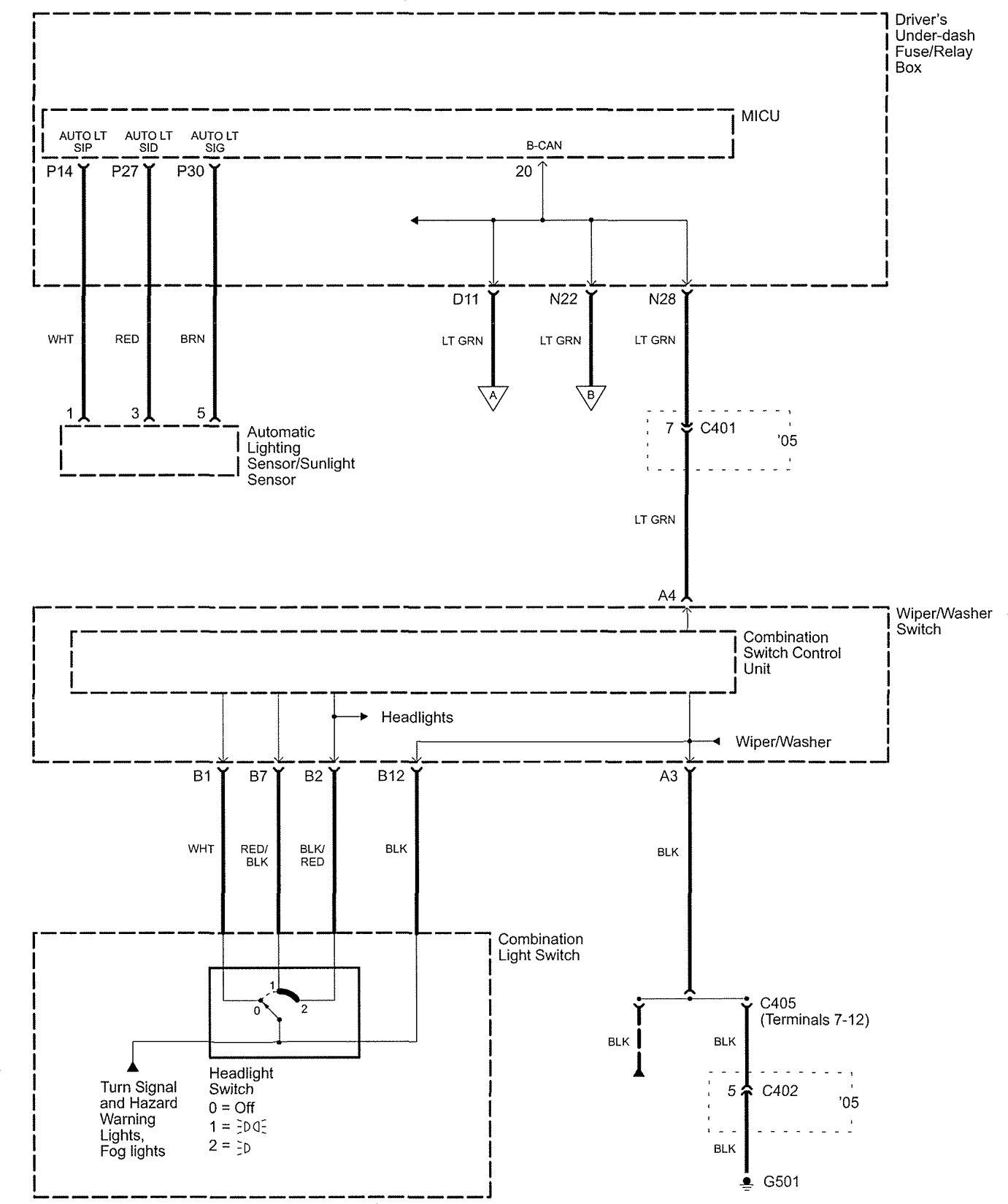

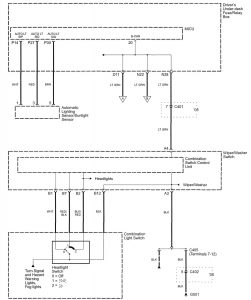

Acura RL - wiring diagram - adaptive front lighting system (part 2)
Acura RL – wiring diagram – adaptive front lighting system (part 2)

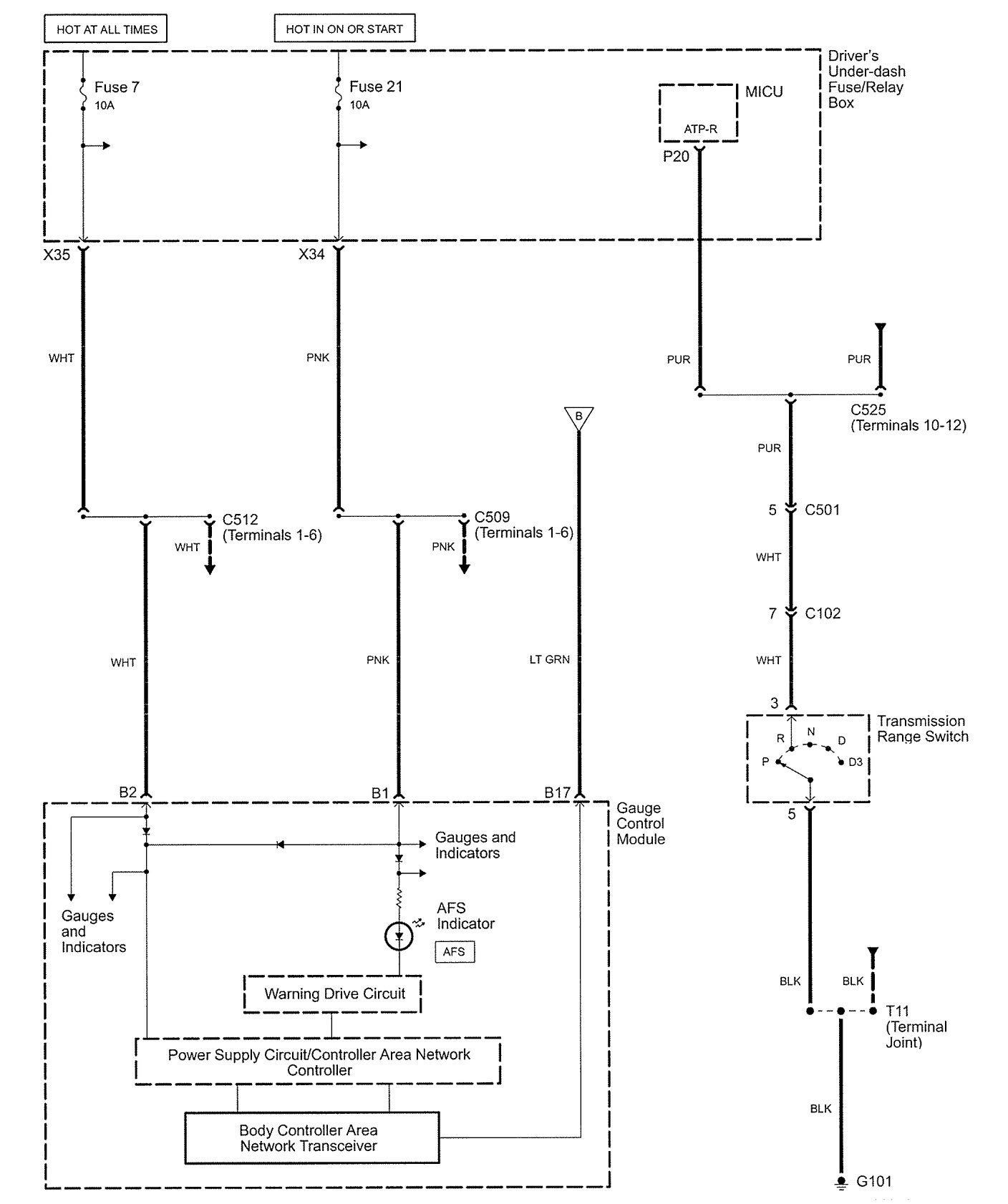

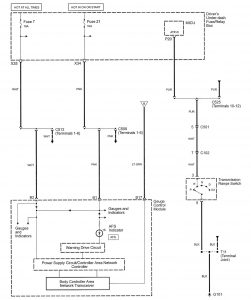

Acura RL - wiring diagram - adaptive front lighting system (part 3)
Acura RL – wiring diagram – adaptive front lighting system (part 3)

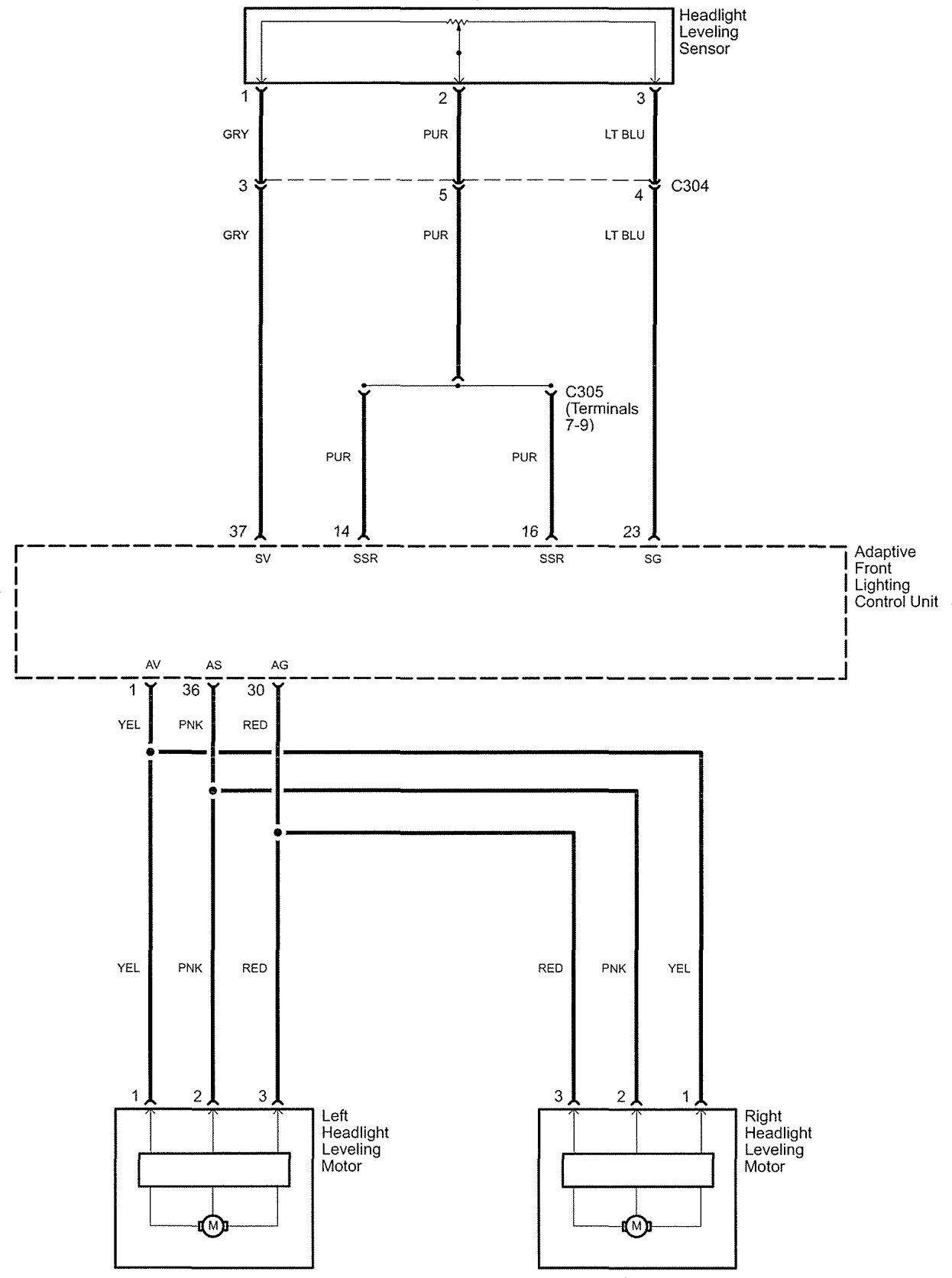

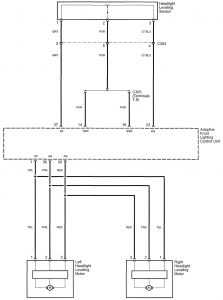

Acura RL - wiring diagram - adaptive front lighting system (part 4)
Acura RL – wiring diagram – adaptive front lighting system (part 4)

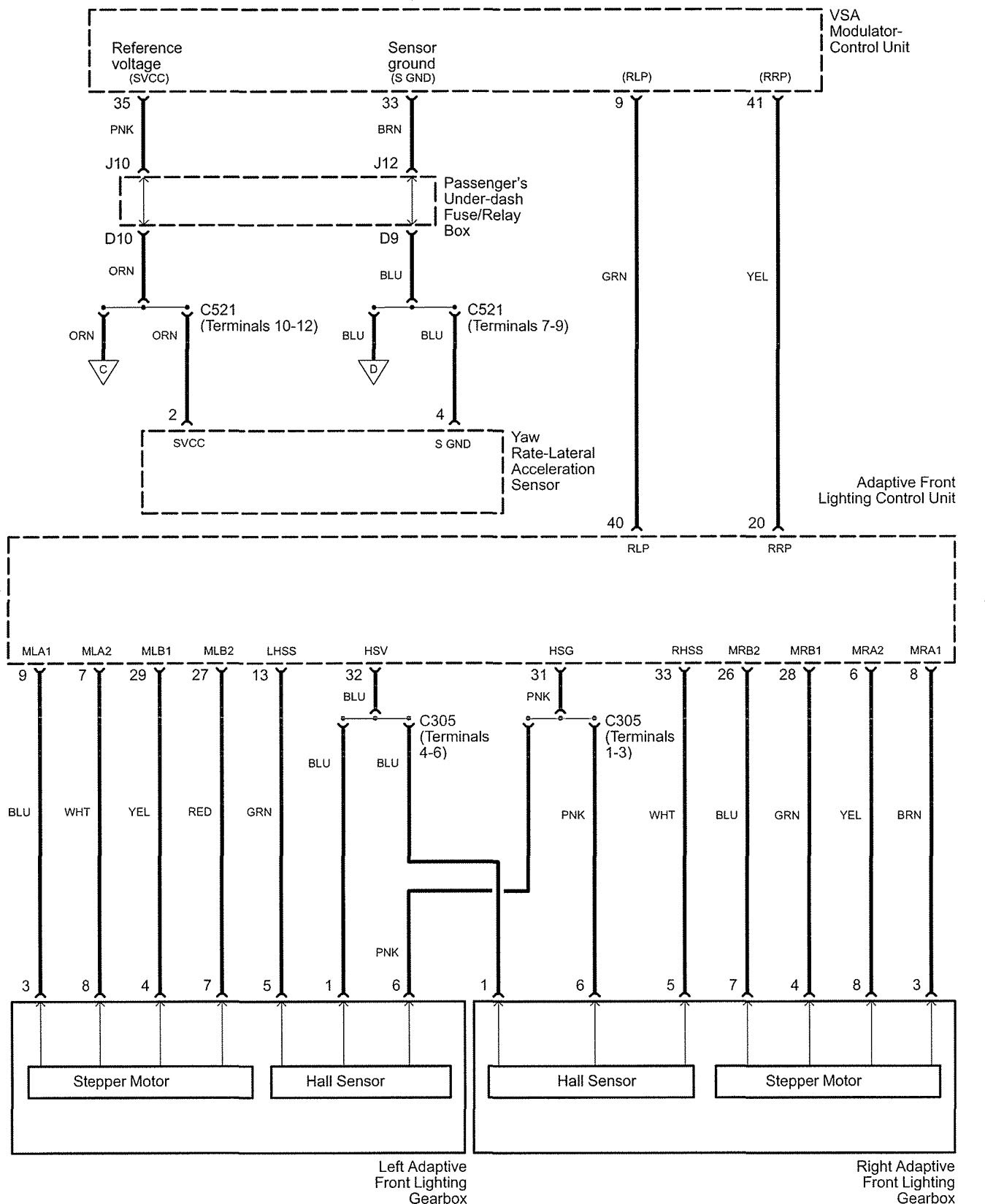

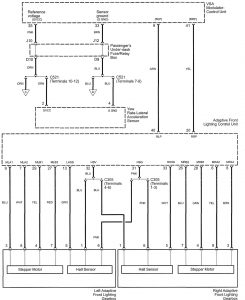

Acura RL - wiring diagram - adaptive front lighting system (part 5)
Acura RL – wiring diagram – adaptive front lighting system (part 5)

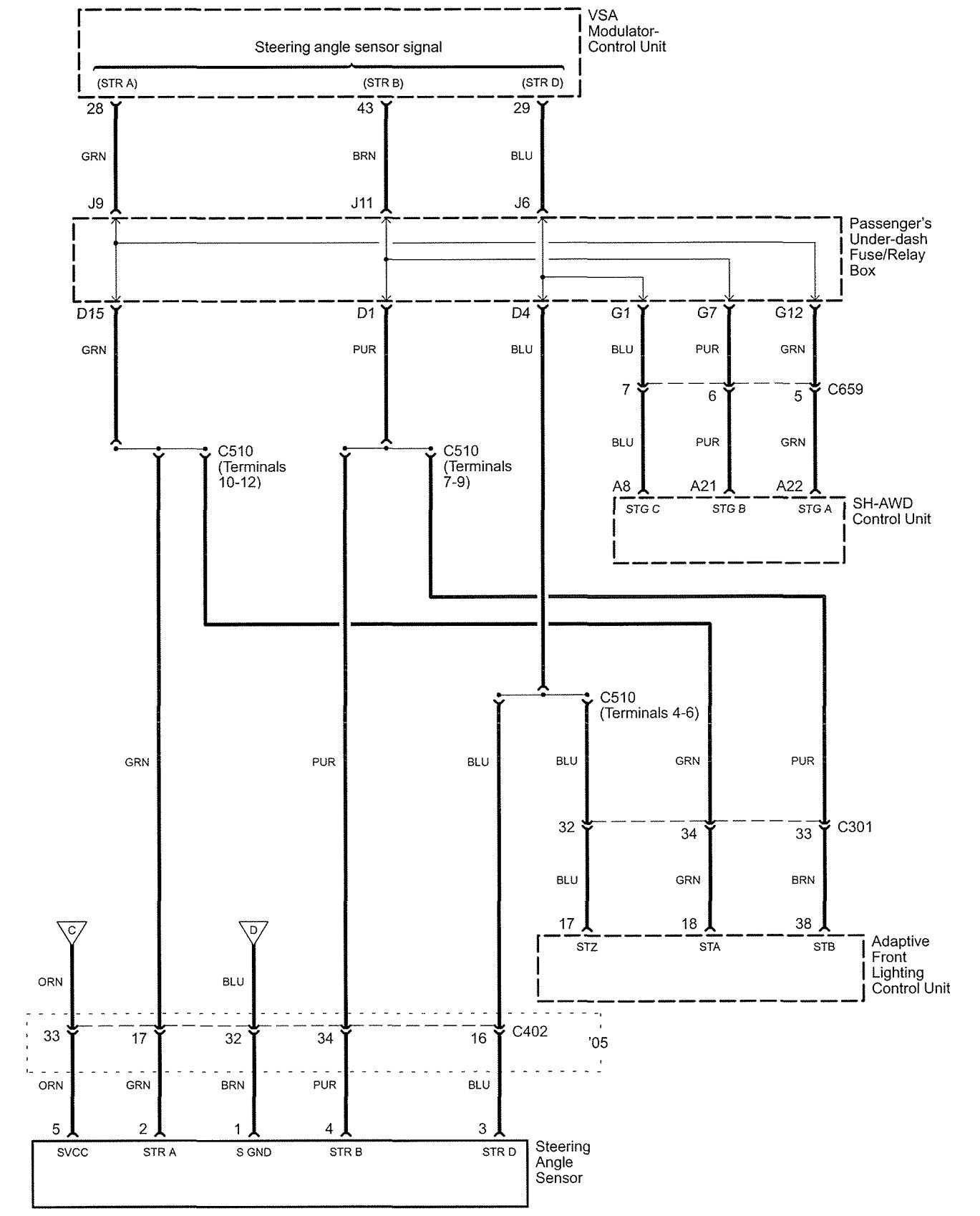

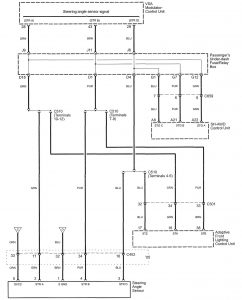

Acura RL - wiring diagram - adaptive front lighting system (part 6)
Acura RL – wiring diagram – adaptive front lighting system (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
