Acura RL (2005) – wiring diagrams – ground distribution

25 September 2017 admin Acura, RL 0

Acura RL (2005) – wiring diagrams – ground distribution

Year of productions:  2005

Ground distribution

Version 1

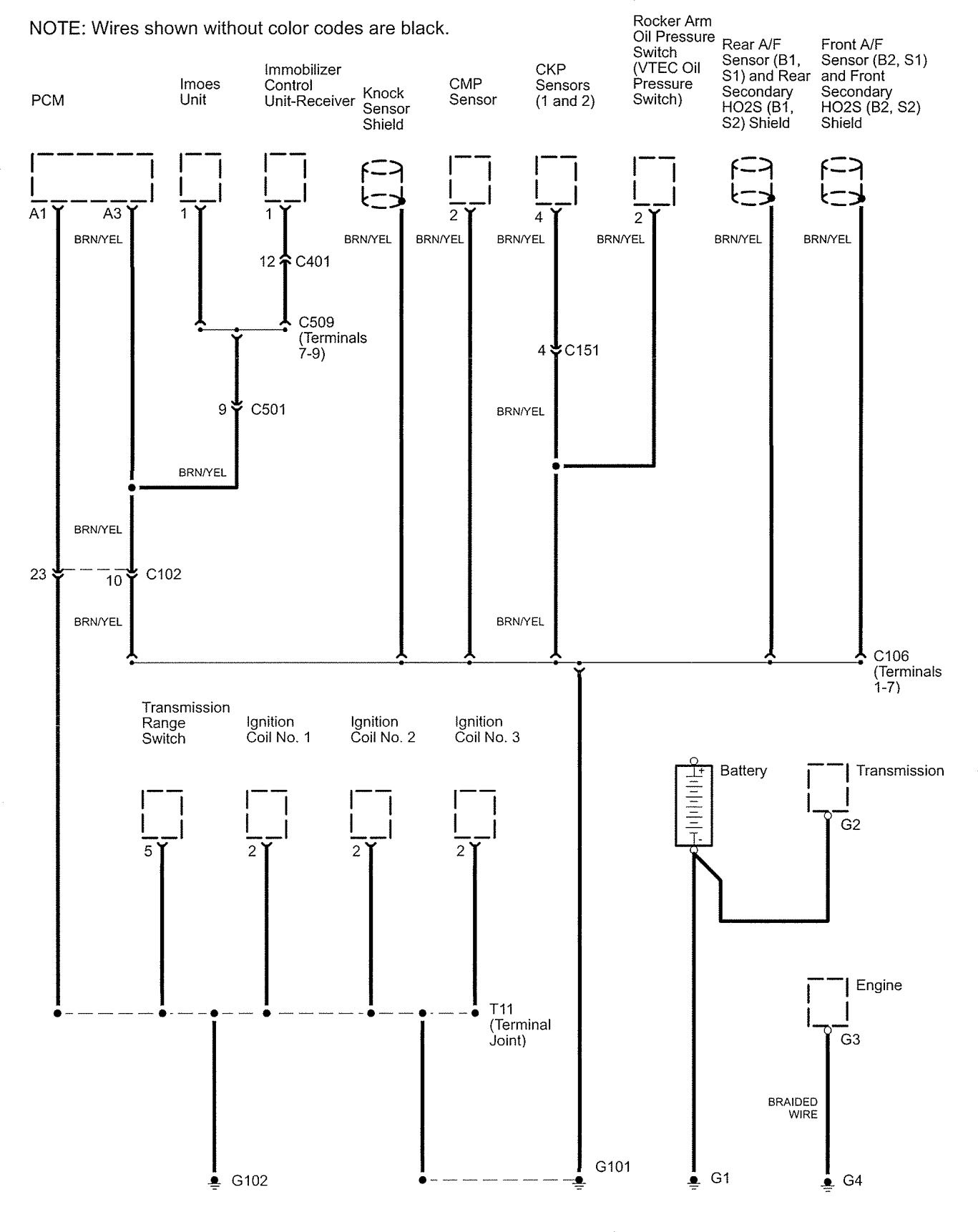

Acura RL - wiring diagram - ground distribution (part 1)
Acura RL – wiring diagram – ground distribution (part 1)

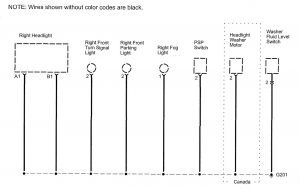

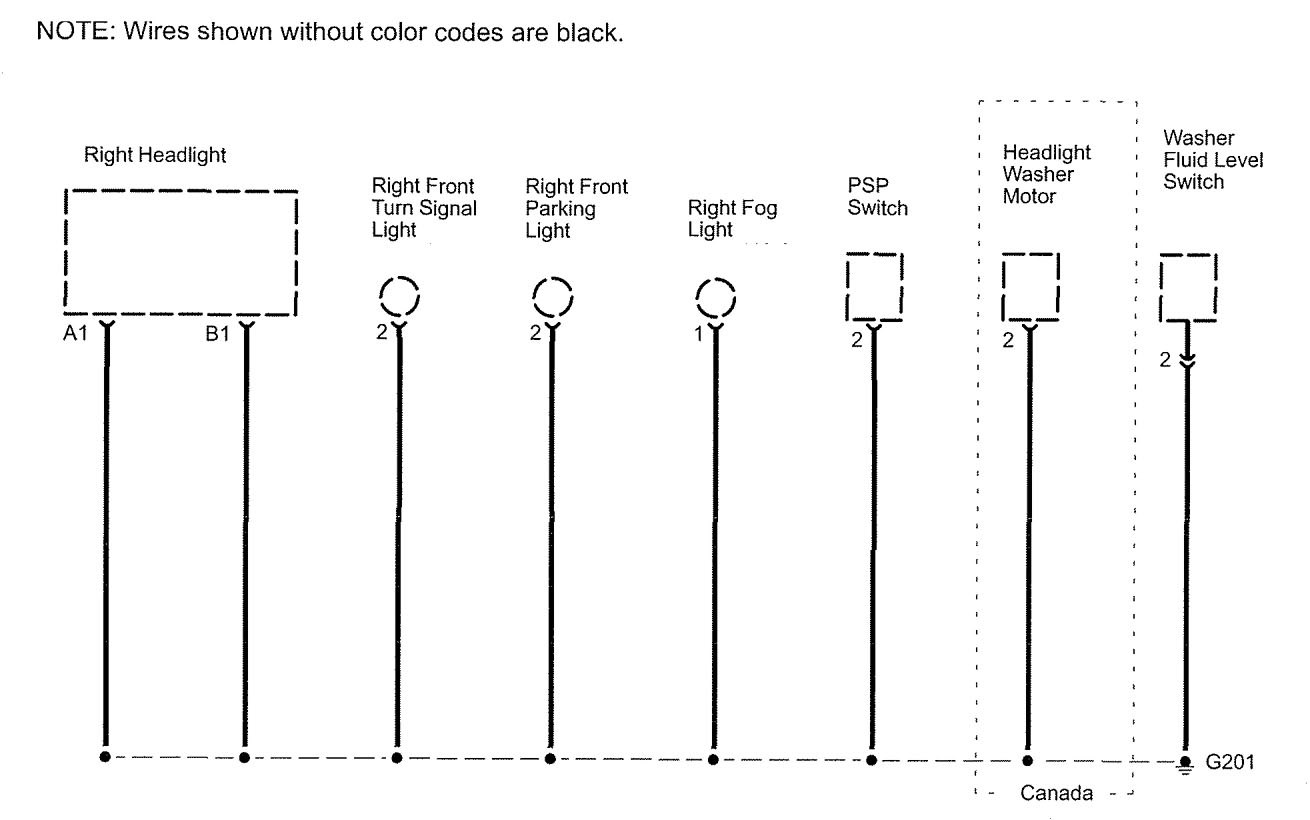

Acura RL - wiring diagram - ground distribution (part 2)
Acura RL – wiring diagram – ground distribution (part 2)

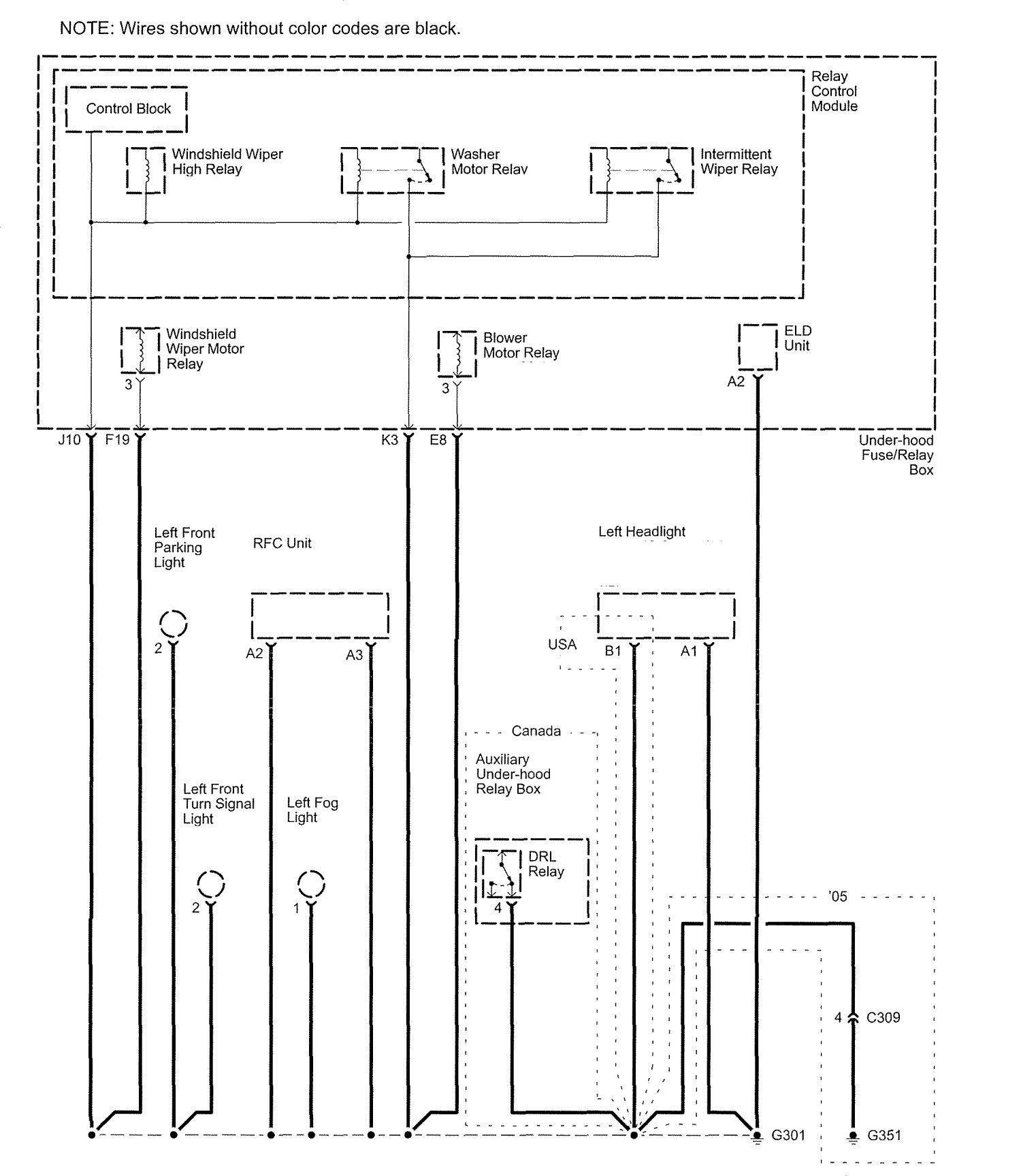

Acura RL - wiring diagram - ground distribution (part 3)
Acura RL – wiring diagram – ground distribution (part 3)

Version 2

Acura RL - wiring diagram - ground distribution (part 1)
Acura RL – wiring diagram – ground distribution (part 1)
Acura RL - wiring diagram - ground distribution (part 2)
Acura RL – wiring diagram – ground distribution (part 2)
Acura RL - wiring diagram - ground distribution (part 3)
Acura RL – wiring diagram – ground distribution (part 3)
Acura RL - wiring diagram - ground distribution (part 4)
Acura RL – wiring diagram – ground distribution (part 4)
Acura RL - wiring diagram - ground distribution (part 5)
Acura RL – wiring diagram – ground distribution (part 5)
Acura RL - wiring diagram - ground distribution (part 6)
Acura RL – wiring diagram – ground distribution (part 6)
Acura RL - wiring diagram - ground distribution (part 7)
Acura RL – wiring diagram – ground distribution (part 7)
Acura RL - wiring diagram - ground distribution (part 8)
Acura RL – wiring diagram – ground distribution (part 8)
Acura RL - wiring diagram - ground distribution (part 9)
Acura RL – wiring diagram – ground distribution (part 9)
Acura RL - wiring diagram - ground distribution (part 10)
Acura RL – wiring diagram – ground distribution (part 10)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
