Acura RL (2005 – 2006) – wiring diagrams – power distribution

25 September 2017 admin Acura, RL 0

Acura RL (2005 – 2006) – wiring diagrams – power distribution

Year of productions: 2005, 2006

Power distribution

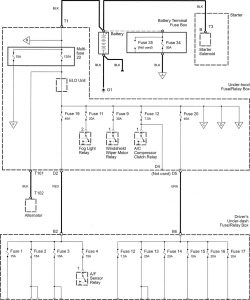

Acura RL - wiring diagram - power distribution (part 1) — Acura RL – wiring diagram – power distribution (part 1)

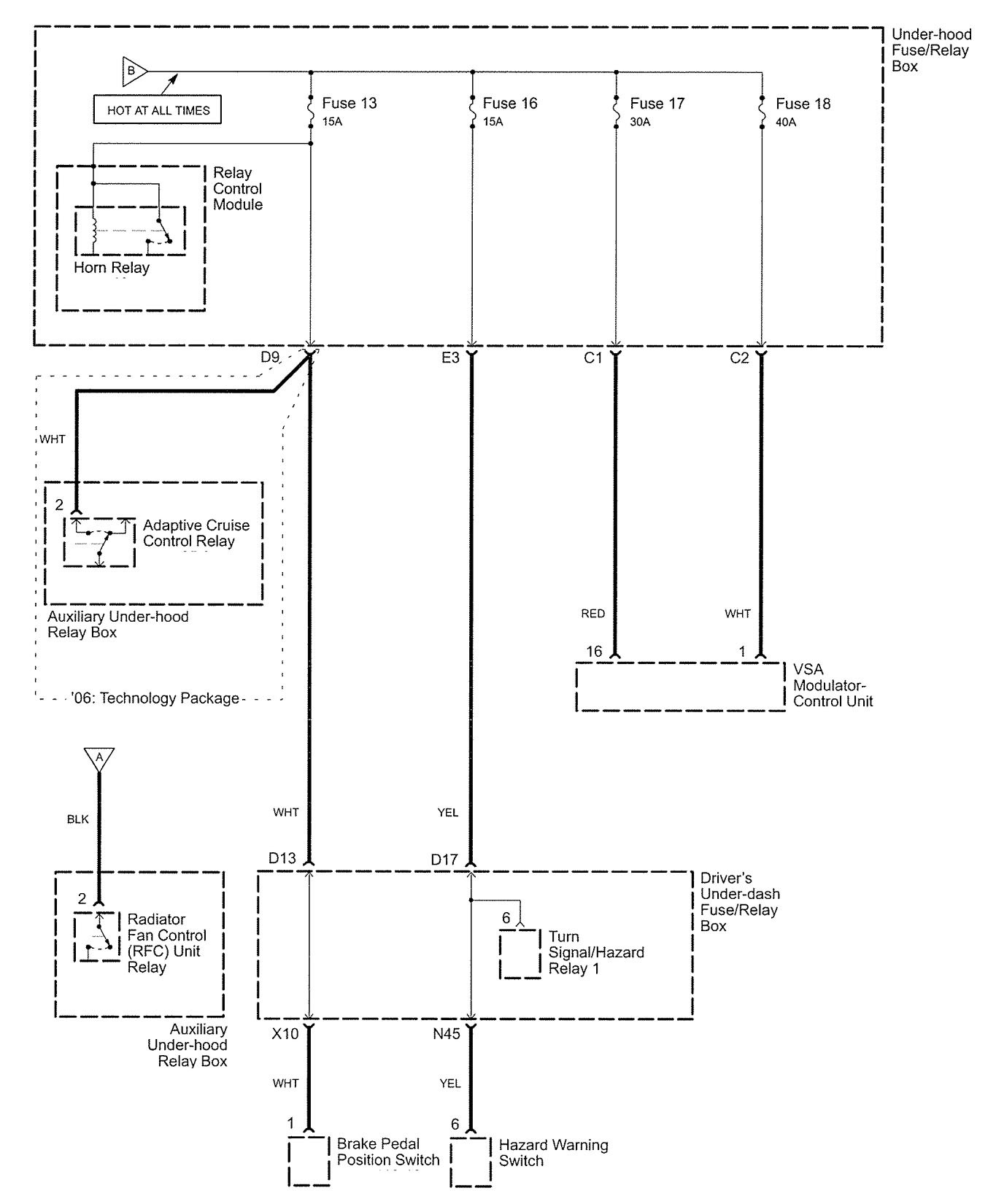

Acura RL - wiring diagram - power distribution (part 2) — Acura RL – wiring diagram – power distribution (part 2)

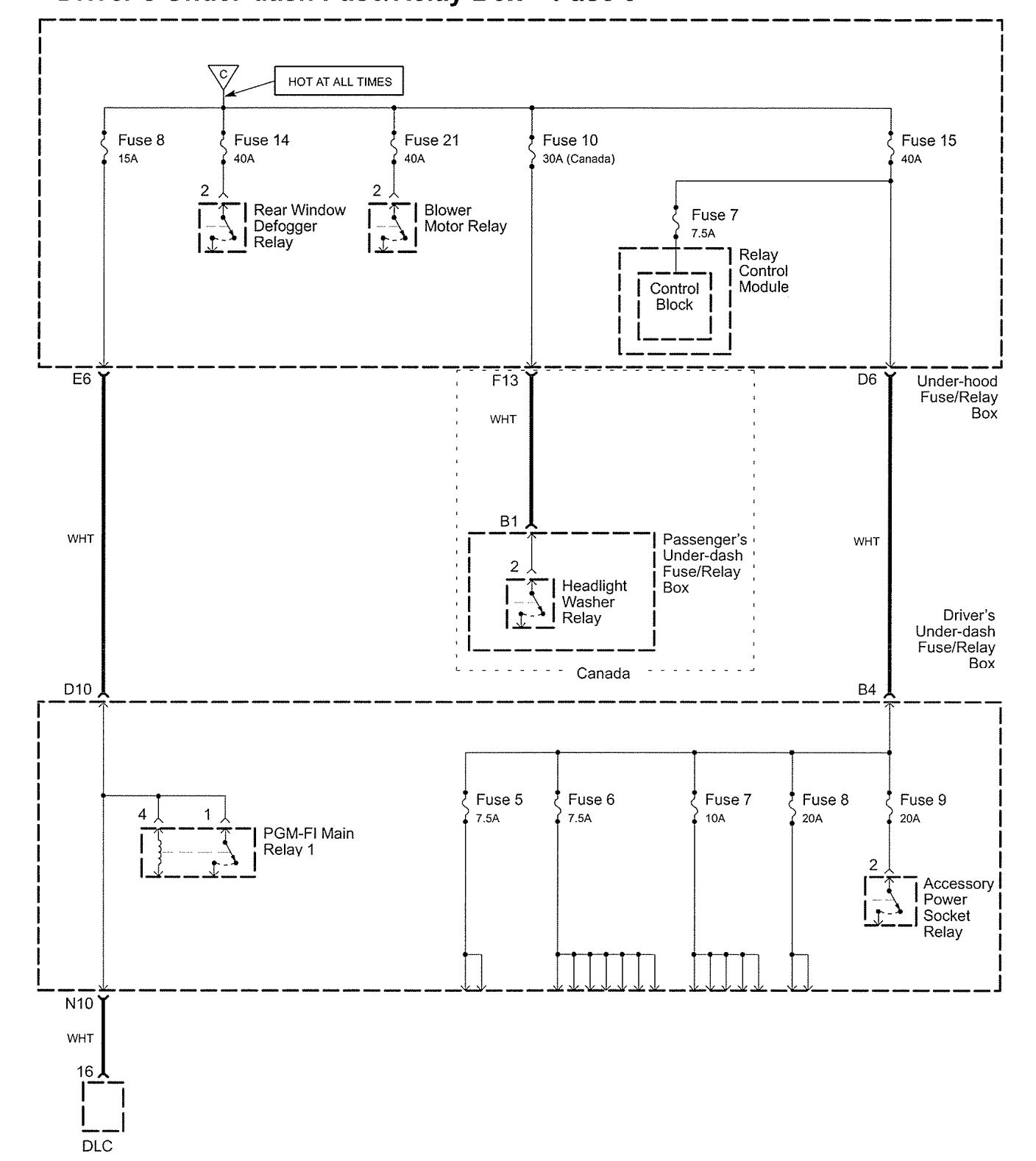

Acura RL - wiring diagram - power distribution (part 3) — Acura RL – wiring diagram – power distribution (part 3)

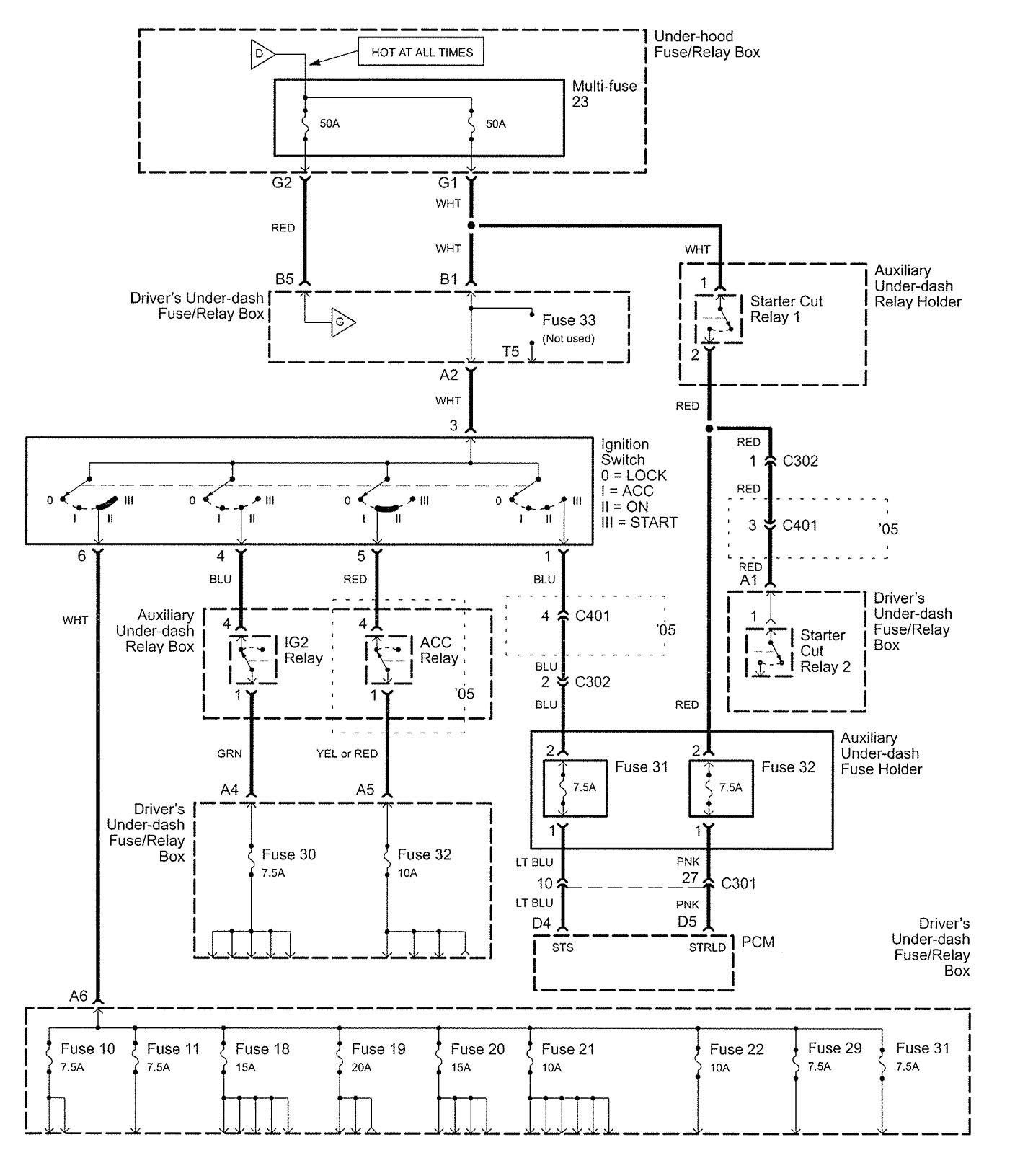

Acura RL - wiring diagram - power distribution (part 4) — Acura RL – wiring diagram – power distribution (part 4)

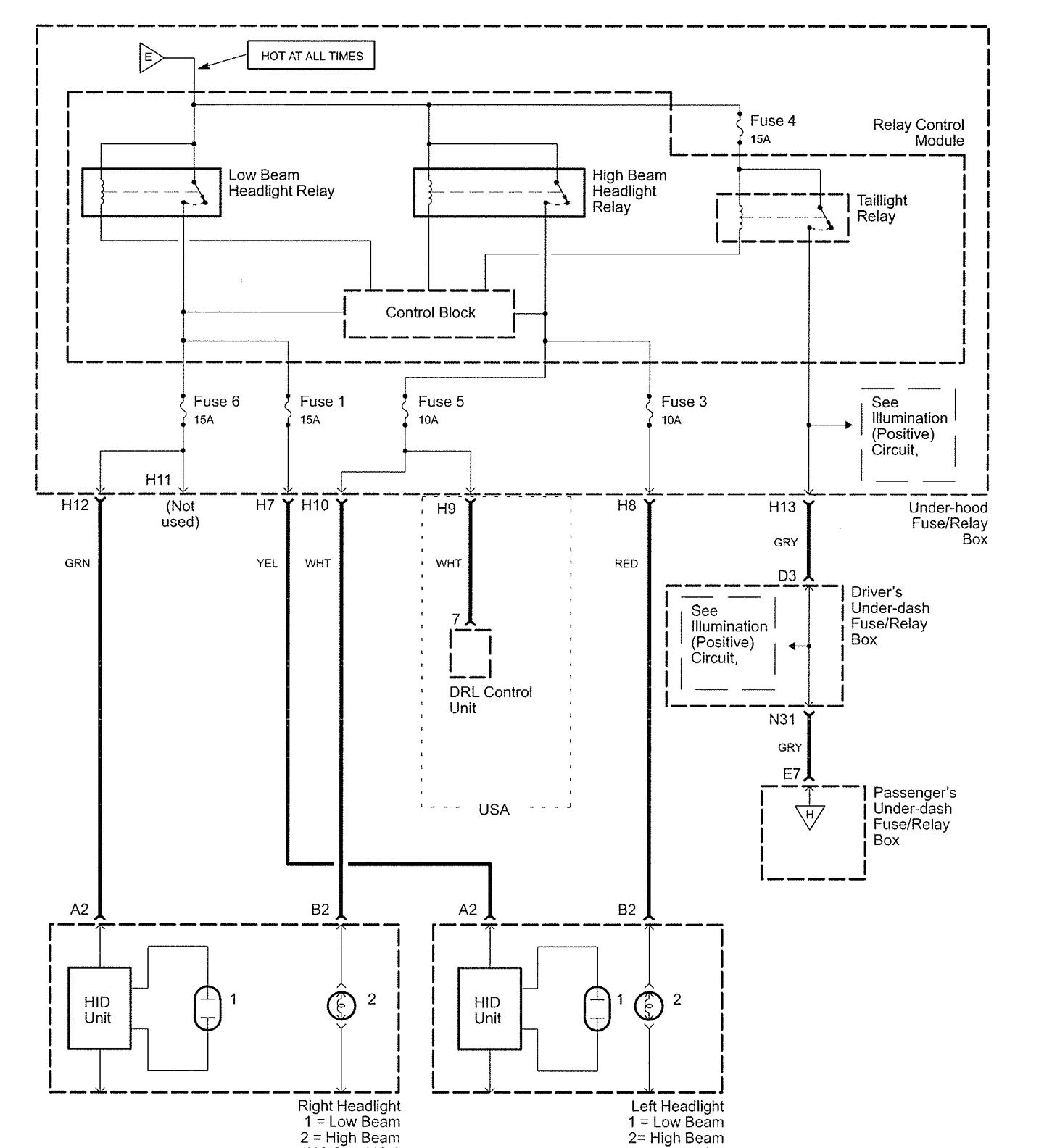

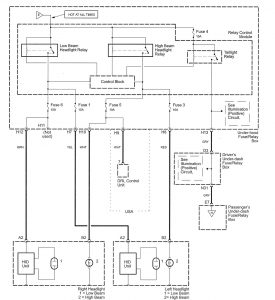

Acura RL - wiring diagram - power distribution (part 5) — Acura RL – wiring diagram – power distribution (part 5)

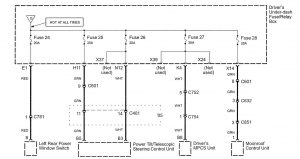

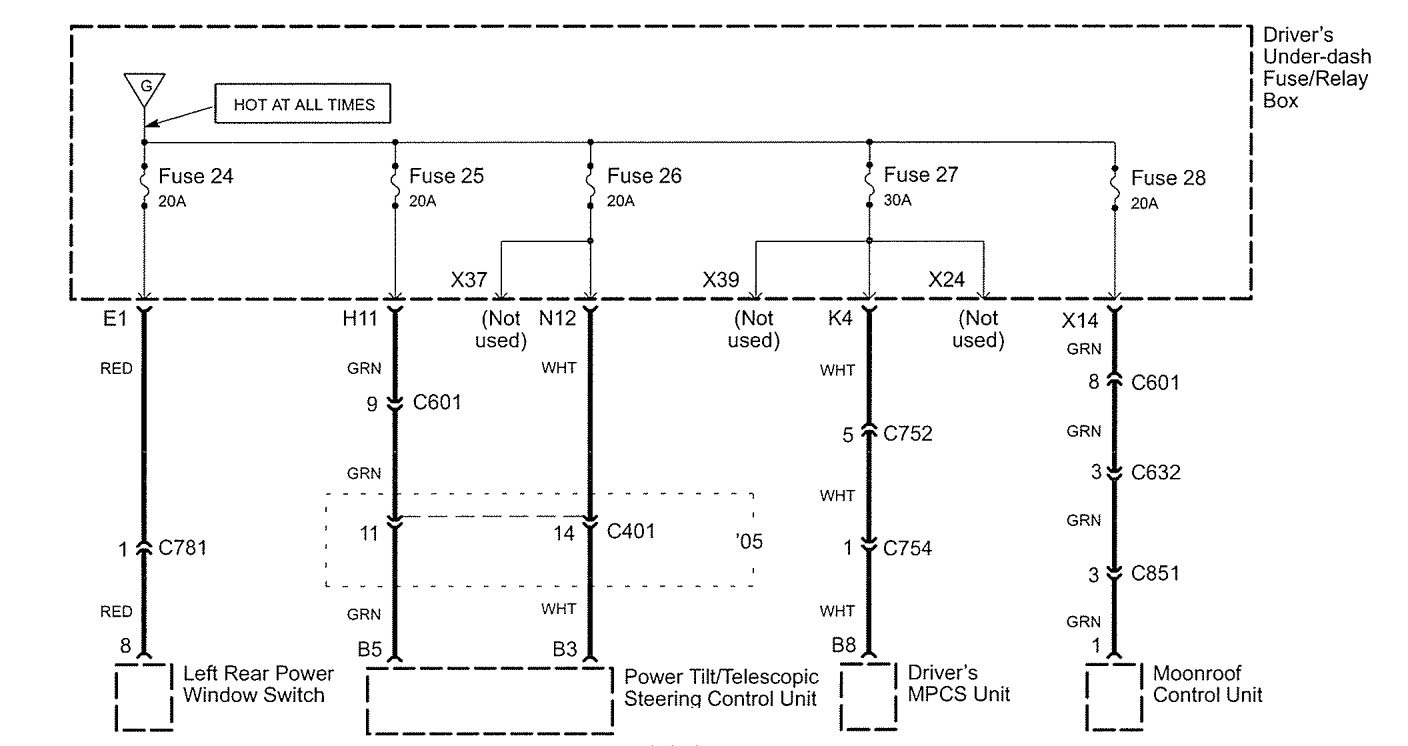

Acura RL - wiring diagram - power distribution (part 6) — Acura RL – wiring diagram – power distribution (part 6)

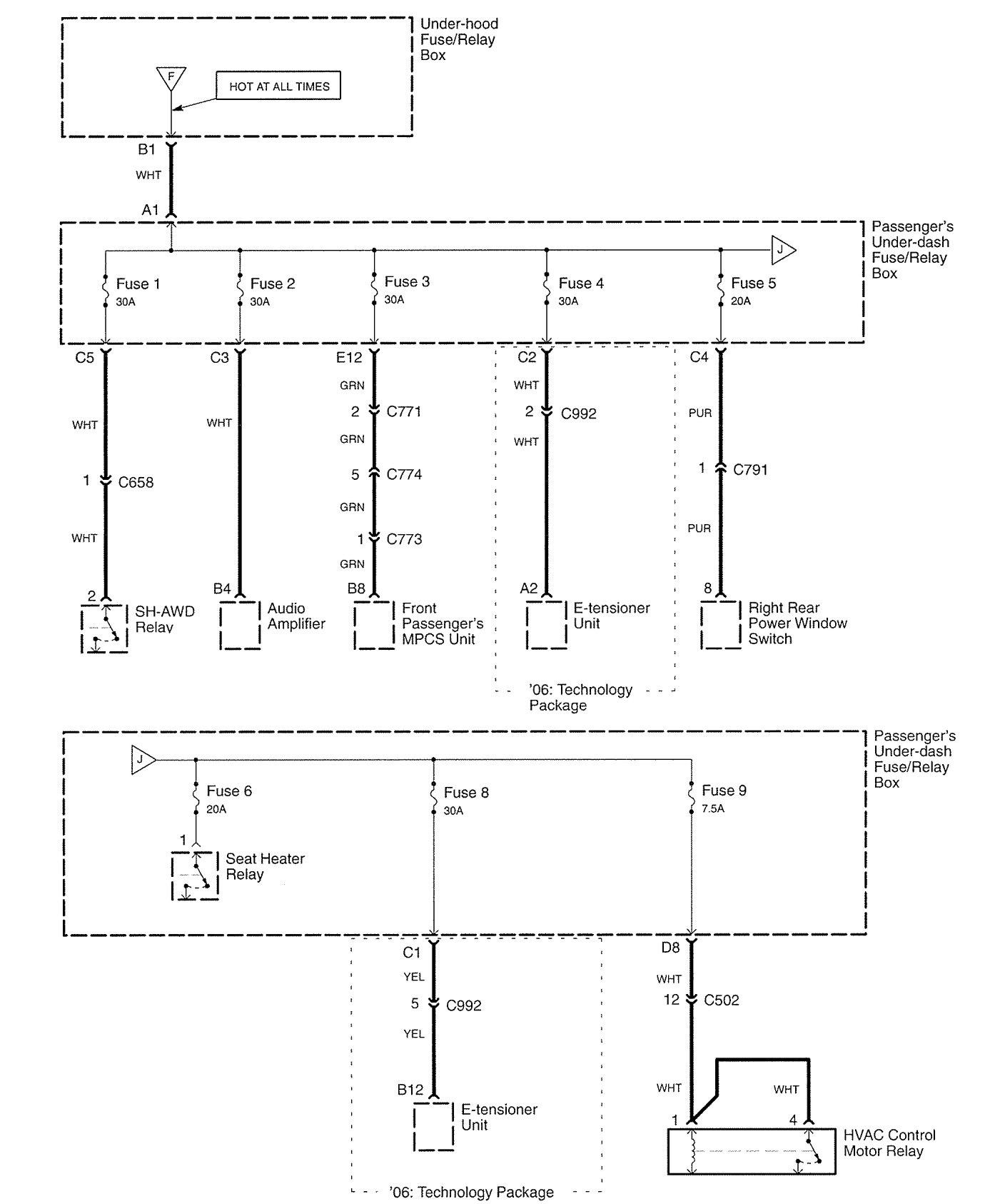

Acura RL - wiring diagram - power distribution (part 7) — Acura RL – wiring diagram – power distribution (part 7)

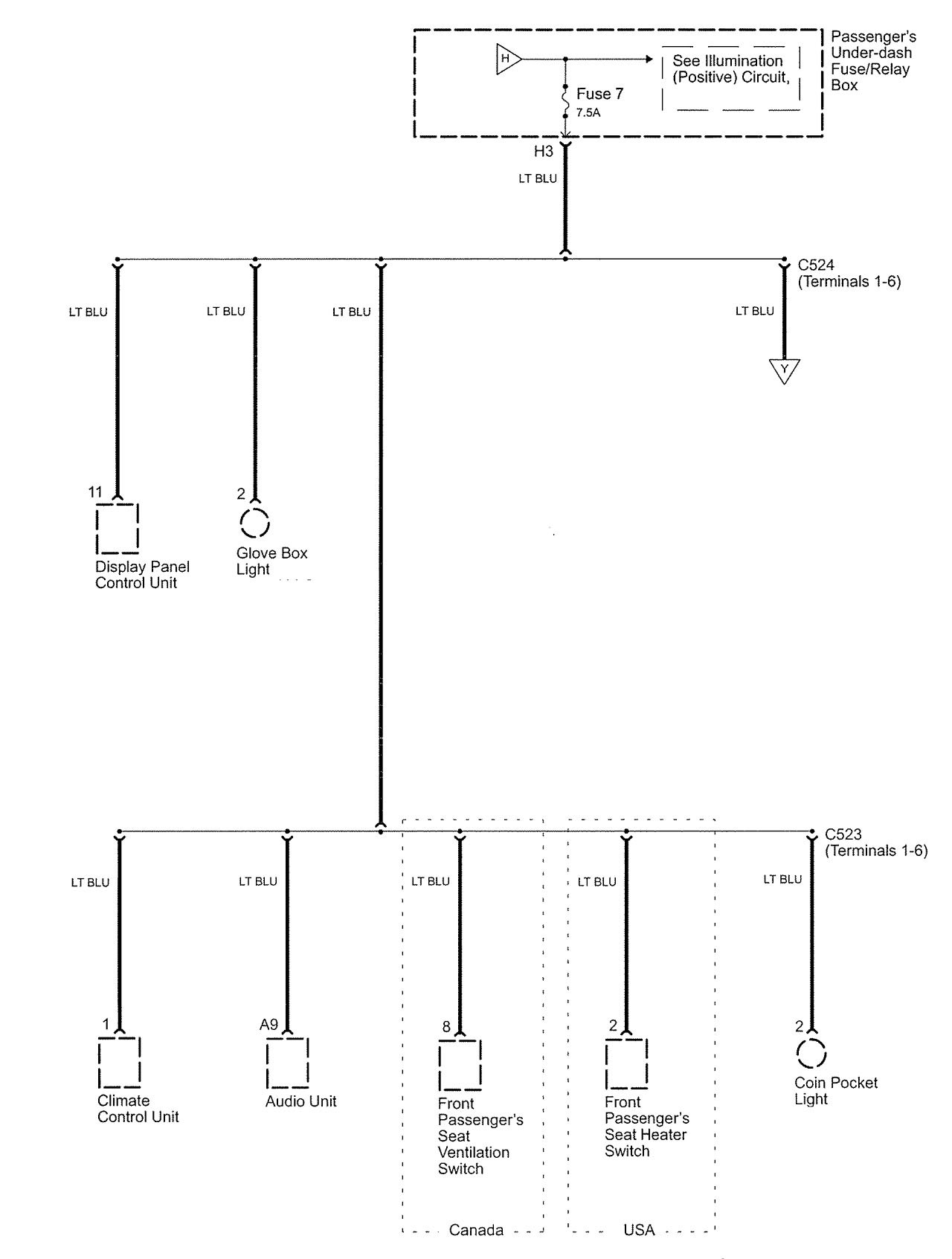

Acura RL - wiring diagram - power distribution (part 8) — Acura RL – wiring diagram – power distribution (part 8)

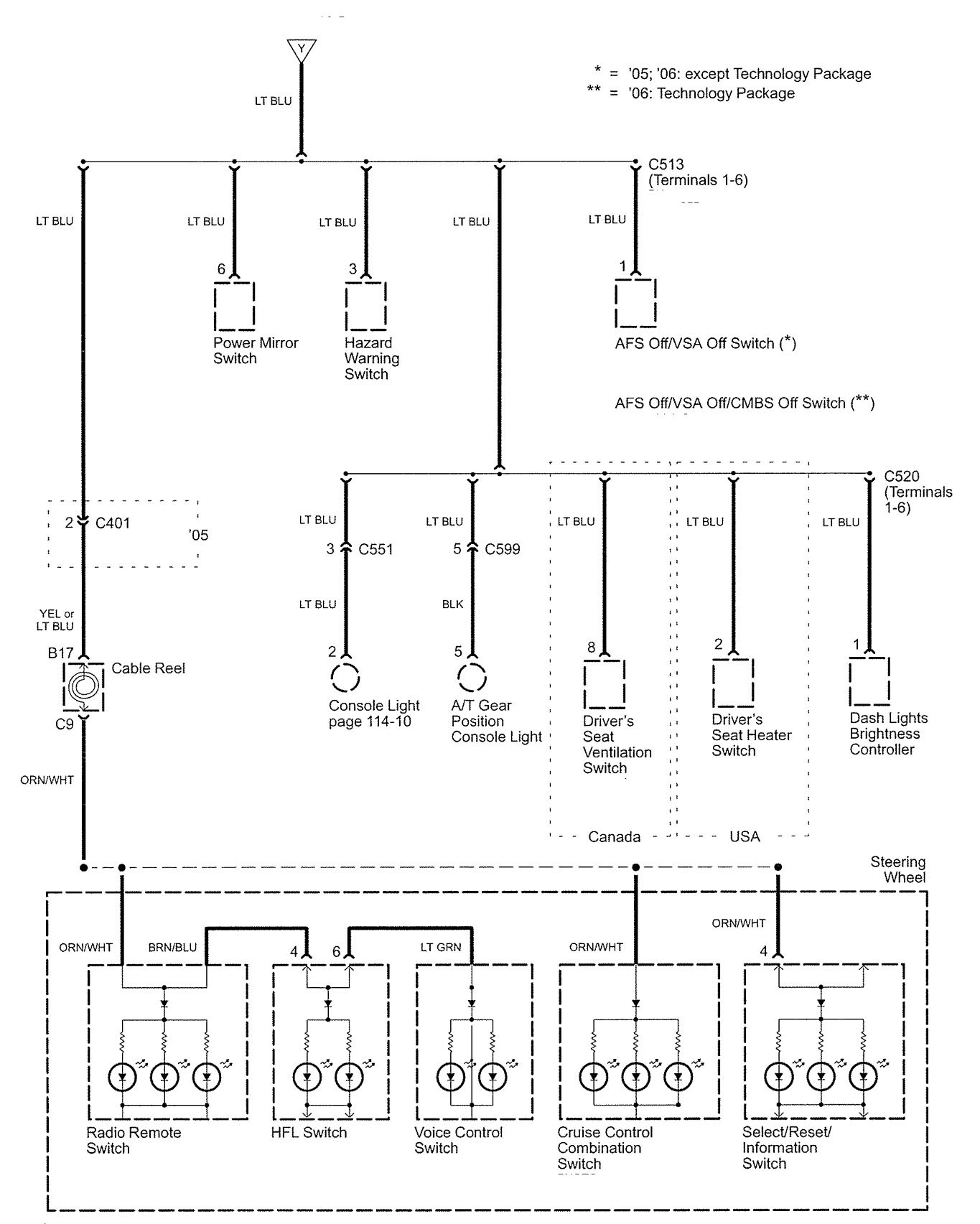

Acura RL - wiring diagram - power distribution (part 9) — Acura RL – wiring diagram – power distribution (part 9)

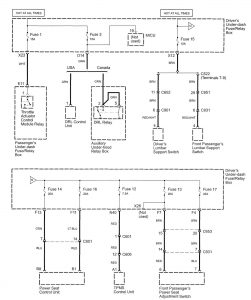

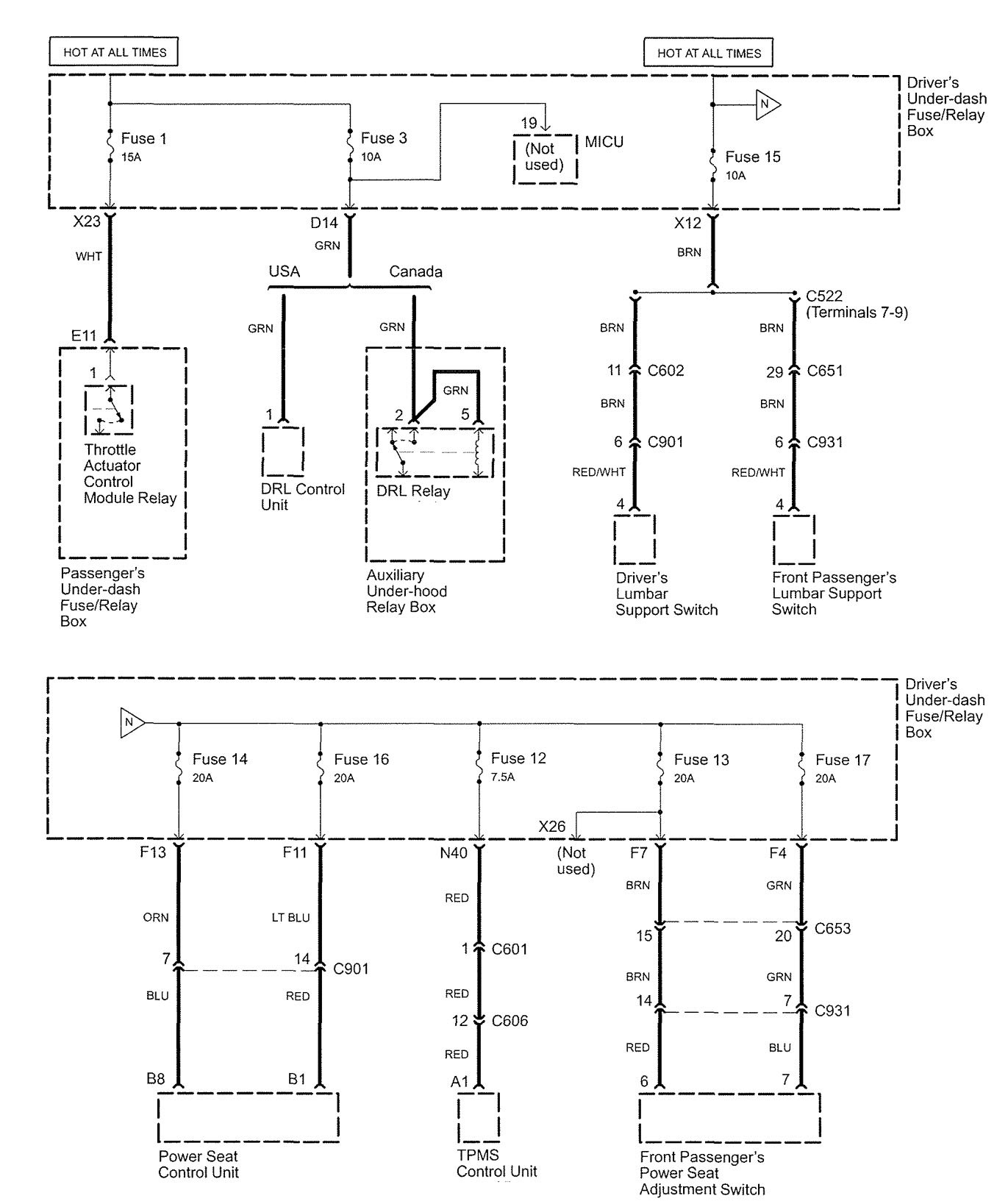

Acura RL - wiring diagram - power distribution (part 10) — Acura RL – wiring diagram – power distribution (part 10)

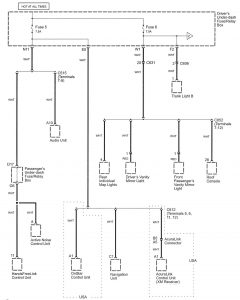

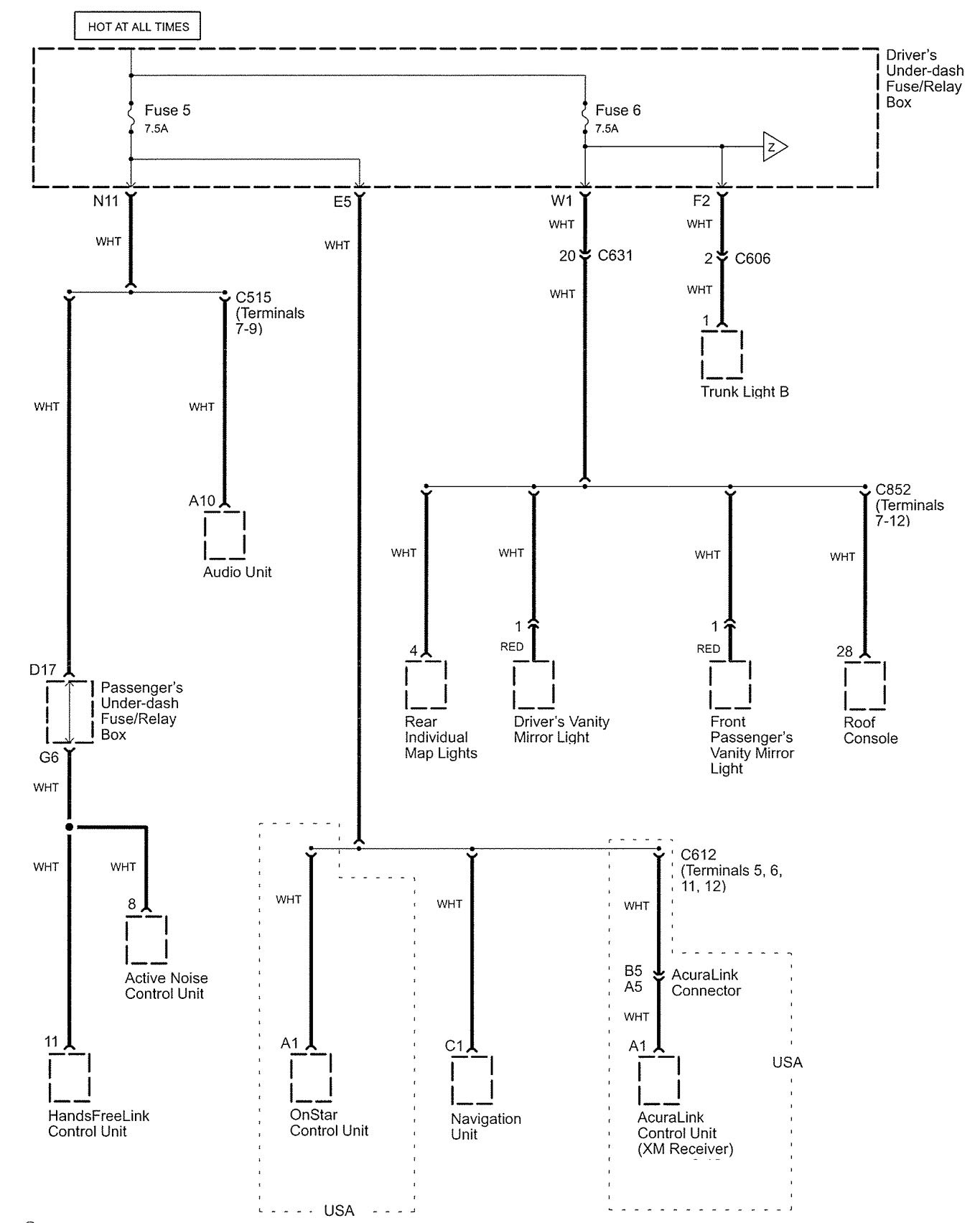

Acura RL - wiring diagram - power distribution (part 11) — Acura RL – wiring diagram – power distribution (part 11)

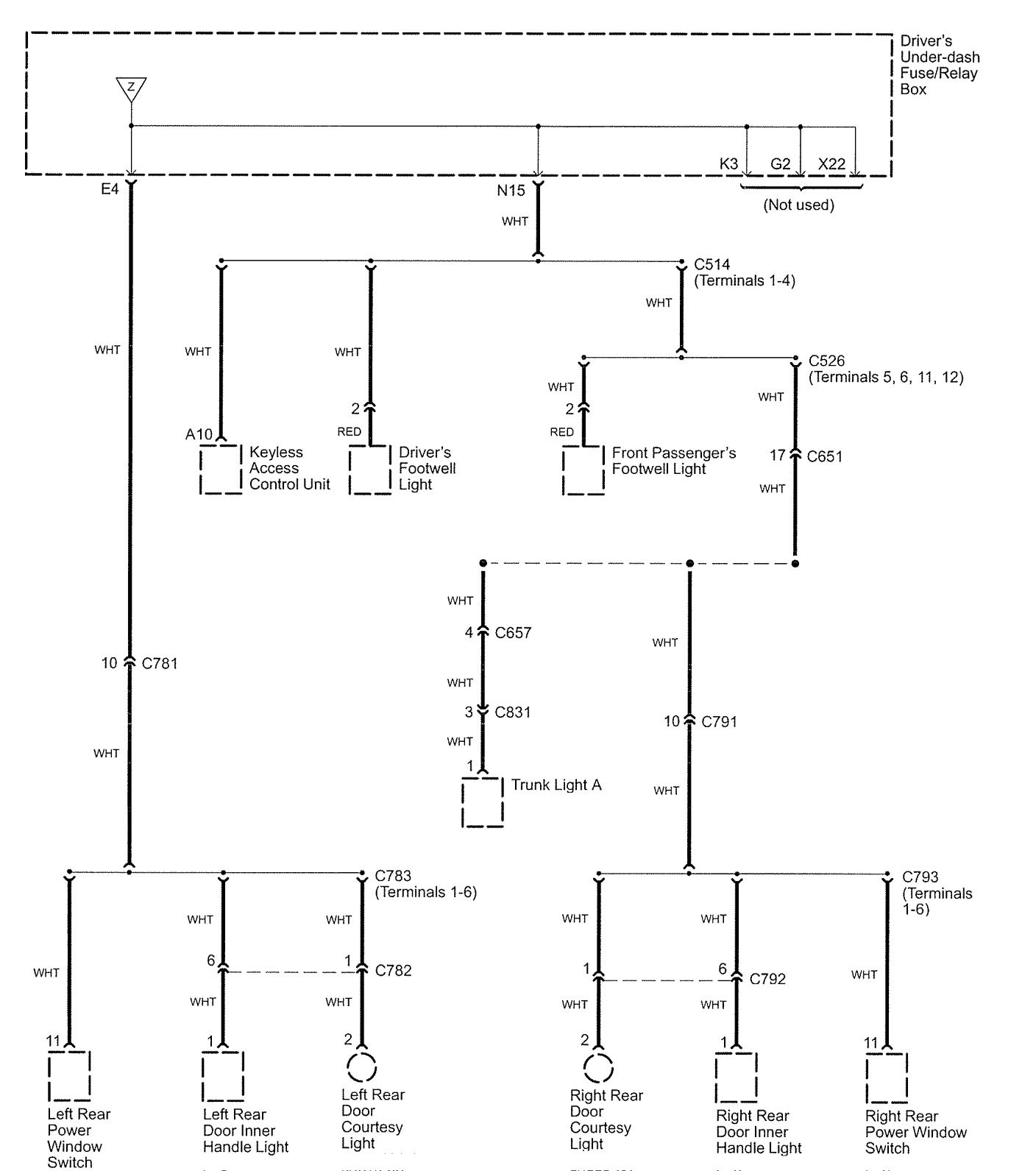

Acura RL - wiring diagram - power distribution (part 12) — Acura RL – wiring diagram – power distribution (part 12)

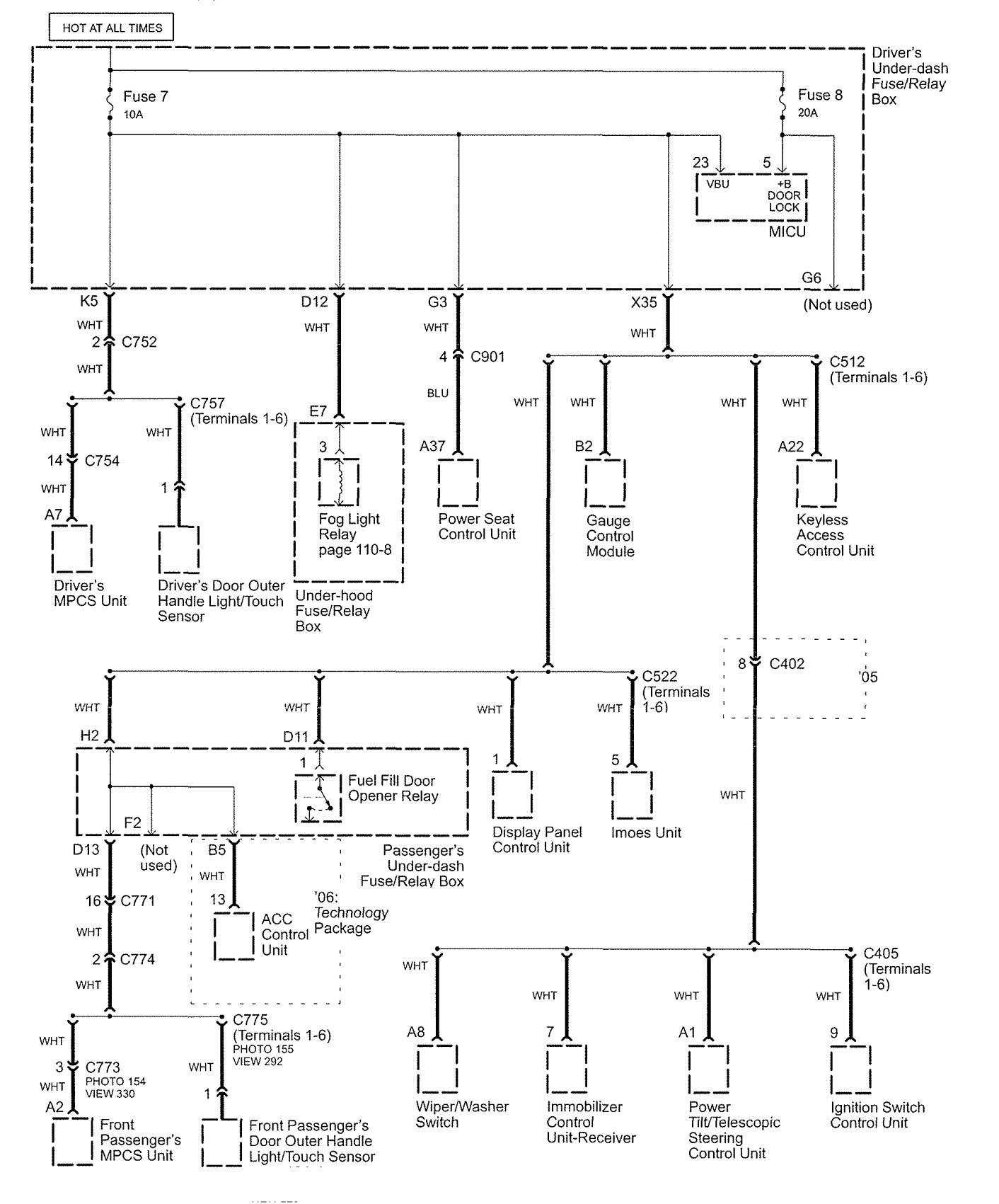

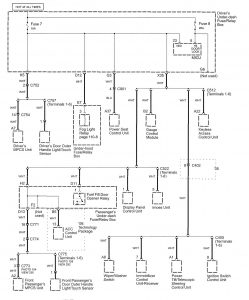

Acura RL - wiring diagram - power distribution (part 13) — Acura RL – wiring diagram – power distribution (part 13)

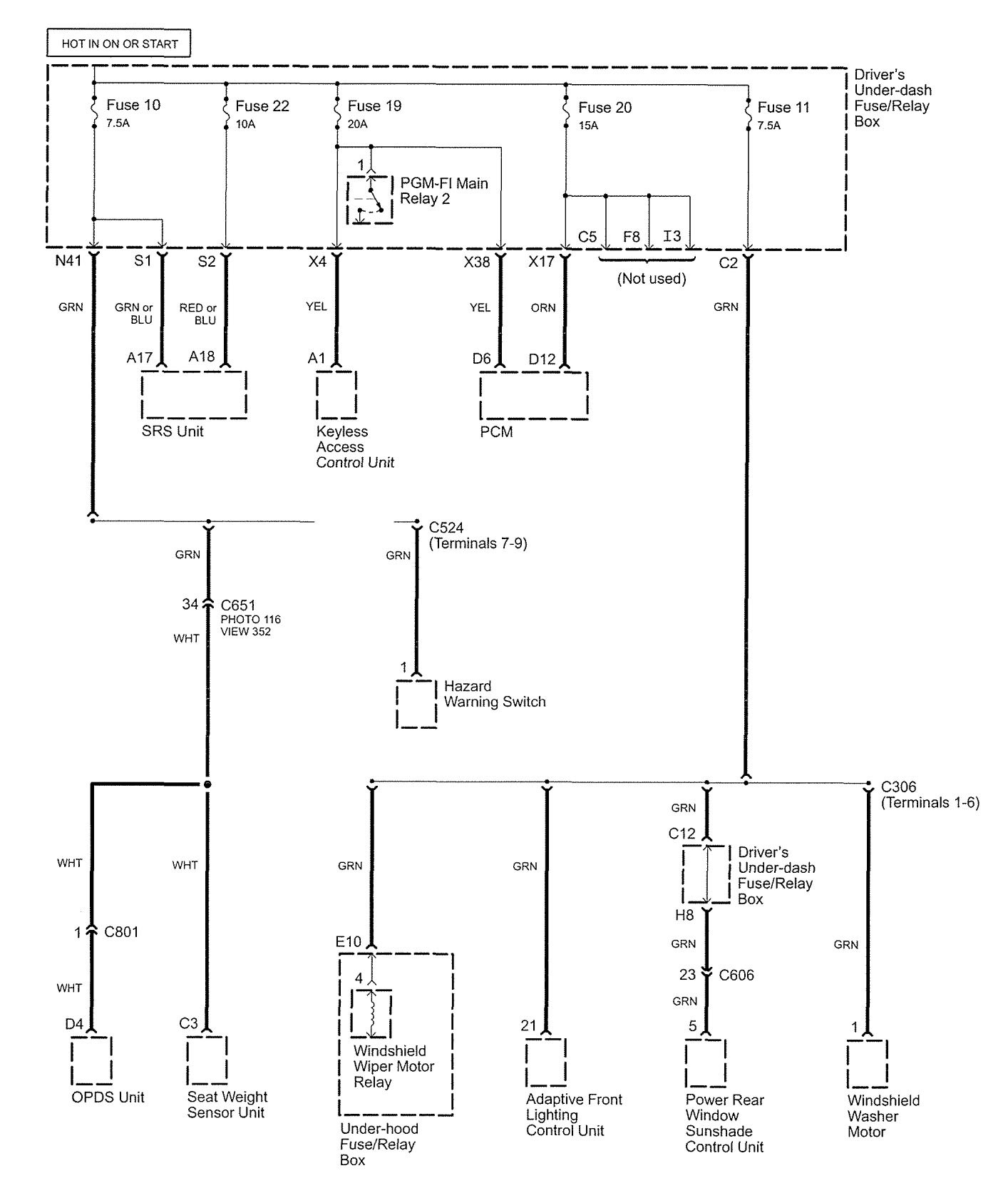

Acura RL - wiring diagram - power distribution (part 14) — Acura RL – wiring diagram – power distribution (part 14)

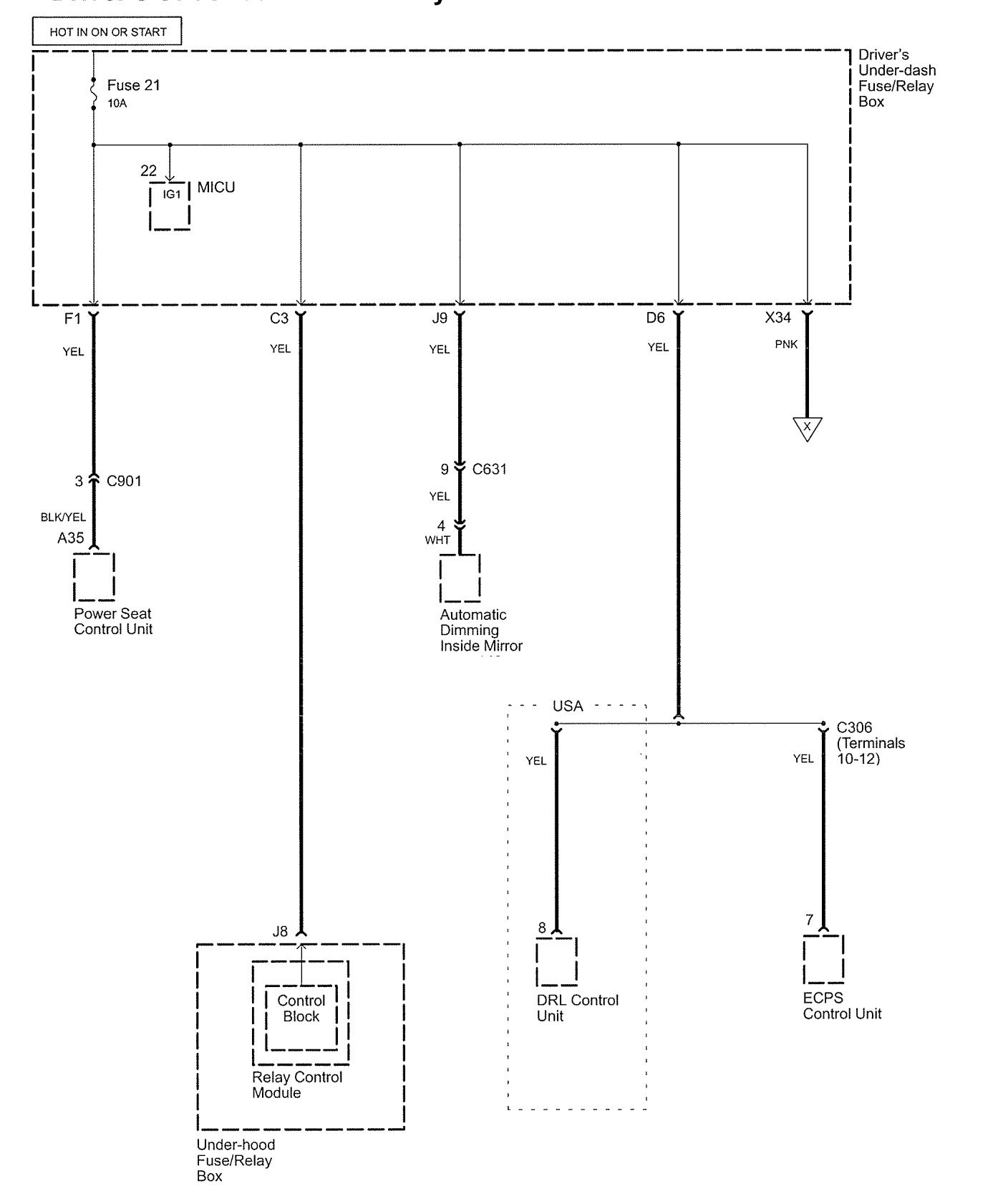

Acura RL - wiring diagram - power distribution (part 15) — Acura RL – wiring diagram – power distribution (part 15)

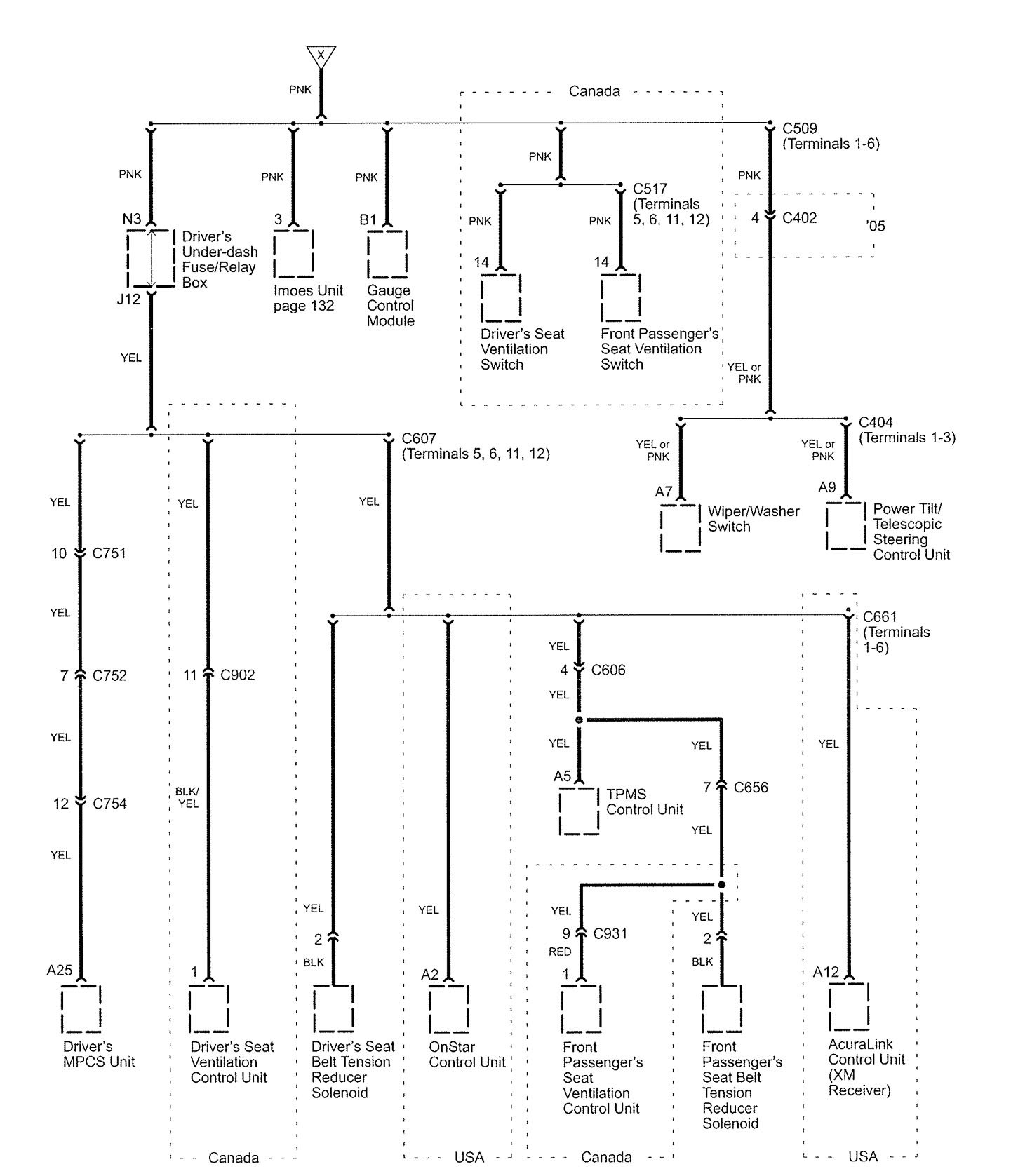

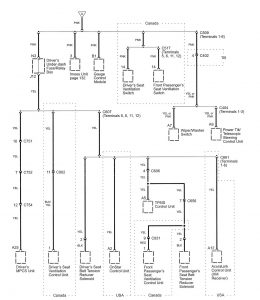

Acura RL - wiring diagram - power distribution (part 16) — Acura RL – wiring diagram – power distribution (part 16)

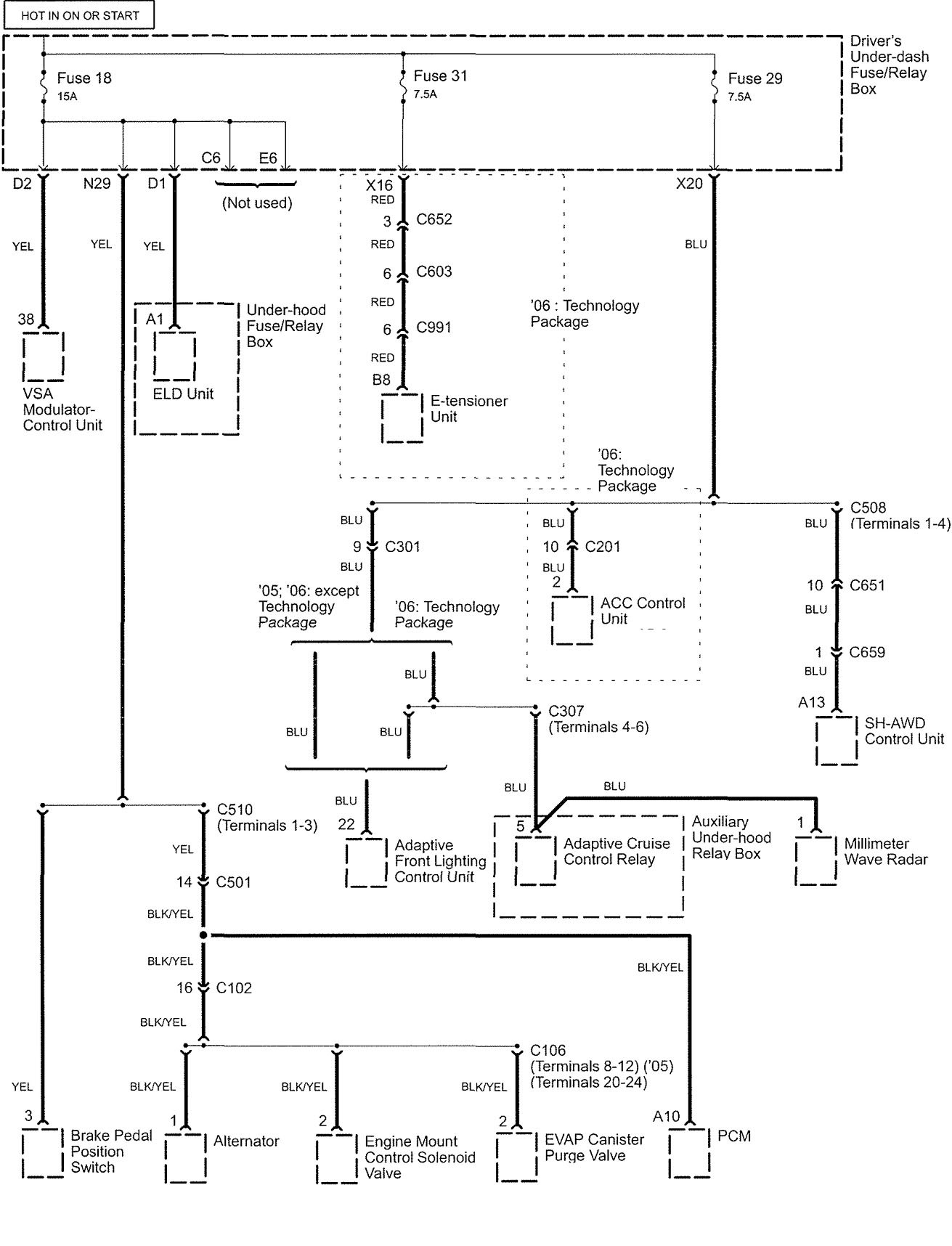

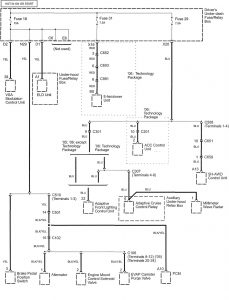

Acura RL - wiring diagram - power distribution (part 17) — Acura RL – wiring diagram – power distribution (part 17)

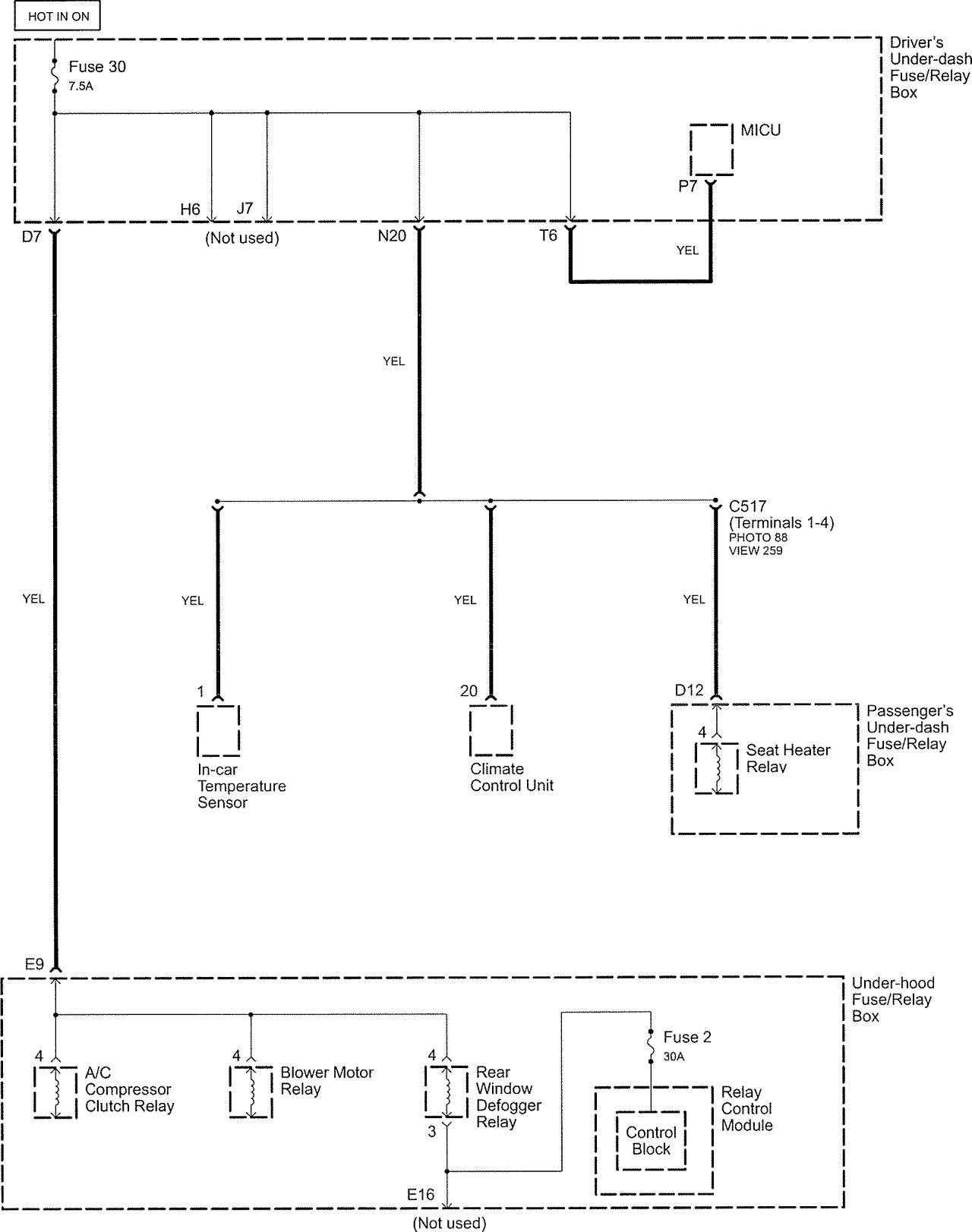

Acura RL - wiring diagram - power distribution (part 18) — Acura RL – wiring diagram – power distribution (part 18)

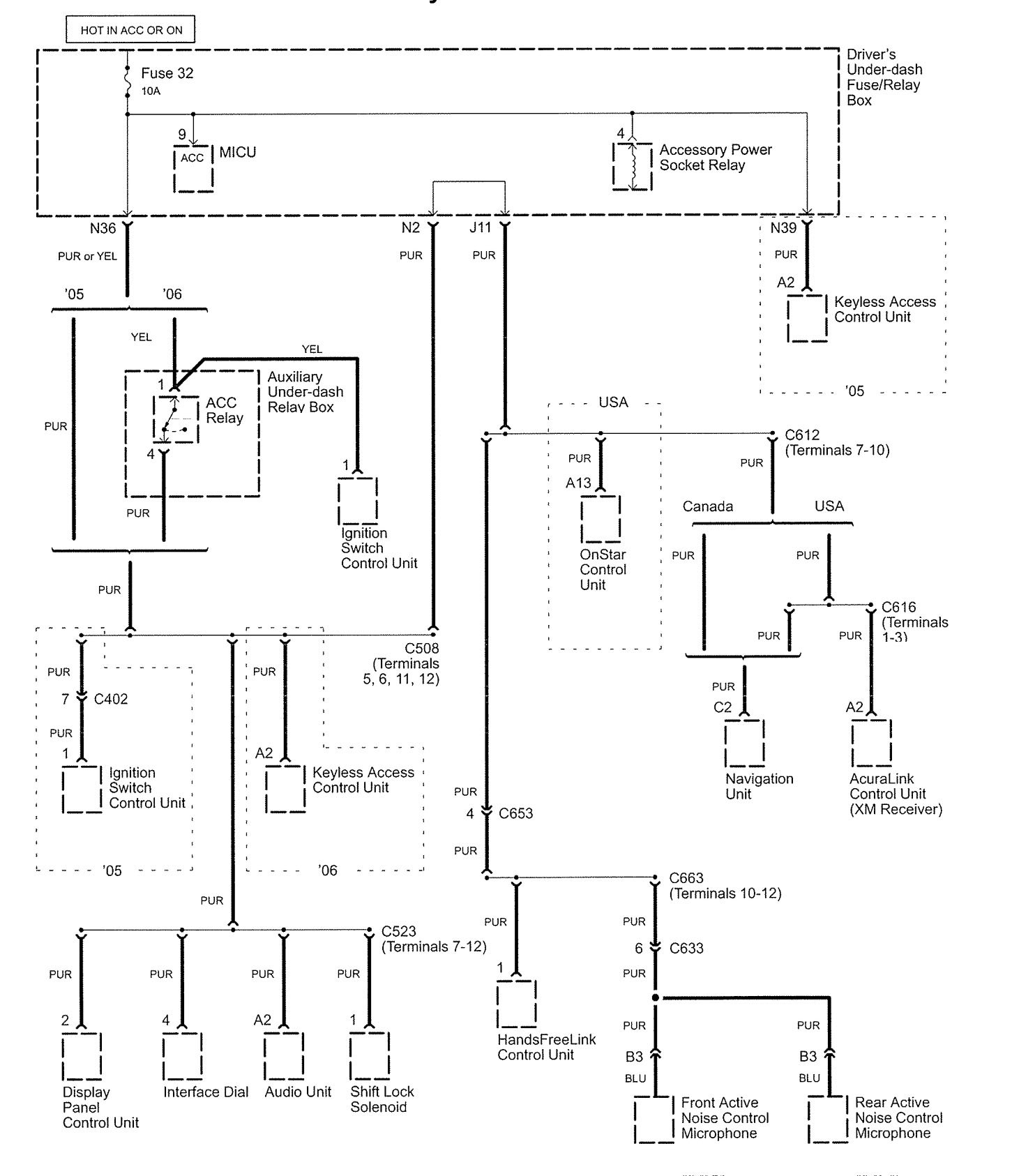

Acura RL - wiring diagram - power distribution (part 19) — Acura RL – wiring diagram – power distribution (part 19)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
