Acura RL (2005) – wiring diagrams – speed control

25 September 2017 admin Acura, RL 0

Acura RL (2005) – wiring diagrams – speed control

Year of productions:  2005

Speed control

Acura RL - wiring diagram - speed control (part 1)

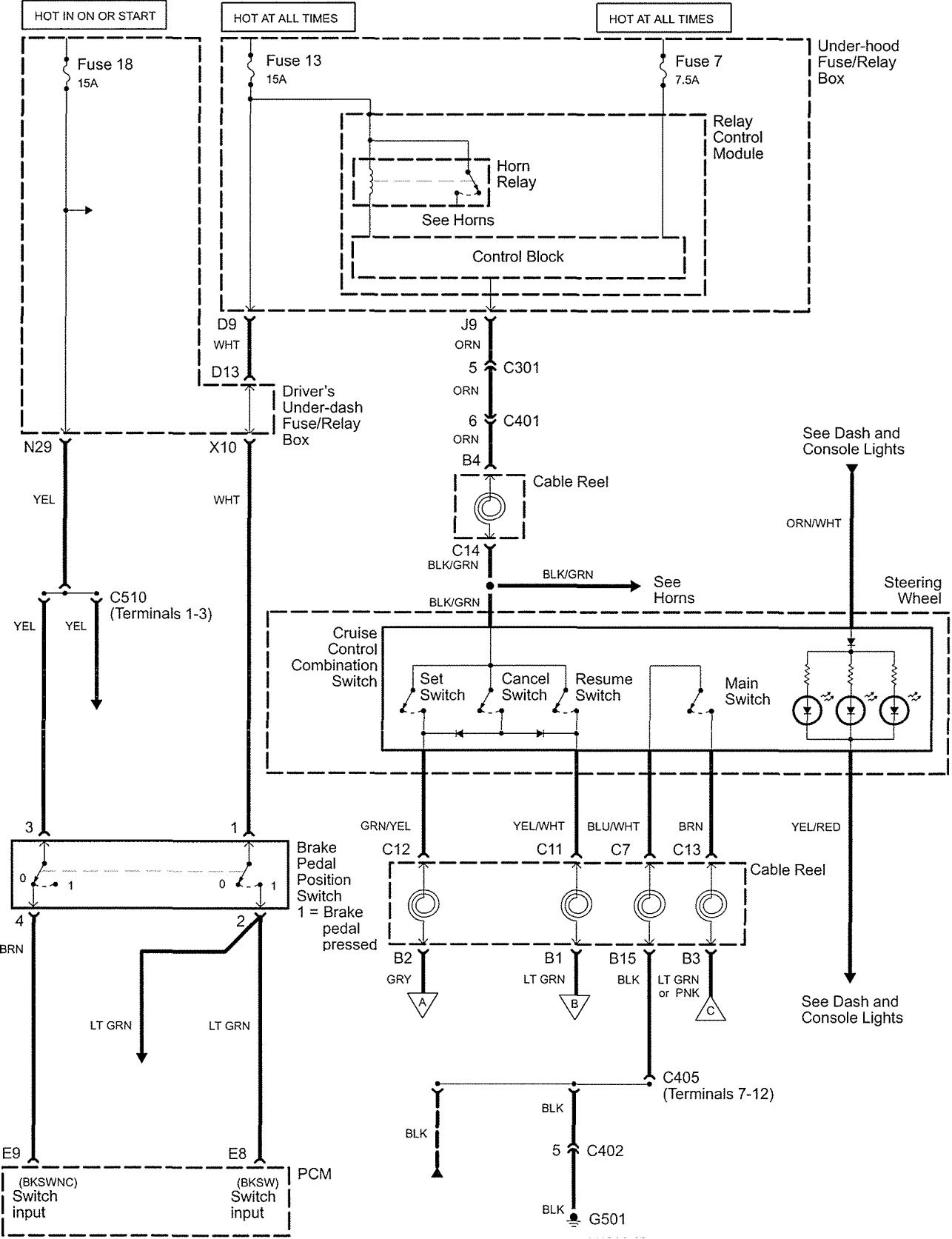

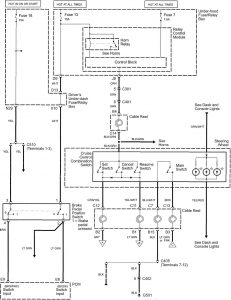

Acura RL – wiring diagram – speed control (part 1)
Acura RL - wiring diagram - speed control (part 2)

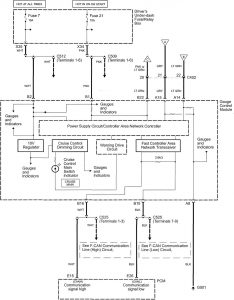

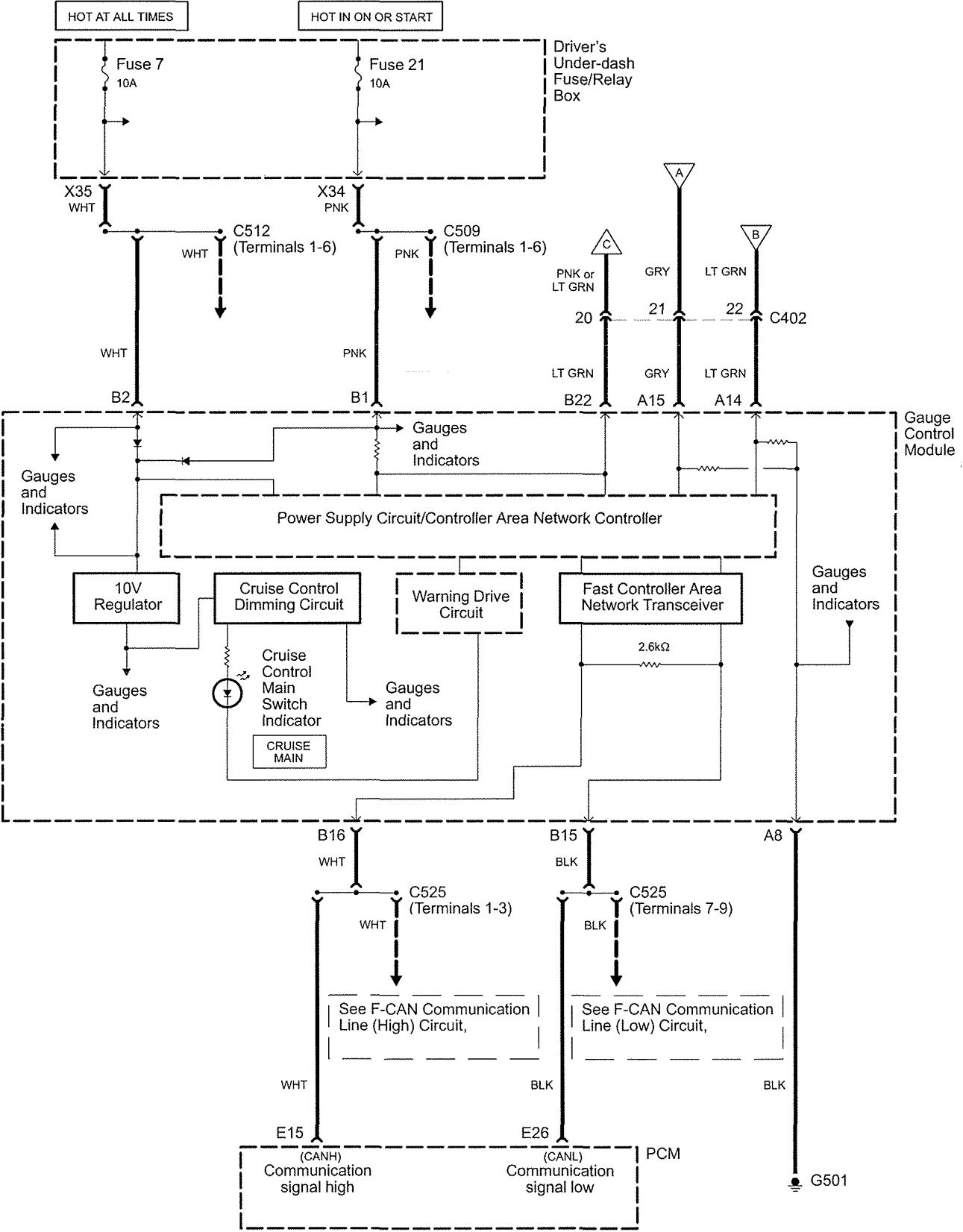

Acura RL – wiring diagram – speed control (part 2)
Acura RL - wiring diagram - speed control (part 3)

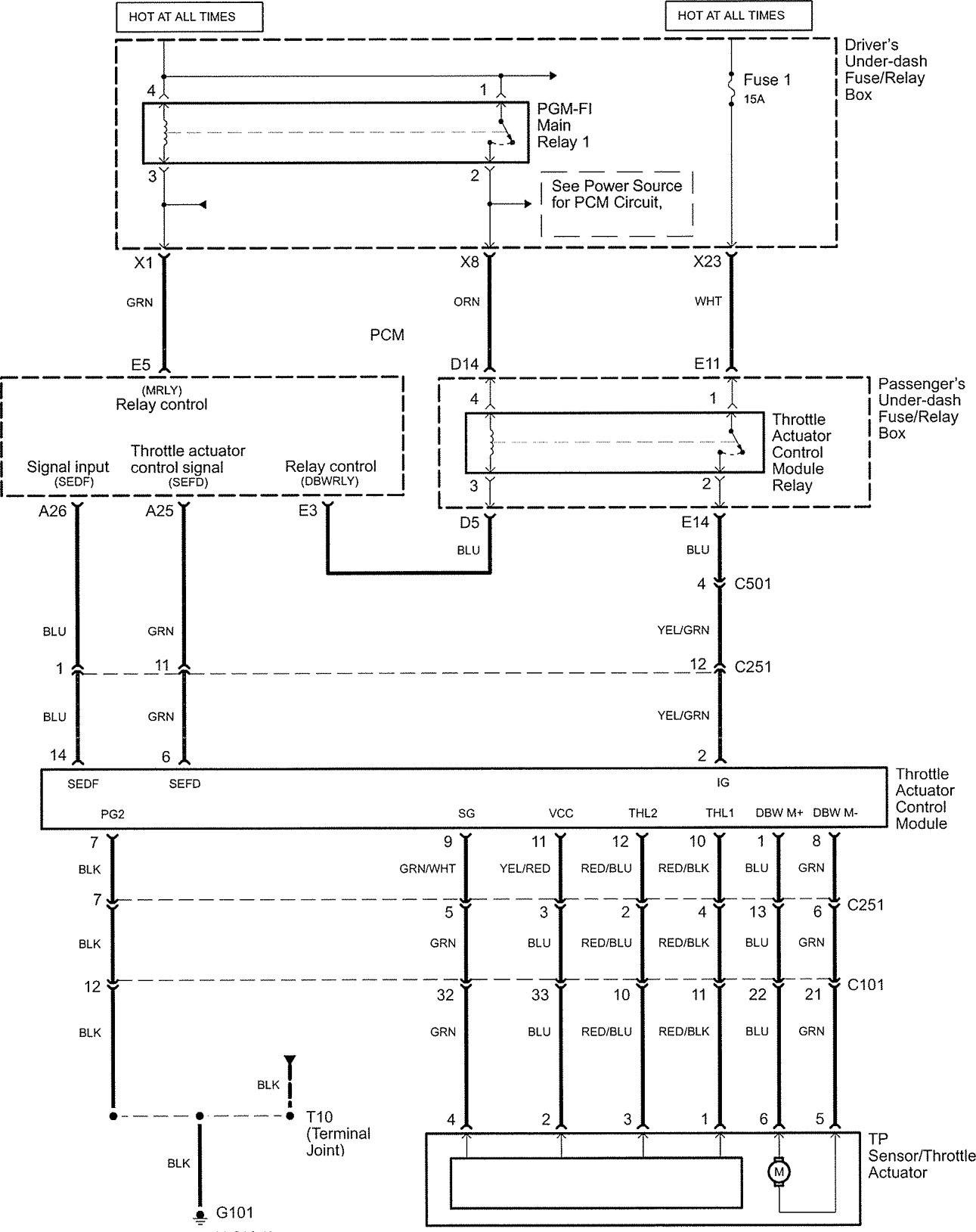

Acura RL – wiring diagram – speed control (part 3)
Acura RL - wiring diagram - speed control (part 4)

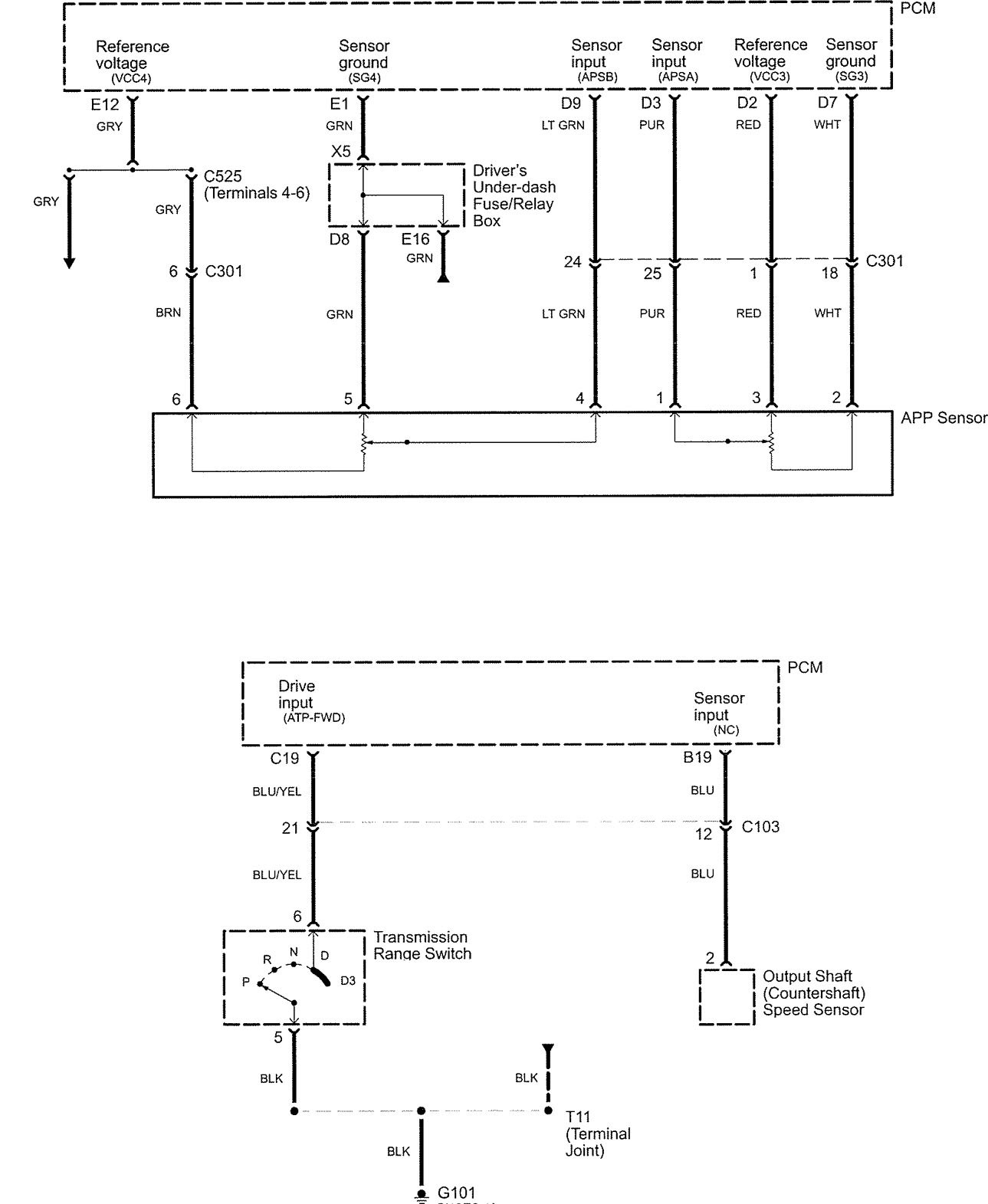

Acura RL – wiring diagram – speed control (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
